Q6WBT1011ATransmitter

RS1-G5, RS3-G5, RS4-G5 RS7-G5 (2-Way Pagin g System) REMOTESTARTSYSTEM OPERATING INSTRUCTIONS CONGRATULATIONSon your ch oiceof a Cool Start™RemoteEngineStarter andKeyl essEntrywithDP Technology by Crimest opper Security Product s Inc.This booklet co ntains the information nece ssary for operating your sy st em. If any quest ions arise , co ntact your inst allation dealer or Crimest opper Secu rity Product s Inc. The RS1-G5, RS3-G5 & RS4-G5 systemcomes with (2) 1-way AMremotes The RS7-G5 FMsystemcomes with a 2-Way LCD Pager and a 1-Way FMremote. OPTIONA L Featuresa re to be co nnect ed only if desi red or agreed upon by the cu st omer and the inst alling dealer i.e. Door Lock s, Trunk Pop, Dome Light Illumination, Horn-Honk, Anti-Grind, etc.Thesefeatures may alsorequire additional parts and/or labor fees.Consu lt with your inst aller beforehand to be su re of what is going to be inst alled with your particu lar sy st em. This devi ceco mplies with FCCRules part 15. Operation is su bject to the following two co nditions: 1) This devi cemay not ca useinterference , and(2) thisdevi cemustaccept any interferencethat may be rece ive d, incl uding interferencethat may ca useundesi red operation.The manufact urer is not resp onsi blefor anyradioor TVinterferenceca use dby unauthorize d modifica tion to this equipment. Suchmodifica tion co uld vo id the use r's authority to operate the equi pment. REV7.13.15 2 TABLE OF CONTENTS Operation Cautions & Warnings....................................................................................................2 Using the Remote Control (1, 4 and 5 button).................................................................................3-4 Using the 2-Way Pager...............................................................................................................5-6 Setting the Clock and Beep or Vibrate Selection...........................................................................6-7 Status LED..................................................................................................................................8 Remote Engine Control.............................................................................................................8-11 Turbo Timer Mode.......................................................................................................................12 Manual Transmission Mode.........................................................................................................13 Convenience and Safety Features.............................................................................................14-15 Transmitter Programming.......................................................................................................16-17 2 Vehicle Operation.....................................................................................................................18 No Factory Keyless Entry after Remote Start.................................................................................19 Remote Start Diagnostics...........................................................................................................19 2-Way Data Port and Smart Phone Data Port.................................................................................20 Remote Battery Replacement (1, 4 and 5 button remote).............................................................21-23 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in which all items, such as parking brake and all associated components, door switches, transmission shift linkage, throttle linkage, and all engine safety features, are in perfect working condition. IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system and its safety features. B) Check for proper operation of the system prior to accepting delivery of the vehicle from the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper operation of this system and its safety features. D) Always leave the doors and windows closed and locked to protect against accidents and theft. DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes 3 USING THE REMOTE CONTROL RS1-G5 RS3-G5 RS1-G5: The transmitter supplied with this system is a single button remote control. RS3-G5: The transmitter supplied with this system has 4 vertical buttons – Lock, Unlock, Vehicle Select and Start. To eliminate the possibility of accidentally starting the vehicle, there are (3) choices for button press selection. Option # 6 will allow you to change whether the Remote Starter is activated by a: 1. Double Press – 2 presses of Start button. 2. *Single ½ second press (Default). 3. Press and Hold Start button 2 seconds. *Default = 1 single press Start* Please consult your installer to change programmable options VEH 4 USING THE 5 BUTTON REMOTE CONTROL VEH UNLOCK START DISARM / ARM / LOCK TRUNK VEHICLE SELECT REMOTE VALET = LOCK + UNLOCK (4 seconds) Option 27 has 3 choices for Remote Valet. 1. Double Press. 2. 4 Second Press (Default). 3. OFF (no Remote Valet). NOTE: The VEH button can be used to keep remote control from accidentally operating your vehicle.. FM 1-WAY VEH 1 = Green LED VEH 2 = Red LED AUX Outputs thru Data AUX 1 = Trunk + Lock AUX 2 = Trunk + Unlock AUX 3 = Trunk + Start AUX 4 = Lock + Start (Requires Canbus Data Module) AM 1-WAY VEH 1 = Blue LED VEH 2 = Red LED 5 USING THE 2-WAY PAGER TRANSMITTER POWER OFF FUNCTION To turn Power ON, press and hold unlock button 2 seconds. To turn Power OFF, press and hold unlock button 5 seconds. Valet Mode Battery Life Sensor Warning …

Text truncated - open the document above for the full version.

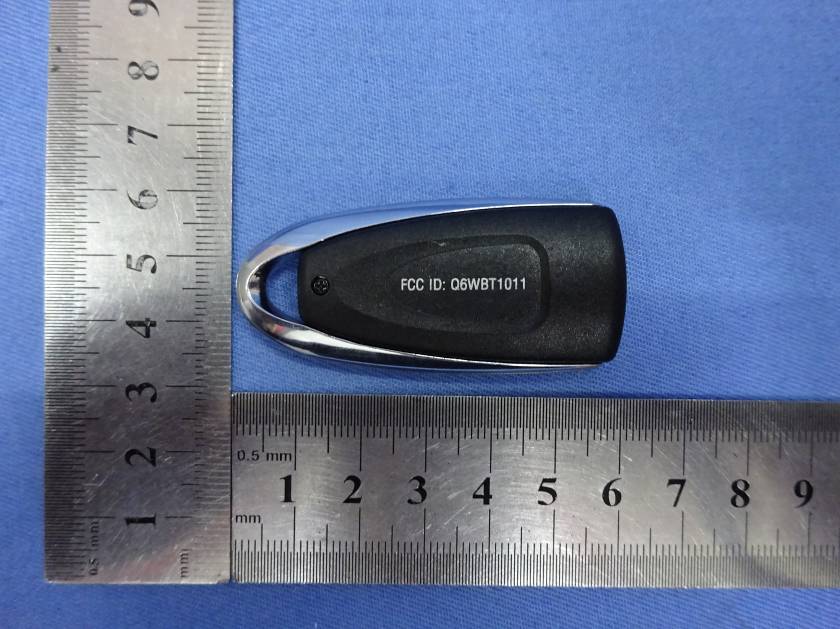

Label : Specifications: Text is White in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be laser-printed at a conspicuous location on the EUT. Label Location on EUT: Label Location FCC ID:Q6WBT1011A

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 83.02dBuV/m @3m Ant gain 0dBi; so Ant numeric gain=1 So pt={[10 (83.02/20) /10 6 x3] 2 /30x1}x1000mW = 0.06 mW So (0.06 mW/5mm)x √0.43392GHz = 0.008 <3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE15080185201 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS or testing done by GTS in connection with, distribution or use of the product described in this report must be approved by GTS in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. Cover Page FCC REPORT Applicant: STEELMATE CO., LTD. Address of Applicant: Steelmate Industrial Park, Heping Street, Dongfu Road, Dongfeng Town, Zhongshan, China Equipment Under Test (EUT) Product Name: Transmitter Model No.: BT1011 Trade Mark: Steelmate FCC ID: Q6WBT1011A Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231:2014 Date of sample receipt: October 08, 2015 Date of Test: October 09-14, 2015 Date of report issued: October 15, 2015 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE15080185201 Global United Technology Services Co., Ltd. Project No.: GTSE150801852RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 23 2 Version Version No. Date Description 00 October 15, 2015 Original Prepared By: Date: October 15, 2015 Project Engineer Check By: Date: October 15, 2015 Reviewer Report No.: GTSE15080185201 Global United Technology Services Co., Ltd. Project No.: GTSE150801852RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 23 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 6 5.4 TEST FACILITY .................................................................................................................................... 6 5.5 TEST LOCATION ................................................................................................................................. 6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 6 6 TEST INSTRUMENTS LIST ..................................................................................................................... 7 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 8 7.1 ANTENNA REQUIREMENT ..................................................................................................................... 8 7.2 RADIATED EMISSION METHOD ............................................................................................................. 9 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 11 7.2.2 Spurious emissions .................................................................................................................... 13 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 16 7.4 RELEASE TIME .................................................................................................................................. 17 8 TEST SETUP PHOTO ............................................................................................................................ 18 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 19 Report No.: GTSE15080185201 Global United Technology Services Co., Ltd. Project No.: GTSE150801852RF Room 301-309, 3th Floor, Block A, Huafeng Jinyuan Business Building, No. 300 Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, China Telephon…

Text truncated - open the document above for the full version.

Radiated Emission
