Q6WBT4312ATransmitter

RS1-G5, RS3-G5, RS4-G5 RS4-G5 FM (1-Way System) RS7-G5 FM (2-Way Paging System) REMOTE START SYSTEM OPERATING INSTRUCTIONS CONGRATULATIONS on your choice of a Cool Start™ Remote Engine Starter and Keyless Entry with DP Technology by Crimestopper Security Products Inc. This booklet contains the information necessary for operating your system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. The RS1-G5, RS3-G5 & RS4-G5 system comes with (2) 1-way AM remotes The RS4-G5 FM system comes with (2) 1-way FM remotes. The RS7-G5 FM system comes with a 2-Way LCD Pager and a 1-Way FM remote. OPTIONAL Features are to be connected only if desired or agreed upon by the customer and the installing dealer i.e. Door Locks, Trunk Pop, Dome Light Illumination, Horn-Honk, Anti-Grind, etc. These features may also require additional parts and/or labor fees. Consult with your installer beforehand to be sure of what is going to be installed with your particular system. CRIMESTOPPER SECURITY PRODUCTS, INC. 1770 S. TAPO STREET, SIMI VALLEY, CA. 93063 REV 07-2014 This device complies with FCC Rules part 15. Operation is subject to the following two conditions: 1) This device may not cause interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. Such modification could void the user's authority to operate the equipment. 2 TABLE OF CONTENTS Operation Cautions & Warnings....................................................................................................2 Using the Remote Control (1, 4 and 5 button).................................................................................3-4 Using the 2-Way Pager...............................................................................................................5-6 Setting the Clock and Beep or Vibrate Selection...........................................................................6-7 Status LED..................................................................................................................................8 Remote Engine Control.............................................................................................................8-11 Turbo Timer Mode.......................................................................................................................12 Manual Transmission Mode.........................................................................................................13 Convenience and Safety Features.............................................................................................14-15 Transmitter Programming.......................................................................................................16-17 2 Vehicle Operation.....................................................................................................................18 No Factory Keyless Entry after Remote Start.................................................................................19 Remote Start Diagnostics...........................................................................................................19 2-Way Data Port and Smart Phone Data Port.................................................................................20 Remote Battery Replacement (1, 4 and 5 button remote).............................................................21-23 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in which all items, such as parking brake and all associated components, door switches, transmission shift linkage, throttle linkage, and all engine safety features, are in perfect working condition. IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system and its safety features. B) Check for proper operation of the system prior to accepting delivery of the vehicle from the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper operation of this system and its safety features. D) Always leave the doors and windows closed and locked to protect against accidents and theft. DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide fumes 3 USING THE REMOTE CONTROL RS1-G5 RS3-G5 RS1-G5: The transmitter supplied with this system is a single button remote control. RS3-G5: The transmitter supplied with this system has 4 vertical buttons – Lock, Unlock, Vehicle Select and Start. To eliminate the possibility of accidentally starting the vehicle, there are (3) choices for button press selection. Option # 6 will allow you to change whether the Remote Starter is activated by a: 1. Double Press – 2 presses of Start button. 2. *Single ½ second press (Default). 3. Press and Hold Start button 2 seconds. *Default = 1 single press Start* Please consult your installer to change programmable options VEH 4 USING THE 5 BUTTON REMOTE CONTROL VEH UNLOCK START DISARM / ARM / LOCK TRUNK VEHICLE SELECT REMOTE VALET = LOCK + UNLOCK (4 seconds) Option 27 has 3 choices for Remote Valet. 1. Double Press. 2. 4 Second Press (Default). 3. OFF (no Remote Valet). NOTE: The VEH button can be used to keep remote control from accidentally operating your vehicle.. FM 1-WAY VEH 1 = Green LED VEH 2 = Red LED AUX Outputs thru Data AUX 1 = Trunk + Lock AUX 2 = Trunk + Unlock AUX 3 = Trunk + Start AUX 4 = Lock + Start (Requires Canbus Data Module) AM 1-WAY VEH 1 = Blue LED VEH 2 = Red LED 5 USING THE 2-WAY PAGER TRANSMITTER POWER OFF FUNCTION To turn …

Text truncated - open the document above for the full version.

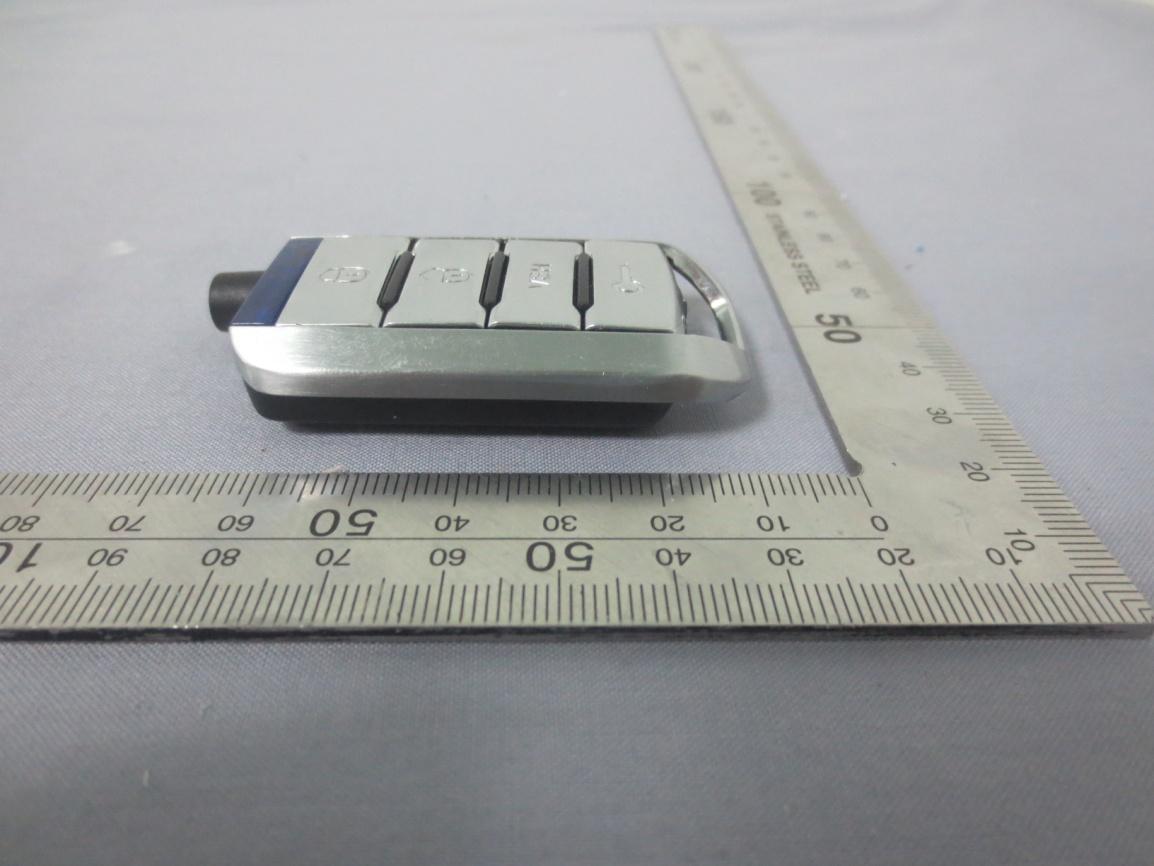

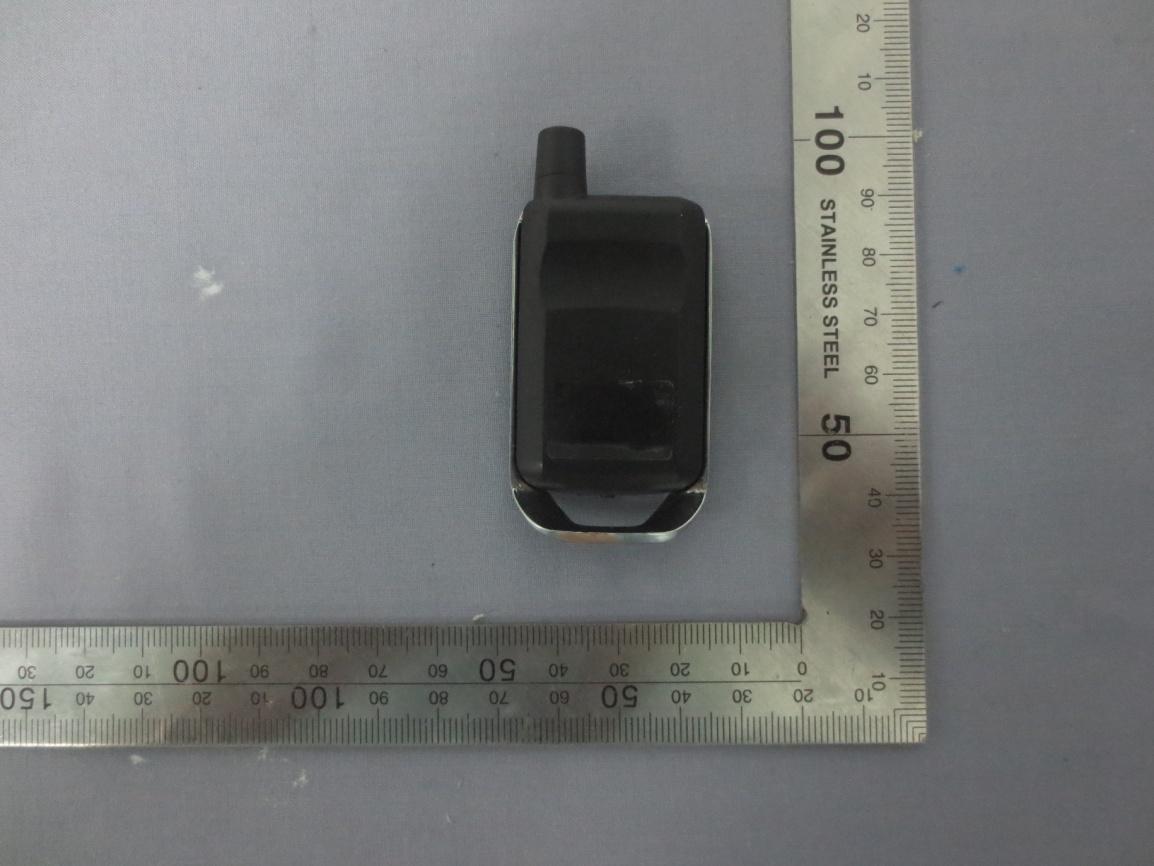

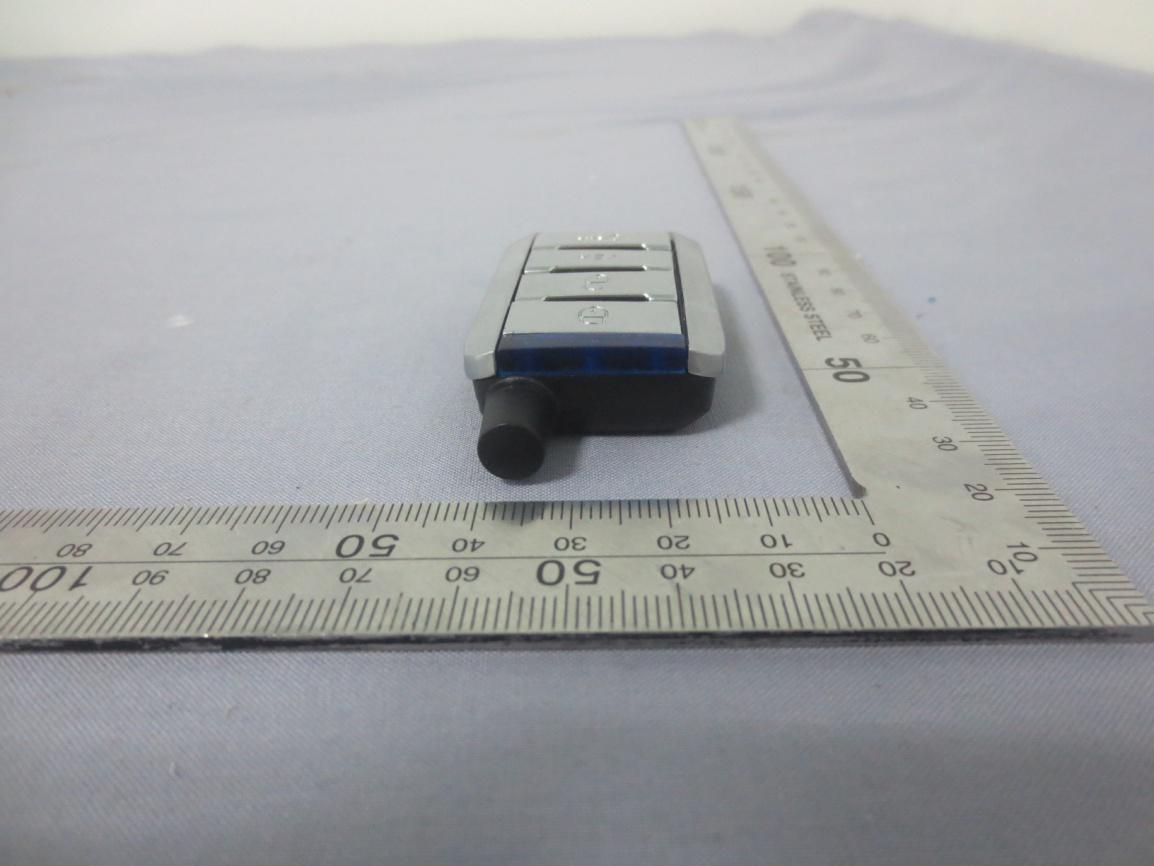

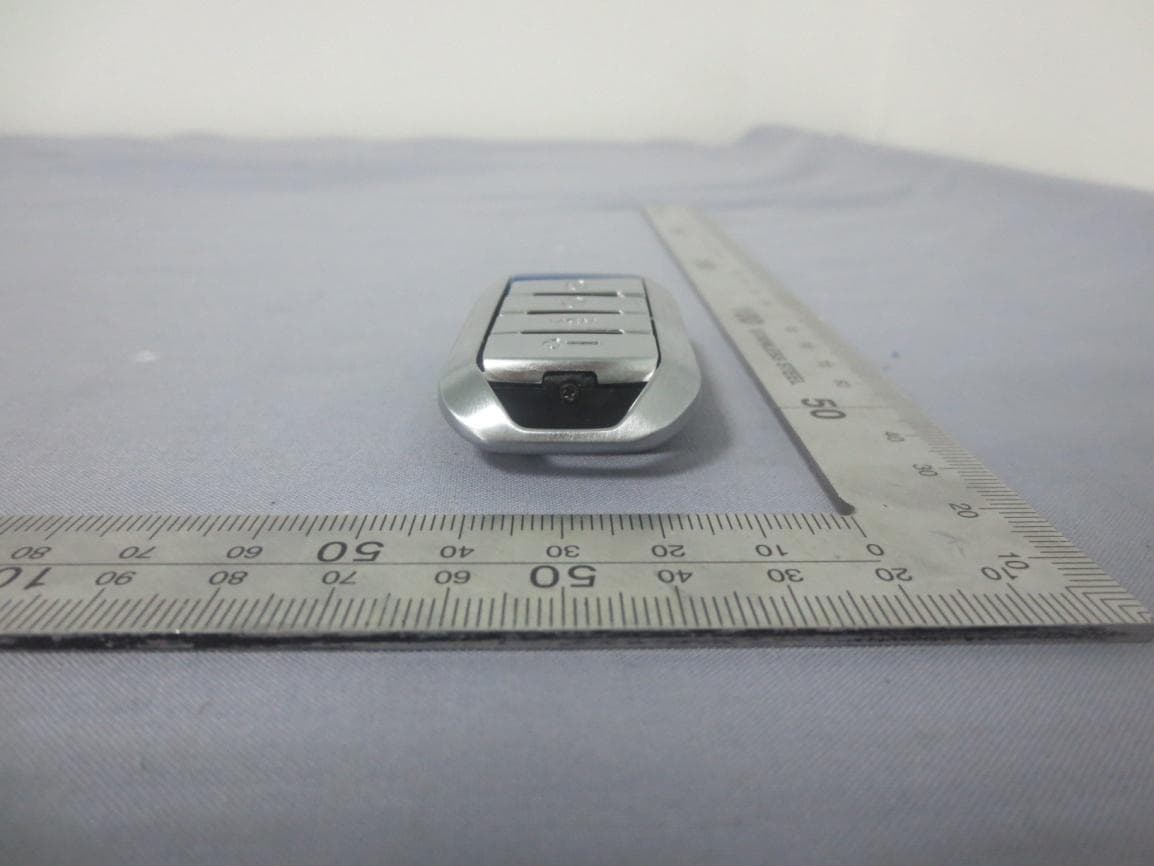

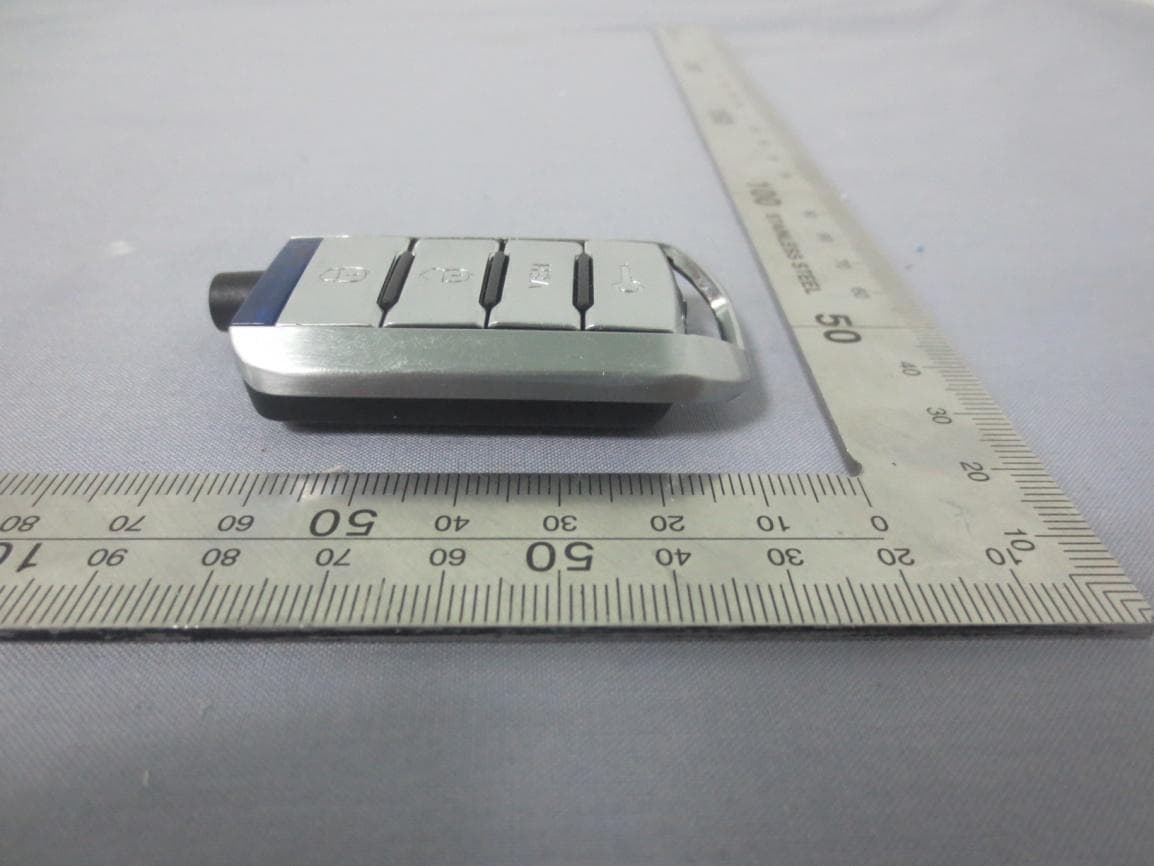

Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 19 of 25 8 EUT Constructional Photos Exterior Photo Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 20 of 25 Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 21 of 25

Label : Specifications: Text is White in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be laser-printed at a conspicuous location on the EUT. Label Location on EUT: FCC ID:Q6WBT4312A Label Location

Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 22 of 25 Interior photo Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 23 of 25 Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 24 of 25 Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 25 of 25 ------End of report------

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Ant gain 5dBi ;so Ant numeric gain=3.16 Field strength = 94.92 dBuV/m @3m So Pt={ [10 ( 94.92 /20) /10 6 x3] 2 /30x3.16 }x1000 mW =0.3 mW So ( 0.3 mW/5mm)x √0.43392 GHz = 0.04 < 3 Then SAR evaluation is not required

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS15070055801 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: STEELMATE CO.,LTD. Address of Applicant: Steelmate Industrial Park, Heping Street, Dongfu Road, Dongfeng Town, Zhongshan City, Guangdong, P.R.China 528425 Equipment Under Test (EUT) Product Name: Transmitter Model No.: 4312A Trade mark: steelmate FCC ID: Q6WBT4312A Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231(a) Date of sample receipt: 13 Jul., 2015 Date of Test: 13 Jul., to 27 Jul., 2015 Date of report issue: 27 Jul., 2015 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 25 2 Version Version No. Date Description 00 27 Jul., 2015 Original Prepared By: Date: 27 Jul., 2015 Report Clerk Check By: Date: 27 Jul., 2015 Project Engineer Tested By: Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 25 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST MODE ............................................................................................................................................................ 5 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 5 5.5 LABORATORY FACILITY.......................................................................................................................................... 6 5.6 LABORATORY LOCATION ....................................................................................................................................... 6 5.7 TEST INSTRUMENTS LIST ....................................................................................................................................... 6 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 7 6.1 ANTENNA REQUIREMENT ....................................................................................................................................... 7 6.2 RADIATED EMISSION ............................................................................................................................................. 8 6.2.1 Field Strength Of The Fundamental Signal .............................................................................................. 10 6.2.2 Spurious Emissions ..................................................................................................................................... 12 6.3 20DB BANDWIDTH ............................................................................................................................................... 14 6.4 DURATION TIME ................................................................................................................................................... 16 7 TEST SETUP PHOTOS .................................................................................................................................. 18 8 EUT CONSTRUCTIONAL PHOTOS .............................................................................................................. 19 Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 …

Text truncated - open the document above for the full version.

Report No: CCIS15070055801 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS150700558RF No. B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 18 of 25 7 Test Setup Photos Radiated Emission(below 1G) Radiated Emission(above 1G)
