Q6ZHHXIT3ZOmron NFC Communication Tray

INTRODUCTION Thank you for purchasing the OMRON NFC Communication Tray. Fill-in for future reference DATE PURCHASED: ___________ • Staple your purchase receipt here • Register your product online at www.register-omron.com Please read this instruction manual thoroughly before using the unit. Please keep this for future reference. IMPORTANT SAFETY INFORMATION To assure the correct use of the product, basic safety use should always be followed including the warnings and cautions listed in this instruction manual. SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient or damage to the equipment or other property. OPERATING THE DEVICE This product is a reader-writer that uses radio waves for RFID equipment. The application and location of this product may affect medical devices. The following precaution must be observed in the application of this product to minimize the effects on medical devices. Any person with an implanted medical device must keep the area where the device is implanted at least 9 inches (22 cm) away from the antenna of this product. Do not use damaged USB cables or plugs. Doing so may cause an electric shock, short-circuiting, or fi re. Read all information in the instruction manual and any other literature included in the box before using the unit. Operate the unit only as intended. Do not use for any other purpose. Do not touch the USB Connector with wet hands. Do not use the unit near objects that emit strong magnetic or radio waves, in locations where it may be exposed to static electricity, on a tilted surface or in an unstable place where it may be subject to vibrations. Using the unit in such environments may result in unit malfunction or data transfer failure. Do not place devices that do not support the NFC Communication Tray directly on or near the unit. Do not place more than two devices directly on or near the unit. Do not unplug the USB cable while the unit is transferring data. Doing so may result in a transfer failure. Do not insert any foreign objects into the USB plug. Doing so may result in a function failure. To ensure correct usage, only use this product with a NFC enabled device. For more information on products that are NFC enabled, visit www. omronhealthcare.com Do not place heavy objects or devices on the USB cable. Do not damage, fabricate, forcefully bend, twist, pull, squeeze, or heat the USB cable. When disconnecting the NFC Communication Tray, do not pull the USB cable. Always hold and pull the USB plug. Do not wrap the USB cable around the tray when storing the unit. Doing so may damage the cable. The unit may not operate normally if a USB hub or extension cable is used. If it does not function correctly, directly connect the unit to the PC. INSTRUCTION MANUAL NFC Communication Tray Model: HHX-IT3-Z HHX-IT3-Z 1883299-7 A HHX-IT3-Z_A_EN_M09_121019.pdf CARE AND MAINTENANCE Do not disassemble or modify the unit. Changes or modifi cations not approved by Omron Healthcare will void the user warranty. Dispose of the unit and components according to applicable local regulations. Unlawful disposal may cause environmental pollution. CARE AND MAINTENANCE To keep the unit in the best condition and protect it from damage, follow the directions listed below: CAUTION Do not disassemble or modify the unit. Changes or modifi cations not approved by Omron Healthcare will void the user warranty. Clean the unit with a soft dry cloth. Do not use any abrasive or volatile cleaners. To remove stubborn stains, wipe the unit with a damp cloth moistened with water or mild detergent. Then, wipe the unit with a dry cloth. Do not immerse the unit or any of the components in water. The unit is not waterproof. Do not wash it or touch it with wet hands. Be careful that water does not get into the unit. Store the unit in a safe and dry location. Avoid exposure to direct sunlight, high temperatures, high humidity, water, dust or salty air. Do not subject the unit to strong shock, drop, or step on it. Avoid exposing the unit to chemical or corrosive vapors. Keep the unit out of the reach of young children. Use of the unit must be consistent with the instructions provided in this manual. TRANSFERRING DATA TO THE PC To begin using the software for the fi rst time, please refer to the device’s instruction. KNOW YOUR UNIT USB plug Tray USB cable Communication area mark ABOUT THE COMMUNICATION FUNCTION FCC CAUTION: This unit complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This unit may not cause harmful interference, and (2) this unit must accept any interference received, including interference that may cause undesired operation. Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the unit. This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the unit and receiver. Connect the unit into an outlet on a circuit different from that to which t…

Text truncated - open the document above for the full version.

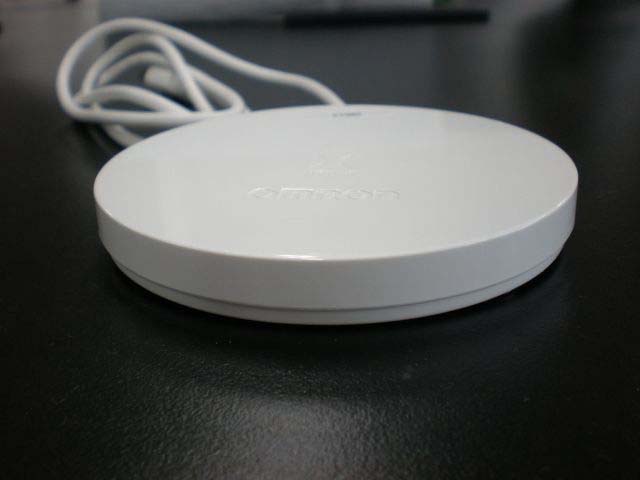

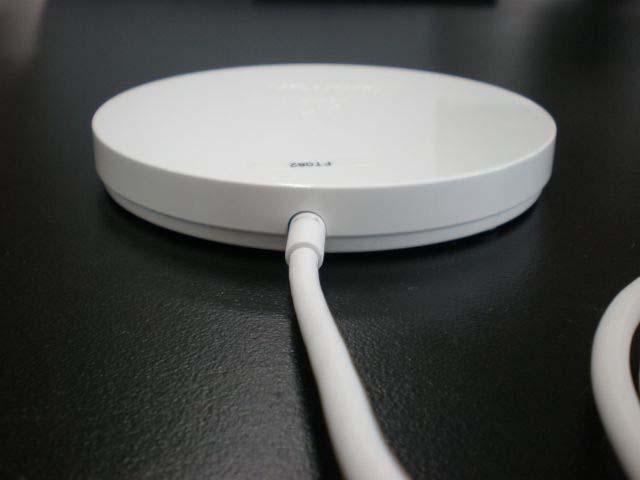

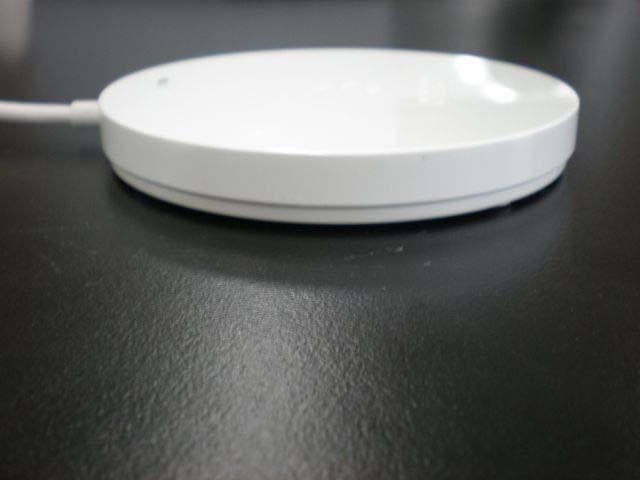

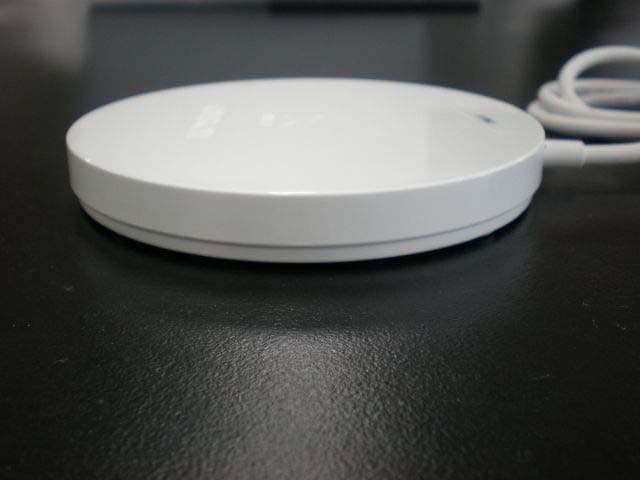

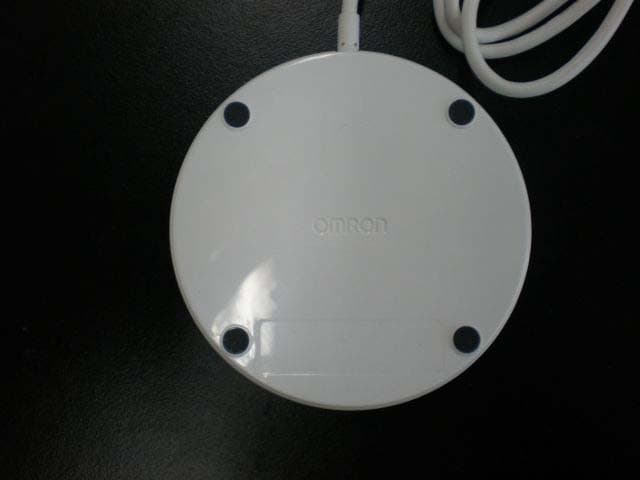

External Photo OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray [Model: HHX-IT3-Z] Top Bottom External Photo OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray [Model: HHX-IT3-Z] Front Rear External Photo OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray [Model: HHX-IT3-Z] Side 1 Side 2

Internal Photo OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray [Model: HHX-IT3-Z] Over View Top Internal Photo OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray [Model: HHX-IT3-Z] Bottom Antenna (Pattern Antenna)

Test report No. : 32LE0231-HO-01-B-R1 Page : 2 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information .................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ...................................................................................... 3 SECTION 3: Test specification, procedures & results ...................................................................... 4 SECTION 4: Operation of E.U.T. during testing .............................................................................. 7 SECTION 5: Conducted emission ....................................................................................................... 9 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ...... 10 SECTION 7: Other test ...................................................................................................................... 11 APPENDIX 1: Data of EMI test ........................................................................................................ 12 Conducted emission ..............................................................................................................................................................12 Fundamental emission and Spectrum Mask .......................................................................................................................19 Spurious emission .................................................................................................................................................................23 Frequency Tolerance ............................................................................................................................................................28 APPENDIX 2: Test instruments ........................................................................................................ 29 APPENDIX 3: Photographs of test setup ......................................................................................... 30 Conducted emission ..............................................................................................................................................................30 Radiated emission .................................................................................................................................................................31 Test report No. : 32LE0231-HO-01-B-R1 Page : 3 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Omron Healthcare Co., Ltd. Address : 53 Kunotsubo, Terado-cho, Muko, Kyoto 617-0002 Japan Telephone Number : +81-75-925-2035 Facsimile Number : +81-75-925-2036 Contact Person : Hirokazu Furukawa SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Omron NFC Communication Tray Model No. : HHX-IT3-Z Serial No. : Refer to Section 4, Clause 4.2 Receipt Date of Sample : August 1, 2012 Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Model No: HHX-IT3-Z (referred to as the EUT in this report) is the Omron NFC Communication Tray. Clock frequency(ies) in the system : 27.12MHz Equipment Type : Transceiver Frequency of Operation : 13.56MHz Type of Modulation : ASK Antenna Type : Loop Coil Antenna Gain : -53.33dBi Power Supply : DC 5.0V Power Supply (inner) : DC 3.0V Test report No. : 32LE0231-HO-01-B-R1 Page : 4 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207: Conducted limits Section 15.225: Operation within the band 13.110-14.010MHz * The revision on August 13, 2012 does not affect the test specification applied to the EUT. * The EUT complies with FCC Part 15 Subpart B: 2012, final revised on August 13, 2012 and effective September 12, 2012. 3.2 Procedures and results Item Test Procedure Specification Worst marginResults Remarks Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 [QP]13.4dB 0.19919MHz, N [AV]6.1dB 0.39874MHz, N Complied - <IC>RSS-Gen 7.2.2 <IC>RSS-Gen 7.2.2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(a) 70.1dB, 13.56000MHz, QP, 0deg. Complied Radiated <IC> RSS-Gen 4.8, 4.11 <IC>RSS-210 A2.6 Spectrum Mask ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(b)(c) 46.6dB 13.11000MHz, QP, 0deg. Complied Radiated <IC>RSS-Gen 4.9, 4.11 <IC> RSS-210 A2.6 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section15.215(c) See data Complied Radiated <IC> - <IC> - Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section15.209, Section 15.225 (d) 0.6dB 583.367MHz, Horizontal, QP Complied Radiated <IC>RSS-Gen 4.9, 4.11 <IC>RSS-210 A2.6 Frequency Tolerance ANSI C63.4:2003 13. Measurement of intentional radiators Section15.225(e) See data Complied Radiated <IC>RSS-Gen 4.7 <IC> RSS-210 …

Text truncated - open the document above for the full version.

Test report No. : 32LE0231-HO-01-B-R1 Page : 30 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 32LE0231-HO-01-B-R1 Page : 31 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 Test report No. : 32LE0231-HO-01-B-R1 Page : 32 of 32 Issued date : September 18, 2012 Revised date : November 15, 2012 FCC ID : Q6ZHHXIT3Z UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 With/Without Tag Without Tag With Tag(NFC) With Tag(RFID) End of Report
