Q74ZT-803TWireless A/V Color Camera (2.4G), transmitter

MODEL ZT-803T PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-803T WIRELESS CAMERA USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO., LTD APPROVAL PA G E S TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN - 2 - FILE NUMBER MODELZT-803T PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model. 4. Connecting the audio and video output with the input of the transmitter. 5. Plug power jack of DC power supply(8V200mA)into the power socket of the CMOS camera(figure 6).(Battery of the same voltage is acceptable.) 6. Turning the micro-adjustment knob (figure 5) on the receiver till receiving the picture of the wireless camera. 7. Fine tune to the desire position till the image of CMOS camera is received. 8. Adjust the lens of the CMOS camera (figure 7) to best position. Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so on will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Waning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies. The user shall observe local rules, regulations and laws, and shall be solely liable in this regard. This company shall not be liable for any illegalities therein. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. SHENZHEN ZHONGWANG ELECTRON CO., LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc - 3 - FILE NUMBER MODELZT-803T PAGES: 3 OF 4 Technical Data ITEM TYPE Transmission Frequency 2.414~2.468GHz 4cH Electric power: DC 8V Video input: 1.0V P-P (MAX) Power consumption current 80mA Audio input: 2V P-P (Max.) Effective range(no obstacles) 30m CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor CMOS TOTAL PIXELS 628*582 SYNC SYSTEM INTEMAL MINIMUM ILLUMINATION 1 Lμx F1.2 5600°K RESOLUTION 330TV Line Mode: AWB (Zero color rolling) WHITE BALANCE Range:3200~10000°K GAIN CONTROL AGC S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF) ELECTRONIC SHUTTER 1/60~1/15,000sec CAMMA CORRECTION 0.45 OPERATION TEMPERATURE -20~60 OPERATION HUMIDITY 85%RH SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc FILE NUMBER MODELZT-803T PAGES: 4 OF 4 - 4 - . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc : Receiver Antenna : Receiver Power Socket : Receiver Indicator : Audio & Video Jack : Monitor : Camera Power Jack : Flip-type Channel Controller : Adjustable Lens

ZT-803T 2. Block Diagram CMOS camera VCO1 6.5MHz Loop filter VCO2 (2.4GHz) PLL MPU Audio Video Ref Crystal ENCODER ANT Audio & Video Unit RF & PLL Unit AMP

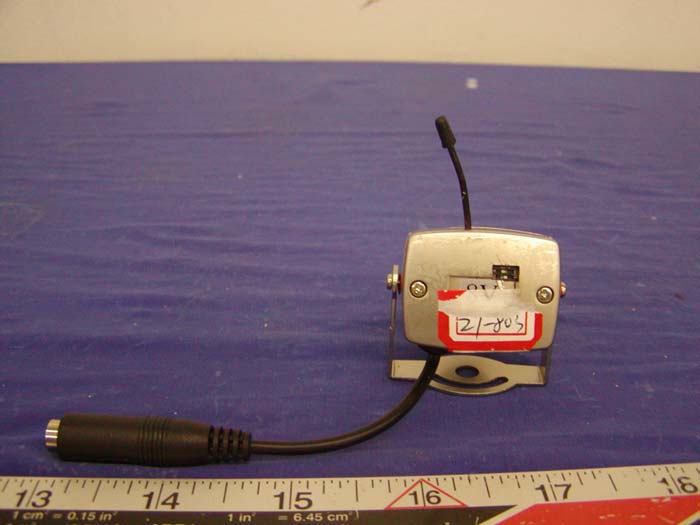

SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Exhibits Page 4 of 30 FCC Part 15.249 Test Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Chassis Front View EUT – Chassis Rear View SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Exhibits Page 5 of 30 FCC Part 15.249 Test Report Adapter View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of EUT / FCC ID Label FCC IDL: Q74ZT-803T This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0" FCC IDL: Q74ZT812 This device complies wi th Part 15 o the FCC Rules. Operat ion is subject to t he fol low ing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including i nterference that may cause undesired operation. 2.1875" 1. 0 "

SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Exhibits Page 6 of 30 FCC Part 15.249 Test Report EUT – Cover off View EUT – Camera Board Top View SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Exhibits Page 7 of 30 FCC Part 15.249 Test Report EUT – Camera Board Bottom View EUT – Board Top View SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Exhibits Page 8 of 30 FCC Part 15.249 Test Report EUT – Board Bottom View

ZT-803T Wireless Camera 3.Circuit Description The transmitter is made up of two parts: Audio &Video unit and RF unit. The audio signal from MIC1 is amplified, then modulated by the audio carry frequency oscillator (6.5MHz), the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2 (2.4GHz, D1,Q1). The video signal from CMOS camera passes through the sharp network(R4, R5, C11,R16), also is added in the VT of VCO2, another signal is added in the VT of VCO2 is the error voltage output of loop filter (R1,R24,R25,R28,C17,C19,C25) of PLL(U2) which is programmed by CPU(U1), the channel data is decided by the encode switch(SW1) of CPU’s peripheries. The feed back signal (R30,C28) from voltage controlled oscillator VCO2 is compared with reference crystal oscillator, the error frequency of oscillator VCO2 can be corrected. The carry frequency modulated of audio & video has been power amplified by Q2, filtered when through the band pass filter (C20, C18, C23, microstrip) to make the higher harmonica of signal reduce to lower level. The purer signal is emitted by antenna (RFOUT).

ZT-803T Wireless Camera Specifications 1. Technical Parameter 1.1 Audio &Video unit: 1.1.1 Color CMOS camera devices: Array Size: NTSC:510 x 492 pixels PAL: 628 x 582 pixels Image Area: NTSC:4.69 x 3.54 mm PAL:5.78 x 4.19 mm Auto Electronic Exposure: 1/60 -1/15000 sec. Min. Illumination (3000K): < 3 Lux @ F1.2 S/N Ratio: > 48 dB Fixed Pattern Noise (FPN): < 0.03% V P-P Dark Current: < 0.2 nA/cm 2 Dynamic Range: > 72 dB 1.1.2 Lens: Focal length: 6.3mm Back focal length: 7.16mm F/NO: 2.6 Angular field of view: 52° Minimum object distance: 20cm~∞ Distortion: 4% Relative illumination: >85% 1.1.3 Audio: Frequency response: 0.3~3.5KHz 1.2 RF Unit Transmission Frequency Table: CH1: 2414MHz CH2: 2432MHz CH3: 2450MHz CH4: 2468MHz Frequency Stabilization Degree: ±0.1MHz Audio sub-carrier Level: -25±5 dBc Audio sub-carrier Frequency: 6.5±0.025MHz(user selectable: 6.0MHz, 6.5MHz) Modulation Mode FM 1.3 DC Characteristics Power Supply: 8V DC ±5%, RippleLess Than 10mV p-p Power Requirements: 2W Operating Temperature: -10~+55 Storage Temperature: -25~+85 Operating Humidity: 15~85% Storage Humidity: 10~90% Dimension: 42×35×36 mm + 25mm Antenna Weight: 60g

4. Schematic Diagram(SCH) 4.1 CMOS.SCH - 2 - 4.2 RF.SCH

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. 511#, Electrical Equipment Building, No. 72, ZhenHua Road Futian, ShenZhen, P.R.C FCC ID: Q74ZT-803T 2003-03-19 This Report Concerns: Original Report Equipment Type: 2.4GHz Wireless A/V Color Camera, Transmitter Test Engineer: Benjamin Jin Report No.: R0403071(T) Test Date: 2004-03-17 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 SHENZHEN ZHONGWANG ELECTRONICS CO., LTD. FCC ID: Q74ZT-803T Report # R0403071(T)Rpt Page 2 of 19 FCC Part 15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 POWER SUPPLY INFORMATION.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §15.203 - ANTENNA REQUIREMENT......................................................................................................................8 STANDARD APPLICABLE..............................................................................................................................................8 ANTENNA CONNECTED CONSTRUCTION......................................................................................................................8 § 15.249 (C) - CONDUCTED EMISSIONS TEST DATA .........................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 SPECTRUM ANALYZER SETUP......................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 SUMMARY OF TEST RESULTS.....................................................................................................................................10 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................10 PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................................................................................10 §15.209(A) - RADIATED EMISSION DATA ...........................................................................................................13 MEASUREMENT UNCERTAINTY..................................................................................................................................13 EUT SETUP................................................................................................................................................................13 SPECTRUM ANALYZER SETUP....................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 ENVIRONMENTAL CONDITIONS........................................................................................................…
