Q74ZT-830T2.4GHz Wireless Camera

MODEL： ZT-830T PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-830T WIRELESS CAMERA USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO., LTD APPROVAL PAGES TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN FILE NUMBER： MODEL：ZT-830T PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model. 4. Connecting the audio and video output with the input of the transmitter. 5. Plug power jack of DC power supply(8V，300mA)into the power socket of the CMOS camera(figure 6).(Battery of the same voltage is acceptable.) 6. Turning the micro-adjustment knob (figure 5) on the receiver till receiving the picture of the wireless camera. 7. Fine tune to the desire position till the image of CMOS camera is received. 8. Adjust the lens of the CMOS camera (figure 7) to best position. Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so on will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems within 3 months, this company will unconditionally replace with a new camera. 6. Please power down when charge. Waning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies. The user shall observe local rules, regulations and laws, and shall be solely liable in this regard. This company shall not be liable for any illegalities therein SHENZHEN ZHONGWANG ELECTRON CO., LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ztv.cc FCC Information This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Summer infant may void the users authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna l Increase the separation between the equipment and the receiver l Consult the dealer or an experienced radio / TV technician for help. FILE NUMBER： MODEL：ZT-830T PAGES: 3 OF 4 Technical Data ITEM TYPE Transmission Frequency 2.414~2.468GHz 4cH Electric power: DC 5V Output power <10mW Video input: 1.0V P-P (MAX) Power consumption current 80mA Audio input: 2V P-P (Max.) Effective range (no obstacles) 30m CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor CMOS TOTAL PIXELS 628*582 SYNC SYSTEM INTEMAL MINIMUM ILLUMINATION 1 Lμx F1.2 5600°K RESOLUTION 330TV Line Mode: AWB (Zero color rolling) WHITE BALANCE Range:3200~10000°K GAIN CONTROL AGC S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF) ELECTRONIC SHUTTER 1/60~1/15,000sec CAMMA CORRECTION 0.45 OPERATION TEMPERATURE -20°C~60°C OPERATION HUMIDITY 85%RH SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ztv.cc FILE NUMBER： MODEL：ZT-830T PAGES: 4 OF 4 . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ztv.cc : ①Receiver Antenna : ②Receiver Power Socket : ③Receiver Indicator : A④udio & Video Jack : ⑤Monitor : ⑦Flip-type Channel Controller ⑧: Adjustable Lens

CONFIDENTIALITY FORM Date: November 3, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. ShenZhen ZhongWang Electronic Co., Ltd. would like the following documents regarding this submission for FCC ID: Q74ZT-830T to be kept confidential. 1. Schematic 2. Block Diagram 3. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Lore Weite / Product Manager

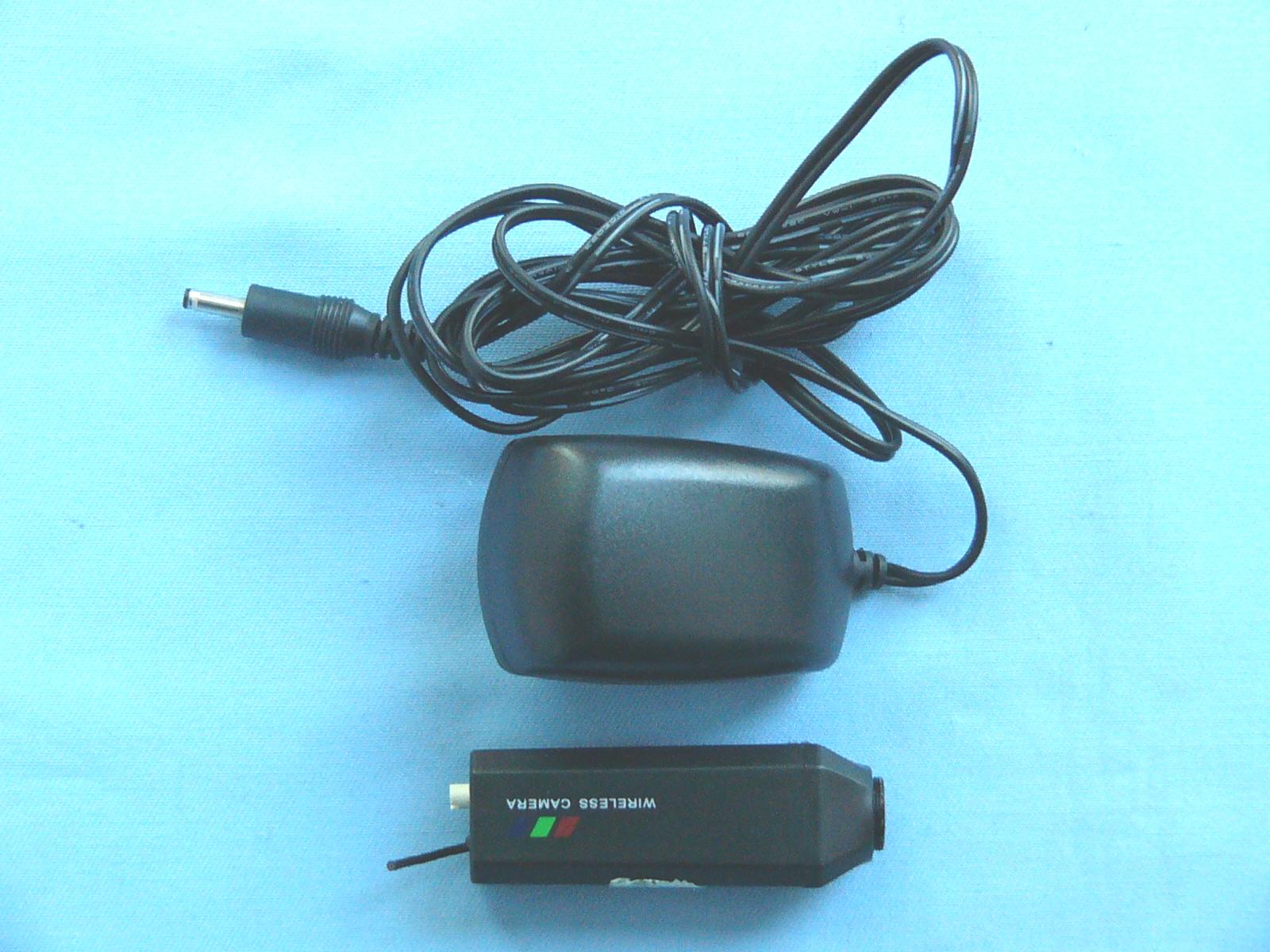

Applicant: ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-830T EUT top view EUT bottom view

Applicant: ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-830T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: Q74ZT-830T

Applicant: ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-830T EUT inside whole view Main & RF board component side Main &RF board solder side

The test report consists 26 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC 15 Subpart C, Paragraph 15.249: 2003 Prepared For : ShenZhen ZhongWang Electronic Co., Ltd. #511 Electrical Equipment Building, No.72, ZhenHua Road, Futian, ShenZhen, P.R.C October 26, 2004 FCC ID: Q74ZT-830T EUT: 2.4GHz Wireless Camera Model: ZT-830T Report Type: Original Report Test Engineer: Peter Lin Test Date: October 12, 2004 Review By: Apollo Liu / Manager FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-830T KMO FCC ID Report Report #: KSZ2004100801J Page 2 of 2 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................4 2. Technical Test...............................................................................................................................................................5 2. 1 Summary of Test Results.........................................................................................................................................5 3. EUT Modifications.......................................................................................................................................................5 4. Conducted Power Line Test.........................................................................................................................................6 4. 1 Test Equipment.......................................................................................................................................................6 4. 2 Test Procedure........................................................................................................................................................6 4. 3 Test Setup...............................................................................................................................................................6 4. 4 Configuration of the EUT........................................................................................................................................7 4. 5 EUT Operating Condition........................................................................................................................................8 4. 6 Conducted Power Line Emission Limits..................................................................................................................8 4. 7 Conducted Power Line Test Result...........................................................................................................................9 5. Radiated Emission Test...............................................................................................................................................11 5. 1 Test Equipment.....................................................................................................................................................11 5. 2 Test Procedure......................................................................................................................................................11 5. 3 Radiated Test Setup...............................................................................................................................................11 5. 4 Configuration of the EUT......................................................................................................................................12 5. 5 EUT Operating Condition......................................................................................................................................12 5. 6 Radiated Emission Limit.......................................................................................................................................12 5. 7 Radiated Emission Test Result...............................................................................................................................13 6. Band Edge..................................................................................................................................................................15 6. 1 Test Equipment.....................................................................................................................................................15 6. 2 Test Procedure.................................................................................…

Text truncated - open the document above for the full version.

Applicant: ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-830T Conducted emission test view Radiated emission test view
