Q74ZT-811TWireless A/V Color Camera

MODEL ZT-811T/820T PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-811T/820T WIRELESS CAMERA USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO., LTD APPROVAL PA G E S TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN - 2 - FILE NUMBER MODELZT-811T/820T PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V/12V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model. 4. Connecting the audio and video output with the input of the transmitter. 5. Plug power jack of DC power supply(8V  300mA)into the power socket of the CMOS camera(figure 6).(Battery of the same voltage is acceptable.) 6. Turning the micro-adjustment knob (figure 5) on the receiver till receiving the picture of the wireless camera. 7. Fine tune to the desire position till the image of CMOS camera is received. 8. Adjust the lens of the CMOS camera (figure 7) to best position. Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so on will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Waning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies. The user shall observe local rules, regulations and laws, and shall be solely liable in this regard. This company shall not be liable for any illegalities therein. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. SHENZHEN ZHONGWANG ELECTRON CO., LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc - 3 - FILE NUMBER MODELZT-811T/820T PAGES: 3 OF 4 Technical Data ITEM TYPE Transmission Frequency 2.414~2.468GHz 4cH Electric power: DC 8V Output power 0±3dBm Video input: 1.0V P-P (MAX) Power consumption current 80mA Audio input: 2V P-P (Max.) Effective range(no obstacles) 30m CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor CMOS TOTAL PIXELS 628*582 SYNC SYSTEM INTEMAL MINIMUM ILLUMINATION 1 Lμx F1.2 5600°K RESOLUTION 330TV Line Mode: AWB (Zero color rolling) WHITE BALANCE Range:3200~10000°K GAIN CONTROL AGC S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF) ELECTRONIC SHUTTER 1/60~1/15,000sec CAMMA CORRECTION 0.45 OPERATION TEMPERATURE -20~60 OPERATION HUMIDITY 85%RH SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc - 4 - FILE NUMBER MODELZT-811T/820T PAGES: 4 OF 4 . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL+86-755-8336 1499 FAX+86-755-8336 1433 http://www.ztv.cc : Receiver Antenna : Receiver Power Socket : Receiver Indicator : Audio & Video Jack : Monitor : Camera Power Jack : Flip-type Channel Controller : Adjustable Lens

ZT-811T/820T Block Diagram CMOS camera VCO1 6.5MHz Loop filter VCO2 (2.4GHz) PLL MPU Audio Video Ref Crystal ENCODER ANT Audio & Video Unit RF & PLL Unit AMP

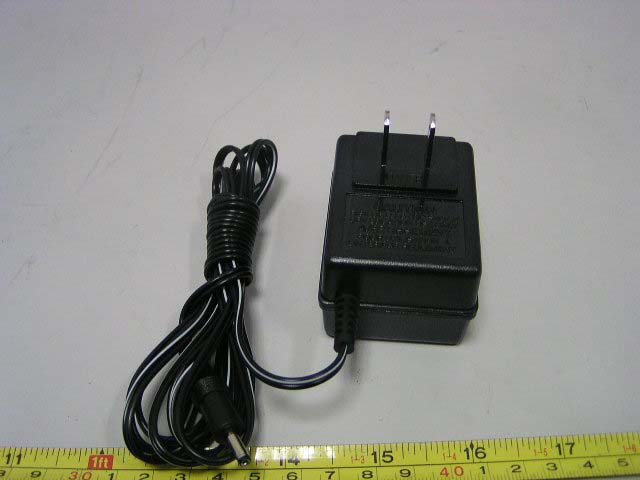

External Photos ZT-811T: ZT-820T: Adapter

ID Label/Location Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. ZT-811T: ZT-820T:

Internal Photos ZT-811T: ZT-820T:

ZT-811T/820T Wireless Camera 3.Circuit Description The transmitter is made up of two parts: Audio &Video unit and RF unit. The audio signal from MIC1 is amplified, then modulated by the audio carry frequency oscillator (6.5MHz), the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2 (2.4GHz, D1,Q1). The video signal from CMOS camera passes through the sharp network(R4, R5, C11,R16), also is added in the VT of VCO2, another signal is added in the VT of VCO2 is the error voltage output of loop filter (R1,R24,R25,R28,C17,C19,C25) of PLL(U2) which is programmed by CPU(U1), the channel data is decided by the encode switch(SW1) of CPU’s peripheries. The feed back signal (R30,C28) from voltage controlled oscillator VCO2 is compared with reference crystal oscillator, the error frequency of oscillator VCO2 can be corrected. The carry frequency modulated of audio & video has been power amplified by Q2, filtered when through the band pass filter (C20, C18, C23, microstrip) to make the higher harmonica of signal reduce to lower level. The purer signal is emitted by antenna (RFOUT).

ZT-811T/820T Wireless Camera Specifications 1. Technical Parameter 1.1 Audio &Video unit: 1.1.1 Color CMOS camera devices: Array Size: NTSC:510 x 492 pixels PAL: 628 x 582 pixels Image Area: NTSC:4.69 x 3.54 mm PAL:5.78 x 4.19 mm Auto Electronic Exposure: 1/60 -1/15000 sec. Min. Illumination (3000K): < 3 Lux @ F1.2 S/N Ratio: > 48 dB Fixed Pattern Noise (FPN): < 0.03% V P-P Dark Current: < 0.2 nA/cm 2 Dynamic Range: > 72 dB 1.1.2 Lens: Focal length: 6.3mm Back focal length: 7.16mm F/NO: 2.6 Angular field of view: 52° Minimum object distance: 20cm~∞ Distortion: 4% Relative illumination: >85% 1.1.3 Audio: Frequency response: 0.3~3.5KHz 1.2 RF Unit Transmission Frequency Table: CH1: 2414MHz CH2: 2432MHz CH3: 2450MHz CH4: 2468MHz Frequency Stabilization Degree: ±0.1MHz Transmission Power : 0±3dBm Audio sub-carrier Level: -25±5 dBc Audio sub-carrier Frequency: 6.0±0.025MHz(user selectable: 6.0MHz, 6.5MHz) Modulation Mode FM 1.3 DC Characteristics Power Supply: 8V DC ±5%, RippleLess Than 10mV p-p Power Requirements: 0.5W Operating Temperature: -10~+55 Storage Temperature: -25~+85 Operating Humidity: 15~85% Storage Humidity: 10~90% Dimension: 42×35×36 mm + 25mm Antenna

ZT-811T/820T Wireless Camera 6. Bill of Materials (BOM) 6.1 CMOS.BOM Bill Of Materials for CMOS.sch on Wed Feb 4 15:50:12 2004 Item Qty Reference Part Name Value Description 1 2 Q1-2 2N2222 2 1 MIC LIN-MIC 3 1 U1 OV7910 4 2 C2 C3 ECAP 27pF 5 8 C1 C4-8 C10 C18 CAP0603 0.1uF Y5U CHIP CAPACITOR 6 2 C11 C20 CAP0805 4.7uF X7R CHIP CAPACITOR 7 2 R5 R6 RES0603 10Ω 8 1 R17 RES0603 2.7K 9 4 R10 R14-15 R18 RES0603 10K 10 1 R11 RES0603 100K 11 1 R19 RES0603 470K 12 1 R16 RES0603 1M 13 1 VR1 VRES 1K 14 1 X1 XTAL1 15 1 CMOS.PCB 820CV10 - 2 - 6.2 RF.BOM Bill Of Materials for RF.sch on Wed Feb 4 16:30:43 2004 Item Qty Reference Part Name Value Description 1 1 D1 HUV316,N N 2 1 Q1 BFG520/XR N48 NPN 3 1 Q2 BFG540/XR N43 NPN 4 1 Q3 2N2222,3904 3904 NPN SWITCH TRANSISTOR 5 1 U1 EM78P153S 6 1 U2 MB15E07SL 7 1 C29 CAP0603,101 101 X7R CHIP CAPACITOR 8 5 C1 C12 C16-17 CAP0603,104 104 X7R CHIP CAPACITOR C19 CAP0603,104 104 X7R CHIP CAPACITOR 9 2 C24 C28 CAP0603,1R5 1R5 X7R CHIP CAPACITOR 10 2 C2 C5 CAP0603,33P 33P X7R CHIP CAPACITOR 11 1 C9 CAP0603,102 102 X7R CHIP CAPACITOR 12 3 C7-8 C11 CAP0603,105 105 X7R CHIP CAPACITOR 13 4 C18 C23 C30 C32 CAP0603,2R0 2R0 X7R CHIP CAPACITOR 14 1 C10 CAP0603,10P 10P X7R CHIP CAPACITOR 15 3 C3 C14 C31 CAP0603,121 121 X7R CHIP CAPACITOR 16 1 C6 CAP0603,470 470 X7R CHIP CAPACITOR 17 1 C4 CAP0603,271 271 X7R CHIP CAPACITOR 18 1 C20 CAP0603,3R0 3R0 X7R CHIP CAPACITOR 19 1 C25 CAP0805,475 475 X7R CHIP CAPACITOR 20 2 R4 R29 RES0603,101 101 21 3 R7 R15-16 RES0603,102 102 22 2 R24-25 RES0603,103 103 23 1 R28 RES0603,104 104 24 1 R5 RES0603,180 180 25 1 R10 RES0603,222 222 26 1 R1 RES0603,274 274 27 3 R2 R23 R30 RES0603,301 301 28 2 R11 R22 RES0603,330 330 29 1 R18 RES0603,332 332 30 1 R13 RES0603,333 333 31 2 R3 R17 RES0603,472 472 32 2 R31-32 RES0603,752 752 33 1 L1 IND2520,150 150 34 1 J1 SOP4 SPO4 CONNECTION 35 1 SW1 SW_2BITS 36 1 VC1 VCAP,300 300 37 1 XT2 XTAL\C 17.7344M

4. Schematic Diagram(SCH) 4.1 CMOS.SCH - 2 - 4.2 RF.SCH

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For ShenZhen ZhongWang Electronic Co., Ltd. 511# Electrical Equipment Building, No.72, ZhenHua Road, FuTian, ShenZhen, P. R. C FCC ID: Q74ZT-811T 2004-2-16 This Report Concerns: Original Report Equipment Type: Wireless A/V Color Camera Test Engineer: Jandy Su Report No.: RSZ04020504 Test Date: 2004-02-26 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Lab Corp. ShenZhen Suite C, 41-D Electronics Science & Technology Building, No. 2070 Shennanzhong Rd ShenZhen, Guandong 518031, P.R. China Tel: (755) 83296449 Fax: (755) 83273756 ShenZhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT-811T Report # RSZ04020504 Page 2 of 16 FCC Part 15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SYSTEM..............................................................................................................................5 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................5 SUMMARY OF TEST RESULTS ...............................................................................................................................6 §15.203 - ANTENNA REQUIREMENT......................................................................................................................7 STANDARD APPLICABLE..............................................................................................................................................7 ANTENNA CONNECTED CONSTRUCTION......................................................................................................................7 TEST RESULT: PASS.....................................................................................................................................................7 § 15.207 - CONDUCTED EMISSIONS TEST DATA................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 SPECTRUM ANALYZER SETUP......................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................9 TEST DATA..................................................................................................................................................................9 TEST RESULT: PASS.....................................................................................................................................................9 PLOT(S) OF TEST DATA................................................................................................................................................9 §15.209(A) §15.249(A) - RADIATED EMISSION DATA........................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 SPECTRUM ANALYZER SETUP....................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS......…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission– Front View Conducted Emission– Side View Radiated Emission - Front View Radiated Emission - Rear View Radiated Emission - Closer View
