Q74ZT8092.4 GHz Wireless A/V Color Camera

MODEL： ZT-809 PAGE : 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-809 WIRELESS CAMERAL USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO.,LTD APPROVAL PAGES TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN FILE NUMBER： MODEL：ZT-809 PAGES: 2 OF 4 Operation instruction 1. Connecting receive antenna (figure 1). 2. Connecting 12V direct current stabilizer (figure 2), pilot lamp lighting (figure 3). 3. Connecting the audio and video output with the input of monitor, the television should be in AV model. 4. Connecting the regulated voltage power supply to the back of the wireless camera (figure 5). 5. Tuning the 4ch switch (figure 6) on receiver till receiving the picture of the wireless video camera. 6. Manually adjust the camera angle as well as the front lens of the camera (figure 7). Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so in will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, 1 years warranty is granted, if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Warning This product is for the sole purpose of security and applicable for monitoring in residential houses, shops and companies the users shall observe local rules, regulations and laws, and shall be solely liable in this regard, this company shall not be liable for any illegalities therein. SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc FILE NUMBER： MODEL：ZT-809 PAGES: 3 OF 4 Technical data ITEM TYP Transmitter Receiver Frequency 2.400~2.483GHz Electric power: DC 5V DC 12V Output power 0±3dBm Video output: 1V P-P Power consumption current 100mA 250mA Suitable environmental temperature -20°C~+60°C Effective range 30m(no obstacles) Including 1. Wireless camera 2. ZT704 2.4G Receiver 3. Receiver antenna 4. 12V direct current stabilizer for receiver use 5. 5V direct current stabilizer for camera use 6. Wire for video signal connecting SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc FILE NUMBER： MODEL：ZT-809 PAGES: 4 OF 4 . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ZTV.cc ⑤ ⑦ Wireless transmission ⑥ ④ ③ ② ① DC TV 2.4G Receiver Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

Figure 1: ZT809/810/811 Block Diagram CMOS VCO1 5.5MH z Audio & V i deo Unit V i deo Loop filter VCO2 (2. 4 GHz) AMP PLL MPU Audio Ref Crystal ENCODER TX RF & PLL Unit

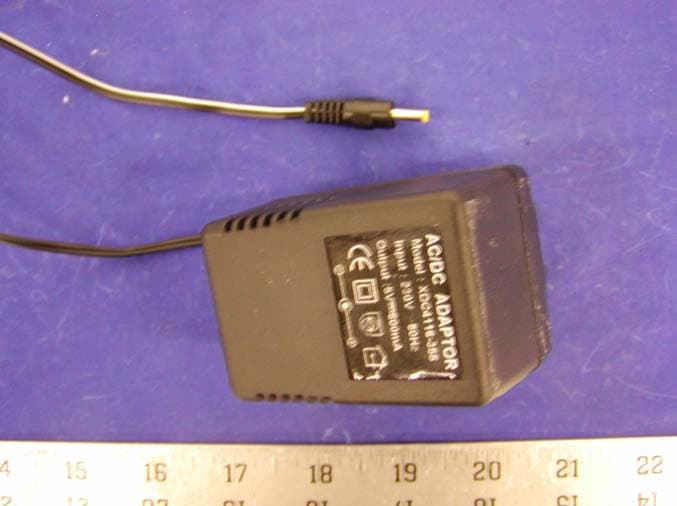

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS ZT-809 Transmitter – Front View ZT-809 Transmitter – Rear View ZT-809 Transmitter – Top View ZT-809 Transmitter - Power Adapter ZT-811 Transmitter Front View ZT-811 Transmitter Rear View

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS ZT-809 Transmitter – Front View ZT-809 Transmitter – Rear View ZT-809 Transmitter – Top View ZT-809 Transmitter - Power Adapter

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of EUT Transmitter/Proposed FCC ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: Q74ZT809 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0" FCC ID: M5RNTP-3318 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS ZT-809 Transmitter – Chassis Cover Off View ZT-809 Transmitter – Component View ZT-809 Transmitter – Solder View ZT-809 Transmitter – Solder View with Shielded Removed ZT-809 Transmitter – Antenna Connection View ZT-811 Transmitter Cover Off View ZT-811 Transmitter Solder View ZT-811 Transmitter Component View

APPENDIX C - EUT INTERNAL PHOTOGRAPHS ZT-809 Transmitter – Chassis Cover Off View ZT-809 Transmitter – Component View ZT-809 Transmitter – Solder View ZT-809 Transmitter – Solder View with Shielded Removed ZT-809 Transmitter – Antenna Connection View

ZT809/810/811 Transmitter Specifications 1. Audio&Video unit: 1.1 Color CMOS camera devices: Array Size: NTSC:510 x 492 pixels PAL: 628 x 582 pixels Image Area: NTSC:4.69 x 3.54 mm PAL:5.78 x 4.19 mm Auto Electronic Exposure: 1/60 -1/15000 sec. Min. Illumination(3000K): < 3 lux @ f1.2 S/N Ratio: > 48 dB Fixed Pattern Noise (FPN): < 0.03% V P-P Dark Current: < 0.2 nA/cm 2 Dynamic Range: > 72 dB 1.2 Lens: 1.2.1 ZT809/811 Focal length: 6.3mm Back focal length: 7.16mm F/NO: 2.6 Angular field of view: 52° Minimum object distance: 20cm~∞ Distortion: 4% Relative illumination: >85% 1.2.2 ZT810 Focal length: 6.3mm Back focal length: 8.5mm F/NO: 2.0 Angular field of view: 45° Minimum object distance: 20cm~∞ Distortion: 4% Relative illumination: >85% 1.3 Audio: Frequency response: 0.3~3.5KHz

TA24BV15.sch-1 - Tue May 06 18:14:32 2003

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Shenzhen ZhongWang Electronic Co., Ltd. #511 Electrical Equipment Building, No.72, ZhenHua Road, FuTai ShenZhen, P.R.C FCC ID: Q74ZT809 2003-06-05 This Report Concerns: Original Report Equipment Type: 2.4GHz Wireless A/V Color Camera Test Engineer: Ling Zhang / Report No.: R0305194 Test Date: 2003-05-29 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Shenzhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT809 Report # R0305194Rpt.doc Page 2 of 16 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 1.7 POWER SUPPLY INFORMATION...............................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................5 2.3 SPECIAL ACCESSORIES...........................................................................................................................................5 2.4 SCHEMATICS AND BLOCK DIAGRAM......................................................................................................................5 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 EUT SETUP............................................................................................................................................................7 3.3 SPECTRUM ANALYZER SETUP................................................................................................................................7 3.4 TEST PROCEDURE..................................................................................................................................................7 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................8 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA.......................................................................................................8 4 - RADIATED EMISSION DATA ...........................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 EUT SETUP..........................................................................................................................................................11 4.3 SPECTRUM ANALYZER SETUP..............................................................................................................................11 4.4 TEST PROCEDURE................................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION...........................................................................................12 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................12 4.7 RADIATED EMISSIONS TEST RESULT DATA.........................................................................................................13 5 - BAN…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Shenzhen ZhongWang Electronic Co., Ltd. #511 Electrical Equipment Building, No.72, ZhenHua Road, FuTai ShenZhen, P.R.C FCC ID: Q74ZT809 2003-06-05 This Report Concerns: Original Report Equipment Type: 2.4GHz Wireless A/V Color Camera Test Engineer: Ling Zhang / Report No.: R0305194 Test Date: 2003-05-29 Reviewed By: Ming Jing / Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Shenzhen ZhongWang Electronic Co., Ltd. FCC ID: Q74ZT809 Report # R0305194Rpt(Rev. a).doc Page 2 of 16 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 1.7 POWER SUPPLY INFORMATION...............................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................5 2.3 SPECIAL ACCESSORIES...........................................................................................................................................5 2.4 SCHEMATICS AND BLOCK DIAGRAM......................................................................................................................5 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 EUT SETUP............................................................................................................................................................7 3.3 SPECTRUM ANALYZER SETUP................................................................................................................................7 3.4 TEST PROCEDURE..................................................................................................................................................7 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................8 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA.......................................................................................................8 4 - RADIATED EMISSION DATA ...........................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 EUT SETUP..........................................................................................................................................................11 4.3 SPECTRUM ANALYZER SETUP..............................................................................................................................11 4.4 TEST PROCEDURE................................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION...........................................................................................12 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................12 4.7 RADIATED EMISSIONS TEST RESULT DATA.........................................................................................................13…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Transmitter Conducted Emission - Front View Transmitter Conducted Emission - Side View Transmitter Radiated Emission - Front View Transmitter Radiated Emission - Rear View
