Q74ZTV-8122.4 GHz Wireless A/V Color Camera

MODEL： ZT-812 PAGE: 1 OF 4 PRODUCT INSTRUCTION DESCRIPTION Wireless Camera ZT-812T WIRELESS CAMERA USER’S MANUAL REVISIONS DESCRIPTION DATE DESIGN SHENZHEN ZHONGWANG ELECTRON CO., LTD APPROVAL PAGES TOTAL FILE NUMBER ISSUE DATE CHECK 4 DESIGN - 2 - FILE NUMBER： MODEL：ZT-812T PAGES: 2 OF 4 Operation instruction 1. Connecting the receiver antenna. (Figure 1) 2. Connecting the 9V direct current stabilizer (Figure 2), pilot lamp lighting (Figure 3). 3. Connecting the audio and video (figure 4) output with the input to the monitor, the television should be set on A/V model. 4. Connecting the audio and video output with the input of the transmitter. 5. Plug power jack of DC power supply(8V ， 300mA)into the power socket of the CMOS camera(figure 6).(Battery of the same voltage is acceptable.) 6. Turning the micro-adjustment knob (figure 5)on the receiver till receiving the picture of the wireless camera. 7. Fine tune to the desire position till the image of CMOS camera is received. 8. Adjust the lens of the CMOS camera (figure 7) to best position. Notice 1. The machine is supplied with many different types, please provide with electric power according the value on the label. 2. Obstructs by the building and so in will cause attenuation. 3. Normally that the machine will slightly warm up during operation. 4. Should any other malfunctions occur, please contact local distributor. 5. Under normal operational conditions, one year’s warranty is granted .if there are quality problems within 3 months, this company will unconditionally replace with a new camera. Waning This product is for the sole purpose of security and applicable for monitoring in residential houses, shop sand companies the users shall observe local rules, regulations and laws, and shall be solely liable in this regard, this company shall not be liable for any illegalities therein. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - 3 - --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX ： +86-755-8336 1433 http://www.ztv.cc FILE NUMBER： MODEL：ZT-812 PAGES: 3 OF 4 - 4 - Technical data ITEM TYPE Transmission Frequency 2.408~2.468GHz 4cH Electric power: DC 8V Output power 0 ± 3dBm Video input: 1.0V P-P (MAX) Power consumption current 180mA Audio input: 2V P-P (Max.) Effective range (no obstacles) 30m CMOS IMAGE SENSOR 1/3-inch CMOS Image Sensor CMOS TOTAL PIXELS 628*582 SYNC SYSTEM INTEMAL MINIMUM ILLUMINATION 1 L μ x F1.2 5600 ° K/ 0 L μ x(IR ON) RESOLUTION 330TV Line Mode: AWB(Zero color rolling) WHITE BALANCE Range:3200~10000°K GAIN CONTROL AGC S/N RATIO 48dB(Min)/60dB(TYP)(AGC OFF) ELECTRONIC SHUTTER 1/60~1/15,000sec CAMMA CORRECTION 0.45 OPERATION TEMPERATURE -20 °C ~60 °C OPERATION HUMIDITY 85%RH SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX ： +86-755-8336 1433 http://www.ztv.cc FILE NUMBER： MODEL：ZT-812 PAGES: 4 OF 4 - 5 - . SHENZHEN ZHONGWANG ELECTRON CO.,LTD TEL：+86-755-8336 1499 FAX：+86-755-8336 1433 http://www.ztv.cc TV DC ① ② ③ ④ 2.4G Receiver ⑤ ①: Antenna ②: Power Jack ③ : Flash LED ④: Video and Audio Jack ⑤: Channel Switch ⑥ : Camera Power Line ⑦: Lens of camera ⑥ ⑦ Audio Video

2. Block Diagram ANT Video \1 ~o--{>- iAudio & Video I Unit L___~ Audio -r Ref Crystal I RF & PLL Unit ENCODER -- 3. Circuit Description The transmitter is made up of two parts: Audio &Video lDlit and RF unit.The audio signal fromMICl is amplified, then modulates the audio carry frequency oscillator (5.5MHz), the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2 (2.4GHz, Dl,Ql). The video signal from CMOS camera passes through the sharp network(R21,R14, Cl,Cll), also is added in the VT ofVCO2, another signal is added in the VT ofVCO2 is the error voltage output of loop filter (Rl,R24-R26,C17,C19,C25) ofPLL(UI) which is progranmled by CPU(U3), the channel data is decided by the encode switch(SWl) of CPU's peripheries. The feed back signal(R30,C29) from voltage controlled oscillator VCO2 is compared with reference crystal oscillator, the error frequency of oscillator VCO2 can be corrected. The carry frequency to be modulated by audio &video has been power amplified by Q2, filtered through the band pass fIlter(C20,C18,C23, microstrip)which the higher harmonica of signal reduced to lower level. The purer signal is emitted by antenna(RFOUT). 3

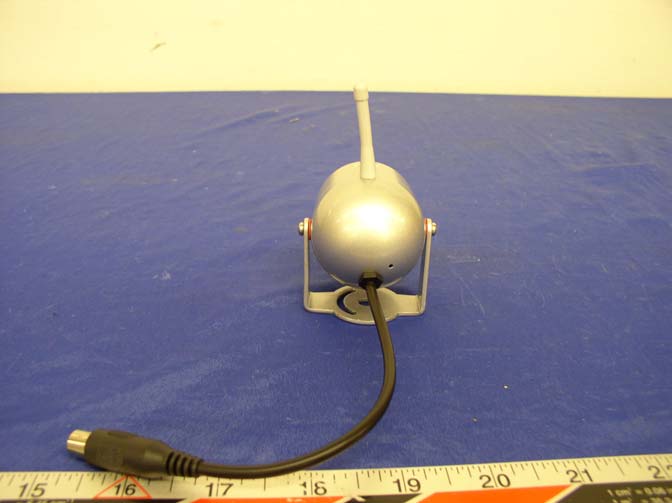

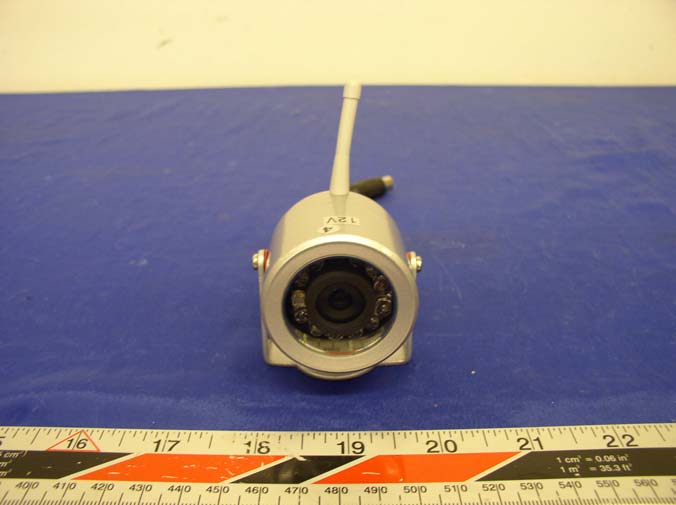

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Chassis Front View EUT – Chassis Rear View Power Adapter View

EXHIBIT A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of EUT / FCC ID Label FCC IDL: Q74ZTV-812 This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0" FCC IDL: Q74ZT812 This device complies wi th Part 15 o the FCC Rules. Operat ion is subject to t he fol low ing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including i nterference that may cause undesired operation. 2.1875" 1. 0 "

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – CMOS Board Top View EUT – CMOS Board Bottom View EUT – LED Board Top View EUT – LED Board Bottom View EUT – Main Board Component View EUT – Main Board Solder View

2. Block Diagram ANT Video \1 ~o--{>- iAudio & Video I Unit L___~ Audio -r Ref Crystal I RF & PLL Unit ENCODER -- 3. Circuit Description The transmitter is made up of two parts: Audio &Video lDlit and RF unit.The audio signal fromMICl is amplified, then modulates the audio carry frequency oscillator (5.5MHz), the modulated carry frequency is added in the VT of voltage controlled oscillator VCO2 (2.4GHz, Dl,Ql). The video signal from CMOS camera passes through the sharp network(R21,R14, Cl,Cll), also is added in the VT ofVCO2, another signal is added in the VT ofVCO2 is the error voltage output of loop filter (Rl,R24-R26,C17,C19,C25) ofPLL(UI) which is progranmled by CPU(U3), the channel data is decided by the encode switch(SWl) of CPU's peripheries. The feed back signal(R30,C29) from voltage controlled oscillator VCO2 is compared with reference crystal oscillator, the error frequency of oscillator VCO2 can be corrected. The carry frequency to be modulated by audio &video has been power amplified by Q2, filtered through the band pass fIlter(C20,C18,C23, microstrip)which the higher harmonica of signal reduced to lower level. The purer signal is emitted by antenna(RFOUT). 3

4. Schematic Diagram(SCH) 4.1 CMOS.SCH .4
