Q7FVERS2QBluetooth Speaker

Title page: _______________________ Vers Q Sound Systems 1 CHARGE ....................................................................................................2 2 POWER ON ................................................................................................3 3 PLAY ..........................................................................................................4 AUDIO OPTIONS .........................................................................................5 SPECIFICATIONS ........................................................................................6 CAUTION......................................................................................................7 FCC INFORMATION ...................................................................................8 WARRANTEE ..............................................................................................9 Page 2: _______________________ 1 CHARGE USB Connector Plug the USB cable into the power adaptor then into the outlet. Q comes partially charged, but should be charged for 5 hours before using. Select the appropriate plug end for your country. 5 hrs. to fully charge USB cable Plug Ends Australia EU UK Power Adaptor Page 3: _______________________ 2 POWER ON Power/Link button To turn on, press and hold the Power/Link button. Q is now ready to initiate Bluetooth pairing. Q can connect with any Bluetooth device. To turn off, press the Power/Link button. Refer to the Power/Link Button Functions on page 4. Page 4: _______________________ 3 PLAY Open the Bluetooth settings panel on your device (see your device’s instructions for details). Select Vers Q from the list and your device will automatically establish a connection. Your Q will “Tweet” to tell you a connection has been made, and will play music automatically. Q can connect with any Bluetooth device as well as any device with a headphone jack via the 3.5 mm cable. Power/Link Button Functions Blinking white Bluetooth connection established. Sound: Tweet Steady white Power on, full charge archived. Sound: One bell Blinking white–red Power on, no Bluetooth connection. Sound: One bell Blinking red Power on, low battery Sound: two bells Steady red When charging. Page 5: _______________________ AUDIO OPTIONS Aux in Connect any device directly to Q with the 3.5 mm cable. Stereo out Connect a second Q to Aux in with the 3.5 mm cable for stereo sound. Q (Aux in) 3.5 mm cable Second (Stereo out) Page 6: _______________________ SPECIFICATIONS Battery life ................................................................1Q ~10 hours, 2Q ~8 hours, depending on use Bluetooth ...................................................................v2.1 EDR Power ........................................................................1Q 6.5 W, 2Q 10 W Speaker ......................................................................1 - 2” full range driver (mono) > 2" full range driver Frequency ..................................................................(-3dB): 80Hz – 20 kHz AC adaptor input ........................................................100–240V @ 50–60 Hz, 500m A AC adaptor output ......................................................5V @ 2100 mA through 1 USB port > 5V @ 2100 mA Range ......................................................................... ~30 feet Page 7 _______________________ CAUTION WARNING Please read these safety warnings and cautions carefully to ensure your personal safety and prevent property damage. Fire and Electric Shock Hazard • Do not expose your Q Speaker to liquid, moisture, humidity, or rain. • Do not use the Q Speaker near a bathtub, sink, sauna, pool, or steam room. Exposure of the Q Speaker to moisture could result in electric shock. • Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects in to the Q Speaker. Such actions could result in electric shock. • Clean the Q Speaker only with a dry cloth. • Do not expose your Q Speaker to extremely high or low temperatures. • Do not leave your Q Speaker in direct sunlight for extended periods of time. Do not leave your Q Speaker near open flames such as cooking burners, candles, or fireplaces. • Do not block any ventilation openings. Battery/Charger Hazard • Do not dispose of your Q Speaker in a fire. The battery could explode causing injury or death. • Only charge the battery in accordance with the user instructions supplied with the Q Speaker. • Do not attempt to disassemble the Q Speaker charger or force open the built-in battery because this may result in electric shock. • Do not charge the Q Speaker in damp areas or in extremely high or low temperatures because this could result in electric shock. • Do not clean the Q Speaker when it is being charged. Always unplug the charger first before cleaning the Q Speaker. Automobile Accident Hazard • Do not leave or store the Q Speaker or any of its accessories near or over your automobile’s air bag because serious injury may result when an air bag deploys. Fall Hazard • Do not place the Q Speaker on high surfaces such as shelves. During music playback t he Q Speaker may move which could cause the Q Speaker to shift and fall off of the edge. Page 8 _______________________ CAUTION • Do not use abrasive cleaners to clean your Q Speaker because this could cause scratches and damage. • Do not bring your Q Speaker in to contact with any sharp objects because this could cause scratches and damage. • Do not insert anything into your Q Speaker unless otherwise specified in the user instructions. This may damage the internal components. • Do not attempt to repair, modify, or disassemble your Q Speaker yourself, it does not contain any user-serviceable components. • Do not attempt to replace your Q Speaker battery, it is built-in and is not changeable. • Use only the manufacturer supplied charger to charge your Q Speaker. Other chargers may look similar, b…

Text truncated - open the document above for the full version.

~...........-.-­ Date: December 05, 2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Lepide Technology Co., Limited, the undersigned, hereby authorizes Mr. Wu Xuewen from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Lepide Technology Co., Limited solely in matters relating to the application for an FCC equipment authorization for FCC ID: Q7FVERS2Q including the signing of documents in connection with this Application. Neqessary acts carried out by Shenzhen Morlab Communications Technology Co., I-td. on our behalf of the Lepide Technology Co., Limited in connection with the Application shall have the same effect as acts of the Lepide Technology Co., Limited. The Lepide Technology Co., Limited also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pur'tJant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). Thank you for your attention to this matter. Yours Sincerely, Kingson Lai Project management

Date: December 05,2012 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 RE: Lepide Technology Co., Limited FCCID:Q7FVERS2Q FCC Part 15 Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidemtiality material. Lepide Technology Co., Limited requests that the following documents regarding this submission for FCC ID: Q7FVERS2Q be kept confidential: Exhibit Type File Name , Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description circuit description. pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which Lepide Technology Co., Limited considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, Lepide Technology Co., Limited considers this information would be of benefit to its competitors, and that the disclosure of the inforrnJltion in these documents would give competitors an unfair advantage in the market. Thank you for your attention to this matter. Yours Sincerely, Kingson Lai Project management

External Photos

FCC ID: Q7FVERS2Q Label Label Location FCC ID LABEL

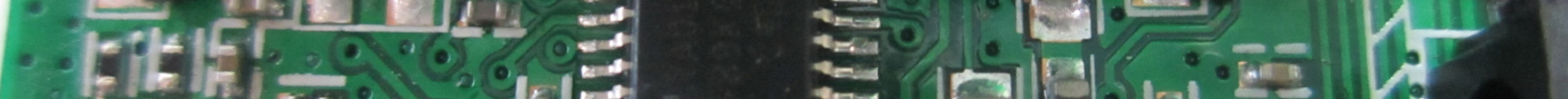

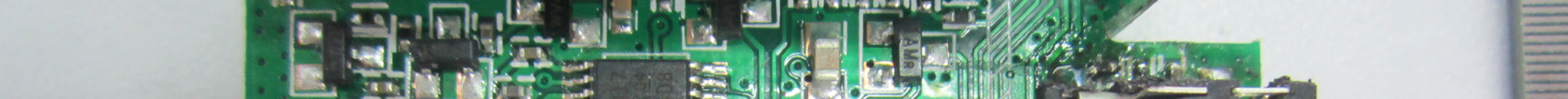

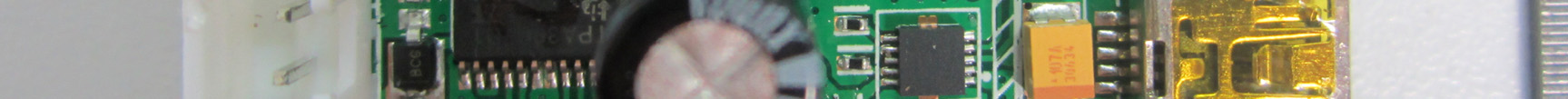

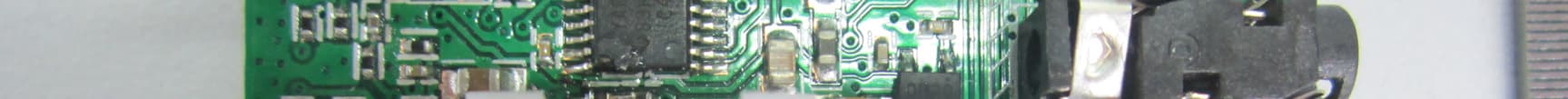

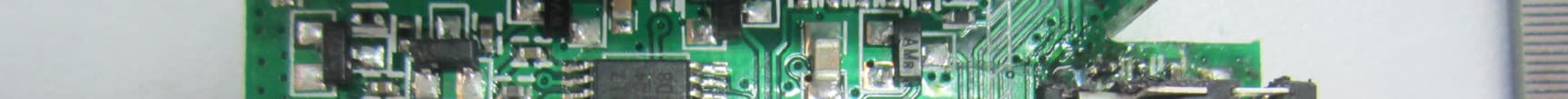

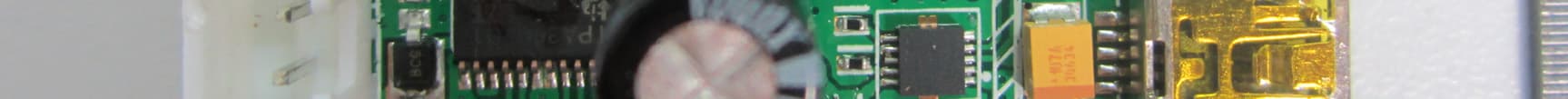

Internal Photos

SZ12100168W03 Page 2 of 78 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 2. TEST STANDARDS AND RESULTS ...................................................................................... 5 2.1. Facilities and Accreditations ..................................................................................................... 6 3. 47 CFR PART 15C REQUIREMENTS .................................................................................... 7 3.1. Number of Hopping Frequency ................................................................................................ 7 3.2. Peak Output Power.................................................................................................................. 13 3.3. 20dB Bandwidth ..................................................................................................................... 15 3.4. Carried Frequency Separation ................................................................................................. 22 3.5. Time of Occupancy (Dwell time) ........................................................................................... 25 3.6. Conducted Spurious Emissions ............................................................................................... 32 3.7. Band Edge ............................................................................................................................... 39 3.8. Conducted Emission ............................................................................................................... 56 3.9. Radiated Emission................................................................................................................... 59 3.10. RF exposure evaluation ........................................................................................................... 78 Change History Issue Date Reason for change 1.0 December 5, 2012 First edition 2.0 December 13, 2012 Second edition SZ12100168W03 Page 3 of 78 1. General Information 1.1. EUT Description EUT Type ............................. : Vers 2Q Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : v0.1 Software Version .................. : Applicant .............................. : Manufacturer ........................ : v2.16 Lepide Technology Co., Limited Unit 302,303, 3/F, Building C, Hi-tech Innovation Service Centre, No. 16, Huifeng 2nd road east, Zhongkai district, Huizhou, Guangdong, China Lepide Technology Co., Limited Unit 302,303, 3/F, Building C, Hi-tech Innovation Service Centre, No. 16, Huifeng 2nd road east, Zhongkai district, Huizhou, Guangdong, China Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Power Supply ....................... : Battery Brand Name: N/A Model No.: 824452 Serial No.: (n.a. marked #1 by test site) Capacitance: 2000mAh Rated Voltage: 3.7V Ancillary Equipment 1. AC Adapter Brand Name: Vers Model No.: GPE010H-050210-Z Serial No.: (n.a. marked #1 by test site) Rated Input: 100-240V, 300mA, 50/60Hz,10.5W Rated Output: 5V, 2100mA,10.5W Ancillary Equipment 2 .......... USB Power Cable Ancillary Equipment 3 .......... Audio Cable Note 1: The EUT is a Vers 2Q, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command SZ12100168W03 Page 4 of 78 from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit aresponse signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. Note 4: Bluetooth signal has 9 packages DH1, DH3, DH5, 3DH1, 3DH3, 3DH5, 5DH1, 5DH3, 5DH5, DH5 package is largest, we are testing DH5 in the document. Note5: The antenna of EUT is designed with permanent attachment and no consideration of replacement, it is printed on the circuit board with a maximum gain of 0dBi, and it is used to radiate the RF emissions. SZ12100168W03 Page 5 of 78 2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47Description Result 1 15.247(a) Number of Hopping Frequency PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) 20dB Bandwidth PASS 4 15.247(a) Carrier Frequency Separation PASS 5 15.247(a) Time of Occupancy (Dwell time) PASS 6 15.247(d) Conducted Spurious Emission PASS 7 15.247(d) Ba…
