Q7Q-A076Smart Phone

USER MANUAL Smart Phone Trade Mark: Skyworth FCC ID: Q7Q-A076 Page 1 Content / Contenido / Conteúdo 1 General Information ..................................................................................................................................9 1.1 Profile .........................................................................................................................................................................................................................................9 1.2 Safety warning and Attentions .........................................................................................................................................................................................9 2 Your phone ...............................................................................................................................................12 2.1 Phone overview .....................................................................................................................................................................................................................12 2.2 Functions of Keys ..................................................................................................................................................................................................................12 2.3 Functions of icons .................................................................................................................................................................................................................13 3 Getting started .........................................................................................................................................13 3.1 Installing the SIM Card and the Battery ........................................................................................................................................................................13 3.2 Charging the Battery ...........................................................................................................................................................................................................14 3.3 Linking to the Networks and devices ............................................................................................................................................................................15 3.4 Using the touch screen .......................................................................................................................................................................................................16 3.5 Using the onscreen keypad ...............................................................................................................................................................................................17 3.6 Dialing Calls .............................................................................................................................................................................................................................17 4 Using the Menus ......................................................................................................................................18 4.1 Browser .....................................................................................................................................................................................................................................18 4.2 Calculator .................................................................................................................................................................................................................................20 4.3 Calendar ...................................................................................................................................................................................................................................21 4.4 Camcorder ...............................................................................................................................................................................................................................22 4.5 Camera ......................................................................................................................................................................................................................................22 Page 2 4.6 Clock ..........................................................................................................................................................................................................................................22 4.7 Currents ...................................................................................................................................................................................................................................22 4.8 Downloads ..............................................................................................................................................................................................................................23 4.9 Email ..........................................................................................................................................................................................................................................23 4.10 File Explorer .........................................................................................................................................................................................................................24 4.11 FM Radio ................................................................................................................................................................................................................................24 4.12 Gallery .......................................................…

Text truncated - open the document above for the full version.

Shenzhen Skyworth Wireless Technology Co., Ltd. DATE : 2013-6-3 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appo int James Wu of SHENZHEN SETEK TECHNOLOGY CO., LTD. (Name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Shenzhen Skyworth Wireless Technology Co., Ltd. And Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. Dated this / Day of 6/03/2013 / Agency agreement expiration date: 6/03/2014 By: Jiangang Duan Signature Printed Title: Manager On behalf of : Shenzhen Skyworth Wireless Technology Co., Ltd. Telephone: +86 0755-26010007

Shenzhen Skyworth Wireless Technology Co., Ltd. Differences Declaration To whom concern: We company: . Shenzhen Skyworth Wireless Technology Co., Ltd Hereby declare: The product model(s) A076, GP353, SPA376 is(or are) identical in the same PCB layout, interior structure and electrical circuits with the model A076 which tested in SHENZHEN SETEK TECHNOLOGY CO., LTD. the only differences are the model name and appearance color for commercial purpose. Company: Shenzhen Skyworth Wireless Technology Co., Ltd Address: Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. Name/Title: Jiangang Duan / manager Te l . : +86 0755-26010007 Signature Date ：2013-6-08

Shenzhen Skyworth Wireless Technology Co., Ltd. DATE : 2013-06-3 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Q7Q-A076 Product Name: Smart Phone Request for Long-term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, we hereby request that the following documents be held confidential long term: • Block diagram • Schematics • Operational Description • Parts list • Tune up procedure These documents contain detailed system and equipment description and related information about the product which Shenzhen Skyworth Wireless Technology Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, Shenzhen Skyworth Wireless Technology Co., Ltd. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market Dated this / Day of 6/03/2013 / By: Jiangang Duan Signature Printed Title: Manager On behalf of : Shenzhen Skyworth Wireless Technology Co., Ltd. Telephone: +86 0755-26010007

Shenzhen Skyworth Wireless Technology Co., Ltd. DATE : 2013-06-3 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Q7Q-A076 Product Name: Smart Phone Request for Short-Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device. • Test Setup Photos • External Photos • Internal Photos • User Manual These documents contain detailed system and equipment description and related information about the product which Shenzhen Skyworth Wireless Technology Co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise would not release to the general public. Since this design is a basis from which future technological products will evolve, Shenzhen Skyworth Wireless Technology Co., Ltd. considers this information to be of benefit to its competitors, and that the disclosure of information in these documents would give competitors an unfair advantage in the market. This request is being made retroactively due to an over site on our part. We understand that the information has been publicly available during 90 days. Dated this / Day of 6/03/2013 / By: Jiangang Duan Signature Printed Title: Manager On behalf of : Shenzhen Skyworth Wireless Technology Co., Ltd. Telephone: +86 0755-26010007

EUT Constructional Details

Label Length=30mm Width=20mm

Label location

------End------

Report No.: RXA1305-0054SAR01R2 Page 1 of 155 TESTING No. L2264 OET 65 TEST REPORT Product Name Smart Phone Model Name A076, GP353, SPA376 FCC ID Q7Q-A076 Client Shenzhen Skyworth Wireless Technology Co., Ltd. Manufacturer Shenzhen Skyworth Wireless Technology Co., Ltd. Date of issue June 13, 2013 TA Technology (Shanghai) Co., Ltd. TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 2 of 155 GENERAL SUMMARY Reference Standard(s) FCC 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices ANSI C95.1, 1992: Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz.(IEEE Std C95.1-1991) IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438, published June 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01r01: SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01 Mobile Portable RF Exposure v05r01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB 648474 D04 SAR Handsets Multi Xmiter and Ant v01r01: SAR Evaluation Considerations for Wireless Handsets. KDB 941225 D01 SAR test for 3G devices v02: SAR Measurement Procedures CDMA 20001x RTT, 1x Ev-Do, WCDMA, HSDPA/HSPA KDB 941225 D03 Test Reduction GSM_GPRS_EDGE v01:Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE KDB 941225 D06 Hot Spot SAR v01r01:SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities Conclusion This portable wireless equipment has been measured in all cases requested by the relevant standards. Test results in Chapter 7 of this test report are below limits specified in the relevant standards for the tested bands only. General Judgment: Pass Comment The test result only responds to the measured sample. Approved by Director Revised by SAR Manager Performed by SAR Engineer TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 3 of 155 TABLE OF CONTENT 1. General Information ..................................................................................................................... 5 1.1. Notes of the Test Report ....................................................................................................... 5 1.2. Testing Laboratory ................................................................................................................ 5 1.3. Applicant Information ............................................................................................................ 6 1.4. Manufacturer Information ...................................................................................................... 6 1.5. Information of EUT ................................................................................................................ 7 1.6. The Maximum Reported SAR 1g ............................................................................................ 9 1.7. Test Date .............................................................................................................................. 9 2. SAR Measurements System Configuration ................................................................................ 10 2.1. SAR Measurement Set-up .................................................................................................. 10 2.2. DASY5 E-field Probe System ............................................................................................. 11 2.2.1. ES3DV3 Probe Specification ....................................................................................... 11 2.2.2. E-field Probe Calibration .............................................................................................. 12 2.3. Other Test Equipment ......................................................................................................... 12 2.3.1. Device Holder for Transmitters .................................................................................... 12 2.3.2. Phantom ...................................................................................................................... 13 2.4. Scanning Procedure ........................................................................................................... 13 2.5. Data Storage and Evaluation .............................................................................................. 15 2.5.1. Data Storage ................................................................................................................ 15 2.5.2. Data Evaluation by SEMCAD ...................................................................................... 15 3. Laboratory Environment ............................................................................................................. 17 4. Tissue-equivalent Liquid ............................................................................................................ 18 4.1. Tissue-equivalent Liquid Ingredients ................................................................................... 18 4.2. Tissue-equivalent Liquid Properties .................................................................................... 19 5. System Check ............................................................................................................................ 20 5.1. Description of System Check .............................................................................................. 20 5.2. System Check Results ...................................................…

Text truncated - open the document above for the full version.

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 81 of 155 GSM 1900 GPRS (3Txslots) Back Side Middle(SIM2) Date/Time: 05.06.2013 10:30:21 Communication System: GPRS(3UP); Frequency: 1880 MHz;Duty Cycle: 1:2.76694 Medium parameters used: f = 1880 MHz; σ = 1.508 S/m; ε r = 52.874; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: ES3DV3 - SN3189; ConvF(4.36, 4.36, 4.36); Calibrated: 22.06.2012; Electronics: DAE4 Sn1317; Calibrated: 25.01.2013 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Back Side Middle/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.678 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.480 V/m; Power Drift = 0.180 dB Peak SAR (extrapolated) = 0.984 W/kg SAR(1 g) = 0.630 W/kg; SAR(10 g) = 0.388 W/kg Maximum value of SAR (measured) = 0.685 W/kg Figure 34 Body, Back Side, GSM 1900 GPRS (3Txslots) Channel 661 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 82 of 155 UMTS Band II Left Cheek High Date/Time: 03.06.2013 19:25:48 Communication System: WCDMA; Frequency: 1907.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1908 MHz; σ = 1.429 S/m; ε r = 39.576; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: ES3DV3 - SN3189; ConvF(4.69, 4.69, 4.69); Calibrated: 22.06.2012; Electronics: DAE4 Sn1317; Calibrated: 25.01.2013 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Left Cheek High/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.759 W/kg Left Cheek High/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.658 V/m; Power Drift = 0.041 dB Peak SAR (extrapolated) = 0.970 W/kg SAR(1 g) = 0.644 W/kg; SAR(10 g) = 0.409 W/kg Maximum value of SAR (measured) = 0.690 W/kg Left Cheek High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.658 V/m; Power Drift = 0.041 dB Peak SAR (extrapolated) = 1.09 W/kg SAR(1 g) = 0.729 W/kg; SAR(10 g) = 0.453 W/kg Maximum value of SAR (measured) = 0.788 W/kg Figure 35 Left Hand Touch Cheek UMTS BandII Channel 9538 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 83 of 155 UMTS Band II Left Cheek Middle Date/Time: 03.06.2013 18:55:04 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 39.625; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: ES3DV3 - SN3189; ConvF(4.69, 4.69, 4.69); Calibrated: 22.06.2012; Electronics: DAE4 Sn1317; Calibrated: 25.01.2013 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Left Cheek Middle/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.902 W/kg Left Cheek Middle/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.541 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 1.15 W/kg SAR(1 g) = 0.754 W/kg; SAR(10 g) = 0.480 W/kg Maximum value of SAR (measured) = 0.809 W/kg Left Cheek Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.541 V/m; Power Drift = 0.000 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.854 W/kg; SAR(10 g) = 0.533 W/kg Maximum value of SAR (measured) = 0.923 W/kg Figure 36 Left Hand Touch Cheek UMTS BandII Channel 9400 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 84 of 155 UMTS Band II Left Cheek Low Date/Time: 03.06.2013 19:53:41 Communication System: WCDMA; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.387 S/m; ε r = 39.746; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: ES3DV3 - SN3189; ConvF(4.69, 4.69, 4.69); Calibrated: 22.06.2012; Electronics: DAE4 Sn1317; Calibrated: 25.01.2013 Phantom: SAM 1; Type: QD000P40CD; Serial: TP:1666 Measurement SW: DASY52, Version 52.8 (5); SEMCAD X Version 14.6.8 (7028) Left Cheek Low/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.754 W/kg Left Cheek Low/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.147 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 0.865 W/kg SAR(1 g) = 0.575 W/kg; SAR(10 g) = 0.368 W/kg Maximum value of SAR (measured) = 0.605 W/kg A076 WCDMA II Left/Cheek Low/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.147 V/m; Power Drift = 0.070 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.689 W/kg; SAR(10 g) = 0.433 W/kg Maximum value of SAR (measured) = 0.744 W/kg Figure 37 Left Hand Touch Cheek UMTS BandII Channel 9262 TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 85 of 155 UMTS Band II Left Tilt Middle Date/Time: 03.06.2013 20:22:14 Communication System: WCDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.408 S/m; ε r = 39.625; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: ES3DV3 - SN3189; ConvF(4.69, 4.69, 4.69); Calibrated: 22.06.2012; Electronics: DAE4 Sn1317; Calibrated: 25.01.2…

Text truncated - open the document above for the full version.

SHENZHEN SETEK TECHNOLOGY CO., LTD. Address: 1003, C Bldg, Fuyuan Business Trade Center, 44 District Bao’an, Shenzhen, China Telephone: +86 (0)755 2696 6362, Fax: +86 (0)755 2696 6270, E-mail:[email protected], Website: www.setek.com.cn FCC Report Mobile Phone Product Description: Smart Phone Trade Mark: Skyworth Model No.: A076, GP353, SPA376 FCC ID: Q7Q-A076 Applicant: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. Applicable standards: FCC CFR Title 47 Part 2: 2012 FCC CFR Title 47 Part22 Subpart H: 2012 FCC CFR Title 47 Part24 Subpart E: 2012 Test Date: 15 May ~ 31 May, 2013 Issued Date: 31 May, 2013 Test Result: Complied James Wu Laboratory Manager The test result in this test report relate only to the tested samples in this report . This report shall not be reproduced except in full without the written approval of Shenzhen SETEK technology Co., ltd. Report No.: FCI1305085R-03 Page: 2 of 52 2 Version Version No. Date Description 00 31 May, 2013 Original Prepared By: Date: 31 May, 2013 Young Li Project Engineer Check By: Date: 31 May, 2013 Dixon Hao Reviewer Report No.: FCI1305085R-03 Page: 3 of 52 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT......................................................................................................... 5 5.3 TEST MODE........................................................................................................................................ 7 5.4 TEST FACILITY.................................................................................................................................... 8 5.5 TEST LOCATION................................................................................................................................. 8 6 TEST INSTRUMENTS LIST ..................................................................................................................... 9 7 SYSTEM TEST CONFIGURATION .......................................................................................................10 8 MEASUREMENT DATA AND TEST RESULTS.................................................................................... 11 8.1 CONDUCTED EMISSIONS................................................................................................................... 11 8.2 CONDUCTED OUTPUT POWER........................................................................................................... 14 8.3 OCCUPY BANDWIDTH........................................................................................................................ 19 8.4 MODULATION CHARACTERISTIC......................................................................................................... 27 8.5 OUT OF BAND EMISSION AT ANTENNA TERMINALS............................................................................... 28 8.6 ERP, EIRP MEASUREMENT.............................................................................................................. 35 8.7 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT................................................................. 41 8.8 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT............................................................... 47 8.9 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT....................................................................... 51 Report No.: FCI1305085R-03 Page: 4 of 52 4 Test Summary Test Item Test Method Result Conducted Output Power Part 2.1046 Pass Effective Radiated Power Part22.913(a)(2) Pass Equivalent Isotropic Radiated Power Part 24.232(c) Pass Occupied Bandwidth Part 2.1049 Part 22.917 (a) Part 24.238 (a) Pass Spurious Emissions at Antenna Terminal Part 2.1051 Part 22.917 (a) Part 24.238 (a) Pass Field Strength of Spurious Radiation Part 2.1053 Part 22.917 (a) Part 24.238 (a) Pass Out of band emission, Band Edge Part 2.1051 Part 22.917 (a) Part 24.238 (a) Pass Frequency stability vs. temperature Part 2.1055(a)(1)(b) Pass Frequency stability vs. voltage Part 2.1055(d)(1)(2) Pass Complied: The EUT has complied with the essential requirements in the standard. Report No.: FCI1305085R-03 Page: 5 of 52 5 General Information 5.1 Client Information Applicant: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. Manufacturer: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. Factory: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: Unit A Rm 3A01, Skyworth Bldg, Gaoxin Ave 1S, Nanshan District, Shenzhen, China. 5.2 General Description of EUT Product Name: Smart Phone Brand Mark: Skyworth Model No.: A076, GP353, SPA376 Test model No.: A076 Software Version: 4.0.4 Hardware Version: A076_MAIN_PCB_V1.0 Mobile phone Support Networks: GSM/GPRS/EDPRS/WCDMA/HSPA TX Frequency: GSM850/GPRS850/EGPRS850: 824.2MHz ~ 848.8MHz GSM1900/GPRS1900/EGPRS1900: 1850.2MHz ~ 1909.8MHz WCDMA Band V: 826.4MHz ~ 846.6MHz WC…

Text truncated - open the document above for the full version.

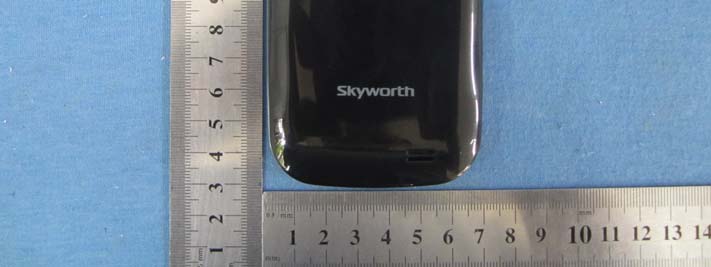

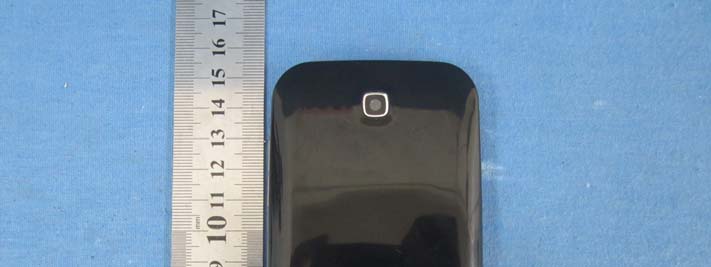

TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 149 of 155 ANNEX H: The EUT Appearances and Test Configuration a: EUT b:baterry 12cm 6.7cm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 150 of 155 c: Back Side Picture 6: Constituents of EUT TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 151 of 155 Picture 7: Left Hand Touch Cheek Position Picture 8: Left Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 152 of 155 Picture 9: Right Hand Touch Cheek Position Picture 10: Right Hand Tilt 15 Degree Position TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 153 of 155 Picture 11: Back Side, the distance from handset to the bottom of the Phantom is 10mm Picture 12: Front Side, the distance from handset to the bottom of the Phantom is 10mm 10mm 10mm TA Technology (Shanghai) Co., Ltd. Test Report Report No.: RXA1305-0054SAR01R2 Page 154 of 155 Picture 13: Left Edge, the distance from handset to the bottom of the Phantom is 10mm Picture 14: Right Edge, the distance from…

Text truncated - open the document above for the full version.
