MID MODEL: M1802 USER MANUAL 1 Preface Thank you for buying the MID. We wish you enjoy using it. Please read and retain all the operating instructions before operating the unit, we do not assume any liability arising out of improper operation or incidental damages. For better services, the content of this operation manual may be changed. If the actual setup and usage of the unit are different from this operation manual, please view the website of our company to inquire about the latest product information. Do not allow water or foreign objects to enter the unit. 2 I. Note: 1. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual. 2. Do not use metal object to touch the device to prevent it from short circuit. 3. Please backup your data in case your important data is lost, especially before you upgrade the firmware. The company will not take charge in any loss that caused by lost of data. 4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or benzene. 5. Do not disconnect the unit while it is formatting or uploading/downloading, or the procedures may lead to errors 6. We do not take responsibility to the flash damage caused by product broken, repair or other reasons. Please operate strictly as per the user guide. 7. Avoid water or foreign objects enter the unit. 8. Do not use the unit in places that are extremely hot, cold, dusty, or humid. 9. Avoid the unit being dropped. Avoid the display been shake seriously, or the display will be damaged or unusual. 10. Specifications are subject to change and improvement without notice 3 II. Introduction of cover: 4 III. Operation Instruction 1. Basic Operation 1.1. Power on/Power off Power on: Press and hold the power switch for 3 seconds; the unit displays the start-up logo and enters the working mode. Power off: Press and hold the power switch for 3 seconds to turn the unit off. Sleep: While the device is at working status, press the power switch, it enters the sleeping mode, and the screen will be off then. Press the power switch again, it shift to the normal mode. You may use this function when you don’t’ use the device temporary to save power. 1.2. Charging When the device prompts low battery, please charge it by provided charger. Note: To improve the longevity of the battery, you may charge for another 15 minutes after it prompts the battery is full. 1.3. Main menu 5 Click the icon in the main interface, the main menu is appeared. It including the system setting, music playback, video playback, web browser and other applications you installed in the main menu. 2. Settings Click “” in the main interface to enter the setting interface. Click the corresponding setting items to operate. 6 7 8 2.1．Date and Time Setting Click “Date & Time” in the setting interface to set the date and time. You may set the date, time zone, time, time format and date format etc. in the menu. 9 2.2. Brightness Select “Display” in the setting interface. Click “Brightness” to enter, and slide the bar to adjust the brightness. 10 11 3. Wi-Fi connection Click “Settings” in the main interface and click “Wireless & network” to enter the wireless and network setting interface. Click Wi-Fi to turn on the WIFI. Click Wi-Fi setting to set and manage wireless access. Click “Network Notification”, it lists the open network it searched. Click the name of the network; it pops up the setting window. You may connect it to WIFI according to the prompts. You need to input the user name and password if networks are encrypted. 12 13 3.1 Ethernet configuration The Unit support USB-Net-Card. 14 4. Install, Uninstall and Run applications 15 4.1 Install There are many ways to install applications under Android, such as via USB, by third party program. We introduce installation by Apps Installer here. Click the “File Manager” in the main interface. Select the APK file you want and enter the application installation interface. Click “Install” to install the application automatically. After installation, it prompts “Open” and “Finish”. Click “Open” to open the application. Click “Finish” to exit. 4.2 Uninstall You may use the corresponding third party software management tool or the installed application management software of the device to install applications. Select “Setting/Applications/Manage applications” to select the installed applications and check the attribute of it or uninstall it. 5. Connect to internet 5.1. After connecting with WIFI, open the browser and input the web address, you can browse the web then. 5.2. Click the icon to enter the bookmark to view the browse history. Click the web page you want to open it. 16 To save the web page into bookmark, you may click to enter and click “add” to save it. 6. Audio and video playback 6.1. Audio playback Click the “Music” in the main menu to enter the audio playback interface. It lists the audio files in the device, and you may click the file name to play it. in the audio playing interface, click the icons to play/pause/ increase volume/ decrease voluem/ FF/ REW.... 17 6.2. Video Playback Click the “2160P(Gallery)” in the main menu to enter the video playback interface. It lists the video files in the device, and you may click the file name to play it. in the 18 video playing interface, touch the screen to pop-up the operation icons and click the icons to play/pause/ increase volume/ decrease volume/ skip to next file/skip to previous file.... 19 20 7. Picture viewing Click in the main menu to enter the picture folder list. Select and click the folder you want to enter, it displays the . click the thumbnail of the picture to view it. Touch the screen to pop-up the operation icons while viewing the picture, you may zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the picture... 21 8. 3G DONGLE The device supports external 3G Dongle, connect the 3G dongle to the device via the external transfer cable, after the dongle indic…

Text truncated - open the document above for the full version.

FCC ID: Q7Q-M1802 Date: Jan 07, 2013 We, Shenzhen Skyworth Wireless Technology Co., Ltd. doesn’t provide any controls or software to allow the operation outside of the USA frequency band when we sell this product in USA. Sincerely, Signature: Name/Title: Jiangang Duan/Project Manager Company Name: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: R3A01, Unit A, Skyworth Building, Gaoxin Ave, 1.S., Nanshan TEL: +86-755-26010007 FAX: +86-755-26010070 Email: [email protected]

AGENCY AUTHORIZATION LETTER FCC ID: Q7Q-M1802 Date: Jan 07, 2013 To whom it may concern: We, the undersigned, hereby authorize CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd . to act on our behalf, as our agent in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification, Any act carried out by CCIC Southern Electronic Product Testing (Shenzhen) Co., Ltd . within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months from original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Signature: Name/Title: Jiangang Duan/Project Manager Company Name: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: R3A01, Unit A, Skyworth Building, Gaoxin Ave, 1.S., Nanshan TEL: +86-755-26010007 FAX: +86-755-26010070 Email: [email protected]

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: Q7Q-M1802 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematic Theory of Operation Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, We do not want these documents to be accessible to the general public. Sincerely, Signature: Name/Title: Jiangang Duan/Project Manager Company Name: Shenzhen Skyworth Wireless Technology Co., Ltd. Address: R3A01, Unit A, Skyworth Building, Gaoxin Ave, 1.S., Nanshan TEL: +86-755-26010007 FAX: +86-755-26010070 Email: [email protected]

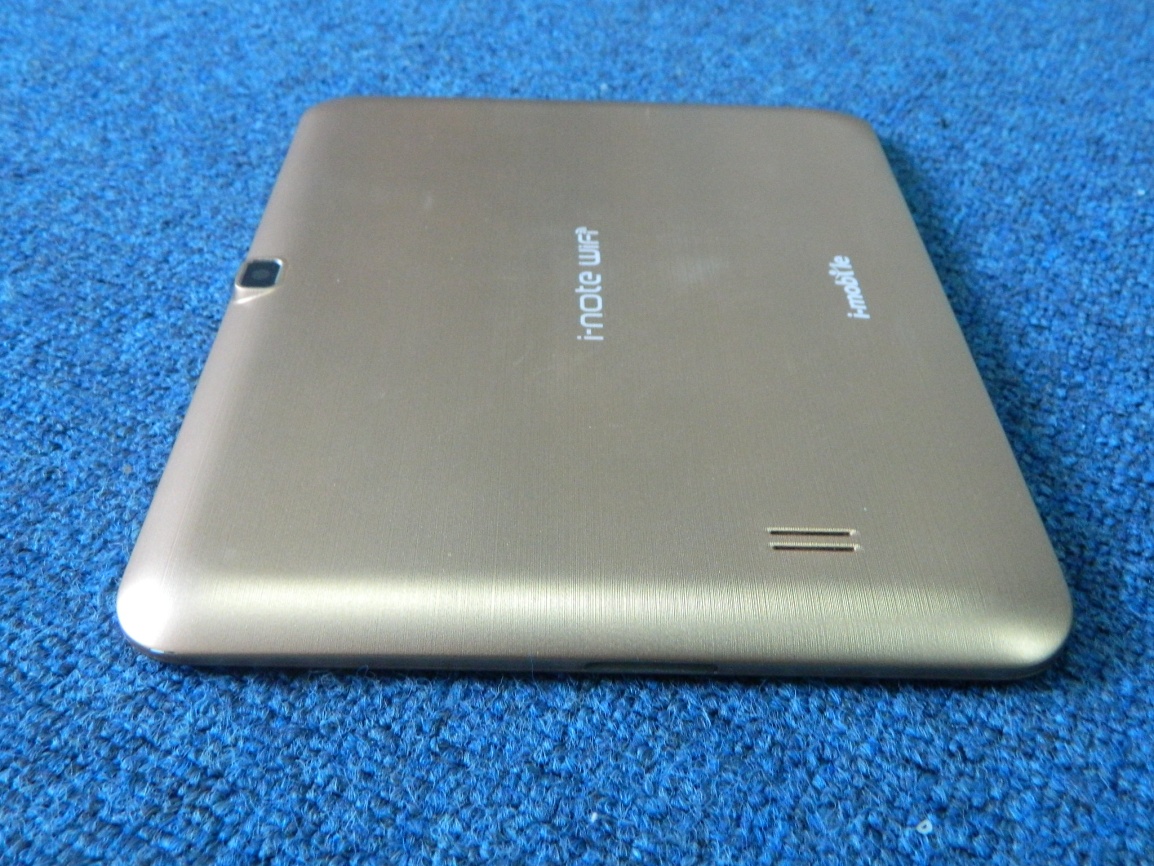

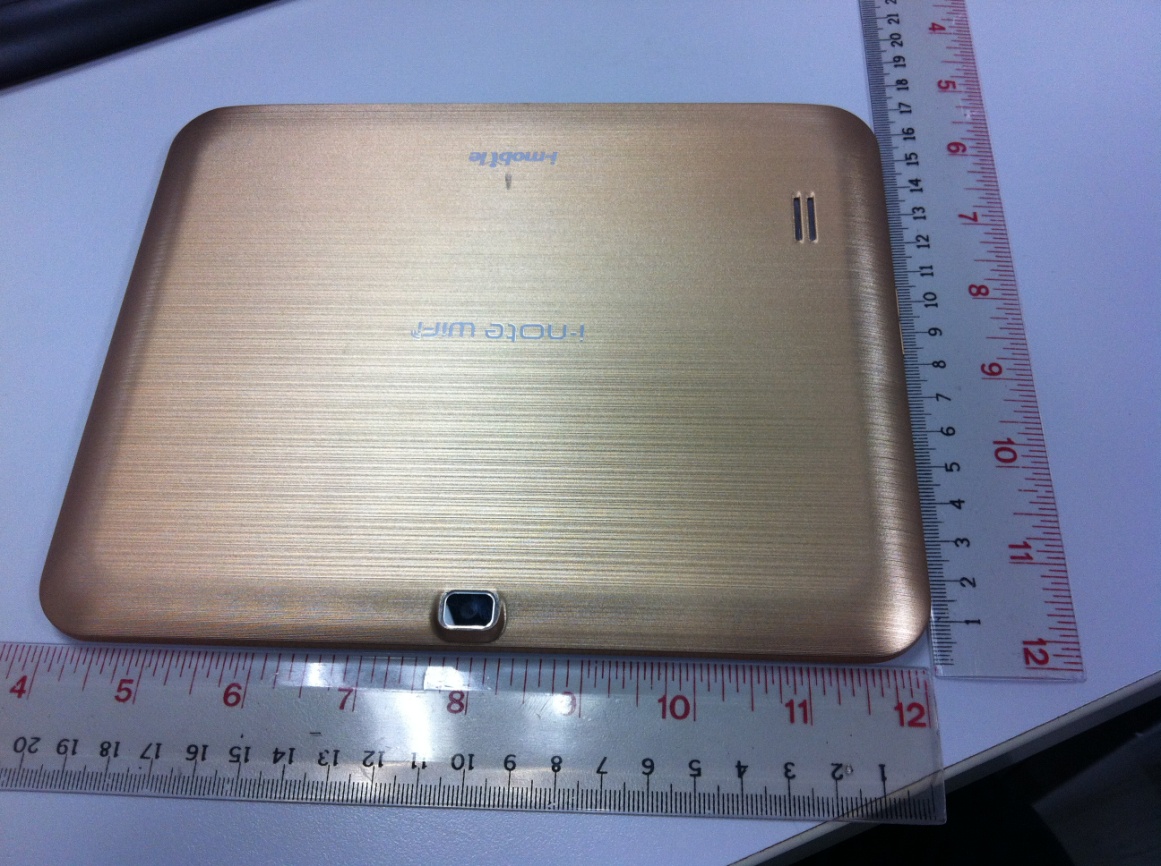

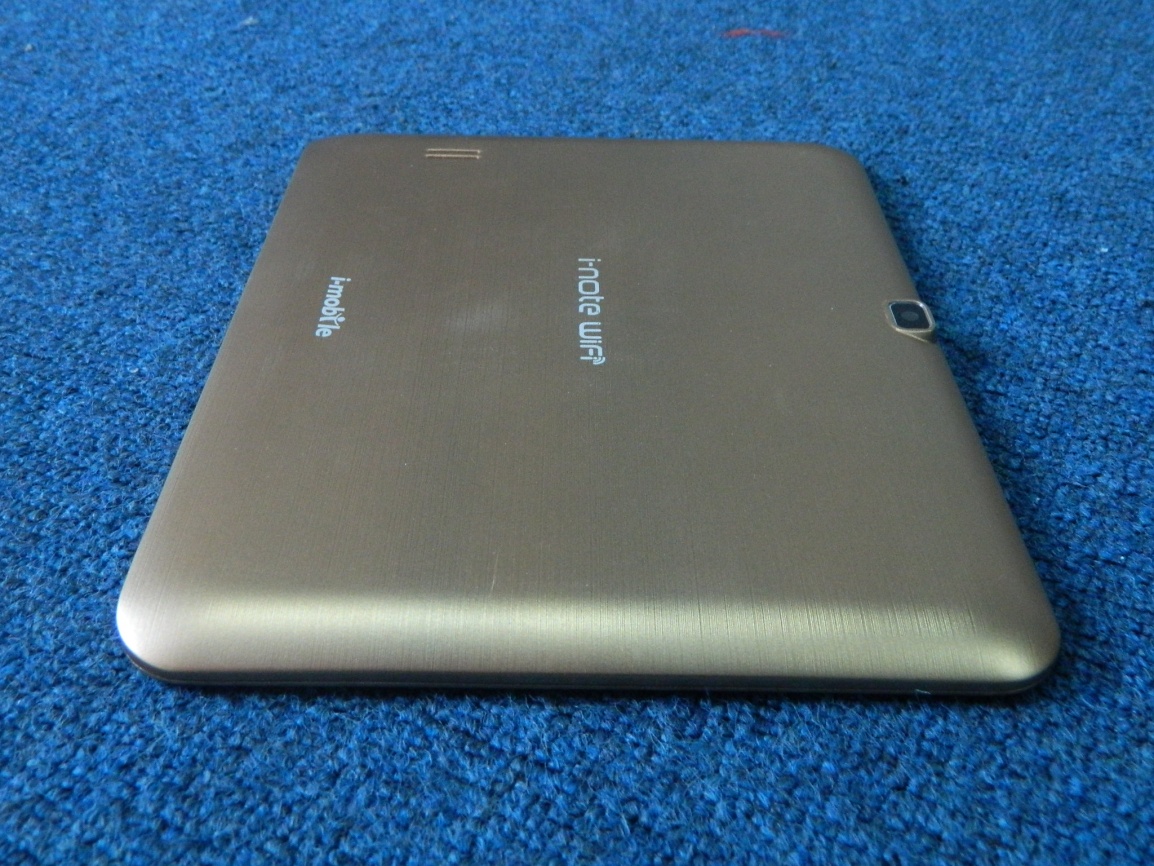

External Photos of the EUT
