Q7S-BBRFRF Unit - Transmitter

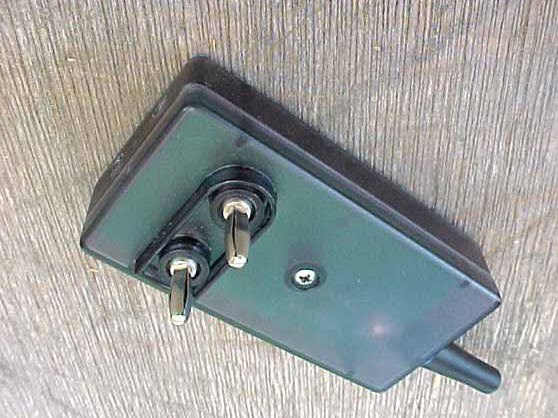

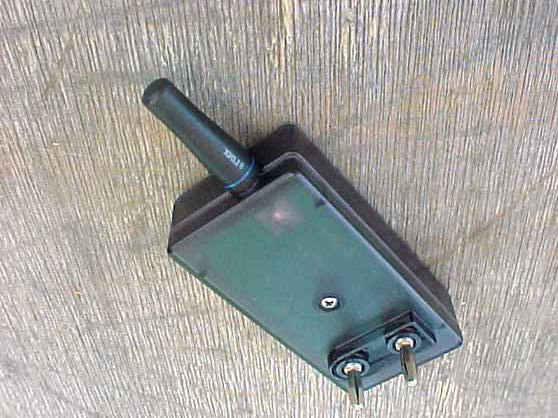

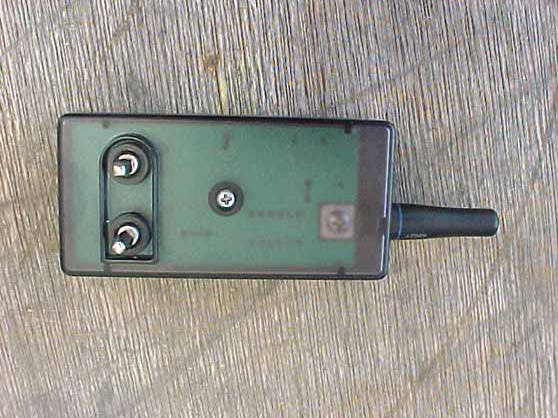

Home of the BrakeBuddy 4371 Platte Avenue Sedalia, Colorado 80135-8074 Phone (800) 470-2287 Fax (303) 814-0977 E-Mail: [email protected] Website: Brakebuddy.com Brakebuddy  Alert System The Alert System is a wireless monitor that illuminates on your motorhome’s dashboard when the BrakeBuddy is activated. This system consists of two parts, the Receiver and Transmitter. The Receiver plugs into a 12v outlet on the dash of the motorhome. When the BrakeBuddy is activated in the towed vehicle, the Receiver will illuminate. The Transmitter plugs into the top of the BrakeBuddy and sends a signal to the Receiver when the BrakeBuddy is activated. Before towing, perform a simple test to assure your Alert System is operating properly. Have someone push the red test button on the BrakeBuddy and hold it for ten seconds while you are in your motorhome looking at the Receiver. The Receiver will illuminate for the full ten seconds without blinking. Do not do this while the motorhome is moving! The Alert Receiver will illuminate: (1) if the BreakAway pin is pulled; (2) when the test button is depressed; or (3) when the BrakeBuddy activates as a result of forward inertia (i.e., the braking of the motorhome). When the BreakAway pin is pulled, in addition to the Receiver illuminating, an audible buzzer will sound after ten seconds. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna; 2. Increase the separation between the equipment and receiver; 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected; 4. Consult the dealer or an experienced radio/TV technician for help. This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Receiver Transmitter

Page 7Page 6 Output Isolation & Filter RF Amplifier TRI-Detect Buffer Sync GATE Counter Divider TX Enable Keyed Output SAW Oscillator 50 Ω RF OUT (Ant.) OSC Parallel Inputs D0-D7 Address Inputs A0-A9 RF STAGEENCODER STAGE figure 12: KH Series Transmitter Block Diagram MODULE DESCRIPTION The KH Series Transmitter/Encoder module combines a high-performance SAW- (Surface Acoustic Wave) based transmitter with an on-board encoder. When combined with a Linx KH series receiver/decoder a highly reliable RF link capable of transferring control or command data over line-of-sight distances in excess of 300 feet (90M) is formed. The module accepts up to 8 parallel inputs such as switches or contact closures and provides ten tri-state address lines for security and creation of 59,049 unique transmitter/receiver relationships. The KH’s compact surface-mount package integrates easily into existing designs and is friendly to hand production or automated assembly. THEORY OF OPERATION The KH series operation is straightforward. When the transmit enable line is taken high the on-board encoder IC is enabled. The encoder then detects the logic states of the data and address lines. These states are formatted into a 3- word transmission cycle which continues until the enable line is taken low. The encoder creates a serial data packet which is used to modulate the KH transmitter. The TXE-KH transmitter section is based on a simple but highly optimized architecture which achieves a high fundamental output power with low harmonic content. This insures that most approval standards can be met without external filter components. The KH transmitter is exceptionally stable over variations in time, temperature, and physical shock as a result of the precision SAW (Surface Acoustic Wave) device that is incorporated as its frequency reference. The transmitted signal may be received by any Linx KH receiver/decoder module or Linx LC receiver combined with the appropriate decoder IC. Once data is received it is decoded using a decoder IC or custom microcontroller. The transmitted address bits are checked against the address settings of the receiving device. If a match is confirmed, the decoder’s output(s) are set to replicate the transmitter’s button status. PIN DESCRIPTIONS: Pin 1 - GROUND/LEVEL Connect to quiet ground or insert series resistor to adjust output power. Pins 2,3,7,8,9,10,11,12 - DATA IN Logic level input pin. TTL- and CMOS-compatible. State of all pins is sent during transmission. Pins 4, 23 - GROUND Connect to quiet ground or groundplane. Pin 5 - POSITIVE SUPPLY (V CC 2.7-6 VDC) The supply must be clean (<20 mV pp), stable and free of high-frequency noise. A supply filter is recommended unless the module is operated from its own regulated supply or battery. Pin 6 - TRANSMIT ENABLE When taken high this pin initiates transmission. Transmission continues until the pin is restored low or power to the device is removed. Pin 13-22 - ADDRESS LINES Ten tri-state address inputs are used to set transmitter address to avoid contention and create unique tx/rx relationships. Note: tri-state means that the address lines have three distinct states, high, low, and floating. All address pin states must match that of the KH receiver module for transmission to be recognized. Pin 24 - RF OUT Connect to 50Ωantenna. POWER SUPPLY REQUIREMENTS The transmitter module requires a clean, well- regulated power source. While it is preferable to power the unit from a battery, the unit can also be operated from a power supply as long as noise and ‘hash’ are kept to less than 20 mV. A 10Ωresistor in series with the supply followed by a 10μF tantalum capacitor from Vcc to ground as shown at the right will help in cases where the quality of supply power is poor. figure 11: Supply Filter PHYSICAL PACKAGING The KH-TX module is packaged in a hybrid SMD module with 24 pads spaced 0.100" apart on center. The reflow compatible package is equipped with castellations which simplifies proto- typing or hand assembly while maintaining compatibility with auto- mated pick-and-place equipment. GND/LVL D0 D1 GND VCC TE D2 D3 24 23 22 21 20 19 18 17 ANT GND A9 A8 A7 A6 A5 A4 D4A3 D5A2 D6A1 D7A0 1 2 3 4 5 6 7 8 169 1510 1411 1312 figure 10: TXE-KH Package (Top View) 10R 1.220 in. 31.3 mm 0.18 in. .630 in. 16.2 mm 4.6 mm LOT 2000 RF TRANSMITTER/ENCODER TXE-418-KH figure 9: TXE-KH Package

PP-00174 Rev. 00 Alert System

Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for RF UNIT – TRANSMITTER P/N: 9-2A421-001 Prepared for CANFIELD INDUSTRIES, INC. 8510 FOXWOOD COURT YOUNGSTOWN, OHIO 44514 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ MICHAEL CHRISTENSEN COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JUNE 3, 2003 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 10 15 47 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. Description of Test Configuration 8 4.1 Description of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. Test Procedures 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested: RF Unit – Transmitter P/N: 9-2A421-001 S/N: N/A Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: Canfield Industries, Inc. 8510 Foxwood Court Youngstown, Ohio 44514 Test Dates: June 2 and July 8, 2003 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4: 1992 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 450 kHz - 30 MHz This test was not performed because the EUT operates on DC power only and cannot be plugged into the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RF Unit – Transmitter P/N: 9-2A421-001. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30530D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report RF Unit – Transmitter P/N: 9-2A421-001 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2. ADMINISTRATIVE DATA 2.1 Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2 Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3 Cognizant Personnel Canfield Industries, Inc. John R. Rasmussen President Ron Alfredo Chief Engineer Compatible Electronics, Inc. Kyle Fujimoto Test Engineer Michael Christensen Test Engineer 2.4 Date Test Sample was Received The test sample was received on May 30, 2003. 2.5 Disposition of the Test Sample The sample has not been returned to Canfield Industries, Inc. as of June 3, 2003. 2.6 Abbreviations and Acronyms The following abbre…

Text truncated - open the document above for the full version.
