Q92-BH-RRemote Control Transmitter

Instruction Manual for Transmitter Model No.: BH‐R INSTALLATION: Install one (1) x 12V (23A) battery in the compartment, make sure the installation of battery is correct. OPERATION: Transmitter BH-R with 3 pairs of buttons for individual ON and OFF function, generally controls 3 socket receivers; Each push of the ON or OFF button on remote controller will turn on or off the corresponding socket receivers accordingly. CHANGING THE BATTERY: Regularly change the battery in the remote control for best use – however if you find the receivers are not responding or the indicator light becomes dim then you must change the battery at the earliest available time. Always dispose of old batteries with consideration for the environment. TECHNICAL DATA: Transmission frequency: 433.92MHz Transmitter powered by: DC 12V 23A battery (1pc) FCC Warning: ●Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. ●This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Transmitter working principle block diagram DC power supply (12V battery ） Touch off switch Digital Codes IC 1 Modelation and amplification signal to 433.92MHz (Q1) Send out signal by antenna (L) Max. transmission power: ＜10mW

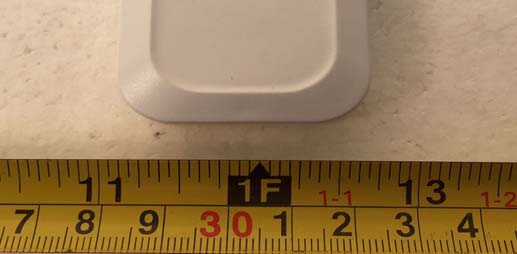

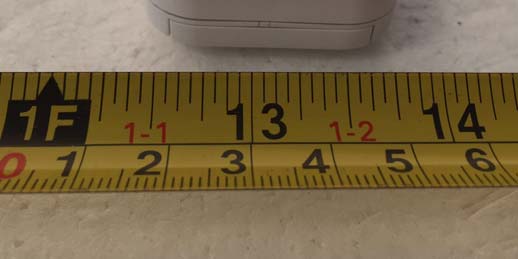

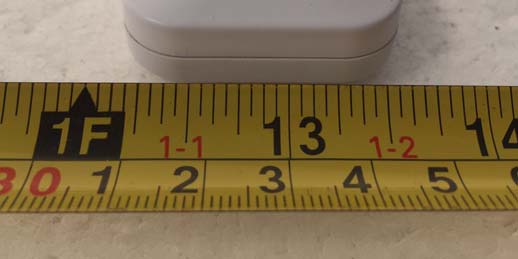

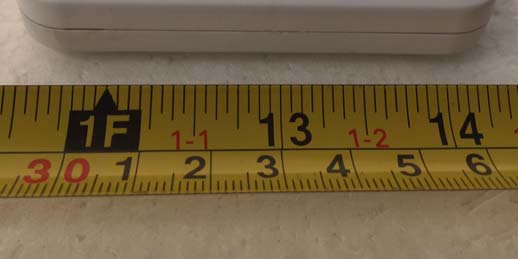

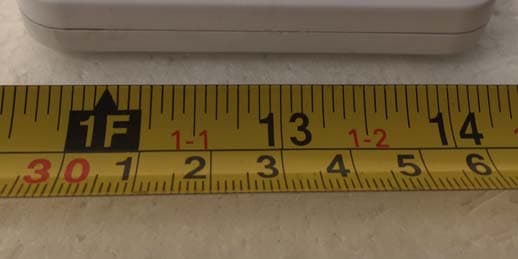

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Left View EUT – Top View EUT – Bottom View EUT – Right View EUT –Rear View

FCCID:Q92‐BH‐R

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board top View EUT – Main Board Bottom View

Circuit Description For Transmitter: Install 1 pc 12V (23A) battery in the transmitter to provide energy for circuit use. Press the button on the transmitter, the circuit switches on and start to work, digital codes circuit outputs codes signal, by modulate the circuit, make the signal up to 433.92MHz, the high frequency signal by amplification and is sent out by inner antenna.

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:27-Aug-2015Sheet of File:E:\Protel99SE 图纸 \BH 图纸 \BH0603.ddbDrawn By: VCC D9 D8 D7 D6 D5 D4 D3 D2 D1S1ON S2OFF S3ON S4OFF S5ON S6OFF TX BAT 23A R4 150K Q1 S9018 SAW 434MHz R3 68R C3 8P R1 100K C2 2.4P L2 68nHC5 20P L1 27nH C4 0.5P C6 5.6P R2 100R C1 103 VCC C7 5.6P C8 104 LED TX VCC K0 5 K1 6 K2 7 K3 8 OSC 1 VCC 2 VSS 3 TXD 4 IC1 eV1527 R5 2K

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15.231 TEST REPORT For NINGBO BAIHUANG ELECTRIC APPLIANCES CO., LTD. No.180, Yanshan Rd, Huximen, Heng He Town, Cixi, Ningbo, CHINA FCC ID：Q92-BH-R Report Type: Original Report Product Type: Remote Control Transmitter Test Engineer: Matt Yao Report Number: RKS150918001-00B Report Date: 2015-10-09 Reviewed By: Jesse Huang EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) Chenghu Road,Kunshan Development Zone No.248,Kunshan, Jiangsu, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKS150918001-00B FCC Part 15.231 Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTED CONSTRUCTION ...................................................................................................................... 7 FCC §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ............................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MEASUREMENT UNCERTAINTY .................................................................................................................................... 8 EUT SETUP .................................................................................................................................................................. 9 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST RESULTS SUMMARY .......................................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC §15.231(C) – 20 DB EMISSION BANDWIDTH .............................................................................................. 14 APPLICABLE STANDARD ............................................................................................................................................ 14 TEST PROCEDURE ...................................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.231(A)(2) - DEACTIVATION TESTING .................................................................................................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emissions (Below 1GHz) Radiated Emissions (Above 1GHz)
