Q92-BH-V1Remote Control Transmitter

Instruction Manual To program a remote transmitter and receiver 1. Plug the receiver into the socket. 2. Press and hold the program button on the receiver until the indicator light starts to blink slowly. 3. Release the program button, then press the on/off button on the transmitter. 4. When the indicator light stops flashing, the program is paired successfully. Cancel All Programming Cancel all the programs so that no remote transmitter can control it. - Press and hold the program button on the receiver until the indicator light starts to blink rapidly. Note: The indicator light blinks from slow to fast. - Release the program button, then press it again, the indicator light will go off, which means cancel the program successfully. No Interference Remote control outlets adopt variable learning codes technology.The codes will be changed each time after re-programming. If this remote control outlet happens to be in the same channels with other RF remote devices, just re-program it and the interference will be eliminated. Battery Replacement If you find the receivers works abnormally or the indicator on the remote control becomes dim, please replace the battery. - Open the battery compartment and remove the old battery. - Install a new DC 12V (TYPE 23A) battery, making sure the polarity + / - of the battery is correct. - Close the battery compartment. Specifications 1) Press the ON/OFF button on the transmitter. 2) Or press the programming button on the receiver. 3) The indicator light of the receiver turns on when the unit is activated. Operating Instructions Notes: The receiver must be located within 100 feet of the remote transmitter. Actual functional range may be affected by the following factors: weather, radio frequency interference, low remote battery, and obstructions between the transmitter and receiver. 1. Remove the isolation tap in the battery compartment on the transmitter. 2. Plug the receiver into a powered outlet. 3. Plug your device into the socket of the receiver. 4. To control your matching devices: To program a remote transmitter ISEDC Warning: This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Transmission Frequency: 43 3.92 MHz - Remote Control Range : 100 Feet (Free Area) - Remote Battery: 23A 12V FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does 03cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●Reorientorrelocatethereceivingantenna. ●Increasetheseparationbetweentheequipmentandreceiver. ●Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhich the receiver is connected. ●Consultthedealeroranexperienc ed radio/TV technician for help. champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. 4One Year Limited Warranty Supported by our professional R&D team and QC team, we provide One Year Warranty for materials and workmanship from the purchase date. Please note that the warranty does not cover damage caused by personal misuse or improper installation. Please attatch your Order ID and Name so that our dedicated customer service team can help you better. 04 . .

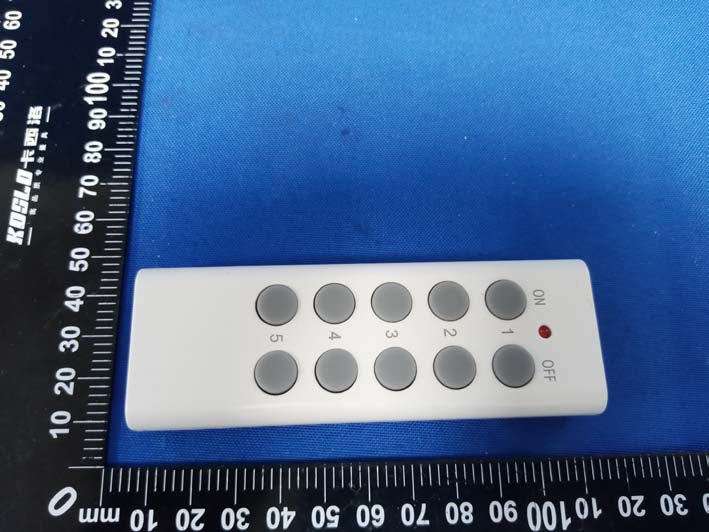

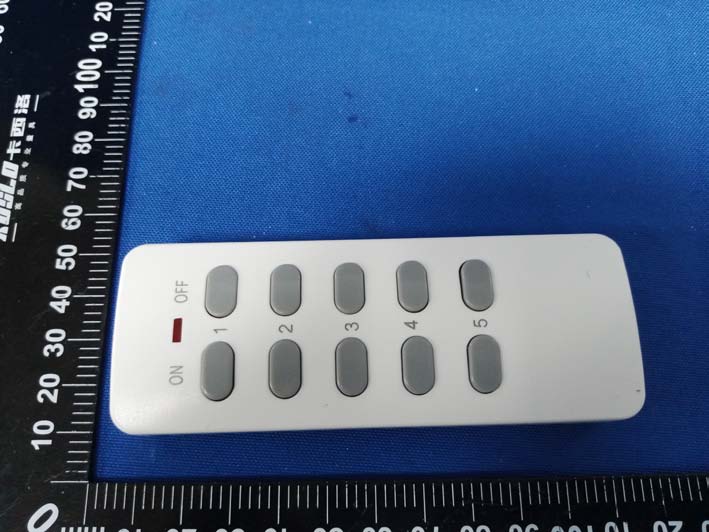

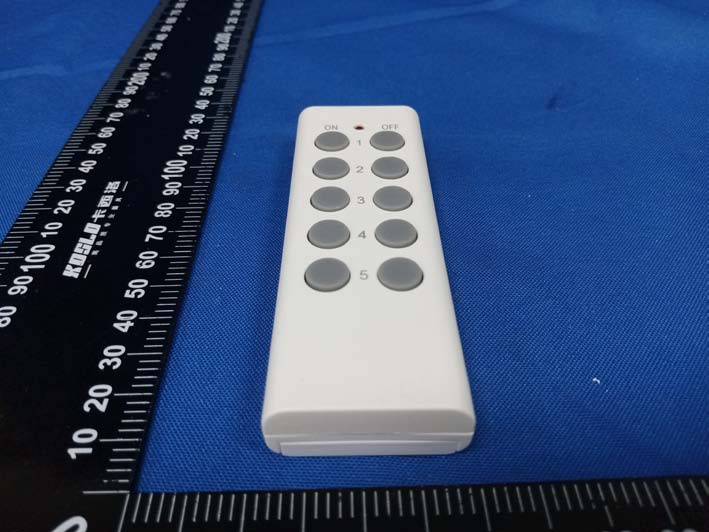

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 1 of 6 External Photos Test Model: BH-V1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 2 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 3 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 4 of 6 Multiple Model: BH-P1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 5 of 6 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF External Photos Page 6 of 6

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221129-57907E-RF EXHIBITA- LABEL AND LOCATION Label Label Location Information Shenzhen Accurate Technology Co., Ltd. Report No.: RA221129-57907E-RF Label Label Location Information

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 1 of 8 Internal Photos Test Model: BH-V1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 2 of 8 1ON 2ON 3ON 3OFF 2OFF 1OFF 4ON 5ON 4OFF 5OFF Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 3 of 8 433.92MHz TX Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 4 of 8 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 5 of 8 Multiple Model: BH-P1 Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 6 of 8 1ON 2ON 3ON 3OFF 2OFF 1OFF 4ON 5ON 4OFF 5OFF Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 7 of 8 433.92MHz TX Antenna Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Internal Photos Page 8 of 8

Shenzhen Accurate Technology Co., Ltd. Report No.: RA221129-57907E-RF-00A Version 5: 2021-11-09 Page 9 of 24 FCC Part 15.231 FCC §1.1307 (b) & §2.1093 – RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.2 – 1- mW test Exemption: Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. Test Result: For worst case: Mode Frequency Maximum Tune-up Power (ERP) 1-mW test Exemption (MHz) (dBm) (mW) SRD 433.92 -15.15 0.031 Yes Note 1: E(dBuV/m)=EIRP(dBm)-95.2 for distance 3m so the EIRP=81.38dBuV/m-95.2=-13.82dBm Note 2: The tune-up EIRP is -13dBm, which was declared by the applicant. Note 3: EIRP(dBm)= ERP+2.15dBi so the ERP=-13dBm-2.15dBi=-15.15dBm Result: Compliant.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503396 Web: www.atc-lab.com Version 5: 2021-11-09 Page 1 of 24 FCC Part 15.231 TEST REPORT Applicant Name : NINGBO BAIHUANG ELECTRIC APPLIANCES CO., LTD. Address : NO. 180, YANSHAN RD, HUXIMEN, HENGHE TOWN, CIXI, NINGBO, 315318 China Report Number : RA221129-57907E-RF-00A FCC ID: Q92-BH-V1 Test Standard (s) FCC PART 15.231 Sample Description Product Type: Remote Control Transmitter Model No.: BH-V1, BH-P1 Trade Mark: Date Received: 2022-11-29 Date of Test: 2022-12-21 to 2023-02-13 Report Date: 2023-02-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Audy.Yu Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA221129-57907E-RF-00A Version 5: 2021-11-09 Page 2 of 24 FCC Part 15.231 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 JUSTIFICATION ............................................................................................................................................................. 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE.................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST AND DETAILS ............................................................................................................... 8 FCC §1.1307 (B) & §2.1093 – RF EXPOSURE ........................................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 TEST RESULT: .............................................................................................................................................................. 9 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 10 FCC §15.205, §15.209, §15.231 (B) - RADIATED EMISSIONS ............................................................................. 11 APPLICABLE STANDARD ............................................................................................................................................ 11 EUT SETUP ................................................................................................................................................................ 11 EMI TEST RECEIVER SETUP ....................................................................................................................................... 12 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION .......................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Project No.: RA221129-57907E-RF Test Photos Page 1 of 1 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
