Q93-F001DIGITAL AUDIO PLAYER

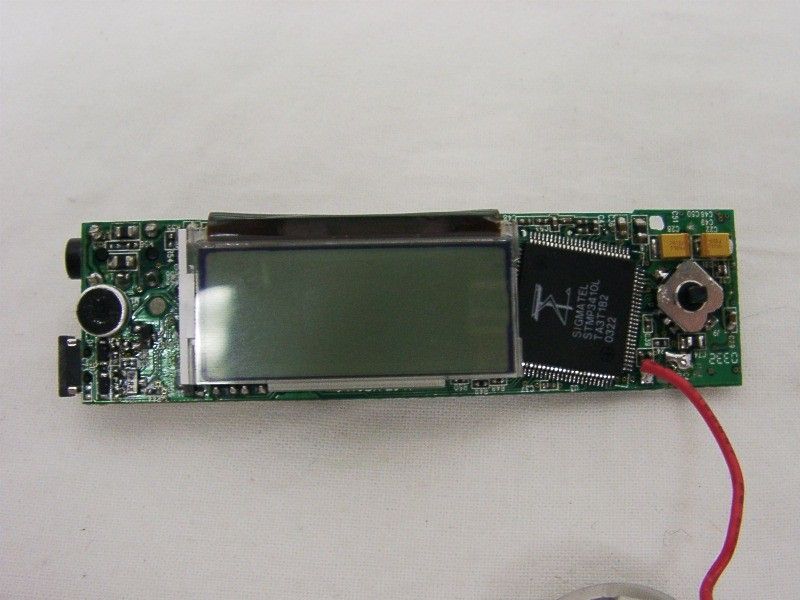

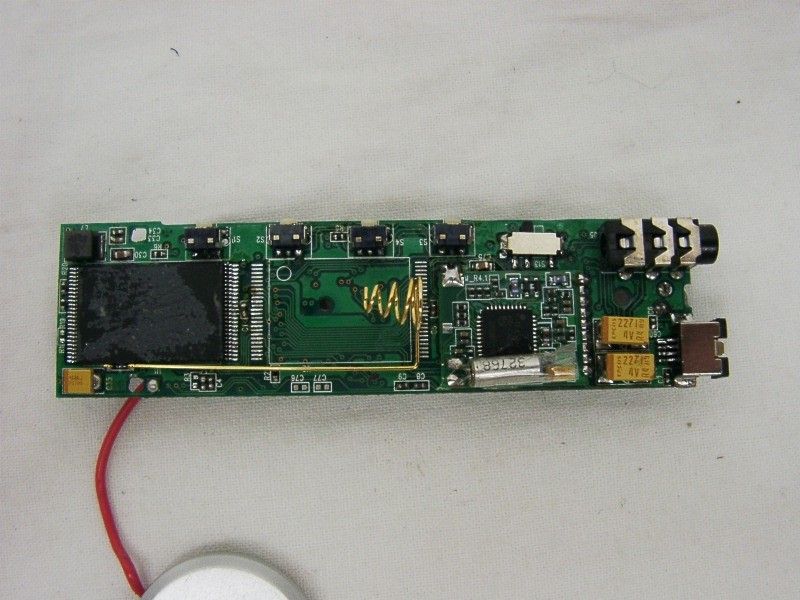

DSP STMP3410 U3 LCD Driver NT7502 LCD Key Matrix FM IC TEA5767 Crystal 24.576 MHz Earphone Internal Memory U1, U2 AAA Battery Block Diagram of DFP200 Crystal 32768Hz MIC USB

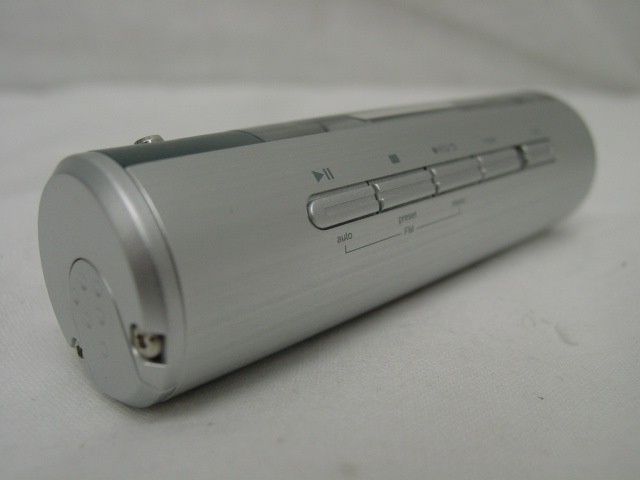

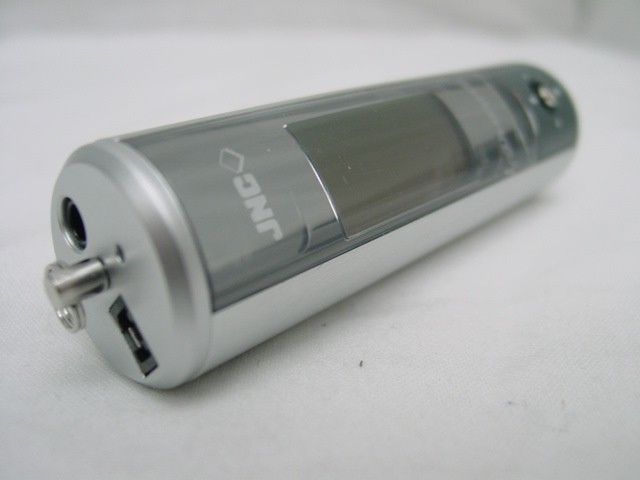

Operation Description The Digital Audio Player is a standalone multi-function product, built-in 128 MB memory. The Digital Audio Player has 4 different features: 1. Music Player (supports MP3 and WMA) 2. FM turner with memory function (Preset channel) 3. Voice Recording 4. USB interface for PC uploading and downloading files (Through an USB connection cable)

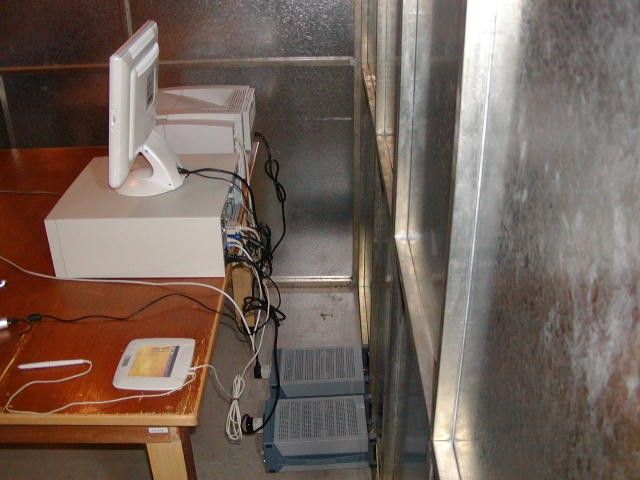

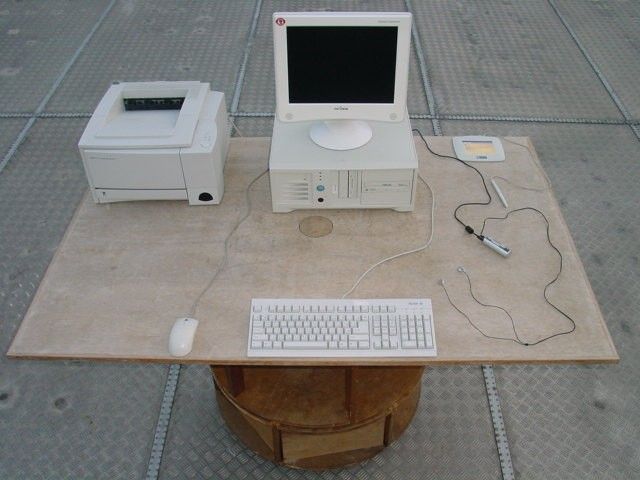

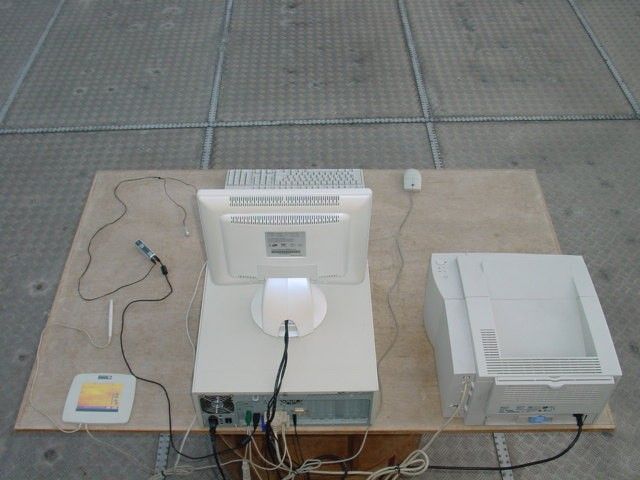

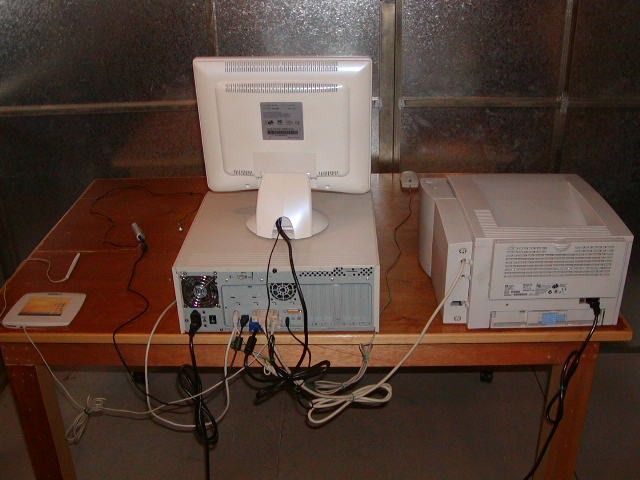

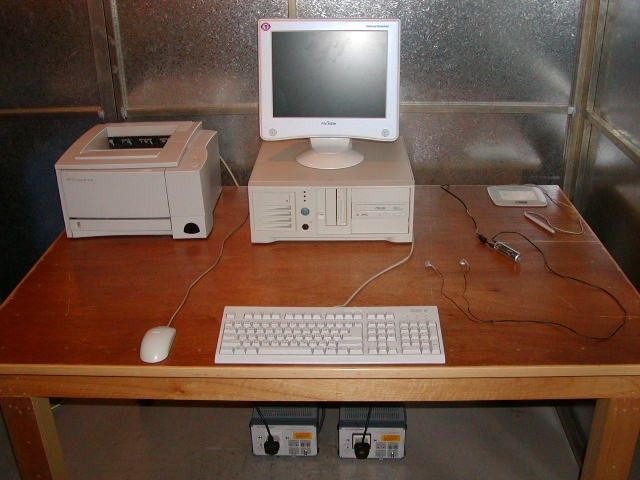

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD014304-1 Date : 2003 August 18 Applicant : AVC Technology Limited Units 11-15, 11 th Floor, Block A, Focal Ind. Ctr., 21 Man Lok Street, Hunghom, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be : Model Name : Digital Audio Player Model No. : DFP200 Rating : 1 x 1.5 V AAA size battery No. of sample(s) : Six(6) pieces *** Date Received : 2003 July 02. 2003 August 02. 2003 August 14. Test Period : 2003 July 02 – 2003 August 02. 2003 August 14 – 2003 August 18. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 14. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 14 Danny Chui EMC Engineer - EL. Division FCC ID : Q93-F001 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD014304-1 Date : 2003 August 18 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 1.5 List of Support Equipment........................................................................................................ 6 2 Description of the radiated emission test.......................................................................................... 7 2.1 Test Procedure......................................................................................................................... 7 2.2 Test Result............................................................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 2.3 Radiated Emission Measurement Data....................................................................................... 9 2.3 Radiated Emission Measurement Data..................................................................................... 10 2.3 Radiated Emission Measurement Data..................................................................................... 11 3 Description of the Line-conducted Test.......................................................................................... 12 3.1 Test Procedure....................................................................................................................... 12 3.2 Test Result............................................................................................................................. 12 3.3 Graph and Table of Conducted Emission Measurement Data.................................................... 12 4 Photograph................................................................................................................................... 13 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................ 13 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 13 5 Supplementary document........................................................................................................... 13 6 Appendices............................................................................................................................... 14 Page 2 of 14 FCC ID : Q93-F001 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD014304-1 Date : 2003 August 18 1 General Information 1.1 General Description The equipment under test (EUT) is a standalone multi-function product, built-in 128 MB memory. The EUT has 4 different features : 1. Music Player (supports MP3 and WMA) 2. FM turner with memory function (Preset channel) 3. Voice Recording 4. USB interface for PC uploading and downloading files (through an USB connection cable) A brief circuit description is saved with filename : Q93-F001OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a computer peripheral product. Page 3 of 14 FCC ID : Q93-F001 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD014304-1 Date : 2003 August 18 …
