Q93-F005DIGITAL AUDIO PLAYER

1 Thank you for your purchase of our product. Please read this manual carefully before use. Table of Contents 1. Key Features Function Keys LCD Window 2. Basic Operation Installing the Driver (for Win 98 and Win 98SE only) Firmware Upgrade Procedure Formatting the Player Operating in different modes Music Mode Operation 2 FM Tuner Mode Operation Stereo Operation Stop watch Mode Operation 3. Useful Features EQ Mode Repeat Mode Settings Mode 3 4. Additional Information Installing the Battery RealOne Player Installation Safe Removal Procedure Trouble Shooting Precautions Accessories Technical Specifications Care and Maintenance 4 FCC Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 5 -- Consult the dealer or an experienced radio/TV technician for help. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance would void the user authority to operate the equipment. 6 1. Key Features ï Digital Audio Player Supports MP3 and WMA. ï USB interface for uploading downloading files (compiled to USB V1.1) ï Firmware Upgradeable Provides the latest updated features via free downloads from our website and upgradeable to other digital music formats if available. ï Full Graphic LCD for displaying information with backlight. ï FM Tuner function with memory function (Preset channel). ï 6 Equalizing Patterns ï Low battery level detection. 7 ï The Digital Audio Player will power off automatically if the player is idle for approximately three minutes. ï Support for Win ME, Win 2000 and Win XP. 8 Function Keys 9 LCD Windows 10 11 2. Basic Operation ï Installing the Driver (for Win 98 and Win 98SE only) The USB mass storage function will not be activated without driver installation. To activate the USB mass storage function, please use the installation CD-ROM to install the driver. The firmware upgrade program cannot run in Win98 environment. 1. Install the ìDigital Solid State Audio Playerî program in your computer 1.1 Insert the Installation CD 1.2 An InstallShield Wizard will pop up automatically 1.3 Click on Next to proceed the installation 1.4 Once the installation is done. Click on Finish 12 Remarks: No Driver is required for Win ME, Win 2000 and Win XP. The OS will detect the Audio Player automatically after connection with the USB port is established. ï Firmware Upgrade Procedure For WinME, Win2000 or WinXP only 1. Install the ìDigital Solid State Audio Playerî program in your computer 1.1 Insert the Installation CD 1.2 An Install Shield Wizard will pop up automatically 13 1.3 Click on Next to proceed the installation 1.4 Once the installation is done. Click on Finish 2. Firmware Download 2.1 Download the latest firmware from our website www.memorexelectronics.com. Unzip the firmware file into the directory C:\Program\Digital\Audio digital player 2.2 Click on Start and select Program. From program, select the DFP Solid State Audio Player, then click on Update. 2.3 An Update dialogue box will pop up. Click on Start and the application program will begin to download the firmware. 14 Remarks: Some memory space in Flash Memory is reserved for Firmware Upgrade Features. Therefore,usable memory space will be less than 128MB (MMP8500) 15 ï Formatting the Player 1. Click on Start and select Program. From program, select the DFP Solid State Audio Player, then click on Format. 2. A Format dialogue box will pop up, click on Start and the application program will format the Player. ï Operating in different modes 1. The Digital Audio Player can operate in different modes (Music Mode, FM Tuner Mode, and Stop Watch Mode). Press MODE button once for Mode Selection Menu. 2. Press
or  buttons to switch to different modes. 16 17 ï Music Mode Operation 1. Insert the earphone plug into the earphone jack of the Digital Audio Player. 2. Turn on the unit by pressing button. 3. Press  to play music. 4. Press  again to pause during music playback. 5. Press button to stop playing music. 6. Press + button to increase the volume. 7. Press - button to decrease the volume. 8. Press
button to select the previous track. 18 9. Press  button to select the next track. 10. Press and hold
button for fast reverse. 19 11. Press and hold  button for fast forward. 12. Slide HOLD switch to lock all buttons. In this mode the buttons will not function when pressed. This is useful so that you donít accidentally change your settings. (In the case of the stop status in the Music Mode, the player turns off automatically.) 13. Press to stop playing music. Then press and hold key three seconds to power off the player. Holding down the key will turn the player on again.…

Text truncated - open the document above for the full version.

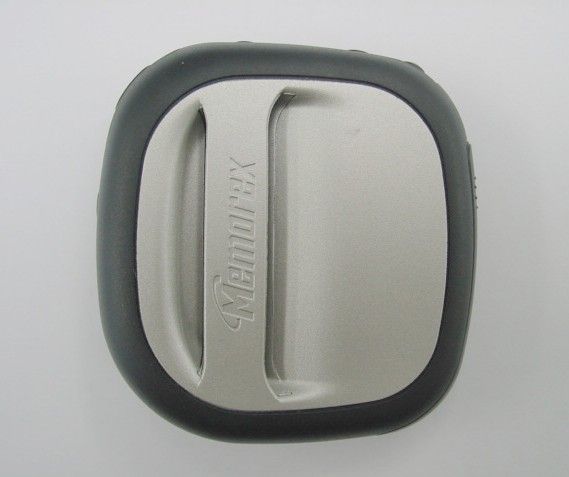

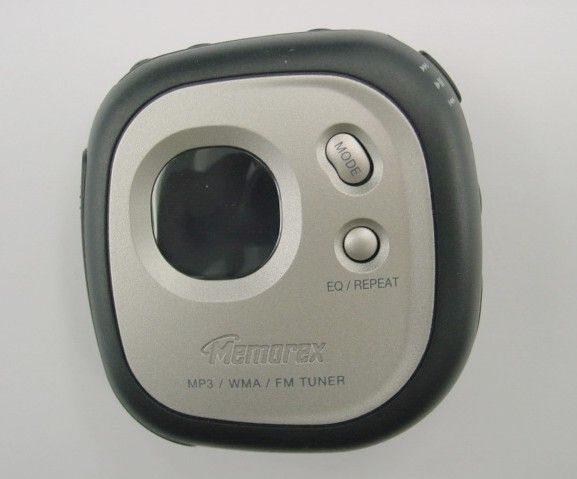

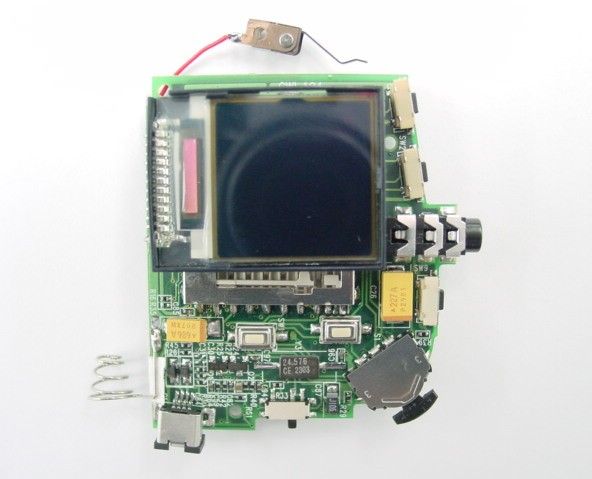

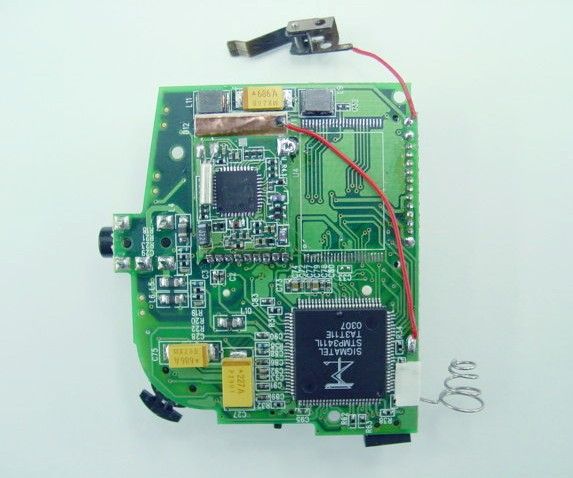

DSP STMP3410 U1 LCD Driver NT7502 U5 LCD Key Matrix FM IC TEA5767 U2 Crystal 24.576 MHz Earphone Internal Memory U3, U4 SD/MMC Memory Slot AAA Battery Block Diagram of MMP8500 Crystal 32768Hz

New Label FCC ID: Q93-F005 35x12

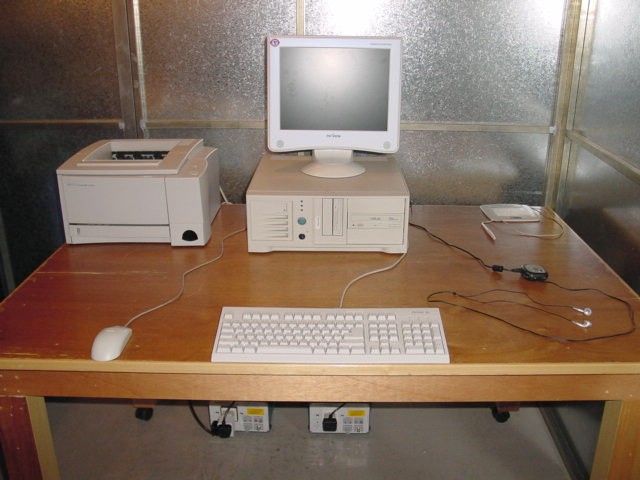

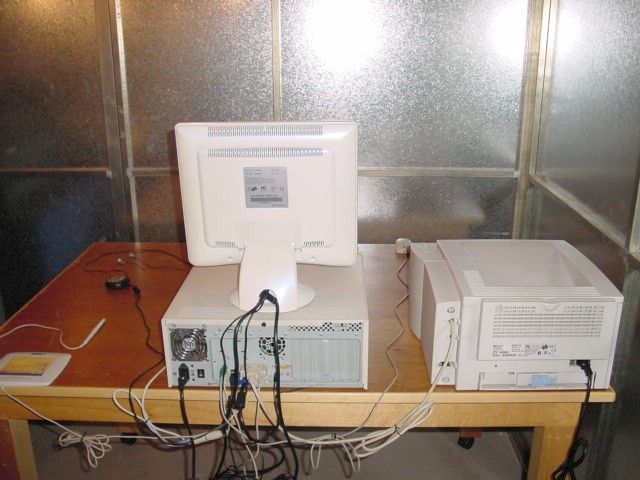

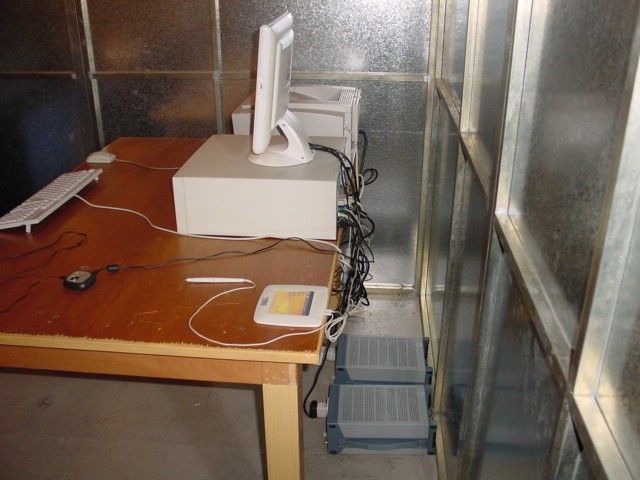

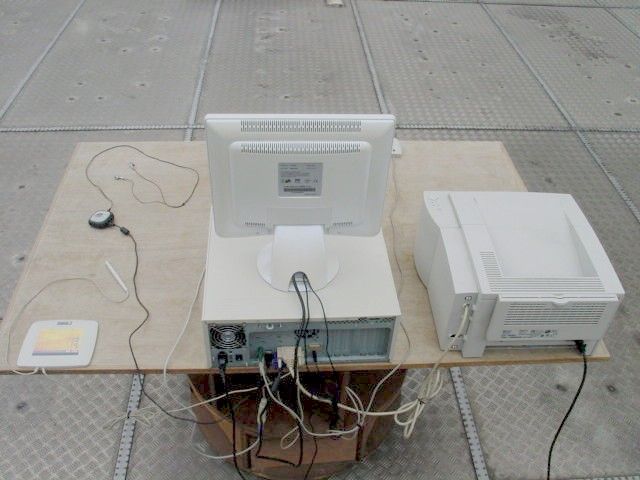

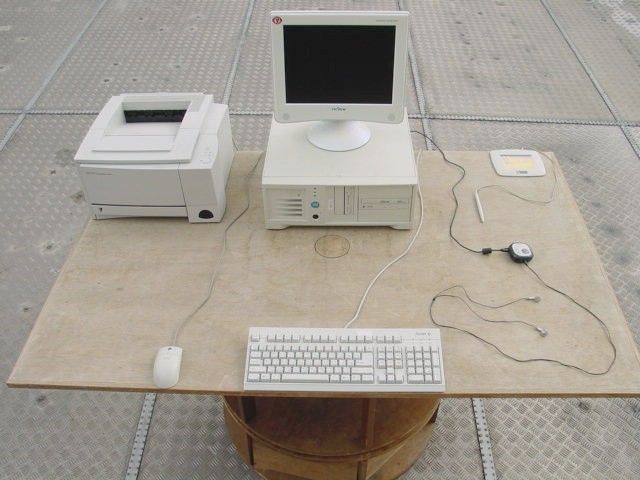

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD012037-1 Date : 2003 July 02 Applicant : AVC Technology Limited Units 11-15, 11 th Floor, Block A, Focal Ind. Ctr., 21 Man Lok Street, Hunghom, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be : Model Name : Digital Audio Player Brand Name : Memorex Model No. : MMP8500 Rating : 1 x 1.5 V AAA size battery No. of sample(s) : Two(2) pieces *** Date Received : 2003 June 27. Test Period : 2003 June 27 – 2003 July 02. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 13. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 13 Danny Chui EMC Engineer - EL. Division FCC ID : Q93-F005 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD012037-1 Date : 2003 July 02 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 1.5 List of Support Equipment........................................................................................................ 6 2 Description of the radiated emission test.......................................................................................... 7 2.1 Test Procedure......................................................................................................................... 7 2.2 Test Result............................................................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 2.3 Radiated Emission Measurement Data....................................................................................... 9 2.3 Radiated Emission Measurement Data..................................................................................... 10 3 Description of the Line-conducted Test.......................................................................................... 11 3.1 Test Procedure....................................................................................................................... 11 3.2 Test Result............................................................................................................................. 11 3.3 Graph and Table of Conducted Emission Measurement Data.................................................... 11 4 Photograph................................................................................................................................... 12 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................ 12 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 12 5 Supplementary document........................................................................................................... 12 6 Appendices............................................................................................................................... 13 Page 2 of 13 FCC ID : Q93-F005 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD012037-1 Date : 2003 July 02 1 General Information 1.1 General Description General Description : The equipment under test (EUT) is a standalone multi-function product, built-in 128 MB memory and support external memory (SD or MMC memory card). The EUT has 4 different features : 1. Music Player (supports MP3 and WMA) 2. FM turner with memory function (Preset channel) 3. Stop Watch mode 4. USB interface for PC uploading and downloading files (through an USB connection cable) A brief circuit description is saved with filename Q93-F005OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a computer peripheral product. Page 3 of 13 FCC ID : Q93-F005 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD012037-1 Date : 2003 July 02 1.3 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the pro…

Text truncated - open the document above for the full version.
