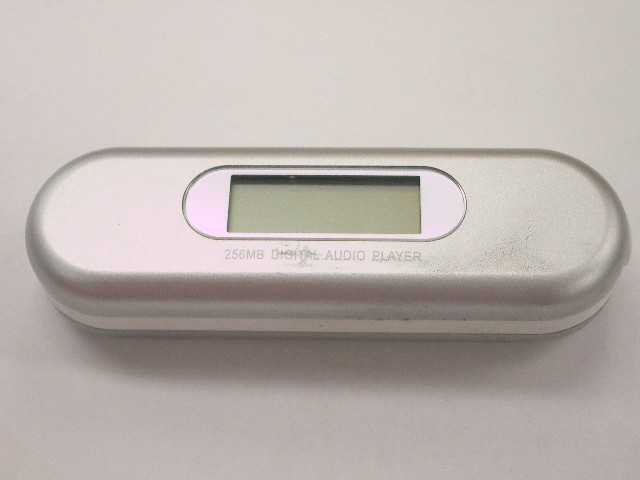

Q93-F009Digital Audio Player

DSP IC1 LCD Driver LCD Key Matrix Crystal 24.000MHz Earphone Internal Memory IC2, IC3 AAA Battery AVC Technology Limited Model: DFP70/DFP72 Revision: 0 Date: 12 August 2004 Block Diagram of DFP70/DFP72 USB DFP70 - 128MB DFP72 - 256MB

Operation Description The digital audio player is a stand-alone multi-function product and is powered by one 1.5 V ìAAAî size battery with built-in 128MB / 256MB memory. Controlled by a crystal operating at 24.000 MHz, the digital audio player has two features: 1 Music player (supports MP3, WMA and WAV file formats) 2 USB interface for uploading and downloading files and as mass storage through a USB connection cable

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014674-001 Date : 2004 September 10 Application No.: LE209145(0) Applicant : AVC Technology Limited Units 11-15, 11 th Floor, Block A, Focal Ind. Ctr., 21 Man Lok Street, Hunghom, Kowloon, Hong Kong. Sample Description : Two (2) submitted samples stated to be : Model Name : Digital Audio Player Model No. : DFP70 (128 MB), DFP72 (256 MB) Rating : 1 x 1.5V AAA size battery No. of sample(s) : Two (2) piece(s) *** Date Received : 2004 August 11. Test Period : 2004 August 11 – 2004 September 10. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 14. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 14 Danny Chui EMC Engineer - EL. Division FCC ID : Q93-F009 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014674-001 Date : 2004 September 10 Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ............................................................................................................... 3 1.2 Related Submittal Grants....................................................................................................... 3 1.3 Location of the test site.......................................................................................................... 4 1.4 List of measuring equipment ................................................................................................. 5 1.5 List of support equipment ...................................................................................................... 6 2 Description of the radiated emission test ..................................................................................... 7 2.1 Test Procedure ....................................................................................................................... 7 2.2 Test Result ............................................................................................................................. 7 2.3 Radiated Emission Measurement Data .................................................................................. 8 2.3 Radiated Emission Measurement Data .................................................................................. 9 2.3 Radiated Emission Measurement Data ................................................................................ 10 2.3 Radiated Emission Measurement Data ................................................................................ 11 3 Description of the Line-conducted Test ..................................................................................... 12 3.1 Test Procedure ..................................................................................................................... 12 3.2 Test Result ........................................................................................................................... 12 3.3 Graph and Table of Conducted Emission Measurement Data ............................................ 12 4 Photograph ................................................................................................................................. 13 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission .............. 13 4.2 Photographs of the External and Internal Configurations of the EUT ................................ 13 5 Supplementary document ............................................................................................................ 13 6 Appendices.............................................................................................................................. 14 Page 2 of 14 FCC ID : Q93-F009 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014674-001 Date : 2004 September 10 1 General Information 1.1 General Description The equipment under test (EUT) is a standalone multi-function product, powered by one 1.5 V AAA size battery, built-in 128 MB/ 256MB memory. The EUT has two different features: 1. Music Player (supports MP3, WMA and WAV) 2. USB interface for PC uploading files to and downloading files from PC through USB connection cable. A brief circuit description is saved with filename : OpDes.pdf 1.2 Related Submittal Grants This is a single application for certification of a computer peripheral product. Page 3 of 14 FCC ID : Q93-F009 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014674-001 Date : 2004 September 10 1.3 Location of the test site Radiated emissions measurements are in…
