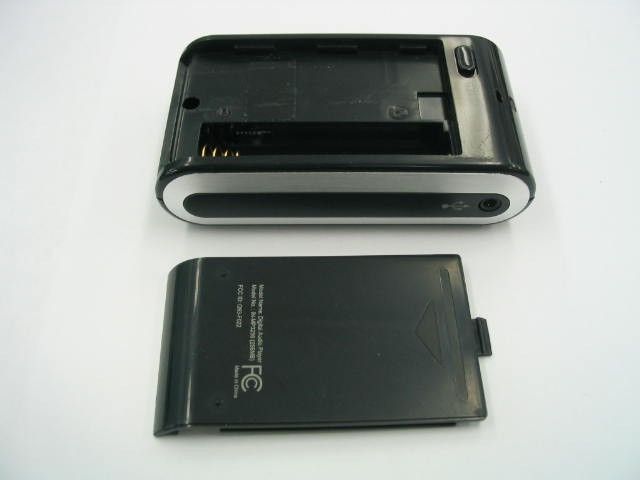

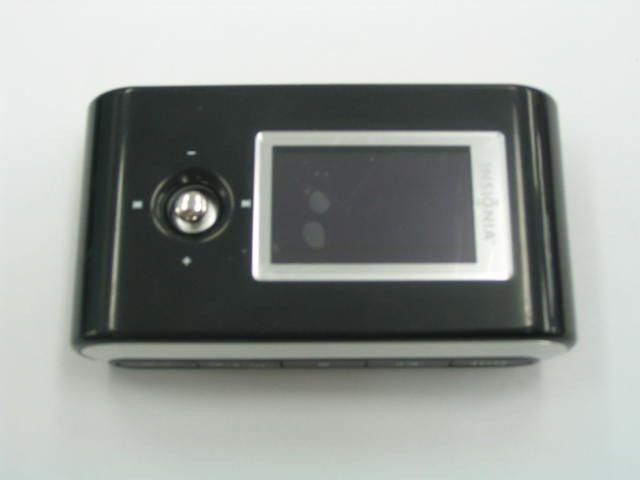

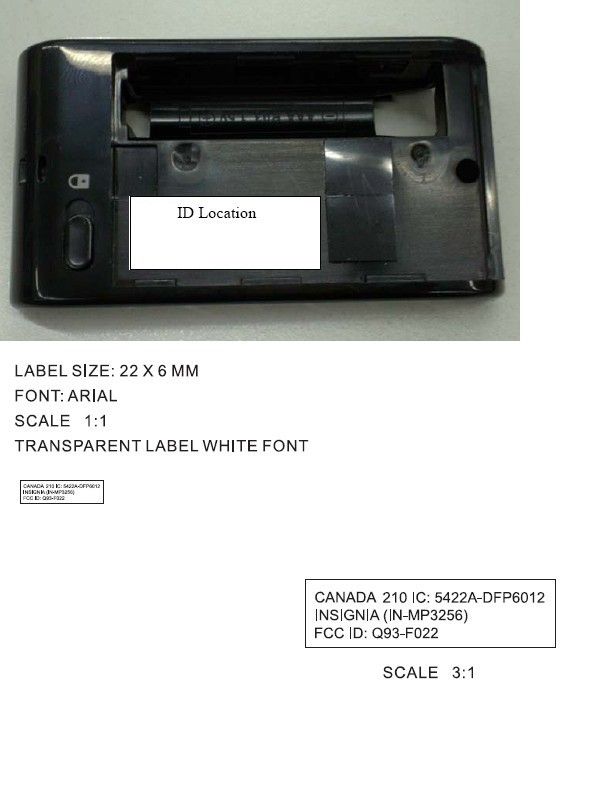

Q93-F022DIGITAL AUDIO PLAYER

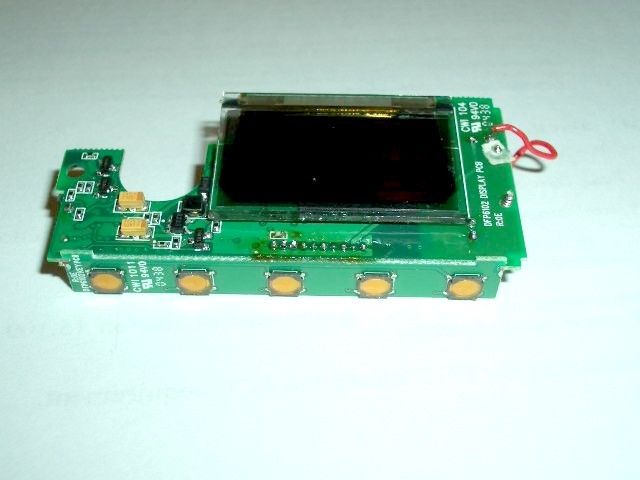

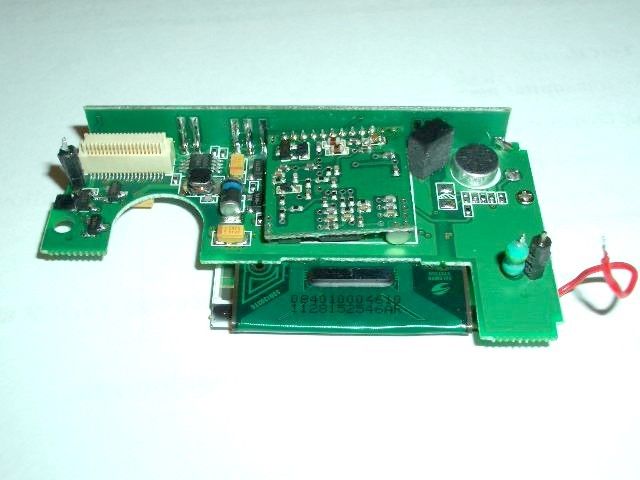

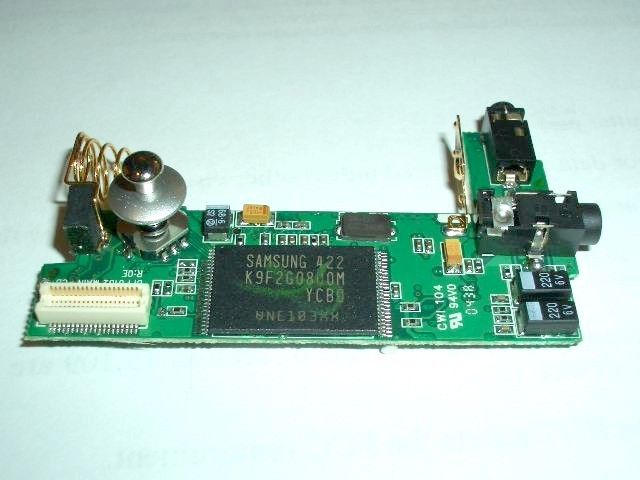

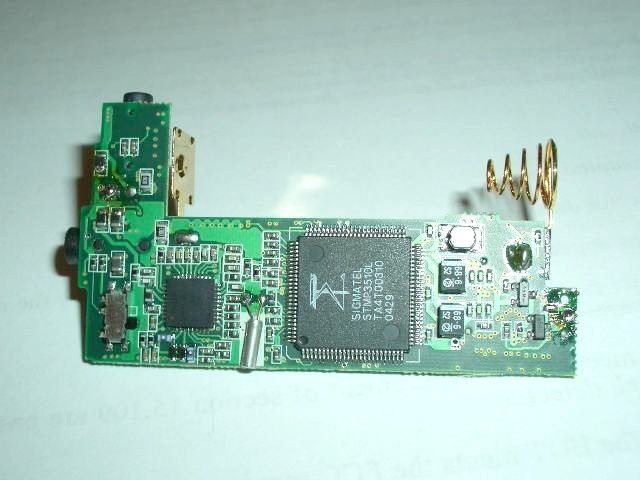

DSP IC1 LCD Driver LCD Key Matrix Crystal 24.000MHz Earphone Internal Memory IC3 AAA Battery AVC Technology Limited Model: IN-MP3256 Revision: 1 Date: 13 October 2004 Block Diagram of IN-MP3256 (DFP6012) USB FM Tx Module FM Tx Power Control FM IC Crystal 32768Hz Crystal 7.6MHz

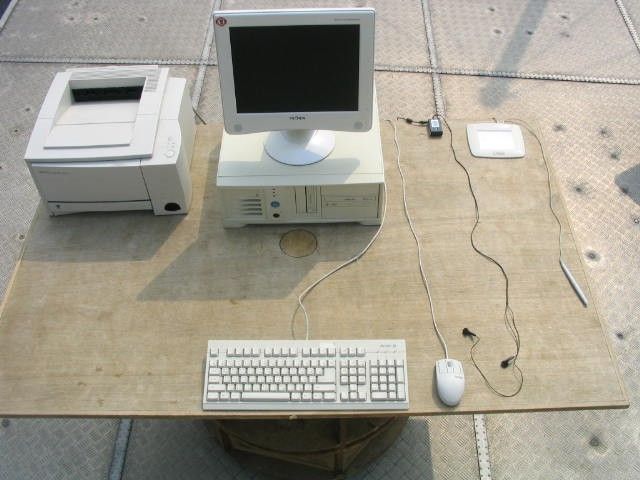

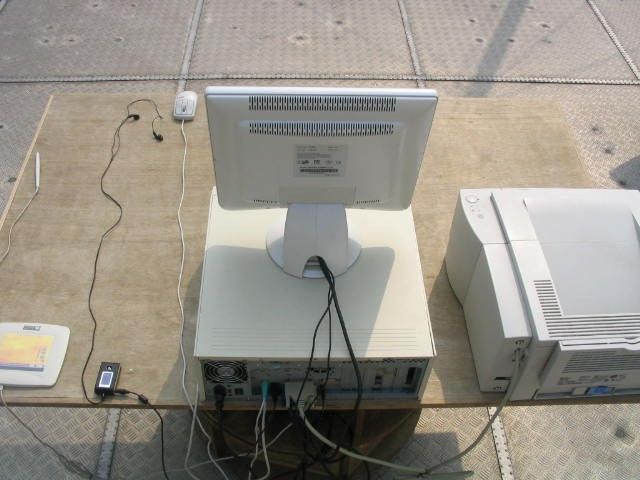

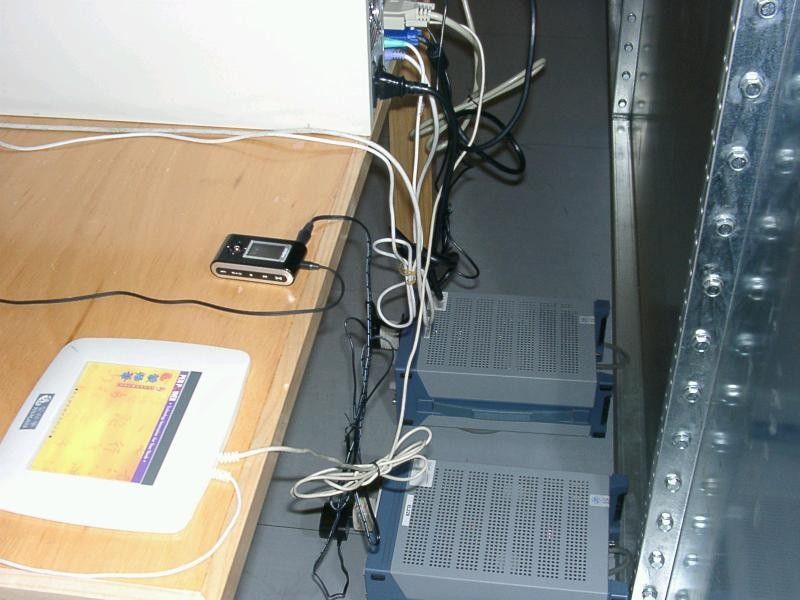

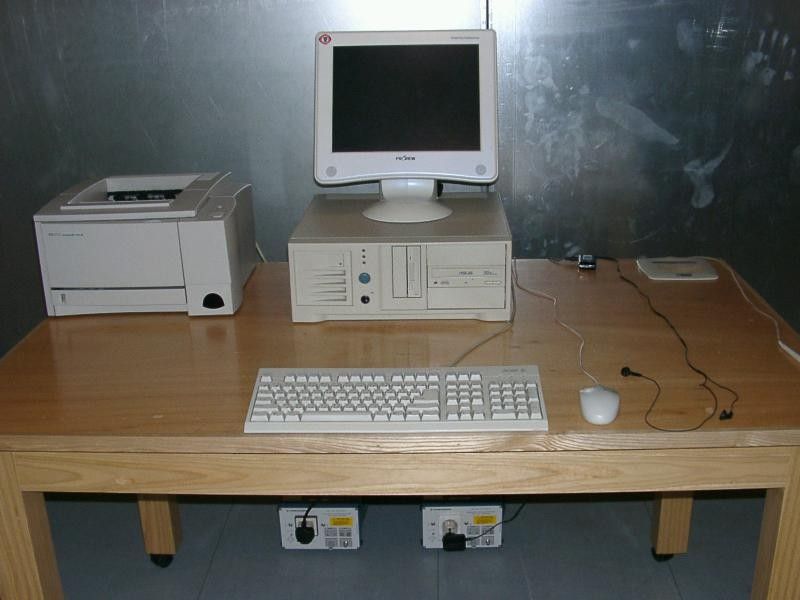

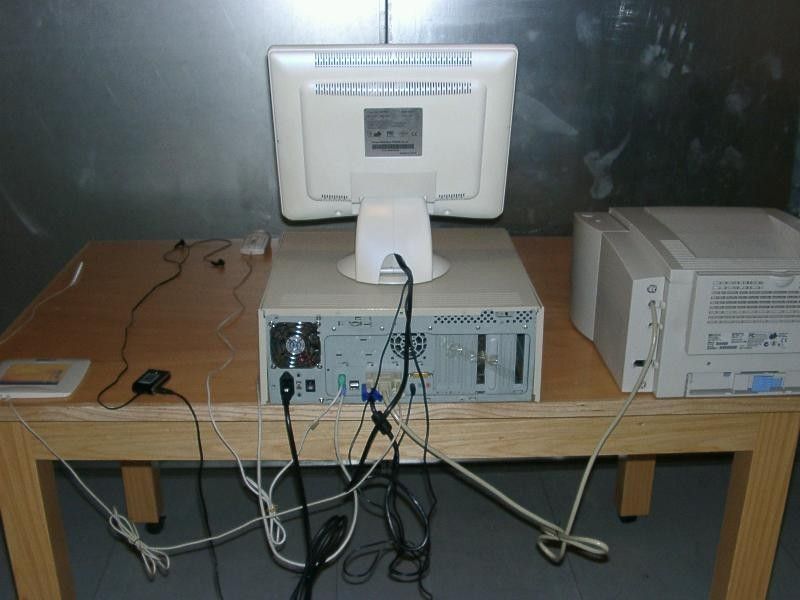

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017966-001 Date : 2004 October 26 Application No.: LE211447(8) Applicant : AVC Technology Limited Units 11-15, 11 th Floor, Block A, Focal Ind. Ctr., 21 Man Lok Street, Hunghom, Kowloon, Hong Kong. Sample Description : One (1) submitted sample stated to be : Model Name : Digital Audio Player Model No. : DFP 6012 (IN-MP3256) Rating : 1 x 1.5V AAA size battery/ DC 5V (USB) No. of sample(s) : One (1) set *** Date Received : 2004 September 23. Test Period : 2004 September 23 – 2004 September 30. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – April 2004 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 18. Conclusion : The submitted sample of the composite device was found to comply with requirement of FCC Part 15 Subpart C for transmitter part and Subpart B for computer peripheral . For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 18 Danny Chui EMC Engineer - EL. Division FCC ID : Q93-F022 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017966-001 Date : 2004 October 26 Table of Contents 1 General Information ..................................................................................................................... 3 1.1 General Description ............................................................................................................... 3 1.2 Related Submittal Grants....................................................................................................... 3 1.3 Location of the test site.......................................................................................................... 4 1.4 List of measuring equipment ................................................................................................. 5 1.5 List of support equipment ...................................................................................................... 6 2 Description of the radiated emission test ..................................................................................... 7 2.1 Test Procedure ....................................................................................................................... 7 2.2 Test Result ............................................................................................................................. 7 2.3 Radiated Emission Measurement Data .................................................................................. 8 2.3 Radiated Emission Measurement Data .................................................................................. 9 2.3 Radiated Emission Measurement Data ................................................................................ 10 2.3 Radiated Emission Measurement Data ................................................................................ 11 2.3 Radiated Emission Measurement Data ................................................................................ 12 2.3 Radiated Emission Measurement Data ................................................................................ 13 2.3 Radiated Emission Measurement Data ................................................................................ 14 3 Description of the Line-conducted Test ..................................................................................... 15 3.1 Test Procedure ..................................................................................................................... 15 3.2 Test Result ........................................................................................................................... 15 3.3 Graph and Table of Conducted Emission Measurement Data ............................................ 15 4 Photograph ................................................................................................................................. 16 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission .............. 16 4.2 Photographs of the External and Internal Configurations of the EUT ................................ 16 5 Supplementary document ............................................................................................................ 17 5.1 Bandwidth............................................................................................................................ 17 6 Appendices.............................................................................................................................. 18 Page 2 of 18 FCC ID : Q93-F022 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE017966-001 Date : 2004 October 26 1 General Information 1.1 General Description The equipment under test (EUT) is a digital audio player controlled by 24.000 MHz crystal. The EUT has transmitter function during audio playback and is controlled by another crystal of 7.6 MHz. The player transmits audio signal in the frequency range of 88.1 MHz – 107.9 MHz. Below is a list of features: 1. Music player (supports MP3, WMA, WAV file formats) with FM transmit function in…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories P. of Job No.: J00007134 Bandwidth Plot Bandwidth 1 ñ 88.1 MHz Bandwidth 2 ñ 98.0 MHz CMA Testing and Certification Laboratories P. of Job No.: J00007134 Bandwidth Plot Bandwidth 3 ñ 107.9 MHz
