Q9E-ART80Thermometer Station with Wireless Outdoor Sensor

Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an unintentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80

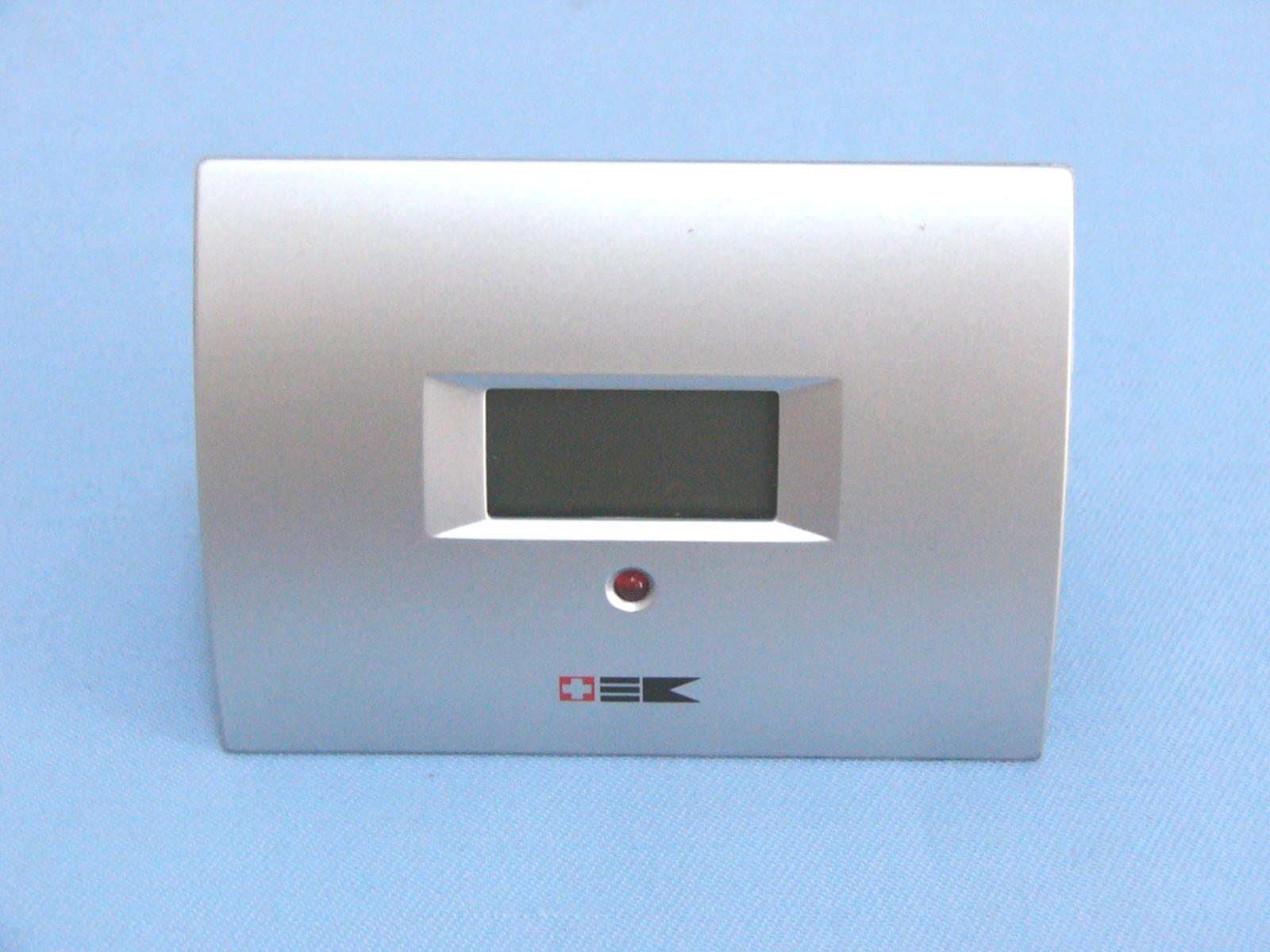

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 EUT top view EUT bottom view

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location FCC ID: Q9E-ART80

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 EUT inside whole view Main board component side Main board solder side

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 ART80 Operational Description This is a LCD display thermometer for house hold application.The unit use 2 pcs of 1.5V battery in-series connection give 3V supply. Devices operated under the provisions of this paragraph shall be provided with a means for auto- matically limiting operation so that the duration of each transmission shall be at least 30 times the duration of the transmission. The function of the ART80Tx is to regularly measure its surrounding temperature at its point of location and transmit the data using wireless 433MHz to a standing alone receiving unit. The data would them be displayed on the receiving units LCD.For all description please read the enclosed user instruction manual.

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80

The test report consists 22 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT UNDER FCC 15 Subpart C, Paragraph 15.231 Prepared For : Carrin Electronics Co., Ltd. Unit 2105-06, Tower A, Regent Centre, 63 Wo Yi Hop Road, Kwai Chung, N.T., Hong Kong June 7, 2004 FCC ID: Q9E-ART80 EUT: Thermometer Station with Wireless Thermo Outdoor Sensor Model: ART.80 Report Type: Original Report Test Engineer: Peter Lin Test Date: June 5, 2004 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 KMO FCC ID Report Report #: KSZ2004052703J Page 2 of 22 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................4 2. Technical Test...............................................................................................................................................................5 2. 1 Summary of Test Results.........................................................................................................................................5 3. EUT Modifications.......................................................................................................................................................6 4. Conducted Power Line Test.........................................................................................................................................7 4. 1 Test Equipment.......................................................................................................................................................7 4. 2 Test Procedure........................................................................................................................................................7 4. 3 Test Setup...............................................................................................................................................................7 4. 4 Configuration of The EUT.......................................................................................................................................8 4. 5 EUT Operating Condition........................................................................................................................................9 4. 6 Conducted Power Line Emission Limits..................................................................................................................9 4. 7 Conducted Power Line Test Result.........................................................................................................................10 5. Radiated Emission Test...............................................................................................................................................11 5. 1 Test Equipment.....................................................................................................................................................11 5. 2 Test Procedure......................................................................................................................................................11 5. 3 Radiated Test Setup...............................................................................................................................................11 5. 4 Configuration of The EUT.....................................................................................................................................12 5. 5 EUT Operating Condition......................................................................................................................................12 5. 6 Radiated Emission Limit.......................................................................................................................................12 5. 7 Radiated Emission Test Result...............................................................................................................................13 6. Band Edge..................................................................................................................................................................14 6. 1 Test Equipment.....................................................................................................................................................14 6. 2 Test Procedure.....................................................................................…

Text truncated - open the document above for the full version.

Applicant: Carrin Electronics Co., Ltd. FCC ID: Q9E-ART80 Radiated emission test view
