QAOWSZEP002Energy Saving Lamp-Lighting Device

User manual Compared with an incandescence lamp, a series of compact energy saving lamp have a lot of merits. For instance: battery saving 80%, the quantity of heat less than 80% and without noise and flicker etc, so it is widely used by hotel, school, shop and family etc. under this conditions, this style of lamp is popular by much more customer, and it is named “ Green illumination-new lamp source” title. Notice ! Without special mark, it can’t be used as dimmer. In other words, the lamp can’t become bright or dim. ! Damp fossa, chemical history, and the floor with water or rain are stopped to use. ! In avoid to explode and fire, it can’t be used to defend blast, and the site where gas is easy to reach saturation isn’t used. ! While tearing it down or setup, your hands can’t straight grasp lamp-tube and lamp-chimney, and should hold the plastic enclosure to handle. ! When repairing, No special clerk can’t tear it down to repair. If needing repairing, should reach to the appointed site, or repaired by special people. Shanghai East Pearl Lighting Co., Ltd. Block Diagram Circuit expla nation: A 120VAC/60Hz power source pass L1, C1, R1, then process to control the harmonic which the line produce feedback to electrical net, and have the harmonic reach (or accord with) requirement. Next process to rectify by D1, D2, C2, C3, and supply a stable DC power source to the line, next pass V1, V2 and the near component, make it form the high-frequency switch circuit, and have frequency changi ng at 41~43KHz range, fi nall y output by L4, C6, C7, and provi de to a loaded Input Circuit Ballast Circuit Vibration Circuit Output Circuit Loader lamp-tube, have it working.

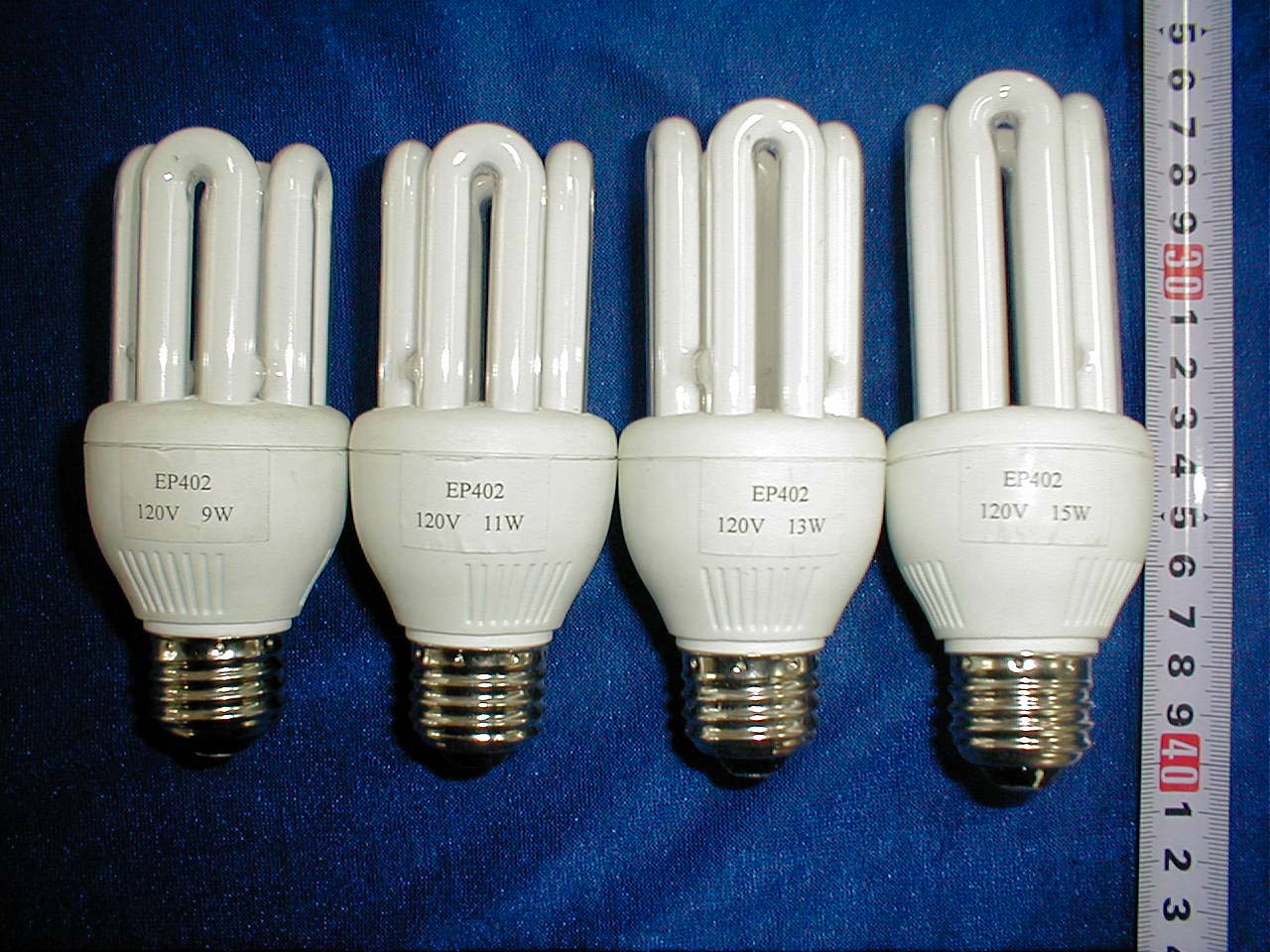

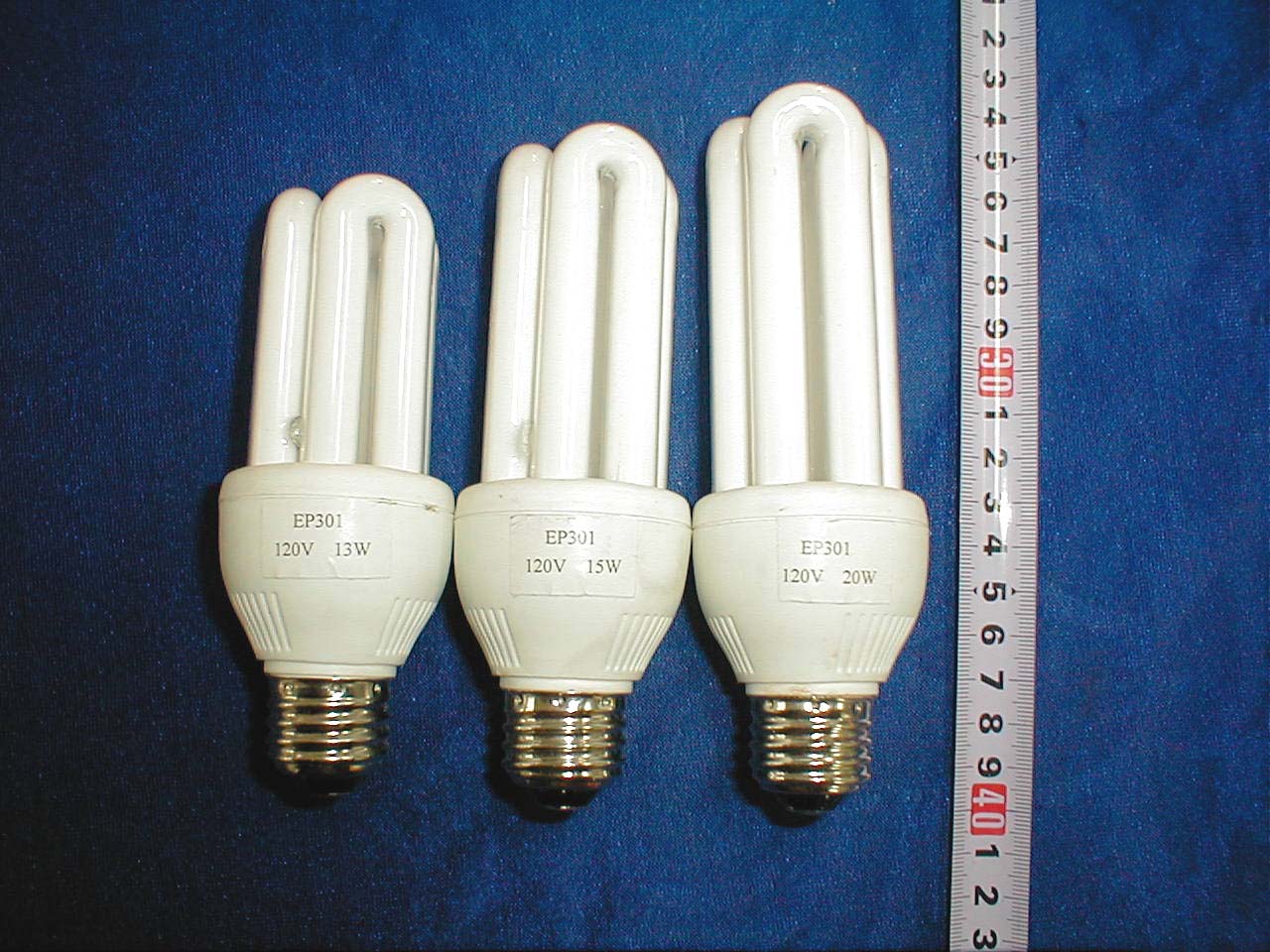

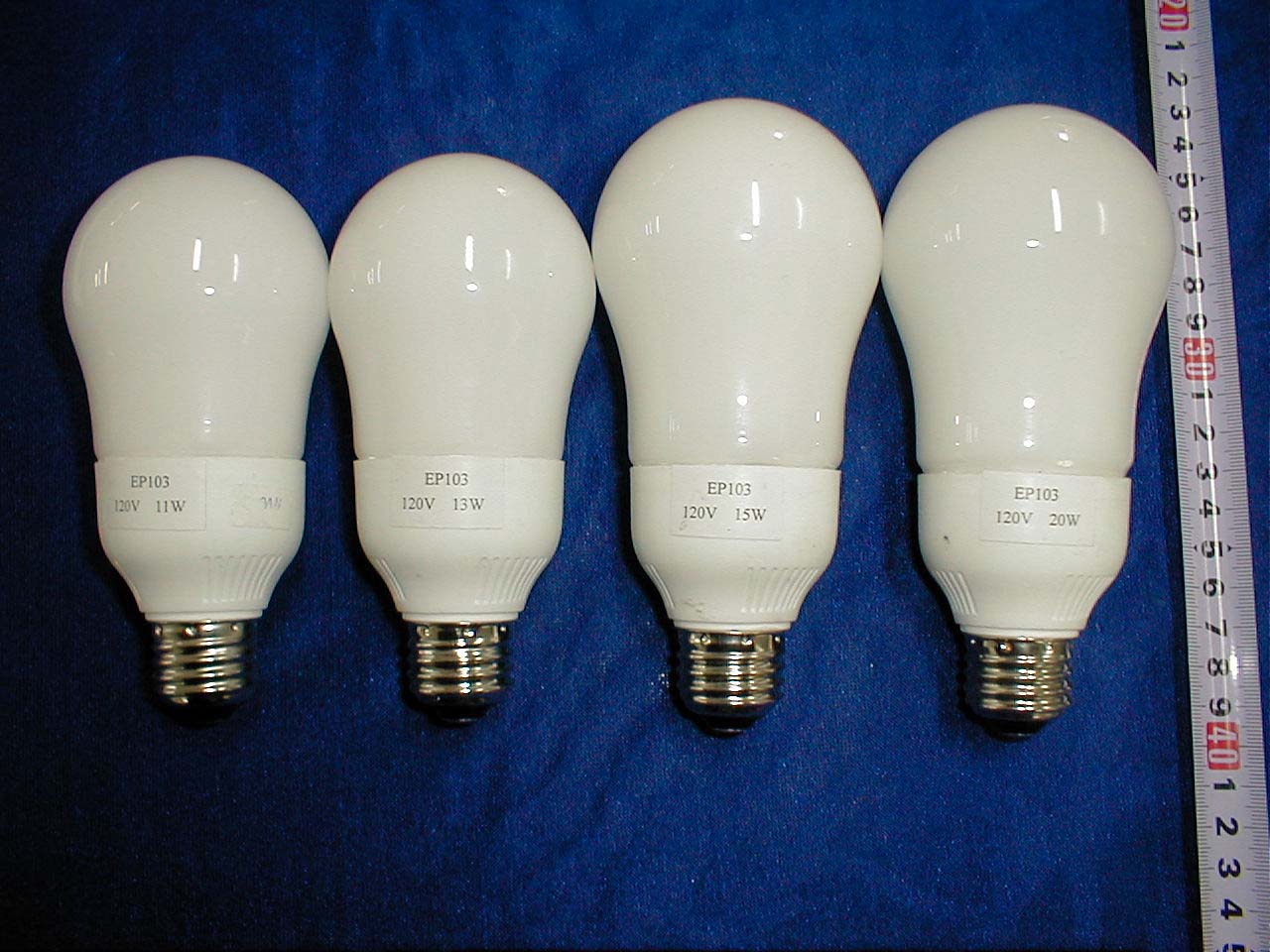

EUT PHTOGRAPHS EUT Overall View(Model: 10311,10313,10315,10320) EUT Overall View(Model: 30113,30115,30120) EUT Overall View(Model: 40209,40211,40213,40215) EUT Overall View(Model: 50409,50411,50413,50415)

5 - FCC PRODUCT LABELING 5.1 Proposed FCC Label Format Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. 5.2 Proposed Label Location on EUT 5.3 FCC Authorization FCC authorization was presented in Appendix C of this report as reference. Trade Name Model Number This device complies with Part 18 of the FCC Rules EUT Overall Vi ew FCC Mark Locat ion Tr ade Name Model Number This device complies with Part 18 of the FCC Rul e s

EUT PHTOGRAPHS EUT Uncovered View(Model: 10320) (the photos of rest in 103 series are similar to 10320) EUT Uncovered View(Model: 30120) (the photos of rest in 301 series are similar to 30120) EUT Uncovered View(Model: 40215) (the photos of rest in 402 series are similar to 40215) EUT Uncovered View (Model: 50415) (the photos of rest in 504 series are similar to 50415)

Note: This report may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 18 CONSUMER EQUIPMENT EMI MEASUREMENT AND TEST REPORT FOR SHANGHAI EAST PEARL LIGHTING CO., LTD. No. 1399 Yongtai Road, Pudong New District, Shanghai 200124, P. R. China MODEL: QAOWSZEP002 March 23, 2002 This Report Concerns: Original Report Equipment Type: Energy saving lamp-lighting device Test Engineer: Peter Liao Test Date: March 21, 2002 Certified By: John Y. Chan – Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732 9162 Fax: (408) 732 9164 SHANGHAI EAST PEARL LIGHTING CO., LTD. Model: QAOWSZEP002 Report # RSH0203012 Page 2 of 2 3FCC Part 18 DoC Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT) ...........................................................................................................................4 1.8 LOCAL SUPPORT EQUIPMENT LISTS AND DETAILS.................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 JUSTIFICATION.......................................................................................................................................................5 2.2 EUT EXERCISE PROGRAM.....................................................................................................................................5 2.3 SCHEMATICS/BLOCK DIAGRAM.............................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................5 2.5 CONFIGURATION OF TEST SYSTEM.........................................................................................................................6 2.6 TEST SETUP BLOCK DIAGRAM...............................................................................................................................7 3 - CONDUCTED EMISSIONS TEST ........................................................................................................................8 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................8 3.2 EUT SETUP............................................................................................................................................................8 3.3 SPECTRUM ANALYZER...........................................................................................................................................8 3.4 TEST PROCEDURE..................................................................................................................................................9 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................9 3.6 CONDUCTED EMISSIONS TEST DATA (0.45-30MHZ). ............................................................................................9 4 - RADIATED EMISSIONS TEST ..........................................................................................................................14 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................14 4.2 EUT SETUP..........................................................................................................................................................14 4.3 SPECTRUM ANALYZER SETUP..............................................................................................................................14 4.4 TEST PROCEDURE................................................................................................................................................15 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION...........................................................................................15 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................15 4.7 RADIATED EMISSIONS TEST RESULT DATA, FULLY CONFIGURED, 3 METER. ......................................................16 SHANGHAI EAST PEARL LIGHTING CO., LTD. Model: QAOWSZEP002 Report # RSH0203012 Page 3 of 2 3FCC Part 18 DoC Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The SHANGHAI EAST PEARL LIGHTING CO., LTD., model 10311,10313…

Text truncated - open the document above for the full version.

TEST PHOTOS Conducted Emission Test Setup View (the photos of rest in 103 series are similar to 10320) (Model: 10320) Radiated Emission Test Setup View (the photos of rest in 103 series are similar to 10320) (Model: 10320) Conducted Emission Test Setup View (the photos of rest in 301 series are similar to 30120) (Model: 30120) Radiated Emission Test Setup View (the photos of rest in 301 series are similar to 30120) (Model: 30120) Conducted Emission Test Setup View (the photos of rest in 402 series are similar to 40215) (Model: 40215) Radiated Emission Test Setup View (the photos of rest in 402 series are similar to 40215) (Model: 40215) Conducted Emission Test Setup View (the photos of rest in 504 series are similar to 50415) (Model: 50415) Radiated Emission Test Setup View (the photos of rest in 504 series are similar to 50415) (Model: 50415)
