QAZDIVA-PTProjection Module for PDA

EMI TEST REPORT Report Number : KSQ-FCC020605 Appendix BUser's Manual Projection Module for Pocket PC DIVA-PT User’s Manual DiVACess DiVA-PT 2 FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. l Consult the dealer of an experienced radio/TV technician for help. NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. DiVACess DiVA-PT 3 Starting What is the DiVA -PT? This is a application program for Pocket PC using by presentation data files made from Microsoft PowerPoint. After converting .ppt files made in the desktop PC using by desktop converting program, it could be proceed any kind of presentation through Pocket PC. System Requirements Pocket PC : - Windows CE 3.0 or up version - Min.1 MB storage (MFC library 820KB included) - PCMCIA or CompactFlash socket Desktop PC : - Windows 9x, ME, NT 4.0, 2000/XP. - ActiveSync Version 3.0 or up version - Microsoft® PowerPoint® 2000 or up version DiVACess DiVA-PT 4 Program feature Desktop PC : - Simple using interface: Even the beginner could access it through very simple user interface without extra specific education. - It is possible to convert DiVA-PT files easily because it has applied same as Windows explorer system - It is possible to do preview converted files on DiVA-PT converting program. - It is provided with Powerpoint file drag and drop function of DiVA-PT converting program. - An user can change resolution (240x180, -, 1024x768) Pocket PC : - We can see the simply organized display of all files just if it has selected DiVA-PT files - It is being censored automatically the external output equipments such as external monitors, projectors, etc which are connected to Pocket PC - In case of doing presentation using by external output equipment, it is enable to skip any other slides at one’s option. - Presentation speaker ink annotation provided. - It is provided with view function in screen or image size in order to add more detail explanation on the big display. - Also, it is provided panning function if the user want to see big slide in the image size. DiVACess DiVA-PT 5 Desktop DiVA-PT Converter Outside view Figure 1 Navigation bar Slide Contents lists Powerpoint file explorer DiVACess DiVA- PT 6 Navigation Bar - The navigation bar is a kind of tool which is using checking current selected .ppt files for converting in regular order. - Please click tool when you want to see the earliest slide. Also, if you want to the latest slide, please click the opposite one. - As well, you can see the slides what you want if you click in order to see fore one from each slides or, click in order to see back one from each slides. Slide contents list & Status bar - It can be showed each slides in the tree structure. - If you click “Slide contents list”, it will be shown as figure 3 The earliest/latest Forward/backward for each Title for each slides Slide number File name It ’s showed what number is out of every slides Figure 2 Figure 3 DiVACess DiVA-PT 7 - The “Slide numbers” as shown on the figure 3 are indicating slide’s ordering. - “ The file and path names are showing on the left side on the status bar. - In contrary, every slides and selected location currently are showing on the right side on the status bar. Power point explorer - This is a power point file explorer which is having icon formats as same as general explorer. - If you choose the .ppt file location through the above explorer window, it will be showed .ppt files only at specific folder from the below list view. The selected files from list view are indicated on the quick view display. window List view Figure 4 DiVACess DiVA-PT 8 Converting to DiVA –PT file format - Please do select files through powerpoint explorer in order to convert to DiVA-PT file format.(In this time, you can select .ppt files with drag and drop function on Windows explorer) - Please check and confirm whether the selected files are for doing presentation with converting or not. - You can see the following menu if you click the mouse right button at the preview display. Figure 5 DiVACess DiVA- PT 9 - If you choose the size what you want, it is showed saving location and the dialog box for inputing file names. - It will be made DiVA-PT files on the selected location if you click save button after selecting path and file names what you want. - The files which were made are transmit to Pocket PC by Microsoft Active Sink Programme. Figure 6 DiVACess DiVA- PT 10 Usage for DiVA PT Opening DiVA- PT files - If you start programme first, it will be shown as in the below side of display. - After selection this menu and then choose , we can see display lik…

Text truncated - open the document above for the full version.

EMI TEST REPORT Report Number : KSQ-FCC020605 Appendix ASchematics/Block Diagram Projection Module for Pocket PC Block Diagram of DiVA-PT CF socket Graphic Controller Clock Generator BUS Transceiver RED GREEN BLUE HRTC VRTC

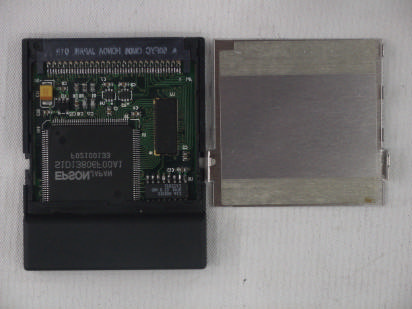

EMI TEST REPORT Report Number : KSQ-FCC020605 Page 15 / 18 5External Photographs 5.1EUT: Front View 5.2EUT: Rear View EMI TEST REPORT Report Number : KSQ-FCC020605 Page 16 / 18 5.3EUT: Label View 5.4EUT: Internal View

EMI TEST REPORT Report Number : KSQ-FCC020605 Page 12 / 18 3Product Labelling Requirements 3.1FCC Statement Product shall be labelled the following statement on the user's manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. When the device is so small or for such use that it is not practicable to place the statement on it, the information shall be placed in prominent location in the instruction manual or pamphlet supplied to the user. However, the FCC identifier or unique identifier, as appropriate, must be displayed on the device. 3.2Label Location FCC Identifier Location

EMI TEST REPORT Report Number : KSQ-FCC020605 Page 17 / 18 6Internal Photographs 6.1EUT: Main Board, Component View EMI TEST REPORT Report Number : KSQ-FCC020605 Page 18 / 18 6.2EUT: Main Board, Circuit View

EMI TEST REPORT FCC PART 15 CLASS B for DIVAcess Inc. #1002/6, 10th FL. Happy World Bldg., 917-6, Mok-dong, Yangchun-gu, Seoul 158-721, KOREA on the Projection Module for PDA DIVA-PT Issued Date : June 5, 2002 Report Number : KSQ-FCC020605 Prepared By: Test Date:June 3, 2002 Test Engineer:Y. Choi Printed NameSignature Compliance Engineer:J. J. Ha Printed NameSignature Korea Standard Quality Laboratories Testing Laboratories for EMC and Safety Compliance #102, Jangduk-Dong, Hwasung-City, Kyunggi-Do, KOREA www.ksqlab.com This report may not be reproduced without the full written consent of Korea Standard Quality Laboratories. EMI TEST REPORT Report Number : KSQ-FCC020605 Page 1 / 18 Table of Contents 1General Information 1.1Introduction················································································································3 1.2Product Description for Equipment Under Test (EUT)·············································3 1.3Equipment Under Test·······························································································3 1.4Support Equipment·····································································································4 1.5External I/O Cabling··································································································4 1.6Special Accessories····································································································4 1.7EUT Modifications·····································································································4 1.8Configuration of Test System····················································································5 2Test Performed 2.1Conducted Emission Measurements··········································································6 2.1.1Test Description·······························································································6 2.1.2Test Equipments·······························································································6 2.1.3Test Environments···························································································6 2.1.4Test Limits·······································································································6 2.1.5Test Procedure··································································································6 2.1.6Test Results······································································································7 2.1.7Test Data··········································································································7 2.1.8Plots of Test Data·····························································································7 2.2Radiated Emission Measurements·············································································8 2.2.1Test Description·······························································································8 2.2.2Test Equipments·······························································································8 2.2.3Test Environments···························································································8 2.2.4Test Limits·······································································································8 2.2.5Test Procedure··································································································9 2.2.6Field Strength Calculation················································································9 2.2.7Test Results······································································································9 2.2.8Test Data········································································································10 EMI TEST REPORT Report Number : KSQ-FCC020605 Page 2 / 18 Table of Contents(cont'd) 3Product Labelling Requirements 3.1FCC Statement·········································································································12 3.2Label Location··········································································································12 4Test Setup Photographs 4.1Conducted Emission: Front View············································································13 4.2Conducted Emission: Rear View·············································································13 4.3Radiated Emission: Front View···············································································14 4.4Radiated Emission: Rear View················································································14 5External Photographs 5.1EUT: Front View······································································································15 5.2EUT: Rear View·······································································································15 5.3EUT: Label View·····································································································16 5.4EUT: Internal View··································································································16 6Internal Photographs 6.1EUT: Main Board, Component View······································································17 6.2EUT: Main Board, Circuit View··············································································18 Appendix AEUT Schematics/Block Diagram Appendix BUser's Manual EMI TEST REPORT Report Number : KSQ-FCC020605 Page 3 / 18 1General Information 1.1Introduction The EMI Test Report of Information Technology Equipment is prepared on behalf of named applicant in accordance with the ANSI C63.4-1992. The test results reported in this document relate only to the item that was tested. The detailed description of the measurement facility was found to be in compliance with the requirement of Section 2.948 of the FCC Rules. The Federal Communications Commission has the reports on file an…

Text truncated - open the document above for the full version.

EMI TEST REPORT Report Number : KSQ-FCC020605 Page 13 / 18 4Test Setup Photographs 4.1Conducted Emission: Front View 4.2Conducted Emission: Rear View EMI TEST REPORT Report Number : KSQ-FCC020605 Page 14 / 18 4.3Radiated Emission: Front View 4.4Radiated Emission: Rear View
