QBQENERGYEYERX01Brain Unit (Microprocessor and receiver)

© Copyright 2002 Electritech Inc. All Rights Reserved Energy Eye System User Manual V1.3 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION © Copyright 2002 Electritech Inc. All Rights Reserved 1 User Manual Table of Contents I. Introduction 2 II. Product Overview and Descriptions 3 III. Product Placement and Mounting 5 IV. Jumper Settings for the Energy Eye System 6 V. Wiring the Energy Eye System 9 VI. Learning the Energy Eye Components 10 VII. Testing 12 VIII. Additional Information 12 Notes and Contact Information 13 © Copyright 2002 Electritech Inc. All Rights Reserved 2 I. Introduction Congratulations on the purchase of your Energy Eye System! Finally you can begin controlling your wasted guestroom electricity expenses using the most efficient system of its kind. The Energy Eye System uses passive infrared and door/window contact sensors to control wasted energy costs by setting back a guestroom’s HVAC (Heating, Ventilation, Air Conditioning) to an optimized level while guests are away. The Energy Eye System’s components communicate using radio frequency (RF) technology to minimize installation and maintenance costs. Because each property has different needs, the Energy Eye System allows for full customization of setbacks and timer settings that should be determined before installation. For any questions you may have that are not covered in this instruction manual please contact your distributor or Electritech’s Energy Eye  product division directly at (USA) 1-866-463-3135. Warnings! • HVAC units may contain hazardous voltages of 120 VAC to 277 VAC. • To prevent personal injury and/or death, insure that all power is disconnected before installation and connection inside the HVAC unit . • The Energy Eye System should be installed by qualified personnel only. • All electrical connections and wiring must conform to the National Electrical Code and applicable local codes at the time of installation. • The Energy Eye receiver and sensors contain sensitive electronic components, DO NOT attempt to repair or clean with chemicals or abrasives. • DO NOT touch the infrared lens located inside the passive infrared sensor with your finger. • Be careful with any tools near or around your working/installation environment. Before you Install The most important decisions to consider before installing an Energy Eye system are: 1) Where each of the components in the system should be placed inside your guestrooms and if more than the standard components (refer to “Standard components” and “Product Placement” sections for detailed information) are required. 2) It is important to understand each component, how it works, and its limitations in order to ensure that the system functions correctly after installation. Because no two properties are exactly alike, make it a point to understand the particular physical layout of each guestroom and your operating environment. Required Tools *NOTE: Additional tools might be required depending on property construction type, local environment, HVAC accessibility and HVAC age. • Philips Screwdrivers (various sizes) • Wire cutter/stripper • Plastic Electrical tape • 1 set Electrical caps • 1 small coin (size of a U.S. Penny or Dime) • 1 set Sheet-metal screws (only if installing on metal door frame) © Copyright 2002 Electritech Inc. All Rights Reserved 3 II. Product Overview and Descriptions *Note: Each guestroom system operates independently on a spectrum of over 10,000 RF codes to insure no interference with a neighboring guestroom system. Brain Unit (Microprocessor and receiver) The processing receiver or “Brain” Unit is the most important part of the Energy Eye system. The Brain processes information sent to it by both the door and window sensor(s) and PIR sensor(s). It then communicates directly to the HVAC interfaced power pack in order to accurately control room temperature while guests are out. Functions of the Brain Unit include: • “Auto/Manual” switch that gives hotel/motel management and staff the ability to completely disable the system at will. • Low-battery indication lights that let hotel staff know when one or all of the Energy Eye wireless components is low on battery life. The GREEN light on the Brain Unit blinks continuously when one or more of a component’s battery life is low and solid GREEN when completely discharged and requires replacement. • Programmable setback timer intervals: 30 seconds, 5/10/15 minutes. • Temperature setback range: 50 to 90 degrees Fahrenheit with 5-degree increments. • Two (2) minute re-cycle timer feature for ease on PTAC compressor lifespan. • Built in YELLOW LED to see “Signal Reception” from Energy Eye™ components (PIR(s) and/or Door/Window Sensor(s)). • Mode A and B (custom management selected modes for both economic and generous control) • Internal thermostat temperature sensing. • Fuse: There is an internal fuse supplied in order to prevent damage to the Energy Eye™ system during any type of power fluctuation PIR (Passive Infrared People Sensor) Energy Eye’s passive infrared people sensor (PIR) is specially designed for detecting the presence of people in a room by omitting a tri-band infrared spectrum to cross- reference both motion and body heat. Like all Energy Eye wireless products, the PIR uses a 315MHz (RF) to communicate with the Brain unit. Once the PIR determines guestroom occupancy a signal is then instantly sent to the Brain unit to perform the appropriate function. The Energy Eye  PIR has a detection range of approximately 24 - 30 ft. (8 - 10 meters) long and a maximum angle detection of 110 degrees. The PIR is powered by a standard 9V Lithium battery provided by Electritech Inc. For efficiency purposes, Energy Eye PIRs self- check their battery level. Low battery si…

Text truncated - open the document above for the full version.

From: etcemi [[email protected]] Sent: Monday, April 29, 2002 11:14 PM To: Mike Kuo Subject: Re: ELECTRITECH, INC., FCC ID:QBQENERGYEYERX01, AN02T1996 Dear Mike, Below please find our explanations to your questions: Question #1:Request for confidentiality box is checked on the TCB application form. However, in the file titled Authorization. Two idential agency authorization letter are included. Please provide a request for confidentiality letter and indicate which documents are to be withheld from public disclosure. ANS.: Attached please find the letter requesting for confidentiality on provided document. Question #2: User Manual does not contian information required under 15.21 of FCC rules. ANS.: Attached please find the page added into the user's manual for FCC required information. Best regards, K. C. Chen ETC/EMC Department II ----- Original Message ----- From: Mike Kuo To: K. C. (E-mail) ; Will Yauo (E-mail) Sent: Sunday, April 28, 2002 2:55 AM Subject: FW: ELECTRITECH, INC., FCC ID:QBQENERGYEYERX01, AN02T1996 -----Original Message----- From: CERTADM Sent: Saturday, April 27, 2002 11:55 AM To: '[email protected]' Subject: ELECTRITECH, INC., FCC ID:QBQENERGYEYERX01, AN02T1996 Notice_content ------------- Question #1:Request for confidentiality box is checked on the TCB application form. However, in the file titled Authorization. Two idential agency authorization letter are included. Please provide a request for confidentiality letter and indicate which documents are to be withheld from public disclosure. Question #2: User Manual does not contian information required under 15.21 of FCC rules. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

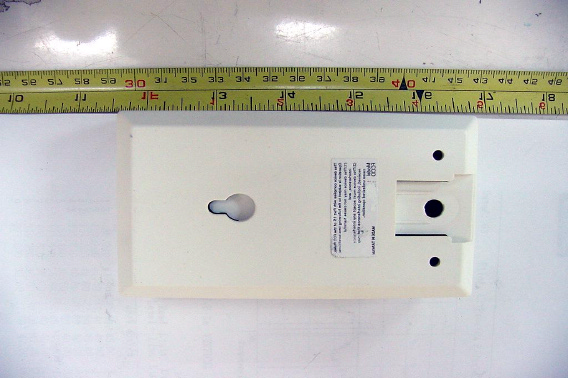

ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

Bottom View of EUT s Model: EERX01 FCC ID.: QBQENERGYEYERX01 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 15mm 35mm

ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : BRAIN UNIT MODEL : EERX01 FCC ID. : QBQENERGYEYERX01 for APPLICANT : ELECTRITECH INC. ADDRESS : 1802 N. Carson St, Suite 212-2543, Carson City, NV 89071, U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02-26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-03-098-03 ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : ELECTRITECH INC. 1802 N. Carson St, Suite 212-2543, Carson City, NV 89071, U.S.A. Manufacturer : AEONSTAR TECHNOLOGY CORP. 5F, NO. 1, LANE 155, SEC. 3, PEI SHEN RD., SHEN KENG HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C.. Description of EUT : a) Type of EUT : BRAIN UNIT b) Trade Name : ---- c) Model No. : EERX01 d) Power Supply : DC 12V Battery e) Wokring Frequency : 314.531 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart B (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Apr. 23, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION.....................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 LIMITATIONS AND LABELING REQUIREMENT............................................................2 2.1 Definition........................................................................................................................................2 2.2 Limitation Requirement...................................................................................................................2 2.3 Labeling Requirement.....................................................................................................................4 2.4 User Information............................................................................................................................4 3 SYSTEM TEST CONFIGURATION........................................................................................5 3.1 Justification.....................................................................................................................................5 3.2 Device for Tested System...............................................................................................................5 4 RADIATED EMISSION MEASUREMENT............................................................................6 4.1 Description for Radiated Emission Measured..................................................................................6 4.2 Radiated Emission Data..................................................................................................................7 4.3 Field Strength Calculation...............................................................................................................7 4.4 Equipment for Radiation Measurement............................................................................................8 4.5 Measuring Instrument Setup............................................................................................................8 4.6 Photos of Radiation Measuring Setup..............................................................................................9 4.7 Open Field Test Site Setup Diagram.............................................................................................10 5 CONDUCTED EMISSION MEASUREMENT.....................................................................11 5.1 Standard Applicable.....................................................................................................................11 ETC Report No. : ET91R-03-098-03 Sheet 1 of 11 Sheets FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT : BRAIN UNIT b) Trade Name : ---- c) Model No. : EERX01 d) Power Supply : DC 12V 1.2 Characteristics of Device The processing receiver or “Brain” unit is the most imporatnat part of the Energy Eye Tm System. The Brain processes information sent to it by both the door and window sensor(s) and PIR sensor(s). It then communicates directly to the HVAC interfaced power pack in order to accurately control room temperature while guests are out. 1.3 Test Methodology Both conducted, radiated, conducted RF output signal and spurious level and transfer switch isolation testing were performed according to the procedures in ANSI C63.4 (1992). 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No. 34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to your office, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET91R-03-098-03 Sheet 2 of 11 Sheets FCC ID. : QBQEN…

Text truncated - open the document above for the full version.

ETC Report No. : ET91R-03-098-03 FCC ID. : QBQENERGYEYERX01 Rev. No 1.0 Photos of Radiation Measuring Setup
