QBTLTK-NEO10NEO DESKTOP TRANSMITTER

NEO TRANSMITTER Manual LEE TECHNOLOGY KOREA CO., LTD. email [email protected] website www.leetekorea.com KOREA HEADQUARTER US OFFICE 3 rd Fl. 499-2, Sang3-dong, 530 Highland Station Drive, Suite 2004, Wonmi-gu, Bucheon City, Suwanee, GA 30024, U.S.A. Kyunggi-do, Korea Tel +82-32-324-9838 Tel +1-678-714-2161 Fax +82-32-324-9840 Fax +1-678-714-2162 Alpha Paging System User Manual NOTICE This manual, software and electronic circuitry are copyrighted. All rights reserved. Under the copyright laws, this manual, software and electronic circuitry may not be copied, in whole or in part without written prior consent of Lee Technology. All information provided in this document is carefully prepared and offered in good faith as a guide in the installation, use and servicing of our products. Installers must ensure that the final installation operates satisfactorily within the relevant regulatory requirements. Lee Technology accepts no responsibility for incorrect installation. Lee Technology reserves the right to change products, specifications and installation data at any time without notice. Lee Technology makes certain limited warranties with respect to defective diskettes, documentation and electronic circuitry. Please see the associated information contained on this page. LIMITED WARRANTY With respect to the physical documentation and physical electronic circuitry enclosed herein, Lee Technology warrants the same to be free of defects in materials and workmanship for a period of one year from the date of purchase. In the event of notification within the warranty period of defects in material or workmanship, Lee Technology will replace the defective diskettes, documentation and electronic circuitry. The remedy for breach of this warranty shall be limited to replacement and shall not encompass any other damages including but not limited to loss of profit and special incidental, consequential, or other similar claims. Lee Technology Korea specifically disclaims all other warranties, expressed or implied, including but not limited to implied warranties of merchantability and fitness for a particular purpose with respect to defects in the documentation and electronic circuitry and the program license granted herein, in particular, and without limiting operation of the program license with respect to any particular application, use or purpose. IMPORTANT SAFETY INFORMATION NOTE : The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. RF EXPOSURE STATEMENT Your Pager Transmitter contains a radio frequency transmitter. When the button is pushed the transmitter sends our RF signals. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 8 inches (20 cm) must be maintained between the antenna of this trasmitter and all persons, during normal operation. The antenna uesd for this transmitter must not be colocated or operating in conjunction with any other antenna of transmitter. Unauthorized antennas, modifications, of attachments could damage the transceiver and may violate FCC regulations. Any changes or modifications (including the antenna) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. TABLE OF CONTENTS 1. SYSTEM INTRODUCTION 1) SYSTEM SUMMARY 2) SPECIFICATION 2. INSTALLATION 1) EQUIPMENT SETUP 2) PLACEMENT 3) EASY INSTALLATION INSTRUCTION 3. SYSTEM SETTING 1) SET TIME 2) SET ALERTS 3) SET ALERTS TIME 4) OUT OF RANGE 5) AUTO MESSAGE 6) SET PAGER TYPE 7) SET FREQUENCY 8) SET SYSTEM BASE ID 9) SET GROUP ID 10) SET OUT OF RANGE ID 11) SET BAUD RATE 12) FIELD TEST 13) TRANSMISSION 14) SET POWER OFF 4. OPERATION 5. HOW TO USE 1. SYSTEM INTRODUCTION 1) SYSTEM SUMMARY RCL Paging System was designed to help restaurants manage incoming customers efficiently and distinctively. Customers receive instant notification when their table is ready, making them feel special and welcome. Freed from long lines, your restaurant looks more inviting to people walking in, customers are encouraged to wait without fears of missing their table, resulting in higher traffic, while overall restaurant traffic flows more smoothly, leading to faster table turns. By offering perfect customer service the instant a customer appears, you will enjoy greater competitiveness, revenues and profits. 2) SPECIFICATION FEATURE BENEFIT TECHNOLOGY ° UHF Technology ° Perfect for large restaurant and multiple levels TRANSMITTER ° Built-in Clock ° Wireless Pager Programmability ° Durable and Sturdy to withstand industry conditions ° Selectable Frequency, Pager Alert Type, and Alert Time ° Out of Range ° Field Test ° Powered by power supply or rechargeable battery PAGER ° POCSAG Code ° All Pagers work on Single Transmitter Platform ° Smart Charging System with own Charger Base ° Advertise with Paddle insert sheet RESTAURANT SYSTEM ID ° Unique Base ID to eliminate overlapping message RECHARGEABLE BATTERY ° Smart Charging eliminates over-charging and extend battery life APPLICATION ° Restaurant, Café, Hotel, Pharmacy, Church, Super market, Car Wash and Auto Dealer shop 2. INSTALLATION 1) EQUIPMENT SETUP (1) Transmitter Unwrap all sending unit components. Lock the antenna into the hope in the upper right hand corner of the transmitter. Plug the power supply with the large tip into a standard outlet and plug it into the back of the transmitter. We recommend some type of surge suppressor on the power supply for protection. Power surges are not covered under system warranty. (2) Pager Locate the charger base in a sturdy, out of the way location. Connect the charger bases together using included jump wires. Use the power supply with the small tip and plug it into a standard outlet and into either open plug on the charger base. Be sure to plug the jump wires & power supply jack in all the way. I…

Text truncated - open the document above for the full version.

March 6 Federal Authori z 7435 Oa Columb SUBJEC To Who m Being t h frequenc We atte s by Part 9 the norm Freq 46 46 46 Jongchu Lee Tech 6, 2014 Communic a zation and E akland Mills ia, MD 210 4 CT: FCC ID Justifica m It May Co he Applicant cies 450 ~ 47 st that the de 90, as listed mally accessi quency Rang 450 ~ 454 454 ~ 456 456 ~ 462.5 2.5375 ~ 46 2 2.7375 ~ 467 7.5375 ~ 467 467.7375 ~ ul Lee / Presid hnology Kor ations Comm valuation Di Road 46 D: QBTLTK ation Letter oncern: for the capt i 70MHz unde evice will be in the table b ible external ge(MHz) 4 6 375 2.7375 7.5375 7.7335 470 dent ea Co., Ltd. mission ivision K-NEO10 for contigu o ioned project er FCC Rules programmed below, and th controls. ous frequen t, Lee Tech n s Part 90 on d by the man he operator c Rule Part 90 22,80,74 90 95 90 95 90 cy range 45 nology Korea the FCC Gra nufacturer on cannot progra 0 ~ 470MHz a Co., Ltd. is ant. nly for the fr am the transm G z s requesting t requencies au mit frequenc Grant Notes EF EF EF EF EF EF EF to list the uthorized cies using

March 6, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QBTLTK-NEO10 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_ NEO10 _Part List.PDF Schematics Diagram(s) CONF APPENDIX_NEO10_Schemetics.PDF Block diagram CONF APPENDIX_ NEO10 _Block diagram.PDF Operation description CONF APPENDIX_NEO10 _Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jongchul Lee / President Lee Technology Korea Co., Ltd.

March 6, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jongchul Lee / President Lee Technology Korea Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

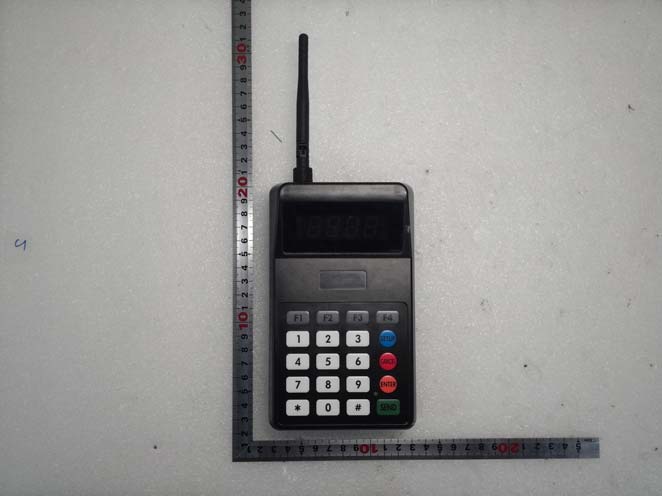

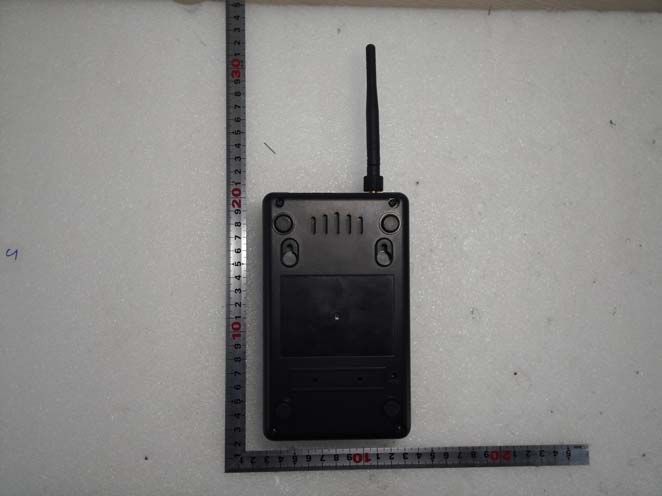

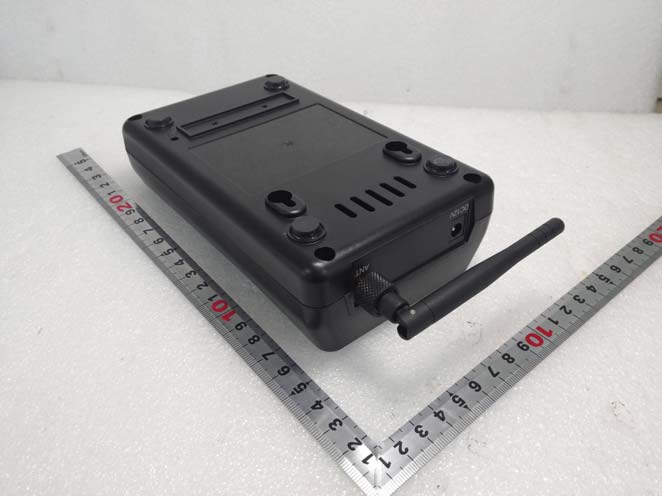

www.kes.co.kr Model No.: NEO10 Page 1 of 2 EUT External photographs www.kes.co.kr Model No.: NEO10 Page 2 of 2

www.kes.co.kr Model No.: NEO10 Page 1 of 1 Label and Location Model Name : NEO10 Trade Name : NEO DESKTOP TRANSMITTER FCC ID : QBTLTK-NEO10 IC : 5269A-NEO10 Manufacturer : Lee Technology Korea Co., Ltd. This device complies with Part 90 of the FCC Rules Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MADE IN KOREA

www.kes.co.kr Model No.: NEO10 Page 1 of 4 EUT Internal photographs(Main) www.kes.co.kr Model No.: NEO10 Page 2 of 4 EUT Internal photographs(Main) RF TX Part www.kes.co.kr Model No.: NEO10 Page 3 of 4 EUT Internal photographs(Sub) www.kes.co.kr Model No.: NEO10 Page 4 of 4 EUT Internal photographs(Keypad)

The procedure in this chapter allows the verification of the electrical performance of transmitter. These tests do not require access to the interior of the instrument. PERFORMANCE TEST NEO TRANSMITTER TUNE UP PROCEDURE 1. Selected reason of the frequency : => Use were selected at random from the desired frequency band. 2. How to adjust the maximum output : => use capacitor, coil, trimmer (max output : 2W below) 3. Max output and Output Tolerance : => Max out put : 30dBm p Output Tolerance : +/- 2dB Recommended test equipment HP-436A/8481DPower meter St l + / - 0.2dB, - 60 to -20dBm. 100 KHz to 1GHz 100KH t 12GH t 120 dB DescriptionMinimum specificationModel HP 8591E 10W, 20dB Att, DC to 1GHz DC to 100MHz, 5mV to 1V/div, Rise Time capavility Spectrum analyzer100KHz to 12GHz, up to -120 dBm HP-8902A0.2 to 1300MHz, 0 to -125dBm, Freq Counter TEK TDS360 Measuring receiver Oscilloscope Frequency Counter + / - 0.1ppm, 10Hz ~ 1GHz, 9digitHP-53181A HP-8591E AttenuatorTescom 99910 1. Frequency Accuracy Frequency : 457.5750MHz Stavility : Same as reference oscillator accuracy. Internal 1ppm 0 to 50degC 1.Test Setup (Connect NEO TRANSMITTER RF Line without case) HP-8902A DC block 2. HP-8902A : auto tuning, frequency display 3. NEO TRANSMITTER : ) Carrier frequency accuracy test 1) Push button 2) check frequency accuracy 2. RF Output Level Accuracy Accuracy : +/-2dB RF level : 30dBm below 1. Test Setup HP-8902A (Connect NEO TRANSMITTER RF Line without case) 2 HP 8902A : A t t i RF P 2. HP-8902A : Auto-tuning, RF Power 3. NEO TRANSMITTER : 1) Connect DC block 2) Push button and check RF Level 3. Harmonic Spurious Harmonic Level at 2xFOUT : <-40dBc 1. Test Setup. RF OUTRF OUT input 50 DC block HP-8591E (Connect NEO TRANSMITTER RF Line without case) 2. HP 8591E : Span = 500KHz, RBW = 10KHz, VBW = 30KHz. 3. NEO TRANSMITTER: )C C Harmonice test 1) Connect DC block 3) Push button and check harmonic Level(dBm)Fout-2*Fout Limit 40dbc 4. Modulation 4 1 FM(RECT) (Internal GFSK Test Patterns) 457.5750MHz Spurious(MHz) 915.15Mhz Remark NEO TRANSMITTER Harmonic Spurious Fout(MHz) 4.1. FM(RECT) (Internal GFSK Test Patterns) 1.Test Setup OSCILLOSCOPE Audio input DC block GFSK Deviation and Noise Test (C t NEO TRANSMITTER RF Li ith t ) (Connect NEO TRANSMITTER RF Line without case) 2.Equipment HP-8902A : FM TDS360 : 250us/div, 500mV/div Average : 16 3. NEO TRANSMITTER: 1) Connect DC block 2) Push button and check modulation

RF exposure According to FCC part 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) Limits for Maximum Permissible Exposure (MPE) f= frequency in ㎒ Friis transmission formula: Pd = (Pout×G)/(4×pi×R 2 ) Where, Pd = power density in ㎽/㎠ Pout = output power to antenna in ㎽ G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, f/1500 ㎽/㎠. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Results Channel Frequency (㎒ ㎒㎒ ㎒) Peak output power (㏈ ㏈㏈ ㏈m mm m) Antenna gain (㏈ ㏈㏈ ㏈i) Power density at 20 ㎝ ㎝㎝ ㎝(㎽ ㎽㎽ ㎽/㎠ ㎠㎠ ㎠) Limit (㎽ ㎽㎽ ㎽/㎠ ㎠㎠ ㎠) Low 450.025 28.02 -2.61 0.069 0.300 Middle 457.575 30.14 -2.61 0.113 0.305 High 469.975 31.10 -2.61 0.141 0.313 Frequency range (㎒ ㎒㎒ ㎒) Electric field strength(V/m) Magnetic field strength (A/m) Power density (㎽ ㎽㎽ ㎽/㎠ ㎠㎠ ㎠) Average time (A) Limits for Occupational / Control Exposures 300 – 1 500 -- -- f/300 6 1 500 - 100000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300 – 1 500 -- -- f/1500 6 1 500 – 100 000 -- -- 1 30

KES Co., Ltd. C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0003 Page: (2) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Revision history Revision Date of issue Test report No. Description - 2014.03.14 KES-RF-14T0003 Initial KES Co., Ltd. C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0003 Page: (3) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TABLE OF CONTENTS 1.0 General product description ............................................................................................................................... 4 1.1 Test frequency .................................................................................................................................................... 4 1.2 Information about derivative model ................................................................................................................... 4 1.3 Device modifications ......................................................................................................................................... 5 1.4 DC input into the final stage .............................................................................................................................. 5 1.4 Test facility ........................................................................................................................................................ 5 1.5 Laboratory accreditations and listings ............................................................................................................... 5 2.0 Summary of tests ............................................................................................................................................... 6 2.1 Test data ............................................................................................................................................................. 7 2.1.1 RF output power ........................................................................................................................................ 7 2.1.2 20 ㏈ bandwidth & 99 % bandwidth ..................................................................................................... 10 2.1.3 Emission mask ......................................................................................................................................... 12 2.1.4 Conducted spurious emissions ................................................................................................................ 15 2.1.5 Frequency stability .................................................................................................................................. 18 2.1.6 Transient frequency behavior of the transmitter ...................................................................................... 23 2.1.7 Radiation spurious emissions .................................................................................................................. 27 Appendix A. Test equipment used for test ........................................................................................................................ 33 Appendix B. Test setup photo ........................................................................................................................................... 34 KES Co., Ltd. C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0003 Page: (4) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1.0 General product description Equipment under test NEO DESKTOP TRANSMITTER Model name NEO10 Derivative model NEODP20 Serial number N/A Frequency range 450.025 ㎒ ~ 469.975 ㎒ Type of emission 10K2F1D Channel separation 12.5 ㎑ Rated power 1.3 W Power Source AC Adaptor 120 V(Output : DC 12V) Antenna type Connector type(SMA)// Dipole antenna Antenna gain -2.61 ㏈i 1.1 Test frequency Low channel Middle channel High channel Frequency (㎒) 450.025 457.575 469.975 1.2 Information about derivative model The circuit diagram and software of the basic model and derivative are fundamentally the same. On ly derivative model is different front key pad than basic model. For detailed information, refer to th e following; Basic model Derivative model Front panel KES Co., Ltd. C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0003 Page: (5) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1.3 Device modifications Please refer to the attestation letter. (Device modification letter) 1.4 DC input into the final stage Frequency (㎒ ㎒㎒ ㎒) Voltage(V) Current(A) Power(W) 450.025 12 0.389 4.668 457.575 12 0.371 4.452 469.975 12 0.302 3.624 1.4 Test facility C3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea The open area test site is constructed in conformance with the requirements ANSI C63.4-2003/2009. 1.5 Laboratory accreditations and listings Country Agency Scope of accreditation Certificate No. USA FCC 3 & 10 meter Open Area Test Sites a…

Text truncated - open the document above for the full version.

KES Co., Ltd. C-3701, Simin-daero 365-40, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-14T0003 Page: (34) of (34) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Appendix B. Test setup photo Radiated field emissions
