QC4-4GSCW4G Secure Control Wireless

4G INSTALLATION GUIDE Version 4.4.2.0.0.0.0 Part # 430-4G-050-00-004 © 2011 - L-1 Identity Solutions Inc. All rights reservedi Copyright Copyright Information © 2011, L-1 Identity Solutions, Inc. All rights reserved. This product and related documentation are protected by copyright and distributed under licenses restricting their use, copying, distribution, and de-compilation. No part of this product or related documentation may be reproduced in any form by any means without written permission from L-1 Identity Solutions and its licensors, if any. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of the L-1 Identity Solutions, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. TRADEMARKS The trademarks identified herein are the trademarks or registered trademarks of L-1 Identity Solutions, Inc. All other brands and products referenced herein are acknowledged to be trademarks or registered trademarks of their respective holders or manufacturers. THE PRODUCT AND PUBLICATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS. CHANGES ARE PERIODICALLY ADDED TO THE INFORMATION HEREIN; THESE CHANGES WILL BE INCORPORATED IN NEW EDITIONS OF THE PUBLICATION. L-1 IDENTITY SOLUTIONS, INC MAY MAKE IMPROVEMENTS AND/OR CHANGES IN THE PRODUCT(S) AND/OR THE PROGRAM(S) DESCRIBED IN THIS PUBLICATION AT ANY TIME. IMPORTANT—Please refer to the L-1 Identity Solutions End User License Agreement document and read it carefully before using any L-1 Identity Solutions software on your computer. This document contains important information about your legal rights. Part # 430-4G-050-00-004 © 2011 - L-1 Identity Solutions Inc. All rights reservedii Contents Table of Contents CHAPTER 1 - INTRODUCTION.......................................................7 CHAPTER OVERVIEW...............................................................7 1.1 SYMBOLS USED IN THIS GUIDE.................................................7 1.2 PRODUCT OVERVIEW...........................................................9 1.2.1 4G V-FLEX LITE & CR-PASS.................................................9 1.2.2 4G SECURE CONTROL.......................................................10 1.3 DEVICE DIMENSIONS.........................................................11 1.3.1 4G V-FLEX LITE..........................................................11 1.3.2 4G CR-PASS..............................................................12 1.3.3 4G SECURE CONTROL.......................................................13 1.4 SAFETY PRECAUTIONS........................................................14 1.4.1 ELECTROSTATIC DISCHARGE.................................................14 1.4.2 DEVICE HANDLING GUIDELINES..............................................15 CHAPTER 2 - PLANNING THE INSTALLATION.........................................16 CHAPTER OVERVIEW..............................................................16 2.1 PLANNING THE INSTALLATION.................................................16 2.1.1 RECOMENDED STEPS FOR A SUCCESSFUL INSTALLATION..........................17 2.1.2 REQUIREMENTS............................................................18 2.1.2.1 HARDWARE REQUIREMENTS.................................................18 2.1.2.2 COMPUTER REQUIREMENTS.................................................18 2.1.2.2.1 SECUREADMIN LITE SERVER REQUIREMENTS................................18 2.1.2.2.2 SECUREADMIN LITE CLIENT REQUIREMENTS................................19 2.1.2.2.3 MICROSOFT .NET FRAMEWORK 3.5 SP1 REQUIREMENTS.......................19 2.1.2.2.4 SUPPORTED OPERATING SYSTEMS.........................................19 2.1.2.2.5 SQL SERVER 2008 EXPRESS EDITION.....................................19 2.1.2.3 NETWORK REQUIREMENTS..................................................19 2.1.2.4 SOFTWARE REQUIREMENTS.................................................19 2.1.3 UNPACK EQUIPMENT........................................................20 2.1.3.1 PARTS LIST............................................................20 2.1.3.1.1 4G V-FLEX LITE, 4G CR-PASS..........................................20 2.1.3.1.2 4G SECURECONTROL....................................................21 2.1.3.1.3 DOCUMENTATION.......................................................21 2.1.4 CHOOSING THE INSTALL LOCATION...........................................22 2.1.4.1 4G V-Flex Lite and CR-Pass............................................22 2.1.4.2 4G SecureControl......................................................22 2.1.5 PLAN DEVICE NETWORK.....................................................22 2.1.6 CHOOSE NETWORK TYPE.....................................................23 2.1.6.1 RS-485 ...............................................................24 2.1.6.1.1 RS-485 CABLE SPECIFICATION..........................................24 2.1.6.1.2 RS-485 CABLE LENGTHS................................................25 2.1.6.1.3 RS-485 NETWORK TOPOLOGY.............................................25 2.1.6.2 ETHERNET..............................................................25 2.1.7 CHOOSE POWER SOURCE.....................................................26 Part # 430-4G-050-00-004 © 2011 - L-1 Identity Solutions Inc. All rights reservediii Contents CHAPTER 3 - INSTALL SOFTWARE..................................................27 CHAPTER OVERVIEW.....................…

Text truncated - open the document above for the full version.

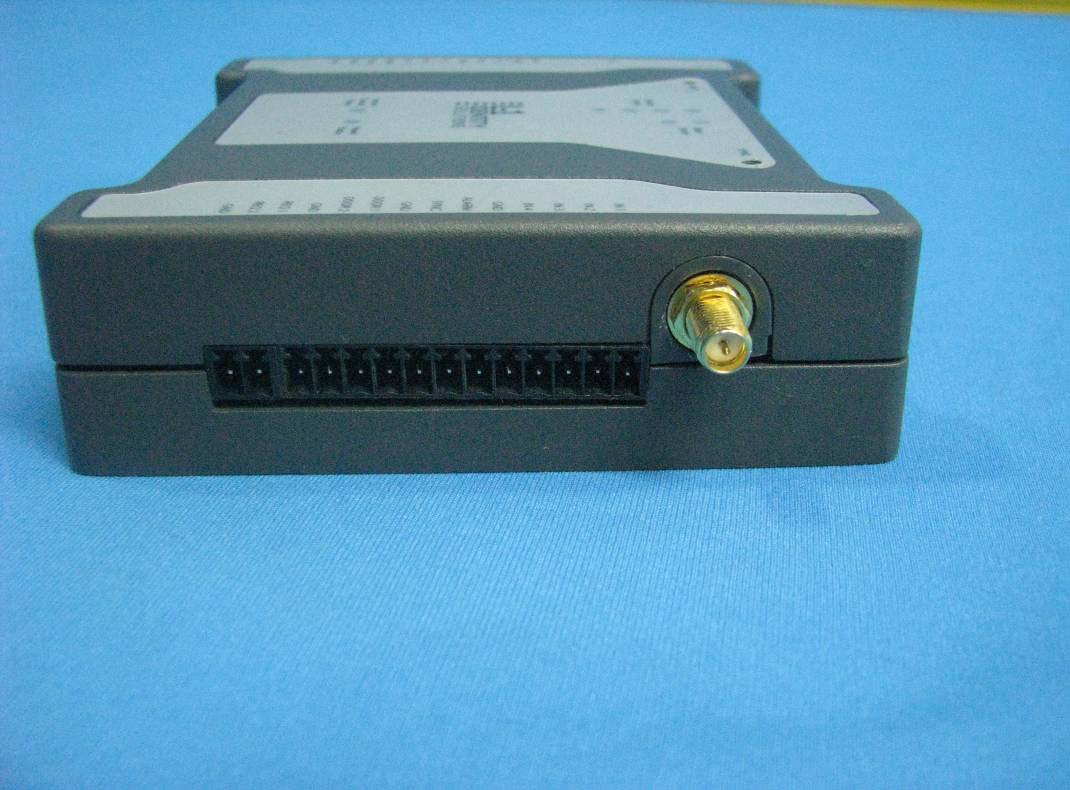

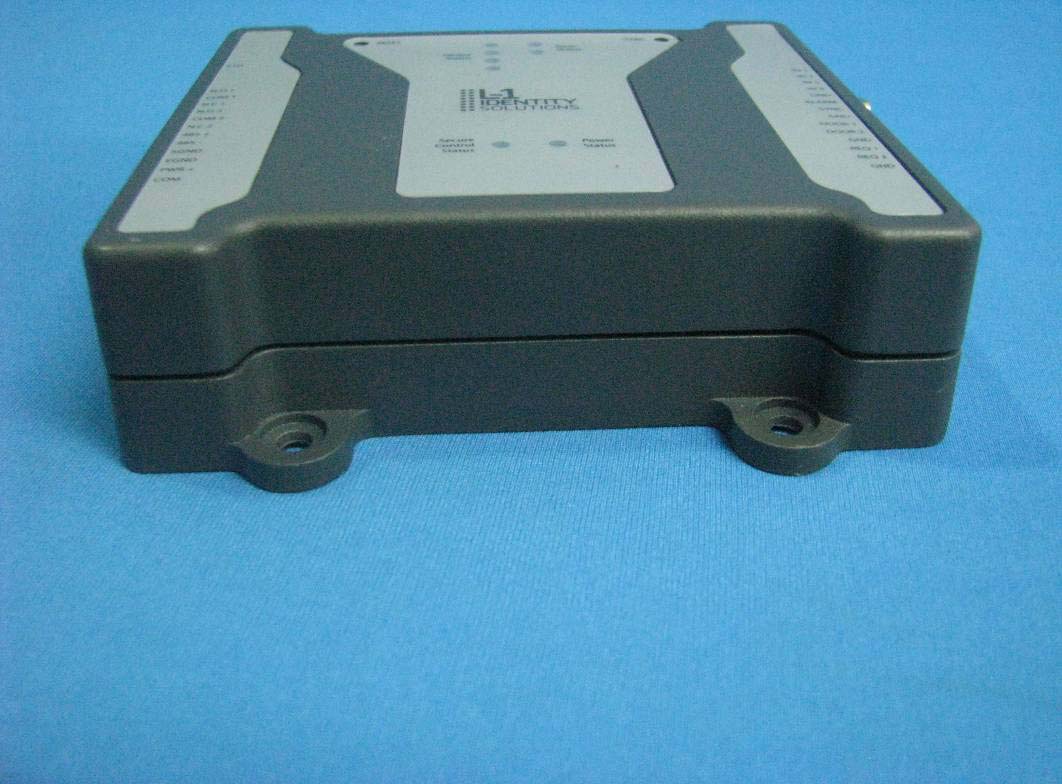

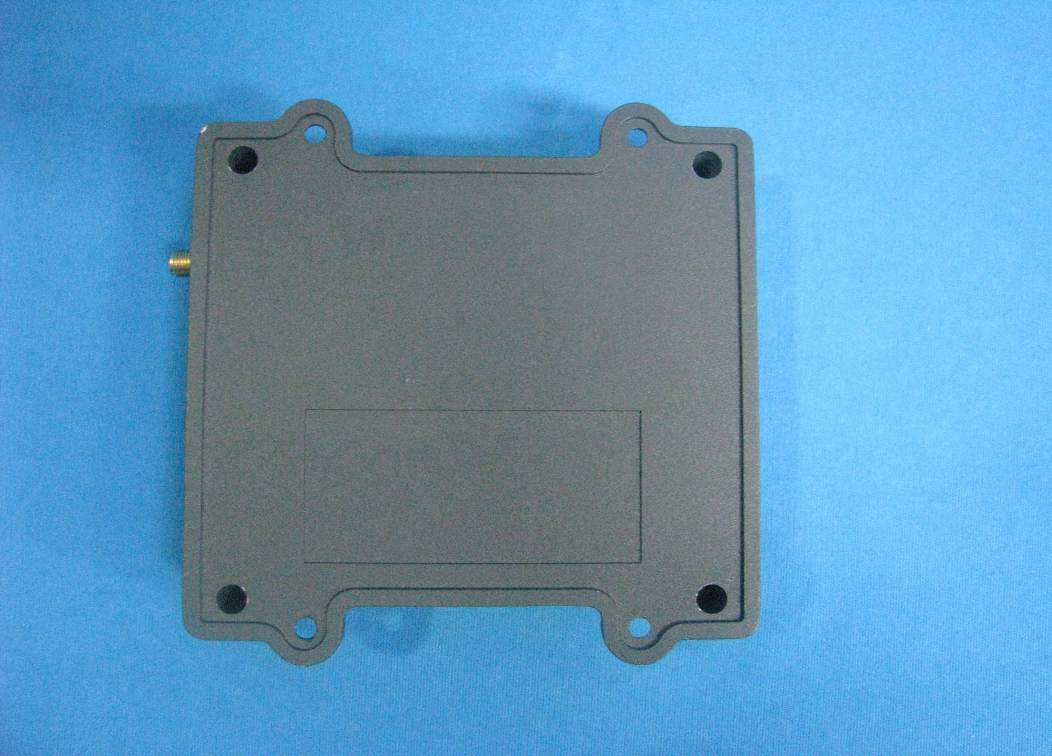

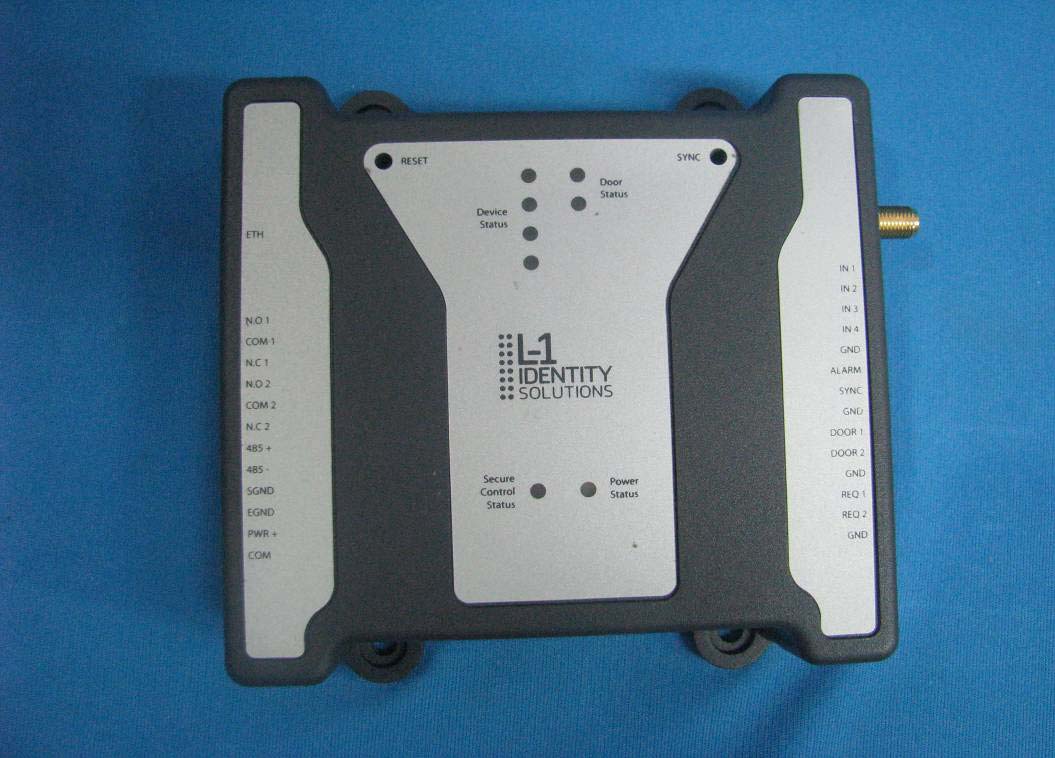

www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 1 von 6 Page 1 of 6 EUT Top View EUT Bottom View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 2 von 6 Page 2 of 6 EUT Front View EUT Rear View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 3 von 6 Page 3 of 6 EUT Side View EUT Overall View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 4 von 6 Page 4 of 6 EUT Dimensional View EUT Dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 5 von 6 Page 5 of 6 Antenna View Antenna dimensional View www.tuv.com Appendix 2 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 6 von 6 Page 6 of 6 Antenna dimensional View Antenna connector View- Reverse Polarity

www.tuv.com Appendix 4 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 1 von 1 Page 1 of 1 Label Diagram Label Location Diagram

www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 1 von 3 Page 1 of 3 EUT Internal View-Top View EUT Internal View-Bottom View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 2 von 3 Page 2 of 3 RF Section – Top View RF IC View www.tuv.com Appendix 3 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 3 von 3 Page 3 of 3 RF Section – Bottom View

ItemQtyReferenceDescriptionMfg Part#Manufacturer Mounting status Alternated Part no. 11BH1BATTERY LITH 12.5MM 3V/48mAHBR-1225/HCNPanasonic 21BZ1BUZZER PIEZO 4.1KHZ 14MM PC MTPK-12N40PQMallory SonalertBRP1408P-12-CS-S 388 C1, C2, C3, C4, C5, C7, C8, C11, C12, C13, C14, C18, C19, C22, C24, C25, C27, C28, C29, C30, C31, C32, C33, C34, C35, C36, C37, C38, C39, C41, C42, C43, C44, C45, C46, C47, C48, C49, C51, C52, C53, C54, C59, C61, C62, C65, C66, C67, C68, C70, C71, C77, C90, C91, C92, C93, C94, C95, C96, C97, C98, C100, C101, C102, C103, C104, C106, C107, C109, C110, C111, C112, C113, C134, C136, C138, C139, C141, C142, C144, C146, C147, C148, C173, C176, C179, C184, C185 CAP CERAMIC .1UF 16V X5R 0402ECJ-0EB1C104KPanasonic - ECG 42C105, C108CAP CER 22PF 50V 0402 SMDECJ-0EC1H220JPanasonic - ECGNU 52C115, C116CAP CER 33PF 50V 0402 SMDECJ-0EC1H330JPanasonic - ECG 65C117, C119, C123, C169, C180CAP CER 10nF 100V X7R 10%0603C1608X7R2A103KTDK Corporation 73C125, C126, C127CAP CER 2.2UF 16V X5R 0603C1608X5R1C225KTDK Corporation 82C128, C152CAP CER 22000PF 100V X7R 10%0603C1608X7R2A223KTDK Corporation 92C129, C151CAP CER 10UF 35V X5R 1206GRM31CR6YA106KA12LMurata Electronics 101C131CAP CERM 15000PF 5% 50V X7R 060306035C153JAT2AAVX Corporation 111C132CAP 150PF 50V CERAMIC X7R 0402ECJ-0EB1H151KPanasonic - ECG 127C133, C135, C137, C140, C174, C175, C181CAP CER 1.0UF 10V X5R 0402GRM155R61A105KE15DMurataGRM155R61A105KE15D 131C143CAP 27PF 50V CERAMIC 0402 SMDECJ-0EC1H270JPanasonic - ECG 145C149, C150, C164, C166, C167CAP, CER, 10pF, 50V, 5%, COG, 0402GRM1555C1H100JZ01DMurataGRM1555C1H100JZ01D 154C153, C154, C156, C157CAP CER 1000PF 100V X7R 10% 060306031C102KAT2AAVX06031C102KAT2A 161C155CAP CER 100PF 50V 5% C0G 0402GRM1555C1H101JZ01DMurata 171C158CAP CERAMIC .1UF 10V X5R 0402CC0402KRX5R6BB104Yageo 182C159, C160CAP CER 1000PF 100V XYR 060306031C102KAT2AAVX06031C102KAT2A 191C168CAP CERM 1000PF 2000V X7R 12061206GC102KAT1AAVX Corporation 201C170CAP CER 100nF 100V X7R 10% 0805C2012X7R2A104KTDK CorporationNU 212C171, C183CAP CER 10UF 35V X5R 1206GRM31CR6YA106KA12LMurata ElectronicsNU 221C177CAP CER 1000PF 100V X7R 10% 060306031C102KAT2AAVXNU06031C102KAT2A 231C21CAP CER 22UF 10V X5R 0805LMK212BJ226MG-TTaiyo Yuden 2421 C6, C9, C10, C15, C16, C17, C20, C40, C50, C55, C57, C60, C64, C114, C118, C120, C121, C122, C124, C145, C178 CAP CER 10UF 10V X5R 20% 0603LMK107BJ106MALTDTaiyo Yuden 251C83CAP CER 56PF 5% 2KV C0G 18121812GA560JAT1AAVX 263C84, C130, C182CAP CER 100nF 100V X7R 10% 0805C2012X7R2A104KTDK Corporation 271C99CAP CER .22UF 16V Y5V 0402EMK105BJ224KV-FTaiyo YudenEMK105BJ224KV-F 281CE1CAP POLY ALUM 150UF 10V SMDEEE-FP1A151APPanasonic - ECG 291D14DIODE ZENER 28V 500MW SOD-123MMSZ5255B-7-FLittelfuse Inc 303D2, D3, D6DIODE SWITCH 75V 200MW SC70-3BAS16W-7-FDiodes Inc 311D4DIODE SCHOTTKY 40V 3A SMBB340B-13-FDiodes Inc 321D5DIODE SCHOTTKY 3A 80V SMBSK38B-TPMicro Commercial 331DM1TerminalBlock, 1x12, 3.5mm, RATJ1211030000Anytek EB1350-12-000 (EBY) or 39500-0012 (Molex) 341DM5TerminalBlock, 1x14, 3.5mm, RATJ1411030000Anytek EB1350-14-000 (EBY) or 39500-0014 (Molex) 4G SecureControl Bill Of Materials 358 DM6, DM7, DM8, DM9, DM10, DM11, DM12, DM13 12.7mm 2pin LED SPACER T-1 .500"7373Keystone 361ESD1VARISTOR TVS 30VDC 280A 1210VC121030H620DPAVX Corporation 371F1POLYSWITCH RXE SERIES 1.10ARXEF110Tyco /Raychem 383FB1, FB2, FB22FERRITE CHIP 100 OHM 1A 0603MPZ1608D101BTDK 397FB10, FB11, FB13, FB18, FB32, FB33, FB35FERRITE CHIP 26 OHM 6000MA 0603BLM18KG260TN1DMurata Electronics 401FB12FERRITE CHIP 26 OHM 6000MA 0603BLM18KG260TN1DMurata Electronics 411FB14FERRITE CHIP 26 OHM 6000MA 0603BLM18KG260TN1DMurata ElectronicsNU 4218 FB3, FB15, FB16, FB17, FB20, FB23, FB24, FB25, FB26, FB27, FB28, FB29, FB30, FB36, FB37, FB38, FB39, FB40 FERRITE CHIP 600 OHM 300MA 0402BLM15AG601SN1DMurata Electronics 432FB34, FB41FILTER CHIP 330 OHM 1.5A 0603BLM18SG331TN1DMurata Electronics 441FB4FERRITE CHIP 600 OHM 300MA 0402BLM15AG601SN1DMurata 451FB42Choke w/6 hole ferrite core, 3A 702ohm74275046Wurth Elektronik 462FB5, FB6FERRITE CHIP 1000 OHM 2A 1210FBMH3225HM102NTTaiyo Yuden 471J10TerminalBlock, 1x14, 3.5mm, RA, PTHOQ1412010000Anytek HC1381-14-000 (EBY) or 39502-1014 (Molex) 481J21.0mm SHD 180 smtSHD-VT-20-LFMorethanall 491J3Connector, RJ45, RA, with LED MJF13UL-KX06B3YG-0808- LF Morethanall 501J6 Connector, Header, 1.25mm, 8 pin, single row, SMD DF13C-8P-1.25V(20)Hirose 511J9TerminalBlock, 1x12, 3.5mm, RA, PTHOQ1212010000Anytek HC1381-12-000 (EBY) or 39502-1012 (Molex) 522L1, L5POWER INDUCTOR 82UH 1.4A SMDCDRH125NP-820MCSumida 533L2, L3, L4INDUCTOR POWER 2.2UH 1.3A SMDVLS3010T-2R2M1R3TDK Corp 541L6CHOKE COMMON MODE 1KOHM 1.5A 2020DLW5BSN102SQ2LMurrata 551L7IND, 6.8UH 32mohm, 3.7A, SMDNR8040T6R8NTaiyo Yuden 561LED1LED 3MM BLUE/WATER CLEAR LENS PTHSSL-LX3044USBCLUMEX 577LED2, LED3, LED4, LED5, LED6, LED7, LED8RG BiColor Common Cathode LED 3mm PTHLL-309IGM2E-I1-2A_LEDLuckylight 581PCBPCB, Mainboard, SecureControl, 4G811-00157-01RKWT 593Q1, Q2, Q3MOSFET N-CH 55V 335MA SOT-23BSH111, 215NXP SemicoductorBSH111 601Q4MOSFET P-CH 60V 9.4A DPAKFQD11P06TMFairchild 611Q5TRANSISTOR PNP SW 40V SOT323MMST4403-TPMicro Commercial Co 624Q6, Q7, Q8, Q9TRANS GP SS NPN 40V SOT23MMBT3904LT1GON Semiconductors 6359 R1, R2, R8, R9, R10, R11, R12, R13, R14, R15, R18, R60, R65, R73, R74, R75, R92, R93, R95, R96, R99, R102, R110, R112, R127, R128, R136, R137, R148, R149, R156, R157, R166, R167, R174, R176, R187, R188, R195, R196, R197, R199, R217, R218, R219, R220, R221, R222, R223, R224, R225, R228, R231, R232, R248, R253, R254, R255, R256 RES 22 OHM 1/16W 1% 0402 SMDRC0402FR-0722RLYageoRC0402FR-0722RL 641R103RES 1.87K OHM 1/16W 0.5% 0402 SMDRR0510P-1871-DSusumu 6510 R122, R123, R140, R154, R155, R172, R173, R184, R185, R212 RES 3.3K OHM 1/10W 5% 0402 SMDERJ-2GEJ332XPanasonic - ECG 661R132RES 22 OHM 1/10W 5% 0402 SMDERJ-2GEJ220XPanasonic - ECGNU 6714 R16, R25, R33, R37, R97, R139, R141, R142, R143, R152, R162, R180, R181, R192 RES ZERO OHM 1/10W 5% 0402 SMDERJ-2GE0R00…

Text truncated - open the document above for the full version.

Produkte Products TÜV Rheinland LGA Products GmbH  Tillystraße 2  D - 90431 Nürnberg  Tel.: +49 911 655 5225  Fax: +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com Rev.:1.2 2009-12-29 / approved: M.Jungnitsch Prüfbericht - Nr.: 02423009 001 Seite 1 von 40 Test Report No.: Page 1 of 40 Auftraggeber: Client: Bioscrypt Inc. 50 Acadia Ave.,Suite 200, Markham, ON L3R 0B3 Canada Gegenstand der Prüfung: Test item: 4GSCW Bezeichnung: Identification: 4G Secure Control Serien-Nr.: Serial No. Engineering Sample Wareneingangs-Nr.: Receipt No.: 1403013194 Eingangsdatum: Date of receipt: 2010-01-28 Prüfort: Testing location: Refer Page 4 of 40 for test facilities Prüfgrundlage: Test specification: FCC 15, Subpart C Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (India) Pvt. Ltd. Alpha Tower, Sigma Soft Tech Park, # 7, Whitefield Main Road, Varthur Kodi, Bangalore – 560066, India geprüft / tested by: kontrolliert / reviewed by: 2010-02-05 Vinay N Test Engineer 2010-02-05 Varma Kalyan Manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges /Other Aspects: FCC ID : QC4-4GSCW Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. www.tuv.com Test Report No.:02423009 001 Date: 2010-02-05 Page 2 of 40 Test Result Summary Clause Test Item Result 15.247(b) (3) Conducted Peak RF Output Power Test Pass 15.247 (a) (2) 6dB Bandwidth Pass 15.247 (e) Power Spectral Density Pass 15.247 (d) Band-edge Compliance Pass 15.209 Spurious Radiated Emissions Pass www.tuv.com Test Report No.:02423009 001 Date: 2010-02-05 Page 3 of 40 Content List of Test and Measurement Instruments .............................................................. 4 General Product Information ..................................................................................... 5 Product Function and Intended Use ............................................................................................. 5 Ratings and System Details ........................................................................................................... 5 Operation Descriptions .............................................................................................. 6 Test Set-up and Operation Mode ............................................................................... 7 Principle of Configuration Selection ............................................................................................ 7 Test Operation and Test Software ................................................................................................ 7 Special Accessories and Auxiliary Equipment ............................................................................ 7 Countermeasures to achieve EMC Compliance .......................................................................... 7 Test Methodology ....................................................................................................... 9 Radiated Emission Test ................................................................................................................. 9 Test Results ............................................................................................................... 10 Conducted Peak Output Power Section 15.247(b)(3) ................ 10 6 dB Bandwidth Section 15.247(a)(2) ................ 14 Power Spectral Density Section 15.247(e) .................... 21 Band-edge Compliance Section 15.247 (d) ................... 26 Spurious Radiated Emissions Section 15.209 ......................... 32 Appendix 1: Test Setup Photo Appendix 2: EUT External Photo Appendix 3: EUT Internal Photo Appendix 4: IC Label and Label Location Appendix 5: Block Diagram Appendix 6: Specification of EUT Appendix 7: Schematic Diagrams Appendix 8: Bill of Material Appendix 9: User Manual Appendix 10: Maximum Permissible Exposure Information www.tuv.com Test Report No.:02423009 001 Date: 2010-02-05 Page 4 of 40 List of Test and Measurement Instruments TUV Rheinland India Pvt Ltd,Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESCI 100661 17.02.2011 Environmental Test Chamber Votsch VC³4100 59566113111 0010 03.07.2011 Wipro Technologies, Bangalore List of Test and Measurements Equipment Manufacturer Type S/N Calibration Due Date EMI Test Receiver Rohde & Schwarz ESIB40 100306 24.07.2011 Hybrid Log Periodic Antenna TDK HLP3003C 130334 17.02.2011 Broadband Horn Antenna Schwarzbeck Mess-Electronik BBHA9170 9170- 344,2007 14.02.2011 Double Ridged Horn Antenna Schwarzbeck Mess-Electronik BBHA9120D 2008 14.08.2011 Pre-Amplifier TDK-RFSolution PA-02 100008 15.02.2011 Testing Facilities 1) TÜV Rheinland India Pvt. Ltd. #7, Whitefield Main Road, Alpha Tower, Sigma Soft Tech park, Varthur Kodi, Bangalore, India 2) Wipro Technologies Survey No. 70, 77, 78 / 8A, Dodda Kannelli, Sarjapur Road, Bangalore – 560 035 India www.tuv.com Test Report No.:02423009 001 Date: 2010-02-05 Page 5 of 40 General Product Information Product Function and Intended Use A Secure Door Control module for single door access control applications. The 4G Secure control is an input/output door control module used in combin…

Text truncated - open the document above for the full version.

www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 1 von 3 Page 1 of 3 Test setup-Radiated Emissions 9KHz-30MHz Test setup-Radiated Emissions 9KHz – 30MHz www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 2 von 3 Page 2 of 3 Test setup-Radiated Emissions 30 -1000MHz Test setup-Radiated Emissions 1GHz – 18GHz www.tuv.com Appendix 1 Prüfbericht - Nr.: Test Report No. 02423009 001 Seite 3 von 3 Page 3 of 3 Test setup-Radiated Emissions 18GHz – 26.5GHz
