QC4-VPROXAH4065V-Prox, A

© Copyright 2002, Bioscrypt Inc. All rights reserved. VeriProx / VeriFlex / V-PASS / V-Smart OOPERATIONS PERATIONS MMANUALANUAL 1 © Copyright 2002, Bioscrypt Inc. All rights reserved. Notices The Veri-Series line of products has been tested for compliance with all applicable international standards. The resulting approvals are listed below, and are additionally printed on the labeling located on the rear panel of the product. The power supply offered by Bioscrypt is CE and CSA approved and UL listed. Veriflex FCC, UL, ULC, CE Veriprox FCC, UL, ULC, CE V-Pass FCC, UL, ULC, CE V-Smart FCC, UL, ULC, CE FCC Information to Users This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning to Users Warning: Changes or modifications not expressly approved by Bioscrypt Inc. could void the user’s authority to operate the equipment. V-Smart, A Information for Users The V-Smart, A includes a contact-less smart card reader (GemEasyLink680SL). This is a radio-transceiver with the following characteristics: Operating Frequency Range:13.553-13.567 MHz RF Power Rating:0.0 Watts RF Output Impedance:50 Ohms 2 © Copyright 2002, Bioscrypt Inc. All rights reserved. V-Prox, A, H Information for Users The V-Prox, A, H includes a HID contact-less proximity reader. This device has the following characteristics: Transmit Frequency:125 KHz Excite Frequency:125 KHz Disclaimer The instructions in this document have been carefully checked for accuracy and are presumed to be reliable. Bioscrypt, Inc. and its writers assume no responsibility for inaccuracies and reserve the right to modify and revise this document without notice. It is always our goal at Bioscrypt, Inc. to supply accurate and reliable documentation. If you discover a discrepancy in this document, please e-mail your comments to [email protected], or contact Bioscrypt Technical Support at the telephone number listed below. No part of this publication may be placed in a retrieval system, transmitted, or reproduced in any way, including, but not limited to, photograph, photocopy, computer disk or other record, without prior agreement and written permission from: Bioscrypt Inc. 5000 Van Nuys Blvd., Suite 300 Sherman Oaks, CA 91403 Phone (818).501.3908 Fax (818).461.0843 http://www.bioscrypt.com 3 © Copyright 2002, Bioscrypt Inc. All rights reserved. Trademark Disclosures Bioscrypt has made every effort to provide disclosures when using trademarks owned by other companies. Trademarked designations appear throughout this publication. The publisher states that it is using the designations only for editorial purposes, and to the benefit of the trademark owner with no intent to infringe upon that trademark. The following trademarks are found in this manual: • Microsoft™, and Windows 95™, Windows 98™, Windows NT™, Windows 2000™, and Windows XP™ are trademarks of the Microsoft Corporation. • VeriProx ®, VeriFlex ®, V-PASS ®, V-Smart ®, MV1100 ®, MV1200 ® are registered trademarks of Bioscrypt, Inc. • HID™ is a trademark of the HID Corporation. • Motorola™ Indala™ are trademarks of the Motorola Corporation. • MIFARE™ is a trademark of Philips Electronics N.V. 4 © Copyright 2002, Bioscrypt Inc. All rights reserved. Bioscrypt Warranty Policy Bioscrypt, Inc. warrants its products to be free from defects caused by faulty materials or poor workmanship for a period of one year from date of shipment from Bioscrypt. Bioscrypt makes no warranty that its products are fit for the use or purpose to which they may be put by the buyer, whether or not such use or purpose has been disclosed to Bioscrypt in specifications or drawings previously or subsequently provided, or whether or not Bioscrypt's products are specifically designed and/or manufactured for buyer's use or purpose. Bioscrypt's liability is limited to replacing, repairing or issuing credit, at its option, for any products that are returned by the original purchaser during the warranty period. Bioscrypt's liability on any claim for loss or damage arising out of the sale, resale or use of any of its products shall in no event exceed the selling price of the products. The buyer is responsible for making any claims for shipment damage (evident or concealed) with the carrier. Bioscrypt must be notified within 30 days of shipment of incorrect materials. This warranty is voided if any component, subsystem, or element of the product(s) has been subject to electrical or physical abuse, tampering (such as opening a sealed housing or removal of a product serial number tag), or improper operation as determined by Bioscrypt. This warranty is also voided for failure to comply with Bioscrypt's return procedures as given in the Bioscrypt Technical Support Guide. Any service provided by unauthorized personnel voids the warranty. Bioscrypt offers three (3) options to our customers that have a problem with one of our products. 1) Warranty Service if the unit is covered under either the factory one-year warranty period or any extended warranty the buyer may have purchased. 2) Fee-based Service if the unit is not covered under a warranty. 3) Return for credit if less than 30 days from the original date of shipment. Service can be provided by Bioscrypt, the manufacturer. Service can be provided by Authorized Service Representatives – contact Bioscrypt or visit our web site (http://www.bioscrypt.com) for a service representative near you.…

Text truncated - open the document above for the full version.

UNIT PARAMETER SETTINGS 58 © Copyright 2002, Bioscrypt Inc. All rights reserved. Creating USER DEFINED PASS-THRU Format Options The user has the ability to add custom defined PASS-THRU formats to the VeriAdmin software. These will be added to the dropdown list in the BII_UNIT PARAMETER SETTINGS dialog box. In the installation directory there is a file called WFORMAT.DAT that contains all displayed Wiegand formats. WFORMAT.DAT contains both pre-defined formats and PASS-THRU formats. See below for and example contents of that file. All lines that begin with ‘//’ are ignored. PRE-DEFINED formats follow the format: WIEGAND <MV1100_Code> <#bits> <text_string(no spaces)> WARNING: These should NOT be changed or added to unless directed by Bioscrypt TECHNICAL SUPPORT. Any modifications to this section could cause unreliable Wiegand communications using PRE-DEFINED formats. The next section shows the PASS-THRU Formats and follows the format: WIEGAND_PASS <label> <TOTAL_BITS> <ID_START_BIT> <ID_NUM_BITS> Where:WIEGAND_PASS is the identification that this is a PASS_THRU format <label> is the Description shown in the dropdown list (no spaces) <TOTAL_BITs> is the total number of bits in the entire Wiegand String (maximum is 64) <ID_START_BIT> is the starting bit of the ID FIELD(where the first bit is 0) <ID_NUM_BITS> is number of bits in the ID FIELD (must be contiguous) UNIT PARAMETER SETTINGS 59 © Copyright 2002, Bioscrypt Inc. All rights reserved. For Example: Standard 26-bit Wiegand is -- PSSSSSSSSDDDDDDDDDDDDDDDDP (1 Parity bit, 8 SITE CODE bits, 16 ID bits, 1 Parity) - 26 total bits - ID Start Bit is 9 - (where first bit is 0) - ID Number of Bits is 16 This would be represented as: WIEGAND_PASS 26-Bit-Pass_Thru 26 9 16 And the text, “26-Bit-Pass_Thru” would be added to the dropdown box. Selection of this option would show the data in the associated boxes. As seen below, one special format ( CUSTOM –1 –1 –1 ) is also added. When this is selected, the user can enter the TOTAL_BITS, ID_START_BITS, and ID_NUM_BITS directly into the VeriAdmin user interface. These values can then be sent to the BII_UNIT. The values are NOT saved to the WFORMAT.DAT file however. To add items directly to the file, any standard text editor will work since WFORMAT.DAT is a text file. // // format is: IDENTIFIER MV1100_Code #bits text_string(no spaces) // WIEGAND 0 26 Standard WIEGAND 1 44 Apollo WIEGAND 2 34 Northern WIEGAND 3 34 Northern(no_parity) WIEGAND 4 34 Ademco WIEGAND 5 35 HID_Corporate WIEGAND 6 37 HID // // format is: IDENTIFIER text_string(no spaces) TOTAL_BITS ID_START_BIT ID_NUM_BITS // (* note: ID_START_BIT is zero-based *) // WIEGAND_PASS 26-Bit-Pass_Thru 26 9 16 WIEGAND_PASS Kantech-XSF 39 22 16 WIEGAND_PASS CUSTOM -1 -1 –1 UNIT PARAMETER SETTINGS 60 © Copyright 2002, Bioscrypt Inc. All rights reserved. AUX PORT SECURITY This allows the Administrator to set a password for the AUX port to DISABLE unauthorized AUX Port communications. The purpose is to prevent unauthorized users from accessing the AUX port unless the password is supplied to re-ENABLE the port. In the dialog, the current state is shown. The Administrator would select DISABLE and supply a numeric password, and press the SET button. The supplied numeric password should be remembered since it is required to ENABLE the AUX port while communicating on the AUX port. Once the AUX port is disabled, no communications are accepted over the AUX port unless ENABLE PORT option is chosen in 1 of 2 ways. • If communicating over the HOST PORT o the ENABLE PORT command will enable AUX port communications and a password is NOT required. This allows the unit to be reset over the HOST port if the AUX password is forgotten. VeriAdmin allows this since the network is considered secure. • If communicating over the AUX PORT o The ENABLE PORT command will enable AUX port communications ONLY if the correct password is supplied. All other commands will return an error indicated a ‘locked port’ until the port is enabled properly Bioscrypt recommends that the AUX port be disabled and password protected When an Administrator needs to communicate with the device using the AUX Port, the procedure would be: • connect to the AUX port, • use VeriAdmin to bring up the BII_UNIT PARAMETER SETTINGS dialog • choose ENABLE PORT, supply the correct password, and press SET All communications would then be allowed. Once all data is gathered, the Administrator would then disable the AUX port by: • use VeriAdmin to bring up the BII_UNIT PARAMETER SETTINGS dialog • choose DISABLE PORT, supply a new password, and press SET This would once again protect the AUX port from unauthorized use. BROADCAST PARAMETERS 61 © Copyright 2002, Bioscrypt Inc. All rights reserved. Broadcast Parameters The Broadcast window allows you to modify settings on all units in a networked environment at the same time (See Appendix B). Under most circumstances, you will use this window when communicating over the Host Port (recall that the Aux Port primarily is for communicating with a single unit). You will note that the window is similar to the Unit Parameters window. Figure 21: Broadcast Parameters Window Note:As with the BII_Unit Parameter Settings window, change one setting at a time and click the Broadcast button after each change. For example: if you wish to change the Security Threshold and the Wiegand Out string: 1) change the threshold; 2) click the Broadcast button in the security section; 3) change the string; and, 4) click the Broadcast button in that section. The PC baud rate will update automatically. Enter the ID#, then either: enter the Index#, or check the Delete all indices... box NETWORK STATUS 62 © Copyright 2002, Bioscrypt Inc. All rights reserved. Network Status The Net Status window displays the condition of all units networked. Figure 226: Network Status Window Each unit defined in the UNITIDS.DAT file is represented with a TAB for each defined Communications Port. 3 lines of text identify…

Text truncated - open the document above for the full version.

4065/8A ProxPoint OEM Module Transmitter Block Diagram Microprocessor Counter Divide by 32 4.0 MHz Ceramic Resonator Oscillator Enable 4.0 MHz 4.0 MHz 125 kHz 125 kHz Driver Exciter Coil Antenna Tuning Capacitor Electronics Board

HID Corporation Denver Engineering Center 11674 N. Huron Street Denver, CO 80234 0.459 Request that submitted material be withheld from Public Inspection It is requested that the following material be withheld from public inspection: Description of 4065/8A ProxPoint OEM Module, Circuit Functions, how the device operates, Ground System Block Diagram Schematic These materials are considered HID Corporation Proprietary and Confidential. Revealing the fundamental design for the product to the public and our competition would put us at a competitive disadvantage. We feel we have a product cost/design advantage over our competition with our ProxPoint Proximity Readers and therefore ask that the above specified materials be withheld from public inspection. We also ask that the above information be withheld from the OEM incorporating this module into his design. Frank de Vall Regulatory Compliance Manager HID Corporation 9292 Jeronimo Road • •• • Irvine, CA 92618-1905 • •• • Phone 949-598-1600 Fax 949-598-1680 (Administration & Marketing) • •• • Fax 949-598-1690 (Sales) • •• • Fax 949-598-1692 (Manufacturing)

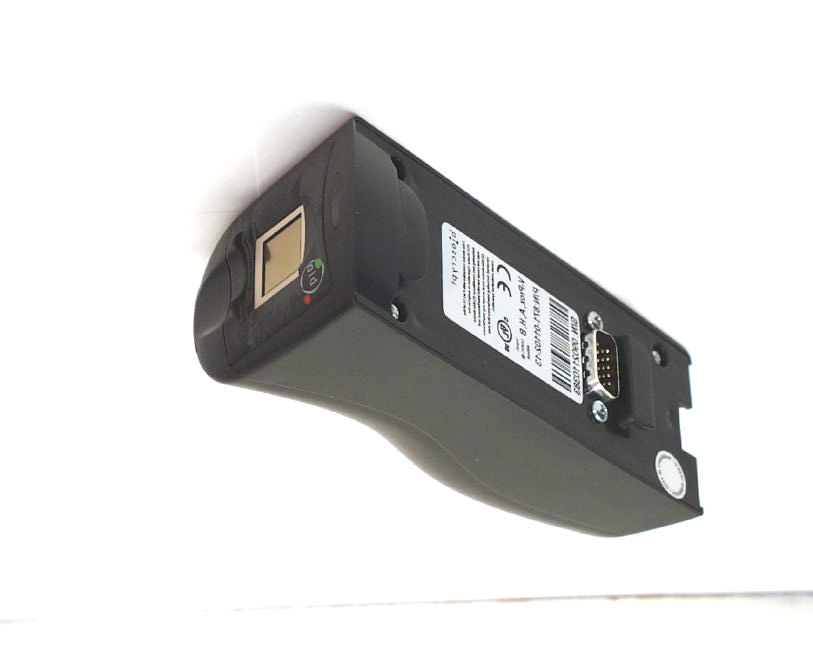

ANNEX 2 - EXTERNAL PHOTOGRAPHS OF EUT PHOTO # 1 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 2 - EXTERNAL PHOTOGRAPHS OF EUT PHOTO # 2 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. V-Prox, A Input 12VDC 400mA P/N: XXX-YYYYY-ZZ S/N: NNNNNNNNNN FCC ID: QC4-VPROXAH4065 CE MARK UL-MARK BAR CODE IC: 4308AVPROXAH DB-15 The Label Rear View of V-Prox (not to scale) Top Bottom

ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 1 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 2 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 3 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 4 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 5 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 6 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 Proxy 125 KHz Radio Module with Integrated Loop Antenna (front) ANNEX 3 - INTERNAL PHOTOGRAPHS OF EUT PHOTO # 7 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 Proxy 125 KHz Radio Module with Integrated Loop Antenna (back)

May 08, 2002 BIOSCRYPT INC. 5000 Van Nuys Blvd., Suite 300 Sherman Oaks, CA USA, 91403 Attn.:Mr. Curt Harkless Subject:FCC Certification Application Testing under FCC PART 15, Subpart C, Sec. 15.209 – Low Power Transmitters operating at 125 kHz. Product:V-PROX Model No.:V-PROX, A FCC ID:QC4-VPROXAH4065 Dear Mr. Harkless, The product sample, as provided by you, has been tested and found to comply with FCC PART 15, Subpart C, Sec. 15.209 - Low Power Transmitters operating at 125 kHz. Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] V-PROX Model No.: V-PROX, A FCC ID: QC4-VPROXAH4065 Applicant: BIOSCRYPT INC. 5000 Van Nuys Blvd., Suite 300 Sherman Oaks, CA USA, 91403 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, SEC. 15.209 Low Power Transmitters operating at 125 kHz UltraTech's File No.: MYT-032F15.209 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: May 08, 2002 Report Prepared by: Tri Luu . Tested by: Hung Trinh, RFI Technician Issued Date: May 08, 2002Test Dates: May 07, 2002 ß The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ß This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SITC-137646390-2049200093-000-034 FCC PART 15, SUBPART C, SEC. 15.209 - LOW POWER TRANSMITTERS Page 2 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ULTRATECH GROUP OF LABSFile #: MYT-032F15.209 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4May 08, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 2 31040/SITC-137646390-2049200093-000-034 TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST....................................................................................................................................4 EXHIBIT 2.INTRODUCTION.....................................................................................................................................................5 2.1.SCOPE.......................................................................................................................................................................................5 2.2.RELATED SUBMITAL(S)/GRANT(S)........................................................................................................................................5 2.3.NORMATIVE REFERENCES.................................................................................................................................................5 EXHIBIT 3.PERFORMANCE ASSESSMENT.........................................................................................................................6 3.1.CLIENT INFORMATION........................................................................................................................................................6 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION...........................................................................................................6 3.3.EUT’S TECHNICAL SPECIFICATIONS..............................................................................................................................8 3.4.LIST OF EUT’S PORTS..........................................................................................................................................................8 3.5.ANCILLARY EQUIPMENT.......................................................................................................................................................8 3.6.GENERAL TEST SETUP.........................................................................................................................................................9 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS.......................................10 4.1.CLIMATE TEST CONDITIONS...............................................................................................................................................10 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS...............................................................................10 EXHIBIT 5.SUMMARY OF TEST RESULTS.........................................................................................................................11 5.1.LOCATION OF TESTS.........................................................................................................................................................11 5.2.APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS..............................................................................11 5.3.MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................11 EXHIBIT 6.MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS.......................................12 6.1.TEST PROCEDURES................................................................................................................................................................12 6.2.MEASUREMENT UNCERTAINTIES..................................................................................................................................…

Text truncated - open the document above for the full version.

May 08, 2002 BIOSCRYPT INC. 5000 Van Nuys Blvd., Suite 300 Sherman Oaks, CA USA, 91403 Attn.:Mr. Curt Harkless Subject:FCC Certification Application Testing under FCC PART 15, Subpart C, Sec. 15.209 – Low Power Transmitters operating at 125 kHz. Product:V-PROX Model No.:V-PROX, A FCC ID:QC4-VPROXAH4065 Dear Mr. Harkless, The product sample, as provided by you, has been tested and found to comply with FCC PART 15, Subpart C, Sec. 15.209 - Low Power Transmitters operating at 125 kHz. Enclosed you will find copies of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering Encl UltraTech Group of Labs 31040/SIT C-1376 46390-2049 200093-0 2 00-034 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] V-PROX Model No.: V-PROX, A FCC ID: QC4-VPROXAH4065 Applicant: BIOSCRYPT INC. 5000 Van Nuys Blvd., Suite 300 Sherman Oaks, CA USA, 91403 In Accordance With FEDERAL COMMUNICATIONS COMMISSION (FCC) PART 15, SUBPART C, SEC. 15.209 Low Power Transmitters operating at 125 kHz UltraTech's File No.: MYT-032F15.209 This Test report is Issued under the Authority of Tri M. Luu, Professional Engineer, Vice President of Engineering UltraTech Group of Labs Date: May 08, 2002 Report Prepared by: Tri Luu . Tested by: Hung Trinh, RFI Technician Issued Date: May 08, 2002Test Dates: May 07, 2002 ß The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected. ß This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected], Email: [email protected] 2 31040/SITC-137646390-2049200093-000-034 FCC PART 15, SUBPART C, SEC. 15.209 - LOW POWER TRANSMITTERS Page 2 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ULTRATECH GROUP OF LABSFile #: MYT-032F15.209 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4May 08, 2002 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected], Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NIST) 2 31040/SITC-137646390-2049200093-000-034 TABLE OF CONTENTS EXHIBIT 1.SUBMITTAL CHECK LIST....................................................................................................................................4 EXHIBIT 2.INTRODUCTION.....................................................................................................................................................5 2.1.SCOPE.......................................................................................................................................................................................5 2.2.RELATED SUBMITAL(S)/GRANT(S)........................................................................................................................................5 2.3.NORMATIVE REFERENCES.................................................................................................................................................5 EXHIBIT 3.PERFORMANCE ASSESSMENT.........................................................................................................................6 3.1.CLIENT INFORMATION........................................................................................................................................................6 3.2.EQUIPMENT UNDER TEST (EUT) INFORMATION...........................................................................................................6 3.3.EUT’S TECHNICAL SPECIFICATIONS..............................................................................................................................8 3.4.LIST OF EUT’S PORTS..........................................................................................................................................................8 3.5.ANCILLARY EQUIPMENT.......................................................................................................................................................8 3.6.GENERAL TEST SETUP.........................................................................................................................................................9 EXHIBIT 4.EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS.......................................10 4.1.CLIMATE TEST CONDITIONS...............................................................................................................................................10 4.2.OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS...............................................................................10 EXHIBIT 5.SUMMARY OF TEST RESULTS.........................................................................................................................11 5.1.LOCATION OF TESTS.........................................................................................................................................................11 5.2.APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS..............................................................................11 5.3.MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES............................................................11 EXHIBIT 6.MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS.......................................12 6.1.TEST PROCEDURES................................................................................................................................................................12 6.2.MEASUREMENT UNCERTAINTIES..................................................................................................................................…

Text truncated - open the document above for the full version.

ANNEX 1 - PHOTOGRAPHS OF TEST SETUP PHOTO # 1 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 1 - PHOTOGRAPHS OF TEST SETUP PHOTO # 2 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065 ANNEX 1 - PHOTOGRAPHS OF TEST SETUP PHOTO # 3 V-PROX, Model V-PROX, AFCC ID: QC4-VPROXAH4065
