A Tradition of Excellence in Innovation MULTISPECTRAL SOLUTIONS, INC. 20300 Century Boulevard, Germantown, MD 20854 Tel: 301-528-1745 FAX: 301-528-1749 Web: www.multispectral.com PAL-650 Short Pulse Precision Asset Location System User’s Guide Revised 21 Sept. 2004 i Table of Contents 1. Introduction..................................................................................................................1 2. Information to User .....................................................................................................1 3. Installation and Operating Instructions ....................................................................2 4. Specifications – PAL-650 Tag .....................................................................................4 ii NOTICE FCC IDs: QCJPAL650 (round tag) QCJPALBDG (badge tag) QCJPAL1X1 (cube tag) This equipment complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This equipment may not cause harmful interference; (2) This equipment must accept any interference received, including interference that may cause undesired operations; and, (3) This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. §301 and could subject the operator to serious legal penalties. 1 1. Introduction PAL-650 is a wireless tagging and identification system designed for the real-time inventory and tracking of indoor assets. Applications include hospitals, warehouses, sea freight, supermarkets, retail stores, robotic vehicles, manufacturing and security. Utilizing MSSI’s patented ultra wideband (UWB) technology, the PAL-650 system has a real-time, 2-D or 3-D resolution capability of one foot. Much higher resolutions can be achieved with software averaging techniques. With the use of short pulse, UWB technology, the system is highly immune to multipath effects which plague other wireless tagging solutions (e.g., spread spectrum) designed for indoor operation. PAL-650 is easily installed and requires no precision cables or calibration. A set of three or four receivers, located at the corners of the region to be supervised, together with a network hub and reference tag are all that are required for system infrastructure. The individual tags are programmed with unique ID codes which are used for inventory and tracking. Because of the unique properties of UWB technology, the tags have an extremely long battery life of better than five years. As with any RF technology, there are certain precautions that must be observed to prevent interference to other systems. Please carefully read the following sections to properly install and operate your PAL-650 system. 2. Information to User PAL-650 operation is authorized under FCC Part 15.517 as an indoor ultra wideband (UWB) system. As such, there are certain precautions which must be taken during installation to assure compliance with FCC regulations. a. Changes or modifications not expressly approved by Multispectral Solutions, Inc. (MSSI) could void the user’s authority to operate this equipment; b. Each passive receiver (with a typically system having 4 or more) must be located indoors, and with its directional antenna facing inwards; i.e., not intentionally directed outside (e.g., out a window or external doorway); c. The individual PAL-650 tags must not be used outside. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 2 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 3. Installation and Operating Instructions The first step in installing the PAL-650 system is to locate and position the passive PAL-650 Receivers. Note: The PAL-650 Receivers must only be operated indoors and with their directional antennas facing inwards, in order to ensure compliance with FCC Part 15.517. For optimum performance, the PAL-650 Receiver locations should be chosen so as to provide adequate coverage of the area of interest. Typical ceiling mountings for the Receivers are illustrated in Figures 1 and 2 below. Figure 1. Typical ceiling mount for PAL-650 Receiver. Note placement of directional antenna (pointing inwards). Figure 2. Another typical ceiling mount for PAL-650 Receiver. 3 The Receivers are interconnected (daisy-chained) via CAT-5 cabling, which is also used to provide power to the units from the PAL-650 Hub and Power Distribution System (Figure 3). Ethernet RS-232 CAT-5 Figure 3. PAL-650 Hub and Power Distribution System. Please see the User’s Manual for the PAL-650 Hub and Power Distribution System for information on how to connect the Hub to a separate computer for 3-D display of tag positions; and for instructions on how to calibrate the system. Once the receivers and hub are installed and interconnected, the PAL-650 tags (cf. Figure 4 below) need to be activated. To do so, remove the metal ring (cf. Figure 5) which attaches the polystyrene protective bottom plate to the tag radome using the special tool provided with the system. Once disassembled, the tag internal battery will be visible. (The tag battery should las…

Text truncated - open the document above for the full version.

PIC Micro Controller Battery Cell μ Strip Filter Amp μ Strip Filter Atten Antenna XTAL 4 MHz Clock Driver QCJPAL1X1 Block Diagram

A Tradition of Excellence in Innovation MULTISPECTRAL SOLUTIONS, INC. 20300 Century Boulevard, Germantown, MD 20874 Tel: 301-528-1745 FAX: 301-528-1749 Web: www.multispectral.com September 21, 2004 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attention: Reviewing Engineer RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Robert J. Fontana, Ph.D. President

A Tradition of Excellence in Innovation MULTISPECTRAL SOLUTIONS, INC. 20300 Century Boulevard, Germantown, MD 20874 Tel: 301-528-1745 FAX: 301-528-1749 Web: www.multispectral.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 September 21, 2004 Attention: Reviewing Engineer RE: CONFIDENTIALITY REQUEST for Multispectral Solutions, Inc. FCC ID#QCJPAL1X1 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. Our statement of reasons is as follows: 1) We have request that the schematic diagram (marked proprietary) be withheld from public review. The schematic contains design information that is company trade secret and privileged material. This item has been segregated from the non-confidential exhibits. 2) Ultra Wideband (UWB) technology is highly sought after by domestic and foreign competition. As such, it has many high volume military and commercial applications. 3) MSSI has pioneered the development of UWB radar, communication and positioning systems through the use of unique transmitter and receiver designs. This development effort has been on-going for over 15 years. Public disclosure of our design would greatly assist existing competition and new developers. MSSI is currently licensing the technology and public disclosure would affect the value of our technology and our ability to rapidly enter the marketplace. 4) This information is not provided to third parties unless non-disclosure or license agreements are established with MSSI. Only MSSI’s selected customers and licensees will have access to this design information. 5) This is MSSI’s first UWB tag product and the design information has not been disclosed to third parties. 6) MSSI requests that the information not be disclosed for a minimum of 5 years. This time period will protect MSSI’s licensees and MSSI’s market lead. 7) The recent FCC rule making on UWB has set the stage for the introduction of many new wireless products and services. As a small business concern, MSSI must protect its intellectual property to survive. Public disclosure of schematics made available to the world through the FCC’s website would materially impact MSSI’s current competitive advantage. Please contact me if there is any information you may need. Sincerely, Robert J. Fontana, Ph.D. President

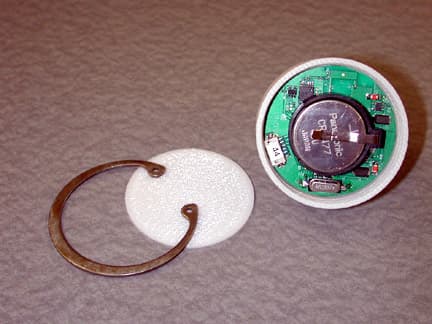

QCJPAL1X1 – Photos Plastic Housing (Top and Bottom Views) Circuit Side of Printed Circuit Board (w/o battery holder) QCJPAL1X1 – Antenna Side of Printed Circuit Board

FCC ID: QCJPAL1X1 FCC Label Position

QCJPAL1X1 – Photos Plastic Housing (Top and Bottom Views) Circuit Side of Printed Circuit Board (w/o battery holder) QCJPAL1X1 – Antenna Side of Printed Circuit Board

Brought to you by the industry leader in ultra wideband (UWB) technology, the PAL650™ Precision Asset Location System™ enables the real-time tracking and identification of assets and personnel with a range and precision unmatched by conventional RFID solutions. Leveraging UWB’s unprecedented reliability in difficult electromagnetic and multipath environments (e.g., factories, hospitals, within cargo spaces, etc.) and with the extended battery life of MSSI’s UWB tags, PAL650™ is an RFID and real-time tracking system which can meet even the most demanding requirements. The PAL650™ Evaluation Kit consists of all the components necessary to thoroughly evaluate the potential of this FCC-certified UWB technology for RFID, tracking and precision localization applications. The Evaluation Kit includes all hardware to implement a four receiver configuration with 10 asset tags. The supplied software enables the user to customize a selected area of coverage to display and track tag information in real-time. With tag-to-receiver ranges exceeding 300 feet indoors (over 600 feet line-of- sight), the Evaluation Kit can readily cover many thousands of square feet of space while providing localization resolutions of better than one foot. MSSI's patented UWB technology permits tag operation (at a 1 update per second rate) of up to 4 years on a single 3.0V Lithium cell. PAL650™ truly represents the next generation in real time location technology. With its extended range and duration active tags and robust performance in multipath, PAL650™ overcomes the numerous limitations of passive and WiFi-based active RFID technologies. System Operation and Specifications Using patented UWB receiver and transmitter technologies, the PAL650™ system determines the exact two- or three- dimensional location of a set of UWB tags by utilizing time differences-of-arrival information obtained from a set of UWB receivers which detect the nanosecond duration bursts from the tags. This data is subsequently processed by a hub processing unit which also provides power and timing information to each of the individual receivers. The positioning data is made available through an IP socket interface for use in client applications. PAL650™ Specifications Typical Indoor Range: 300 feet Measurement Accuracy: ± 1 foot Transmission Power: FCC §15.517 Operating Frequency: 6.2GHz Coverage area: up to 90,000 ft 2 PAL650™ Ultra Wideband Precision Asset Location System™ Evaluation Kit Multispectral Solutions, Inc. The Industry Leader in Ultra Wideband Technology Typical Graphical User’s Interface PAL650™ Evaluation Kit PAL650™ Evaluation Kit Ordering Information PAL650-EK Evaluation Kit PAL650™ Evaluation Kit contains one H650-PC4 Hub Processor, four R650-1 UWB Receivers, ten T650 UWB Tags, UWB Reference Tag, four 150-foot CAT- 5 shielded cables, software and manuals. MSSI is recognized worldwide as the industry leader in Ultra Wideband (UWB), an emerging wireless technology for communications, precision localization and radar applications. Throughout its 16 year history, MSSI has developed a strong reputation for quality and innova- tion. Multispectral Solutions, Inc. 20300 Century Blvd., Suite 250 Germantown, MD 20874-1132 Phone: 301-528-1745 Fax: 301-528-1749 Email: [email protected] PAL650-EK 31 Aug 04
