QCZTX-300FVoice Dialer ( Remote Controller )

– “” “” “” “” “” “” “” “” “” “”“” “” “”“” – “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” “” – ’

SW1 SW PUSHBUTTON BT1 BATTERY 1 2 ANT1 ANTENNA

(External Photos)

ID Label

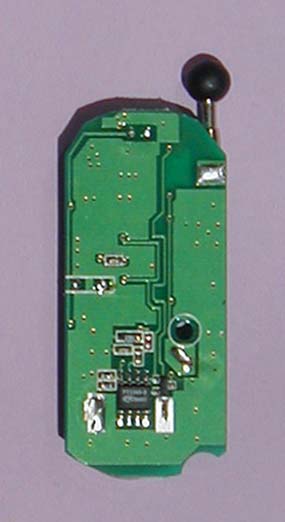

(Internal Photos)

Circuit Description of Remote Control When switch is on, the u-COM outputs signal to the IC4 #7 pin. For modulation, the signal goes under the process of frequency modulation by the Diode VD1 (KDV163). The Crystal (Y1), an oscillation device, is oscillated by the TR Q3. Tripled at the Double Tuned Circuit (L3-C12, L4-C16), the RF signal is inputted into the Q4 Base and amplified. The amplified signal goes through the Double Tuned Circuit (L5-C19, L6-C21) and is tripled. The RF signal is amplified at the TR Q5 and goes through the Antenna Matching Set (C26, L8). Then, it is radiated through the Antenna.

VESSCO-TXR(FCC).sch-1 - Thu Oct 24 14:42:34 2002

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 02-341-013-02 Name and address of the applicant VESSCO Inc. 506, Jungwoo APT. Factory, 223-271, Suknam-dong, Seo-gu, Inchon-shi, 404-824,Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : April 19, 2002 Test item(s) ; Security/Remote Control Transmitter (Voice Dialer: Remote Controller) Model/type ref. ; TX-300F Manufacturer ; VESSCO Inc. Additional information ; -Required Authorization : Certification -FCC ID. : QCZTX-300F -Note : Test report(Certification) of another Transmitter and Receiver portion of this System are issued on Ref. Report No. 02-341- 013-03 and 02-341-013-01 respectively. Test date : October 14, 2002 Issue date : October 21, 2002 Ref. Report No. 02 - 341 – 013 - 02 Page 2 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Compliant Conditions (Section 15.231) . RADIATED EMISSION MEASUREMENT (Section 15.231) 6 1. Test Procedure 2. Photograph of the test configuration 3. Sample Calculation 4. Measurement Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.231) 10 . TEST EQUIPMENTS USED FOR MEASUREMENT 11 Ref. Report No. 02 - 341 – 013 - 02 Page 3 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Grantee’s Name and : VESSCO Inc. Mailing Address 506 Jungwoo APT. Factory, 223-271, Suknam-dong, Seo-gu, Inchon, 404-824, Korea 2. Manufacturer's Name and : VESSCO Inc. Mailing Address 506 Jungwoo APT. Factory, 223-271, Suknam-dong, Seo-gu, Inchon, 404-824, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 447.35 MHz 3.2 Type of Emission : Pulse Code Signal 3.3 Power Supply : DC 12 V(Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-1992 6. Place of Measurement : Absorber-lined Room (KTL) 7. Date of Measurement 7.1 Conducted Emission : Not Applicable 7.2 Radiated Emission : October 14, 2002 Ref. Report No. 02 - 341 – 013 - 02 Page 4 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labeling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 11 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the installation of the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 02 - 341 – 013 - 02 Page 5 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 4. Compliant Conditions (Section 15.231) 4.1 Was the EUT used for continuous transmissions, such as voice or video, and data transmission ? [ ] yes, [ x ] no 4.2 Was the EUT manually operated ? [ x ] yes, [ ] no If yes, did the EUT employ a switch that would automatically deactivate the transmitter within not more than 5 seconds of being released ? [ x ] yes, [ ] no 4.3 Was the EUT automatically activated ? [ ] yes, [ x ] no If yes, did the EUT cease transmission within 5 seconds after deactivation ? [ ] yes, [ x ] no 4.4 Was the EUT used for periodic transmissions at regular predetermined intervals ? [ ] yes, [ x ] no Ref. Report No. 02 - 341 – 013 - 02 Page 6 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . RADIATED EMISSION MEASUREMENT (Section 15.231) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT. Emission levels from the EUT with various configurations were examined on a spectrum analyzer connected with a RF amplifier a…

Text truncated - open the document above for the full version.

Ref. Report No. 02 - 341 – 013 - 02 Page 8 of 11 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt per meter (/m) as shown in following sample calculation. For example : Measured Value at 447.35 MHz 52.8 dB + Antenna Factor 16.3 dB/m + Cable Loss 3.9 dB Preamplifier 0.0 dB Distance Correction Factor * 0.0 dB ------------------------------------------------------------------------------------------- = Radiated Emission 73.0 dB/m ( = 4466.8 /m ) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
