QD5DOTR-221UHF RFID READER

DOTR221 READER MODULE USER GUIDE D.O.Tel Co., Ltd. #412, Kolon Science Valley 2 nd 811 Gurodong, SEOUL, KOREA 152878 Copyright 2008 Note: FCC Section 15.21 "Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment." Chapter 1 INTRODUCTION The DOTR221 module is a compact UHF RFID reader module which is compliant with the ISO18006C (EPC class1 Gen2) protocol. It is intended to be used in conjunction with the accompanying antenna and a host computer (not supplied). The small physical size allows the module to be easily integrated with a mobile host computer, such as a Personal Digital Assistant. The module is designed to be operated off a single cell lithium ion battery, and has two host interface options: USB and UART. WARNING 1. ESD precautions: This module contains electrostatic sensitive components. Handle the product at a staticfree workstation, and wear a static grounding strap always. Observe standard ESD precautions. 2. This module does not contain fuses or other protective devices. Be extra careful when applying power to make sure voltage and polarity are correct. 3. Do not attempt to open the cover. There are no serviceable parts inside. 4. Provide good thermal conduction of the module or good ventilation around the module. As the module consumes around 4 watts of power, it can be hot when operated continuously. Adequate cooling should be provided to ensure reliability. 5. Do not operate the product in an explosive atmosphere or in the presence of flammable gases or fumes. Chapter 2 Specifications Mechanical Characteristics Dimension: 44mm X 44mm X 8.1mm Weight: 20g approx. Mounting holes: M2 (4 places) Electrical Specifications ABSOLUTE MAXIMUM RATING: Power Supply Voltage: 4.2V DC max Control / UART port voltage: 0.3 ~ +3.9VDC USB pin Voltage; 0.3 ~ +5.3VDC Operating Temperature: 55 deg C Storage Temperature: 40 to 70 deg C (nonoperating) Note: Stress above the maximum rating may cause permanent damage. Exposure to the maximum rating for extended periods may degrade reliability. Performance Characteristics Summary Power Supply Voltage: 3.4V to 4.2V DC Power Consumption: 1.2A max. RF Output Power: 0.6W (27.8dBm) ± 1dB RF Frequency: 902.75MHz to 927.5MHz (50 frequency hopping channels) Antenna Port Impedance: 50 H Unbalanced Recommended Return Loss of Antenna: 20dB Air Interface Protocol: ISO18006C (EPC C1 Gen2) Host Interface: USB (Full speed 12Mbps) UART(115.2kbps, 8N1, No Flow Control) Logic Level 3.3V nominal Electrical Connector Manufacturer: Molex Part Number on Reader Module: 532611271 Mating Connector: 510211200 (with 50125 terminals) Antenna Connector: Hirose U.FL DETAILED ELECTRICAL SPECIFICATIONS 1. RF FREQUENCY CHANNELS CHANNEL FREQ (MHz) CHANNEL FREQ (MHz) 1 902.75 26 915.25 2 903.25 27 915.75 3 903.75 28 916.25 4 904.25 29 916.75 5 904.75 30 917.25 6 905.25 31 917.75 7 905.75 32 918.25 8 906.25 33 918.75 9 906.75 34 919.25 10 907.25 35 919.75 11 907.75 36 920.25 12 908.25 37 920.75 13 908.75 38 921.25 14 909.25 39 921.75 15 909.75 40 922.25 16 910.25 41 922.75 17 910.75 42 923.25 18 911.25 43 923.75 19 911.75 44 924.25 20 912.25 45 924.75 21 912.75 46 925.25 22 913.25 47 925.75 23 913.75 48 926.25 24 914.25 49 926.75 25 914.75 50 927.25 CHAPTER 3 HOST INTERFACE 3.1 CONNECTION PIN NAME I/O Description 1 BAT In VCC SUPPLY , +3.7V input 2 BAT In VCC SUPPLY , +3.7V input 3 USB_M I/O USB Interface 4 USB_P I/O USB Interface 5 GND Common Ground 6 GND Common Ground 7 GND Common Ground 8 TXD Out UART TX Data 9 RXD In UART RX Data 10 GP0 In Enable (Applying 3.3V will enable the module) 11 GP1 In Reserved for FACTORY USE. DO NOT CONNECT TO ANYTHING. 12 USB 5V In USB Vbus Voltage (+5V). This pin is for sensing the USB Host only. The module is not powered from this voltage. Notes: 1. All of the supply pins (Pins 1,2, 5, 6, and 7) must be used in order to minimize voltage drop at the connector junctions. 2. TX / RX and I/O classification is from the module’s point of view. 3. Leave pin 11 open. Do not apply any voltage, or the module will become nonfunctional. 3.2 TTL INTERAFACE UART communication is provided on the TXD and RXD lines. Baud rate is fixed at 115.2kbps and no handshaking (8 data bits, no parity, 1 stop bit). Details for communication protocols are described in the software chapter. 3.3 USB Interface The module provides full speed compliant USB interface (12Mbps). Note: The module is set to communicate via UART port at the factory. CHAPTER 4 Operation 4.1 Antenna Connection A good antenna must be connected before applying power. The antenna must have a low VSWR value (less than 1.25) in the entire frequency range of 902 through 928MHz to ensure maximum read range performance. Care should be taken when connecting the antenna cable to the antenna connector, as the antenna connector is very small and fragile. 4.2 Power Supply The reader module is designed to operate off 3.7V nominal supply voltage which is typically available from a single cell lithium ion battery. Other power sources can be used as long as it is within the specified voltage range of 3.4V to 4.2V. Care must be excersized for correct polarity. Pins 5, 6, 7 and the housing are ground while Pins 1 and 2 should be connected to +3.7V. 4.3 GP0 and GP1 ports. GP0 (Pin 10) port is an active high enable control to power up the reader module. A logic voltage above 2.5V (?) will turn on the reader while level below 0.5V (?) will turn off the reader. GP1 (Pin 11) should be left open for internal pulldown to work. Pulling the GP0 and GP1 ports to a high level will erase entire contents of internal flash memory. This mode is used at the factory. Consult with the manufacturer to use this function. 4.4 TXD and RXD ports TXD (Pin 8) and RXD (pin 9) are UART communication ports and TX/RX notation is from the reader module’s point of view. These ports provide a single speed (115.2kbps) serial communication without flow con…

Text truncated - open the document above for the full version.

Date: March 28, 2008 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany SUBJECT: D.O.Tel Co., Ltd. FCC ID: QD5DOTR-221 Part 15 Certification Gentlemen: Is an application for Part 15 Certification of the following FCC Rule Part15 Subpart C Spread Spectrum Transmitter FCC ID : QD5DOTR-221 TRADE NAME(S) : D.O.Tel Co., Ltd. MODEL(S) : DOTR-221 Classification : Spread Spectrum Transmitter EUT TYPE : UHF RFID READER Port/Connector(s) : Antenna Connector Attached is the applicant's Letter of Authorization, measurement report test data and plots, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Hyung Seok, Lee Chief Engineer of EMC Team CC: MR. Hongmin Shin Senior Research Engineer 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

Request for transmitter Modular approval Transmitter Module Characteristics No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered th ought logic or microprocessor inputs. 3 Have it own power supply regulation Refer to Module Block diagram and schematics 4 Meet the antenna requirements of Section 15.203 Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied developmen t platform for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in front of the EUT( DOTR-221 ), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Refer to “MPE Calculation”

Date : April 11, 2008 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany Subject : Confidentiality request regarding application for certification of FCC ID: QD5DOTR-221 Pursuant to section 47 CFR 0.457 and 0.459 of the commission’s rules, we hereby request confidential treatment of information accompany this application as outlined bellow; Block Diagram Circuit Diagram Part list The above material contained trade secrets and proprietary information not customarily released to public. The public disclosure of these materials may be harmful to the applicant The applicant understands that pursuant to section 0.457 of the Rules, Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely Signature Name : Hyung Seok, Lee Title : Chief Engineer of EMC Team Company : ETL Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

Date : April 14, 2008 EMCC DR. RASEK CERTIFICATION INSTITUTE – Boelwiese 5 91320 Ebermannstadt Germany Subject : Confidentiality request regarding application for certification of FCC ID: QD5DOTR-221 Pursuant to section 47 CFR 0.457 and 0.459 of the commission’s rules, we hereby request confidential treatment of information accompany this application as outlined bellow; Block Diagram Circuit Diagram Part list Operational Description The above material contained trade secrets and proprietary information not customarily released to public. The public disclosure of these materials may be harmful to the applicant The applicant understands that pursuant to section 0.457 of the Rules, Disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely Signature Name : Hyung Seok, Lee Title : Chief Engineer of EMC Team Company : ETL Inc. 584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Tel : +82-2-858-0786 Fax: +82-2-858-0788

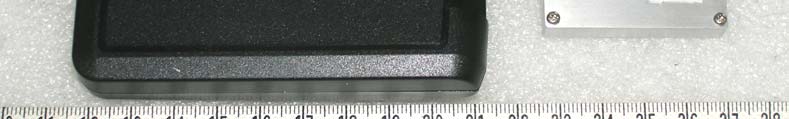

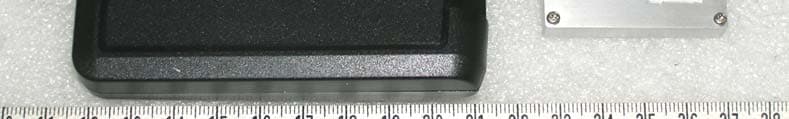

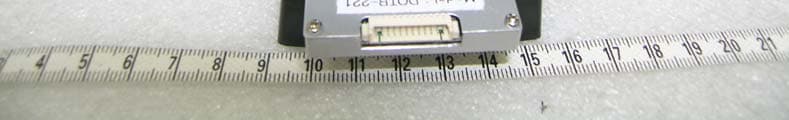

Appendix C. External Photographs Report no. ETLE080205.107, Page C1 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of front View of rear Appendix C. External Photographs Report no. ETLE080205.107, Page C2 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of EUT inside PDA View of antenna 1 Appendix C. External Photographs Report no. ETLE080205.107, Page C3 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of antenna 2

Appendix A. FCC ID Label and Location Report no. ETLE080205.107, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. D.O.Tel Co., Ltd. RFID READER FCC ID : QD5DOTR-221 Model No. : DOTR-221 Serial No. : 02 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE080205.107, Page D1 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of inside Appendix D. Internal Photographs Report no. ETLE080205.107, Page D2 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of main Appendix D. Internal Photographs Report no. ETLE080205.107, Page D3 of D3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 View of main

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This UHF RFID READER, Model DOTR-221 has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section 15.247 I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Hyung Seok, Lee / Chief Engineer ETL Inc. #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 PRODUCT : UHF RFID READER MODEL/Serial No. : DOTR-221 / 02 Multi model : NONE FCC ID : QD5DOTR-221 APPLICANT : D.O.Tel Co., Ltd. #412, Kolon Science Valley II, 811 Guro-Dong, Guro-gu, Seoul, Korea 152-878 Attn. : Hongmin, Shin / Senior Research Engineer MANUFACTURER : D.O.Tel Co., Ltd. #412, Kolon Science Valley II, 811 Guro-Dong, Guro-gu, Seoul, Korea 152-878 FCC CLASSIFICATION : DSS: Spread Spectrum Transmitter INTERFACE PROTOCOL : ISO-18006C(EPC C1 Gen2) RULE PART(S) : FCC Part 15 Subpart C Section 15.247 FCC PROCEDURE : ANSI C63.4-2003 TEST REPORT No. : ETLE080205.107 DATES OF TEST : February 05, 2008 to February 21, 2008 REPORT ISSUE DATE : March 28, 2008 TEST LABORATORY : ETL Inc. (FCC Registration Number : 95422) Report no. ETLE080205.107, Page 2 of 37 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Peak Power 5.3 Band Edges Measurement 5.4 Peak Power Spectral density 5.5 Frequency Separation 5.6 Number of Hopping Frequency 5.7 Time of Occupancy(Dwell time) 5.8 Radio Frequency Exposure 5.9 Spurious Emissions 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Part list Appendix J. Antenna Requirement Report no. ETLE080205.107, Page 3 of 37 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : UHF RFID READER z Model Number : DOTR-221 z S/N : 02 z Freq. Range : 902,75 MHz – 927,25 MHz z Number of Channels : 50 z Modulation Technique : FHSS (Frequency Hopping Spread Spectrum) z FCC Rule Part(s) : FCC Part 15 Subpart C Section 15.247 z Test Procedure : ANSI C63.4-2003 z FCC Classification : DSS: Spread Spectrum Transmitter z EUT Condition : Pre-Production Unit z Dates of Tests : February 05, 2008 to February 21, 2008 z Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #584, Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea z Test Report No. : ETLE080205.107 Applicant Name : D.O.Tel Co., Ltd. Address : #412, Kolon Science Valley II, 811 Guro-Dong, Guro-gu, Seoul, Korea 152-878 Attention : Hongmin, Shin / Senior Research Engineer Report no. ETLE080205.107, Page 4 of 37 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Registration Number : 95422). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the D.O.Tel Co., Ltd., Model: DOTR-221 Report no. ETLE080205.107, Page 5 of 37 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyounggi-do, 469-885, Korea ETLQP-21-F22-0 FCC TEST REPORT 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is a compact UHF RFID reader module which is compliant with the ISO18006C (EPC class1 Gen2) protocol. It is intended to be used in conjunction with the…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE080205.107, Page B1 of B1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 EMC Lab : #584 Sangwhal-ri, Ganam-myeon, Yoju-gun, Gyeonggi-do, 469-885, Korea ETLQP-21-F22-0 Radiated Emission Test Setup
