QDMDPF11Network Audio Player

INSTRUCTION BOOK DPF11 User Guide Product Name : Network Audio Player Model Name : DPF11 CONTENTS Before Use Saftey precautions Remark Product specification Package contents Name of each part Managing power Connections Upgrading the firmware 02 07 11 12 13 16 17 27 01 02 Using the Device Basic operation Notification bar Music list screen Music playback screen Listening to music Ripping the CD Managing the current playlist Managing the playlist Searching files 28 30 32 34 35 36 38 39 42 Managing Files MQS streaming Purchasing music in the store Using USB DAC function Using bluetooth Settings Connecting to the network Setting the equalizer 42 45 47 48 51 52 56 57 03 Miscellaneous Trouble shooting Copyright Certiications Gracenote Trademarks Disclaimers 59 60 60 63 63 63 SAFTEY PRECAU- TIONS Please check [Safety Instructions] before using the device for a safety use. Warning indicates a serious danger. Caution indicates a hazard. Users should not decompose, repair or change the product randomly. - iriver does not take responsibility for any problems caused by a random decomposition, change or repair. Do not place the metal (coins, hairpins, etc.) or inflammable foreign object inside the product. When lightning do not touch the power cord. - You can cause fire or electric shock. Stop using the product immediately, if the operation is not smooth or a failure occurs. If water or foreign object get inside the product, disconnect the power plug from the outlet immediately, quickly wipe with a dry cloth, and get the AS through the near iriver zone. Repair for the damage due to inundation may cost, or even not possible, regardless of the quality assurance period. Descriptions : Instructions are divided into “Warning” and “Caution”, and the meanings are explained in the following. Indicates “Forbidden” or “Prohibited matters”. Indicates “Required Action” or “Perform as instructed”. Explanations of Symbols Use Warning 02 Before Use Caution 03 Pay attention not to apply force or press on the part of the cable is connected, if the cable is connected to the connection port. - You can break the sound terminal products. Do not disconnect the USB cable during data transfer. Use a USB port at the rear of the PC USB cable connection. - Connection to the USB port with assembly defect or malfunction may develop product failure. Do not use products such as chemicals or cleaning agents, because they spoil the surface and strip lacquer. If you attach a bad LCD protective film or stickers to the screen, the darkening screen phenomenon can occur. If you keep the same screen, an afterimage may remain on the screen. When you touch the screen, use a clean and dry hand. When you touch the screen, do not press with too strong pressure. Do not put your hands on the CD inserting slot. Do not use a non-circular disc. Do not use a disc with serious scratches or foreign substances. - This may cause a malfunction. Do not stand on the product. Do not place heavy objects on the product. Never connect any other type of cable to the terminal except an appropriate cable. You can lose your hearing if you plug earphones or headphones in your ears and hear a large volume. Before Use 04 Do not use a power code except the one comes with the product. Do not use the power code that came with the product to other products. - You can cause a fire or electric shock. Please use a grounded plug as a power plug. When removing the power plug from the outlet, hold the power plug strongly. When you do not use the product for long periods of time, unplug the power plug from the outlet. - You can cause a fire or electric shock. POWER CODE AND PLUG Do not plug or unplug with wet hands. Plug the power plug into a 110~220V(50~60Hz) AC outlet. If there is dust on the power plug pins or mounting surface, please remove the power plug, and then remove the dust. When handling the power cord, please observe the following: Do not compromise. / Do not transform.(ex: extension) / Do not apply heat. / Do not place heavy objects. Do not insert it in a small space. / Do not bend forcibly. / Do not twist. /Do not tie several codes together. - You can cause a fire or electric shock. Before Use Warning Caution 05 To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. Do not let the product contact with water, and do not place objects with liquids, such as vases, on the product. Do not place or use the product on following. You can cause a fire or electric shock. A place where you can splash water or a dump place such as a bathroom. / A place where rain or fog can flow directly./ Outside of the rainy season. A place with a high temperature like near fire or a heater/ A place where is exposed to direct sunlight/ A place where are dust, oil, or smoky (ex. Kitchen)/ A place where temperature (-5°C~40°C) is too high or low, or where there is a sudden temperature changes/ A place with a strong vibration/ A unstable place such as a wobble table a slanted surface/ A place where are strong magnetic objects such as magnets, TV, monitor, speakers, etc. / A place with a corrosive gas (ex. Sulfite, hydrogen sulfide, chlorine ammonia) INSTALLATION USB Device - You cannot connect a computer to the USB memory port on the product. - If a USB has a large capacity, it may take several minutes or more to navigate to the file. Please move away the product from the TV, if TV changes its color near the product, or if it makes a noise. Before Use Warning 06 - If static electricity is generated when connecting a USB device, a playback can run abnormally. In this case, disconnect the USB device and then re-connect. - A copyrighted track (WMA-DRM* tracks) cannot be played on this product. * DRM (Digital Rights Management): several technical methods that are used to control or limit the use of digital media contents. - Coded or encrypted tracks in a special way cannot be played on this product. - Do not disconnect the device when playing a file on the USB…

Text truncated - open the document above for the full version.

Displays a music list of the current position. Press and hold the [ ] next to the desired music to delete a file, add to the play list, or add to the current play list. You can select the music list sorting method as ‘ALL/MQS/DSD/Ripping’. You can select the music list sorting method as ‘Bit/Sample Rate’. Displays the add-ones window of the music lists. The functions are displays differently by music retrieval scheme. : Copies the file. (Activates only in folders) : Moves the file. (Activates only in folders) : Adds the file to the play list. : Adds the file to the current play list. : Changes the name. (Activates only in the play list/folders) : Deletes the file. (Activates only in folders) You can choose the album list display method as ‘Thumbnail/List’. 33 4 Music List Sort by List Add-ons List Album List Display 1 2 3 4 213 Using the Device Music playback screen 12845673 9 10 Displays the lyrics. Displays the sound set(EQ, etc.) screen. Turns on/off the gab-less. Displays the current playlist. Displays the state of the progress. If you move the position of the bar, it moves to where you want. Displays the total duration of the song. Sets the play mode. Short: Plays the previous song. Long: Rewinds the music being played. Pauses or replays the music Short: Plays the next song. Long: Forwards fast to the playing music. Sets the repeat mode. Displays the playing time. Touch to change a display of the remaining playtime. Lyrics Sound Set Gap-less Current Playlist Progression State Bar Play Time Play Mode Previous Music/Rewind Play/Pause Next Music/ Fast Forward Repeat Mode Play Time 5 6 7 8 9 10 11 12 13 14 15 16 Displays the title of the music. If ID3TAG does not exist, the file name is displayed. Displays the name of the artist. Displays the album art Displays the information about the currently playing music. Title Name Artist Name Album Art Information 1 2 3 4 111213141615 34 Using the Device - Turn the [Volume Wheel] to adjust the volume. - Press [ ] to pause, and [ ] to restart during playback. - Press [ / ] to play the previous/next music during playback. + You can play the previous/next music by dragging the album art image in the music playback screen in [up down]/[down up] direction. - Press and hold the [ / ] to rewind/fast forward. - Move the position of the progress bar during playback to move to the desired location. - Press [ ] to display the previous screen. - Press [ ] to display the home screen. - Press [ ] to display a list of currently playing music. Select Music 1. Select a music retrieval method from the menu located on the left to display the music list for that classification. 2. Press the music to play on the music list that appears on the screen to play music. Listening to music Listening to Music You can browse the music by folders in the [Folder]. Playback Time: About 7 hours (16bit/44.1kHz, Unbalanced output, Volume 75, EQ OFF, LCD OFF Standard) Supported File Formats: WAV[8~384kHz(8/16/32bit)], FLAC[8~352kHz(8/16/24bit)] 35 Using the Device Ripping the CD Ripping the CD Automatically 1. Insert the CD into the CD insertion slot of the product 2. Import the metadata information of the CD that is inserted in the Grace Notes. 3. When you have finished importing the information, CD ripping starts. 4. When ripping is complete and if you press [OK] in the results window, the CD automatically comes out from the insertion slot. Ripping the CD Manually You can select auto/manual ripping from [Settings- CD Ripping- Automatic CD Ripping]. 1. If you insert the CD to the insertion slot of the product, [CD Ripping] menu on the left menu, gets activated. 2. Press the [CD Ripping] menu, and select the ripping file format as FLAC or WAV. 3. If select the file format, it starts search for the Grace Note DB. 4. When DB search is completed, click [Start] to start ripping. 5. You can directly choose the song to rip in the selection box in front of each track. 36 Using the Device CD Ripping ResultsCD Ripping Screen - : Tells CD Ripping is successfully completed. - : Indicates a failure of CD ripping, because of a physical scratch generated in the CD, etc. - : Tells an error occurred, but CD ripping is completed through error correction. 12 3 4 5 6 7 8 9 Displays the ripping speed. Displays the information about the album. Displays the album art. Displays the ripping progress. Displays the ripping error. Displays the ripping progress state. Displays the success of the ripping. Displays the failure of the ripping. Skips the ripping. Ripping Speed Album Information Album Art Ripping Progress Bar Ripping Error Information Ripping Progress State Ripping Success Ripping Failure Skip Ripping 1 2 3 4 5 6 7 8 9 To recall the Grace Note DB data, DPF11 has to be connected to the network before ripping. Refer to page 56 for the network connection method. Set the location of the ripped file from [Settings-CD Ripping]. If you have not set the location, it will be saved in the current folder. It is possible there is not the relevant information about Grace Note, depending on the CD. Grace Note DB search time may be longer depending on the network environment. File formats and the ripping speed can be selected from [Settings > CD Ripping]. If you enable error-checking function in [Settings > CD Ripping] menu, it attempts to compensate for data errors several times. So if you enable this function, the CD ripping becomes slow. If you rip a CD manually, press and hold the song you want to change from the whole music information screen to select the name of the album, artist, and genre on the touch keypad. During CD ripping, the playback will be stopped if WAV, FLAC files that are 24bit/352kHz or more are converted into DSD64. 37 Using the Device 38 Deleting songs in the current playlist 1. Select [ ] next to the song. 2. Press [ ] to remove the selected song from the current playlist. Changing the music order of the current playlist 1. Press [ ] next to the song. 2. Hold [ ], and move the selected s…

Text truncated - open the document above for the full version.

Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter HACS-F003 FCC Confidentiality Request Letter Rev : 2.1 DATE : November 17, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : QDMDPF11 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Part List 4 SHORT-TERM CONFIDENTIAL (180 DAYS) 5 Internal Photos 6 Test Setup photos 7 User Manual 8 The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Company Name : IRIVER LIMITED. Company Address : Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Contact Person Name/Title (in print) : Kim, Woo-Suk / Manager

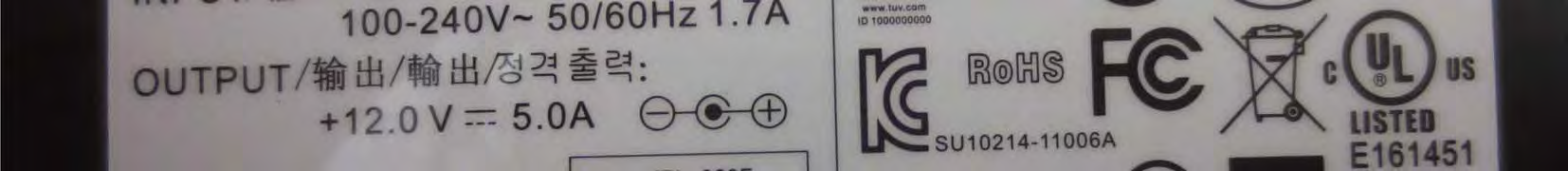

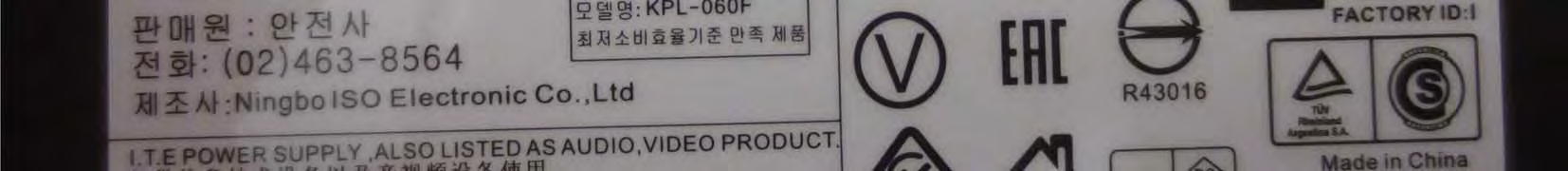

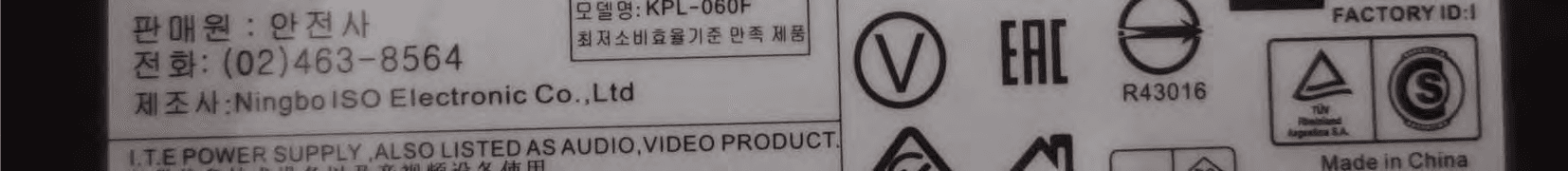

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, includin g interference t h at m ay cause u n des ir ed ope r at i o n . t at ay cause u des ed ope at o . Label Location

FCC ID : QDMDPF11 CFR 47, 15.247:2007 Section # Description Results 15.247i RF Exposure Requirement PASSED According to §1.1310 and §2.1091 RF exposure is calculated. Prediction of MPE limit at a given distance: S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna RESULTS (WLAN) Max Peak output Power at antenna input terminal (dBm) 16.70 Max Peak output Power at antenna input terminal (mW) 46.774 Prediction distance (cm) 20.00000 Prediction frequency (MHz) 2441.00000 Antenna Gain(typical) (dBi) 1.0 Power density at prediction frequency (mW/cm²) 0.011714682 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000 FCC ID : QDMDPF11 RESULTS (BT) Max Peak output Power at antenna input terminal (dBm) 16.70 Max Peak output Power at antenna input terminal (mW) 46.774 Prediction distance (cm) 20.00000 Prediction frequency (MHz) 2440.00000 Antenna Gain(typical) (dBi) 1.0 Power density at prediction frequency (mW/cm²) 0.000168589 MPE limit for uncontrolled exposure at prediction frequency (mW/cm²) 1.00000

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 1 of 46 CERTIFICATION TEST REPORT FCC CFR47 Part 15 Subpart C Test Report File No. 14-IST-0645 ■ Basic □ Alternate Date of Receipt October 08, 2014 Begin of test date October 20, 2014 Date of Issue November 15, 2014 End of test date November 12, 2014 Kind of Product Network audio player Model(s) DPF11 FCC ID QDMDPF11 Applicant IRIVER LIMITED. Address Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Manufacturer IRIVER LIMITED. Address Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Test Result ■ Positive □ Negative Tested By Reviewed By B.O. KO. S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report is consists of 46 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co., Ltd. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 2 of 46 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Measurement Uncertainty 3 Product information 4 Summary 5 - Conducted Emissions 6~10 - Peak Output power 11~13 - Conducted Spurious Emissions & Band edge 14 - Conducted Spurious Emissions 15~16 - Conducted Band Edge 17~18 - 20dB BandWidth & Channel Separation & Occupied Bandwidth 19 - 20dB BandWidth 20~21 - Channel Separation 22~23 - Occupied BandWidth 24~25 - Number of hopping frequency 26~27 - Time of occupancy(Dwell time) 28~29 - Radiated Emissions 30~32 - Radiated Emissions, 9KHz to 30MHz(Magnetic Field Test) 33 - Radiated Spurious Emissions 34~37 - Radiated Restricted Bands Emissions 38~45 - Antenna requirements 46 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 3 of 46 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. 52-20, Sinjeong-ro 41beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Korea TEL: +82 31 326 6700 FAX: +82 31 326 6797 Measurement Uncertainty Conducted Emissions(#1) U = 2.59 [dB] (Confidence level approximately 95 %, k = 2) Conducted Emissions(#2) U = 2.59 [dB] (Confidence level approximately 95 %, k = 2) Radiated Emissions 30 MHz – 1000 MHz (Antenna – Horizontal) U = 3.02 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions 30 MHz – 1000 MHz (Antenna – Vertical) U = 3.68 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions Above 1GHz U = 4.20 [dB] (Confidence level approximately 95 %, k = 2) VCCI Registration No. : 1739 FCC Registration No. : 400603 KCC Registration No. : KR0018 KOLAS Registration No. : KT118 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 4 of 46 PRODUCT INFORMATION Network audio player(DPF11) Display 7’’WVGA(1280x800) Touch Display DAC Cirrus Logic CS4398 x 2(Dual DAC) Digital _Out _Input AES/EBU x1, BNC x1, Coaxial x1, Optical x1 AES/EBU x1, BNC x1, Coaxial x1, Optical x1 Analog _Fixed & Variable Out Balanced (L/R) x2, RCA (L/R) x2 Fixed output level 3 V(RCA, Balanced) Variable output level 7.5 V(RCA) / 10 V(Balanced) Channel Separation >135dB / 1Khz Frequency Response ± 0.02dB / 20Hz ~ 20Khz, ± 0.4dB /10Hz ~ 70Khz THD(Total Harmonic Distortion) < 0.0008% / 1Khz /10 V, <0.001% / 10Hz ~ 20Khz / 10 V SNR(Signal to Noise Ratio) 118dB / 10 V Audio File Supported WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF,DSF Audio Sample Rate 8Khz ~ 384Khz (8/16/24 bits per sample) DSD Native : DSD64(1bit / 2.8 MHz) / DSD 128(1bit / 5.6 MHz) USB Supported Type A(Host) x2, Type B(Device) x1 USB DAC Supported UAC(USB Audio Class)2.0 / DSD64, DSD128, PCM Network Supported Wi-Fi 802.11b/g/n(2.4 GHz) & Ethernet 10/100/1000, DLNA(DMS,DMC,SMR), BT 4.0 CD Ripping audio format WAV, FLAC Battery Capacity : 10.4 A / Voltage : 7.4 V(Normally) / Type : Li-lon Dimension / Weight 214[W] x 238[H] x 243[D](mm) / 11.4 Kg Test Mode : Mode 1: Transmit(DH5) Mode 2: Transmit(3DH5) 1. DH5 is for GFSK modulation, and 3DH5 is for Pi/4 DQPSK 2. Regards to the frequency band operation; the highest that was included the lowest, middle and highest frequency of channel were selected to perform the test, and then shown on this report. - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 5 of 46 SUMMARY Description of Test FCC Rule Parts Results AC Conducted Emission 15.207 Compliant Carrier Frequency Separation 15.247(a)(1) Compliant 20 dB Bandwidth 15.247(a)(1)(ii) or (iii) Compliant Time of Occupancy 15.247(a)(1)(ii) or (iii) Compliant Number of Hopping Frequencies 15.247(a)(1)(ii) or (iii) Compliant Conducted Maximum Peak Output Power 15.247(b)(1) Compliant Spurious RF Conducted Emission 15.247(d) Compliant Spurious Radiated Emission 15.247(d), 15.209 Compliant Out-of- Band Emission 15.247(d) Compliant Occupied Bandwidth Compliant IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 14-IST-0645 6 of 46 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80  80 80 40  80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 Conducted Emissions: The measurement were performed over the frequency range of 0.15 MHz to 30 MHz using a 50 Ω /50 uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10 kHz or for "quasi-peak" & “Average” within a bandwidth of 9 KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1 m X 1.5 m wooden table 80 cm height is placed 40 cm away from the vertical wall and 1.5 m away from the other wall of the shielded room. The R/S ESCI an…

Text truncated - open the document above for the full version.

BT_Bi-Log Ant_under 1000MHz BT_Horn Ant_1~18GHz BT_Horn Ant_18~25GHz WLAN_Bi-Log Ant_under 1000MHz WLAN_Horn Ant_1~18GHz WLAN_Horn Ant_18~25GHz
