QDMDSF11Wireless Speaker

INSTRUCTION BOOK DSF11 User Guide Safety Precautions Package Contents DSF11 at a Glance Assembly Power Cable Management Connections Firmware Upgrade 02 06 07 09 11 12 15 (FUUJOH
4UBSUFE
_01 Basic Operations Home Screen Playback Screen Selecting Music MQS Streaming AK Connect App Listening to Music Listening to Internet Radio Purchasing Music from the Store Connecting an External Device Settings Connecting to a Network Equalizer Setup 16 20 22 24 26 27 32 33 35 36 38 42 43 6TJOH
UIF
%FWJDF
_02 Notes Troubleshooting Copyright Certifications Registered Trademarks Disclaimers Specifications 45 45 47 47 48 48 49 .JTDFMMBOFPVT
_03 CONTENTS User Guide Getting Started 02 Safety Precautions Device Discontinue use of this product immediately if it does not operate normally or a failure occurs. When a plug is inserted into the AUX, Optical, or USB port or a card is inserted into the microSD slot, do not apply any force or shock to the plug or card. Do not insert any metal objects (coins, hairpins, etc.) or flammable debris into the device. Do not place heavy objects on the device. If water or other liquids enter the device, immediately disconnect the power cord from the outlet, wipe the surface with a dry cloth, and contact the nearest 'iRiver Zone' for customer support.

Water-damaged devices will be repaired for a fee regardless

of warranty status, but the device may not be repairable. Do not attempt to disassemble, repair, or modify the product.

iRiver is not liable for any damage incurred due to

unauthorized disassembly, repair, or modification of the

product. Never use chemicals or cleaning products on the device since they can damage the paint and surface coating. Avoid dropping or subjecting the device to a strong impact (excessive vibration, etc.). When inserting a cable into any audio connection port, do not apply force or shock to the plug.

This may cause damage to the audio ports. The use of defective USB plugs or microSD cards may cause the product to malfunction. To ensure safe product usage, check the [Safety Precautions] before you begin using the product. User Guide Never attempt to insert an unsuitable cable into a connector. Never connect a damaged cable to the product. Doing so may cause a malfunction. Using poor quality protective films or adhesive stickers on the screen may cause damage. Use clean, dry hands when touching the screen. Do not apply excessive pressure when touching the screen. Displaying one image for an extended period may cause screen burn-in (afterimage). Power Cable and Plug Do not connect/disconnect the power plug with wet hands. Insert the power plug into a 110V - 220V (50Hz - 60Hz) AC outlet. Unplug the power plug from the outlet before attempting to clean the power plug pins or mounting surface. Observe the following when handling the power cord: Do not damage the power code. / Do not attempt to modify the cord. (e.g. extension) / Do not subject the cord to excessive heat or heavy weight. / Do not pull the cord. / Do not attempt to jam the cord into a tight space. / Do not forcibly bend the cord. / Do not twist the cord. / Do not tie multiple power cords together. This may cause a fire or electric shock. Avoid touching the power cord during lightning strikes or thunderstorms. This may cause a fire or electric shock. Do not use any power cords other than the one supplied with the product. Do not use the supplied power cord with any other device. This may cause a fire or electric shock. Getting Started 03 User Guide Installation To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Avoid exposing the product to water, and do not place objects filled with liquids, such as vases, on top of the device. Do not place the device in the following locations: Doing so may cause a fire or electric shock. Humid areas such as bathrooms or areas where water may splash / Areas where the device may be in direct contact with rain or mist / Outdoor areas with exposure to rain / High-temperature areas such as near a fire or radiator / Areas where the device is exposed to direct sunlight / Areas with high concentrations of dust, oil, or smoke (e.g. kitchen) / Areas with extreme temperatures (Normal operating temperatures: -5°C ~ 40°C / 23°F ~ 113°F) / Areas with rapidly fluctuating temperatures / Areas exposed to strong vibrations / Unstable or sloped surfaces / Near objects with strong magnetic fields such as magnets, TVs, monitors, or speakers / Near corrosive gases (e.g. sulfite, hydrogen sulfide, chlorine, ammonia, etc.) Plug the power cord into a grounded power outlet. Hold the power plug firmly when disconnecting it from the outlet. Disconnect the power cord from the outlet when the device is not being used for an extended period. This may cause a fire or electric shock. If you notice any color changes on a TV in the vicinity of this product or audio interference from the TV, relocate the product farther away from the TV. Getting Started 04 User Guide USB Storage Device The USB port on this product only supports USB host functionality. A computer cannot be connected to the USB device port. Large-capacity USB devices may require several minutes to fully scan. If static electricity is generated when connecting a USB device, playback may not function normally. In this case, disconnect and then reconnect the USB device. DRM-protected files (WMA-DRM * tracks) cannot be played on this product. * DRM (Digital Rights Management): Technical means used to control or limit the use of digital media content. Specially encoded or encrypted files cannot be played on this product. Do not disconnect a USB device while a file on the device is being played. This may cause both the product and the USB device to malfunction. USB devices connected via a USB hub or extension cable may not be recognized by the product. Devices that require separate drivers are not supported. Some USB devices may not be recognized or work correctly. Some USB…

Text truncated - open the document above for the full version.

Company Letter head Date: 27 August 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: QDMD SF11 Product Description: Wireless Speaker Model Name: DSF11 To Whom It May Concern: This letter is to ascertain that IRIVER has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, please. contact us. Sincerely Yours, Client’s signature : Client’s name & title : Kim, Woo-Suk & Deputy General Manager Contact information / address: IRIVER LIMITED. / Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 Date: 19 August 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, IRIVER, hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: QDMDSF11 Product Description: Wireless Speaker Model Name: DSF11 Sincerely, Client’s signature : Client’s name & title : Kim, Woo-Suk & Deputy General Manager Contact information / address: IRIVER LIMITED. / Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0

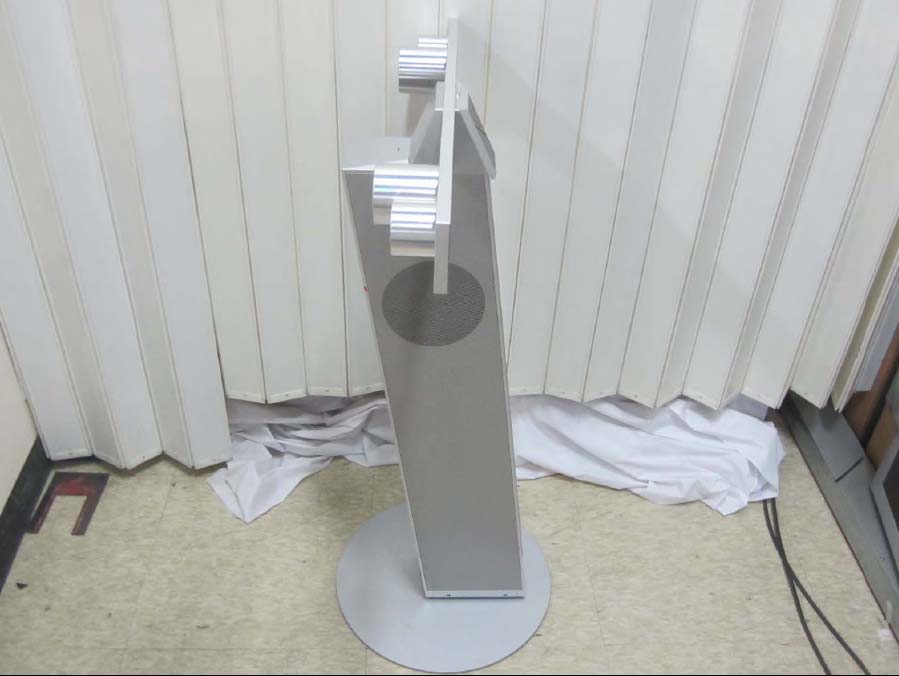

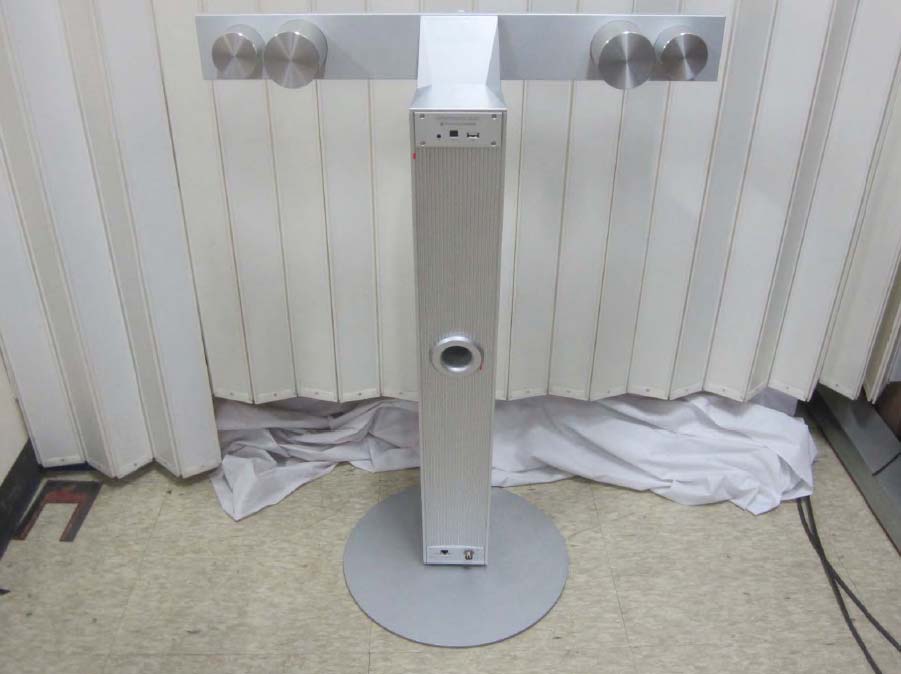

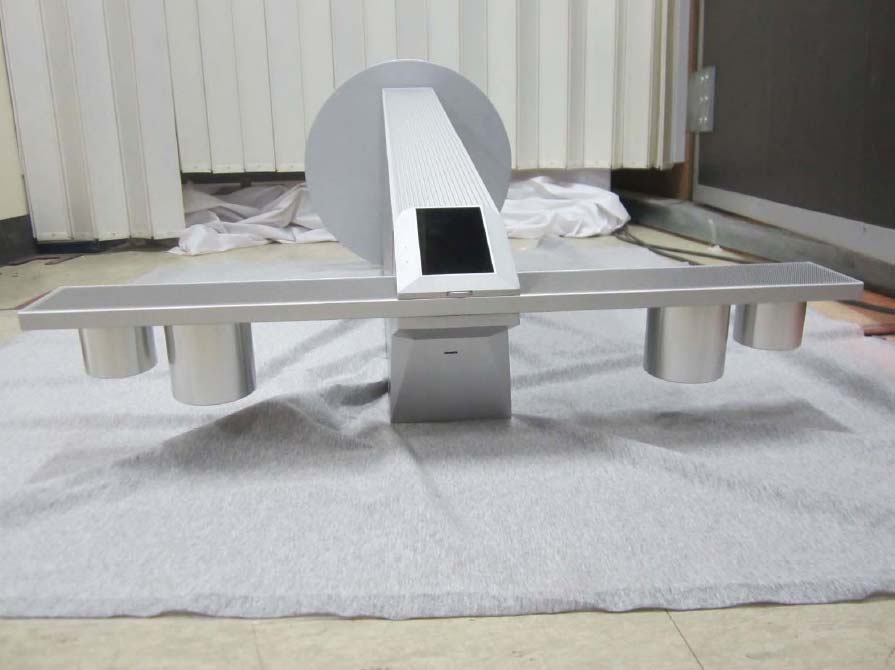

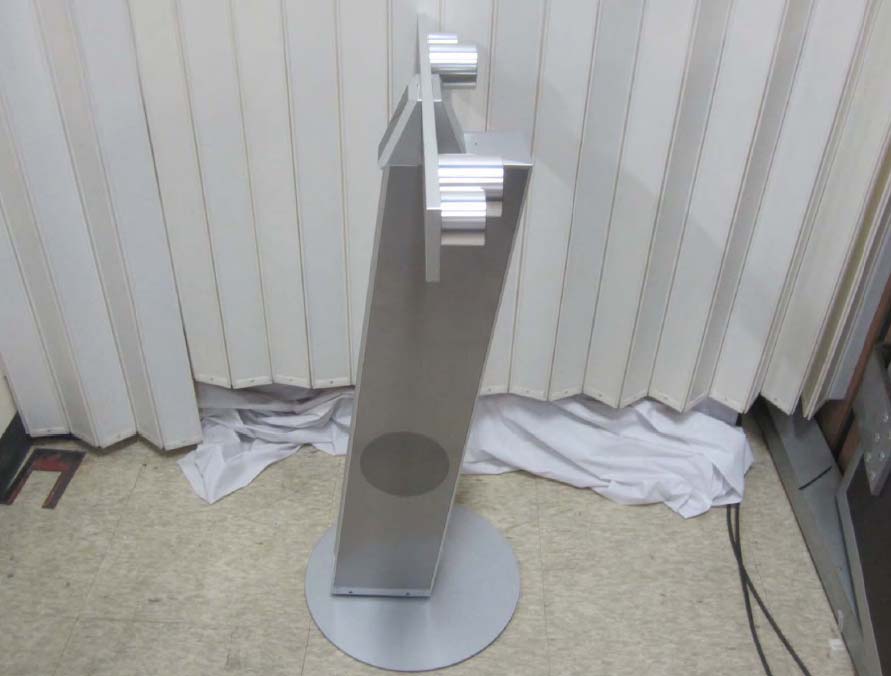

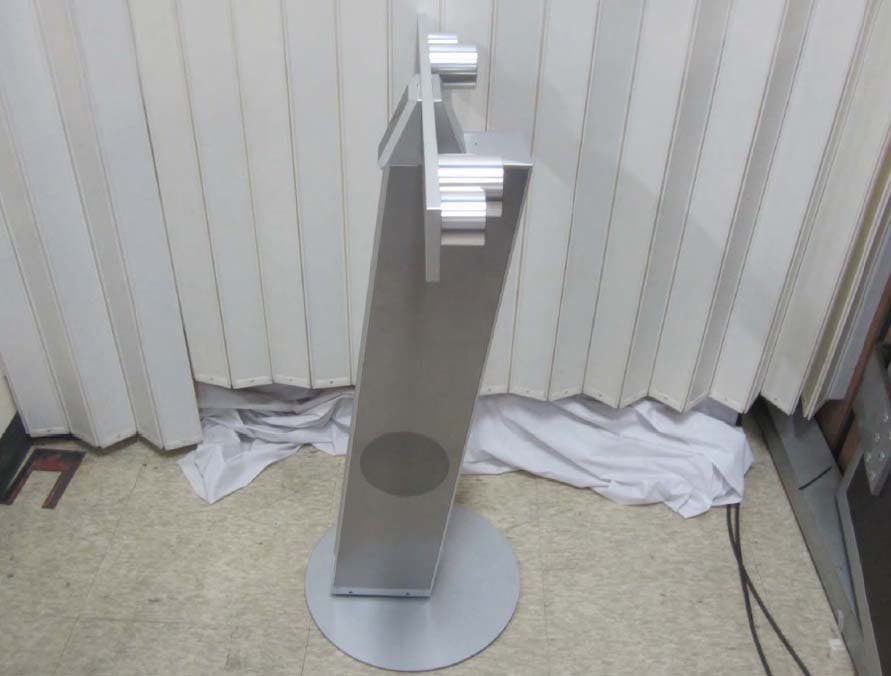

http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-390, Korea TEL: 82 70 5008 1021 FAX: 82 505 299 8311 This test report shall not be reproduced, except in full, without the written approval

Label drawing & Location IRIVER LIMITED. Model: DSF11

http://www.kctl.co.kr Internal photos of EUT http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr http://www.kctl.co.kr BT Antenna WiFi Antenna

http://www.kctl.co.kr Page: ( 1 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.kctl.co.kr Page: ( 2 ) / ( 2 ) Pages This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-002/0 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈] [㏈] [㏈] [㎽] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] WiFi 2.4 GHz_802.11b 14.00 ±1.50 15.50 35.48 5.03 3.18 0.022 48 1.000 00 802.11n HT20 4.50 ±1.50 6.00 3.98 4.88 3.08 0.002 44 1.000 00 4. Target power and tolerance, Max tuneup power - WiFi 2.4 GHz Target Power Tune up Tolerance Max tune up Power measurd power [㏈] [㏈] [㏈] [㏈m] 802.11b 14.00 ±1.50 15.50 14.47 802.11g 12.00 ±1.50 13.50 14.46 802.11n HT20 12.00 ±1.50 13.50 14.51 - Bluetooth Target Power Tune up Tolerance Max tune up Power measurd power [㏈] [㏈] [㏈] [㏈m] GFSK 4.50 ±1.50 6.00 5.80 8DPSK -0.50 ±1.50 1.00 0.75
