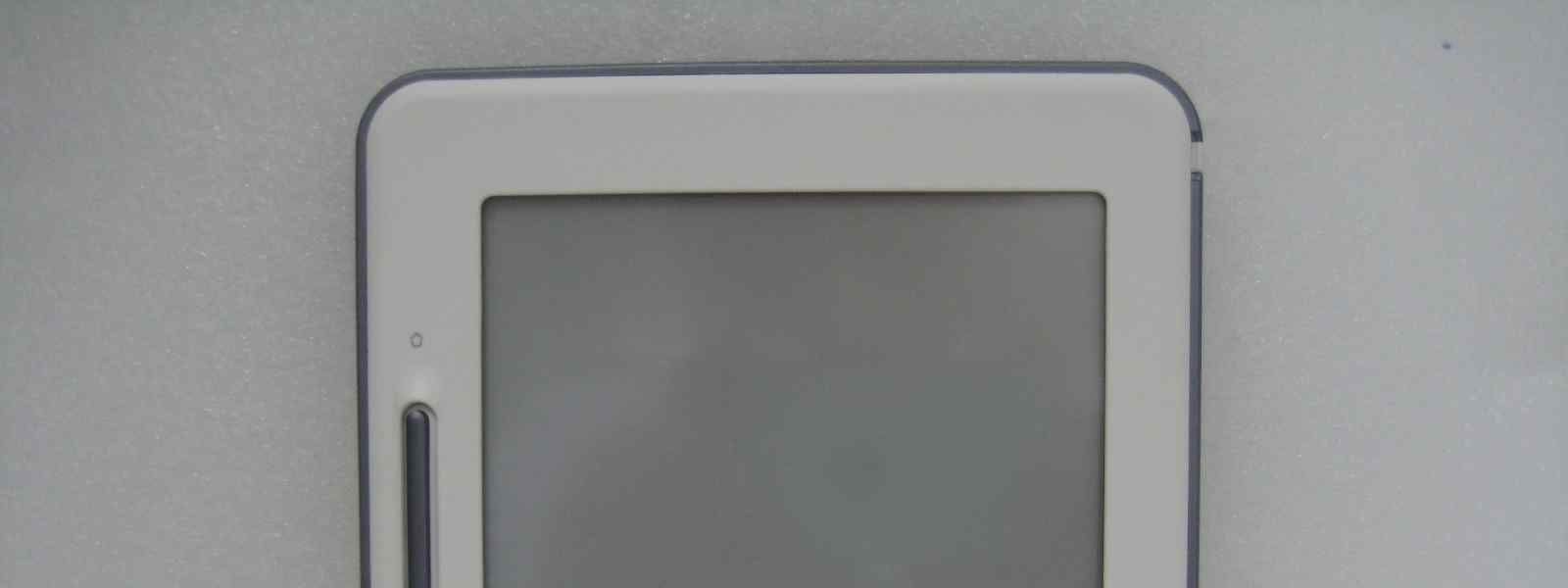

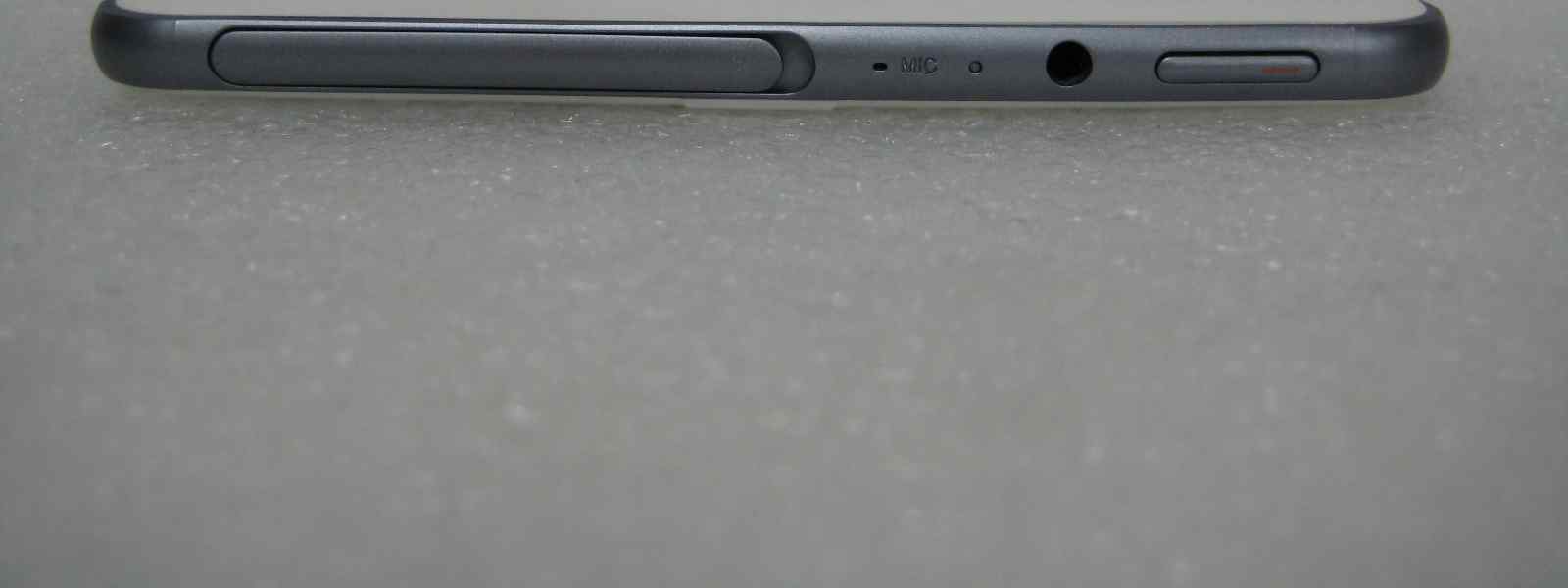

QDMEB05E-BOOK

USER GUIDE 2nd IRIVER STORY COVER STORY Table of Content Getting Started Components Locating the Controls Power Management Charging the Battery Connecting the Product Using iriver plus 4 Using Adobe Digital Editions 03 03 05 06 07 11 14 01 02 Using iriver story Home Screen Selecting Files Viewing Files Memo/Snapshot Wi-Fi Service Music Recording Dictionary Setup 16 17 20 22 25 28 29 30 31 03 Other Information Important Safety Information Troubleshooting Copyrights Certification Registered Trademark Exemption 33 35 37 48 48 48 -FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by oneor more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. -CE CE warning !Changes and modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. EN Test Regulations ETSI EN 300 328 V1.7.1 EB05 Spec. Components Getting Started Player + Stylus Pen Quick Start Guide: This is the manual explaining how to use our device. Product Warranty: Please keep this in a safe place because you may need it at the time of warranty repairs. USB Cable: You can connect this to the computer and use it to recharge the power. 03 Components may be changed without prior notice for improvement of product performance or quality. Quick Start Guide & Product warranty USB Cable Home Locating the Controls The exterior and the contents printed or engraved may differ by model or according to the name of each part. Menu Stylus Pen EPD Previous Previous/Next Pages Volume Speaker SD Card SlotPower USB Port Earphones Jack MIC Recharge LED 04 Power: You can turn the power off by pressing and holding it for a while. You can switch to the standby mode by pressing it briefly. Home: Indicates the initial screen. Menu: Shows the menu list during mode operation. Previous: Stands for previous screen. Previous/Next Page: Shows the previous/next page on file list or file viewing. Stylus Pen: This is the pen-shaped writing apparatus used when you touch the screen. EPD: The screen that feels and reads like a paper-based book. Earphone Jack: You can listen to the sound by connecting an earphone to it. USB Port: You can use this to connect using a USB cable and the computer, or to recharge the battery. SD Card Slot: You can connect this to the SD card to view and replay the files on the card. MIC: You can record your voice through it. Recharge LED: Once power recharge is completed, the recharge LED light is turned off. Volume: Controls the sound volume. Speaker: Used to reproduce the sound. Getting Started 05 1. Press and hold the [ ] and the power comes on. 2. If you press and hold the [ ] when the product is turned on, then the power will be turned off. This model supports an automatic power-saving feature to minimize battery consumption. Depending on the power-saving mode settings, the product will be automatically turned off if keys are not operated for a given time. (refer to page 32) Turning on/off Power Management 1. If you press the [ ] key briefly when the product is on, you can switch to standby mode. 2. If you press the [ ] key briefly again, standby mode is terminated. Switching to Standby Mode 1. If the product does not respond to key presses, reset it by pressing the [ ] + [ ] keys for more than six seconds. Using the Reset Function Even if you use reset function, current time and memory data will be preserved. Don't use reset function while the product is playing. It may cause severe damage to its memory. Getting Started 06 1. Open the cover on the bottom of the product. 2. Turn on your computer and connect the product to your computer. The internal battery will charge automatically. Charging the Battery Using Your Computer Replay Time - Continuous Book Replay Time: Max. 11,000 page view - Continuous Music Replay Time: Max. 30 hours (based on MP3 128 Kbps, 44.1 KHz, Volume 10, EQ Normal). Once recharging is completed, the Recharge LED will turn off. Do not use cables other than the USB cable provided. It may cause malfunction. Check if the product is connected to a high-power USB 2.0 port. Some low-power USB ports built into certain peripheral devices, such as some types of keyboards and USB hubs without internal power may not provide enough power to charge. While your computer is switched to standby mode, the product may not be charged. Turn …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QDMEB05 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name 1. Schematics 2. Block Diagram 3. Operating Description 1. Schmatics_EB05.pdf 2. Block Diagram_EB05.pdf 3. Operating Description_EB05.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We did not recognize about importance of the confidentiality when we applied the original application. So, we want to change the confidentiality even though late. We are aware that this application has been publicly available since the date of Grant. Sincerely, Kyung Hun Oh assistant manager

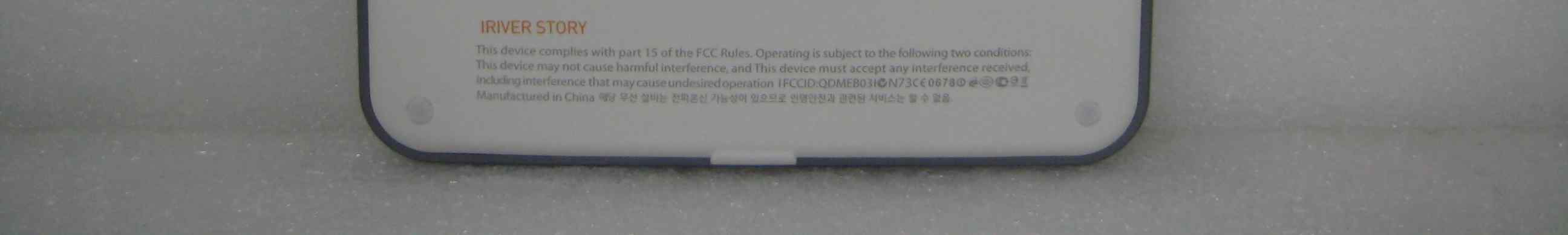

ID Label/Location Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name : EB05 FCCID: QDMEB05 Manufacturer : IRIVER LIMITED Made in China 60 mm 25 mm 10 mm 10 mm

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 1 of 37 Certification of Compliance CFR 47 Part 15 Subpart B, Subpart C Test Report File No. : 10-IST-0524 Date of Issue : September 10, 2010 Model(s) : EB05 Kind of Product : E-BOOK FCC ID : QDMEB05 Applicant : IRIVER LIMITED Address : iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Manufacturer : IRIVER LIMITED Address : iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Factory : IRIVER CHINA Address : SSL. Sci&Tech. North Industry Park, Dongguan, Guangdong, 523-808 China Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager B.S.KIM / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report is consists of 37 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co.,Ltd.. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 2 of 37 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used Product information 3 4 Measurement Uncertainty Calculations 5 Equipment Under Test 6 Summary 7 - Conducted Emission 8 - Radiated Emission 13 -Peak power output 22 - Band edge 25 - 6dB Band 31 - Power Density 34 - Antenna Requirements 37 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 3 of 37 INFORMATIONS OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Kyonggi-Do, 449-860, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 ENVIRONMENTAL CONDITIONS Temperature 22.5 °C Humidity 48 % Atmospheric pressure 1007 mbar POWER SUPPLY SYSTEM USED Power supply system DC 3.7V (Refer to the product information) - VCCI Registration No. : 1739 - FCC Registration No. : 400603 - KCC Registration No. : KR0018 - FCC MRA Registration No. : 801060 - KOLAS Registration No. : KT118 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 4 of 37 PRODUCT INFORMATION Resolution 600 x 800 Color Depth 8 grey scale Touch Resistive(Finger & Stylus) Capacity 2 G ( + SD Card : 2 G) Size (Product+Cover) 168.2 x 126.3 x 11.7 mm General Weight (Product+Cover) 282 g Temperature 0 ~ 40 °C Storage Type mobi NAND External Storage SD [SDHC/32G] CPU S3C6431 SDRAM 1 Gbit (mobile/DDR) Battery DC 3.7 V / 1800 mAh Power Charge USB Charging Connection Type mini USB 2.0 Network WiFi(802.11b/g) Speaker 0.5 W x 2 H/W OS Linux 2.6.28 - Regards to the frequency band operation; the highest that was included the lowest, middle and highest frequency of channel were selected to perform the test, and then shown on this report. - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 5 of 37 Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). TYPE Contribution Probability Distribution Uncertainty Remark AMN Impedance Triangular +2.6/-2.7 dB Voltage Division Factor normal(k=2) ±0.2 Attenuation : AMN to Receiver normal(k=2) ±0.1 CISPR Receiver(ESCI(S/N:100374)) Sine-Wave Voltage Accuracy normal(k=2) ±1.0 dB Pulse Amplitude Response Rectangular ±1.5 dB Pulse Repetition Rate Response Rectangular ±1.5 dB CISPR Mismatch AMN to Receiver U-Shaped +0.7/-0.8 dB B Reading normal(k=1) ±0.1 CISPR Combined Standard Uncertainty normal ± 1.8 dB Expanded Uncertainty U normal(k=2) ± 3.6 dB 95 % U = -3.70 / +3.42 (k=2, 95.45% confidence level) T Y P E Contribution Probability Distribution Uncertainty Remark Antenna AF factor Normal(k=2) ±0.56 CAL. AF frequency interpolation Rectangular ±0.30 dB CISPR ±0.50 dB AF height deviations Rectangular ±0.30 dB CISPR directivity difference Rectangular +1.0/-0.0 dB CISPR phase center location(3 m) phase center location(10 m) Rectangular ±1.0 dB ±0.30 dB CISPR Receiver Sine Wave Voltage Accuracy Normal(k=2) ±0.20 dB CAL. Pulse Amplitude Sensibility Normal(k=2) ±0.40 dB CAL. Pulse Frequency Response Normal(k=2) ±0.57 dB CAL. Random Noise Normal(k=2) ±0.35 dB CAL. Mismatch : Antenna – receiver U-Shaped +0.9/-1.0 dB CISPR Table height Normal(k=2) ±0.01 dB CISPR B Separation distance(3 m ) Separation distance(10 m ) Rectangular ±0.30 dB ±0.10 dB CISPR Combined standard Uncertainty Normal ± 1.13 Expanded Uncertainty U Normal(k=2) ± 2.26 dB 95 % U = ±2.26 (k=2, 95% confidence level) IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 6 of 37 Equipment Under Test EUT Type : n Table-Top. o Floor-Standing. o Table-Top and Floor-Standing(Combination). o Built-in Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : o Standby Mode n Operational Condition : Continue Transmitting IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 7 of 37 SUMMARY WLAN Mode ( 2412 MHz ~ 2462 MHz) Applied Standard : FCC CRF Part 15 Subpart C : 2008 Standard Section Description result remark 15.207 AC Conducted Emission Pass Meet the requirements 15.209 Field Strength of Harmonics Pass Meet the requirements 15.247(b) Peak Power Output Pass Meet the requirements 15.247(d) Band Edge Pass Meet the requirements 15.247(a) 6dB Bandwidth Pass Meet the requirements 15.247(d) Power Density Pass Meet the requirements 15.203 Antenna requirement - Meet the requirements Test Date Begin of Testing : August 15, 2010 - End of Testing : August 29, 2010 Prepared By U.H. Ryu / Senior Engineer IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 10-IST-0524 8 of 37 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ³ 80 80 40 ³ 80 Measuring apparatus Mains Filter Mains Rear…
