QDMEB07ELECTRIC BOOK

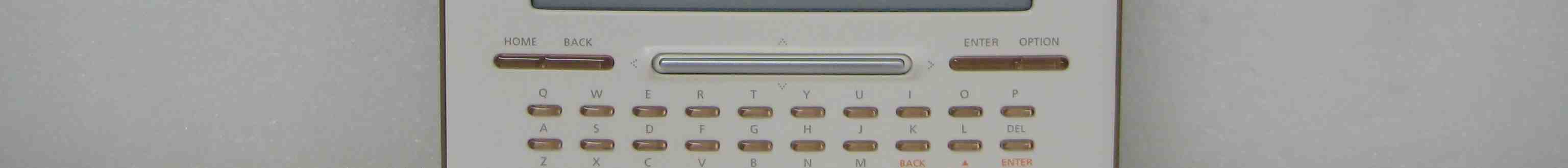

USER GUIDE 3nd IRIVER STORY HD STORY HD Chapter 01 Getting Started Chapter 02 Learning the basic features Components Name of each part Screen configurations 3 4 7 Power on/off Using the hold and reset functions Selecting a menu Charging Connecting 13 14 15 16 17 Chapter 03 Viewing books Books24 Chapter 04 Set up Settings39 Chapter 05 Other information iriver plus 4 Adobe Digital Editions Copyrights Certification/Registered trademark Exemption Important safety information Troubleshooting 42 43 44 56 57 58 61 Table of Contents... Getting started | 3 Components USB cable Components may be changed without prior notice for improvement of product performance or quality. Quick guide & Product warranty Player Getting started | 4 Name of each part The exterior and the contents printed or engraved may differ by model or according to the names of each part. Exterior/interior of product 1 2 3 7 8 9 EPD HOME key BACK key SD card slot USB terminal power switch 4 5 6 Move key Enter key Option key 1 4 3 2 5 69 8 7 Hardware Specifications Pet NameStory HD Model CodeEB07 VersionBasic / WiFi CPUFreescale iMX-508 (Cortex-A8 / 800MHz) Display TypeEPD (LG Display -6.0" / LB060X01) Display ResolutionXGA (1024 x 768) Color Depth16 Gray Level (Monochrome) Key Structure Power Slide Home / Back / Enter / Option Key (4 Key) Navi Key (4 Key) QWERTY Keyboard (38 Key) Capacity2GB only Storage Typemovi NAND 2GB External StorageSD(SDHC/32G) Memory1Gbit (Mobile DDR SDRAM : 200MHz) Connection Typemini USB 2.0 Power ChargeUSB Charging (DC 5V) BatteryLi-Polymer (1800mA/h) Operational Temperature0~40 'C Network (WiFi Model)Wi-Fi (WLAN 802.11b/g) 송수신주파수2412 ~ 2472 MHz 출력10 mW 채널수13 전파형식G1DD2D 발진방식PLL H/W Project 23546789 1 1 2 3 4 5 6 Clear key Shift key SYM(symbol) key Zoom key Rotation key Space / Favourite Key 7 8 9 Back (Exit) key Move key Enter key Getting started | 6 Name of each part Character input keys Power on/off Learning the basic features | 13 Power on 1. Slide the [Hold/power switch] to the right and the power comes on. Power off 1. When the product is on, slide the [Hold/power switch] to the right and the power goes off. Learning the basic features | 14 When using the reset function, the current time, and data that is in the memory, will not be deleted. Do not use the reset function while the product is in action. It may cause serious harm to the memory. Using the reset functions Using the reset function 1. If the program pauses and the keys do not operate, open the cover at the bottom of the product and press the [RESET HOLE] with a pointed tool. 2. Slide the [Hold/power switch] to the right and the power will turn on. Learning the basic features | 16 Charging Charging by connecting with a computer 1. Open the cover at the bottom of the product. 2. Turn the computer on and connect with the product using a USB cable. 3. The internal battery is automatically charged. While recharging,the Recharging LED will flicker on and off. Once recharging is completed, the Recharging LED will remain on. (If power is turned on while recharging is in progress, the Booting LED will come on, but once booting is completed, the Recharging LED will flicker on and off again.) Do not use cables other than the USB cable provided. It may cause malfunction. Ensure that the device is connected to a high-power USB 2.0 port. If connected to a low-power USB port (e.g. some keyboards or USB hubs without a power supply of their own) the device may not fully recharge. If the computer is in sleep mode, the product may not be charged. If the device is being charged whilst on, charging may take longer. Room temperature enables best operating conditions. The rechargable battery is a consumable, so the amount of time it can be used gradually decreases. It takes approximately 5 hours to charge when completely discharged and when the power is off. If you use the product while charging, it may take more time to charge. If the battery is completely discharged and has not been used for a long time, power will not come on again until it has been charged for at least ten minutes. In case where you recharge the batteries using the adapter, we do not provide warranties for adaptors other than those sold by iriver. Connecting Learning the basic features | 18 Inserting/removing the SD card 1. Turn the power off, place the SD card (see the figure below) in the SD card slot, and press it in gently. 2. Press it in once more and the card can be removed. Recommended SD cards Brand: SanDisk, Transcend Insert/remove the SD card while the power is off. Do not force the SD card. It may cause malfunction and damage to the SD card. Do not detach the SD card when in use. It may delete data, cause malfunction, or damage the SD card. If the SD card is not positioned properly, the product may malfunction or the card may get stuck. If SD cards other than the recommended ones are used, it may cause malfunction. The transfer rate of the SD card may differ according to the PC status. SD cards cannot be formatted using the product. Use a card reader to format. When formatting an SD card, all the data are deleted, so back up the data before formatting. When formatting an SD card, we recommend that you use the FAT 32 system. If an SD card is not recognized or malfunctions, try to use it again after formatting. SD cards must be purchased separately. This product recommends that you use an SD card up to 32GB. Connecting Learning the basic features | 19 Connecting with the computer 1. Open the cover at the bottom of the product. 2. Turn the product and the computer on, and connect the product to the computer using a USB cable. 3. A connection mode selection window appears on the screen. - Connect with removable disk: The product and computer have been connected for data transmission. - Battery charging: The product will now be charged. Do not use cables other than the USB cable provided. It may cause malfunction. For troublefree connection with the computer, connect when all the func…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QDMEB07 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name 1. Schematics 2. Part List 3. Block Diagram 4. Operating Description 1. Schmatics_EB07.pdf 2. Part List_EB07.pdf 3. Block Diagram_EB07.pdf 4. Operating Description_EB07.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kyung Hun Oh assistant manager

ID Label/Location Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model Name : EB07 FCCID: QDMEB07 Manufacturer : IRIVER LIMITED Made in China 60 mm 25 mm 10 mm 10 mm

Antenna

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 1 of 35 Certification of Compliance CFR 47 Part 15 Subpart C Test Report File No. : 11-IST-0481 Date of Issue : April 07, 2011 Model(s) : EB07 Kind of Product : E-BOOK FCC ID : QDMEB07 Applicant : IRIVER LIMITED Address : iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Manufacturer : IRIVER LIMITED Address : iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Factory : IRIVER CHINA CO.,LTD. Address : SSL. Sci&Tech. North Industry Park, Dongguan, Guangdong, 523-808 China Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager B.S.KIM / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report is consists of 35 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co.,Ltd.. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 2 of 35 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used Product information 3 4 Measurement Uncertainty Calculations 5 Equipment Under Test 6 Summary 7 - Conducted Emission 8 - Radiated Emission 13 -Peak power output 22 - Band edge 25 - 6dB Band 31 - Power Density 34 - Antenna Requirements 37 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 3 of 35 INFORMATIONS OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Kyonggi-Do, 449-860, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 ENVIRONMENTAL CONDITIONS Temperature 21.5 °C Humidity 45 % Atmospheric pressure 1004 mbar POWER SUPPLY SYSTEM USED Power supply system DC 3.7V (Refer to the product information) - VCCI Registration No. : 1739 - FCC Registration No. : 400603 - KCC Registration No. : KR0018 - FCC MRA Registration No. : 801060 - KOLAS Registration No. : KT118 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 4 of 35 PRODUCT INFORMATION CPU Freescale iMX-508(Cortex-A8/800MHz) Display Type EPD(LG Display-6.0” / LB060X01) Display Resoluation XGA(1024 x 768) Color Depth 16 Gray Level (Monochrome) Key Structure Power Slide / Home, Back, Enter, Option key(4 Key) / Navi Key(4 Key) / QWERTY Keyboard (38 Key) Capacity 2GB Only Storage Type Movi NAND 2GB External Storage SD(SDHC/32G) Memory 1Gbit(Mobile DDR SDRAM : 200MHz) Connection Type Mini USB 2.0 Power Charge USB Charging (DC 5V) Battery Li-Polymer 3.7 V / 1800mA/h Network 802.11 b/g Support - Regards to the frequency band operation; the highest that was included the lowest, middle and highest frequency of channel were selected to perform the test, and then shown on this report. - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 5 of 35 Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). TYPE Contribution Probability Distribution Uncertainty Remark AMN Impedance Triangular +2.6/-2.7 dB Voltage Division Factor normal(k=2) ±0.2 Attenuation : AMN to Receiver normal(k=2) ±0.1 CISPR Receiver(ESCI(S/N:100374)) Sine-Wave Voltage Accuracy normal(k=2) ±1.0 dB Pulse Amplitude Response Rectangular ±1.5 dB Pulse Repetition Rate Response Rectangular ±1.5 dB CISPR Mismatch AMN to Receiver U-Shaped +0.7/-0.8 dB B Reading normal(k=1) ±0.1 CISPR Combined Standard Uncertainty normal ± 1.8 dB Expanded Uncertainty U normal(k=2) ± 3.6 dB 95 % U = -3.70 / +3.42 (k=2, 95.45% confidence level) T Y P E Contribution Probability Distribution Uncertainty Remark Antenna AF factor Normal(k=2) ±0.56 CAL. AF frequency interpolation Rectangular ±0.30 dB CISPR ±0.50 dB AF height deviations Rectangular ±0.30 dB CISPR directivity difference Rectangular +1.0/-0.0 dB CISPR phase center location(3 m) phase center location(10 m) Rectangular ±1.0 dB ±0.30 dB CISPR Receiver Sine Wave Voltage Accuracy Normal(k=2) ±0.20 dB CAL. Pulse Amplitude Sensibility Normal(k=2) ±0.40 dB CAL. Pulse Frequency Response Normal(k=2) ±0.57 dB CAL. Random Noise Normal(k=2) ±0.35 dB CAL. Mismatch : Antenna – receiver U-Shaped +0.9/-1.0 dB CISPR Table height Normal(k=2) ±0.01 dB CISPR B Separation distance(3 m ) Separation distance(10 m ) Rectangular ±0.30 dB ±0.10 dB CISPR Combined standard Uncertainty Normal ± 1.13 Expanded Uncertainty U Normal(k=2) ± 2.26 dB 95 % U = ±2.26 (k=2, 95% confidence level) IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 6 of 35 Equipment Under Test EUT Type : n Table-Top. o Floor-Standing. o Table-Top and Floor-Standing (Combination). o Built-in Operation – mode of the E.U.T. : The equipment under test was operated during the measurement under following conditions : o Standby Mode n Operational Condition : Continue Transmitting IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 7 of 35 SUMMARY WLAN Mode ( 2412 MHz ~ 2462 MHz) Applied Standard : FCC CRF Part 15 Subpart C : 2008 Standard Section Description result remark 15.207 AC Conducted Emission Pass Meet the requirements 15.209 Field Strength of Harmonics Pass Meet the requirements 15.247(b) Peak Power Output Pass Meet the requirements 15.247(d) Band Edge Pass Meet the requirements 15.247(a) 6dB Bandwidth Pass Meet the requirements 15.247(d) Power Density Pass Meet the requirements 15.203 Antenna requirement - Meet the requirements Test Date Begin of Testing : March 21, 2011 - End of Testing : April 05, 2011 Prepared By U.H. Ryu / Senior Engineer IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 11-IST-0481 8 of 35 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ³ 80 80…
