iFP-1000 Series http://www.iRiver.com Hardware Instruction Manual Thank you for your purchase. Please read this manual carefully before using your new player. http://www.iRiver.com Digital Audio Player/recorder/Camera/FM Tuner Model iFP-1000 Series THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. 1 Getting started Locating the controls PC software installation Basic operation Convenient Functions Additional information 1 2 3 4 5 6 Contents This manual covers the installation and use of the player hardware. For details regarding the software operation including transferring music to the player, please see the Software Instruction Manual. Getting started Getting started Contents 1 Getting started Internet Features About power supply 1-1 1-2 1-3 This manual covers the installation and use of the player hardware. For details regarding the software operation including transferring music to the player, please see the Software Instruction Manual. Getting started Features 1-2 Internet Getting started 1-1 " URL : www.iRiver.com " Find information on our company, products, and customer and technical support. " Update your player with firmware downloads. Firmware upgrades offer support for new CODECS and deliver new product features. " Consult the product FAQ. " Register your iRiver product online so that our Customer Service is able to provide support as efficiently as possible. " All contents contained in this manual subject to change without notice to improve ability of this player or according to changing of specification. iRiver Limited does not assume any responsibility for errors or omissions in this document or make any commitment to update the information contained herein. iRiver is a registered trademark of iRiver Limited in the Republic of Korea and /or other countries and is used under license. Microsoft Windows Media and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and /or other countries. All other brand and product names are trademarks of their respective companies or organization. All other product names may be trademarks of the companies with which they are associated. 1999-2004 iRiver Limited. All rights reserved. " Multi-Codec Player Supports MP3, WMA, OGG and ASF formats. " Firmware Upgrade Provides the latest updated features via firmware upgrade. " 260,000 color graphic LTPS LCD supporting Multiple Languages(40 languages) iFP-1000 Series comes with 260,000 color graphic LTPS(Low Temperature Poly Silicon) LCD which can support multiple languages. " Digital Camera Built in camera and Color LCD screen. " FM Function You can easily listen to FM stations and set your favorite stations by using Auto Preset and Frequency Memory functions. " 6 Preset EQ : Normal, Rock, Jazz, Classic, U Bass, Metal " Xtreme EQ and Xtreme 3D Customize your own EQ with Xtreme EQ and enhance bass and surround sound with Xtreme 3D. " GUI (Graphic User Interface) Menu System " Easy Navigation The simple navigation makes it easy to find any song. " Supports 8 levels of subfolders, 500 folders total and up to 1500 files at one time. " Create your own playlists. " Record FM Radio, or Voice Voice record level is automatically controlled by AGC function. " Convenient neck strap. " Built-in Rechargeable battery that charges directly from the USB port. Getting started About power supply Battery detach/attach 1-4 About power supply Getting started Charging by using USB cable 1-3 Connect the USB cable to the player and the PC. The iFP battery will begin charging. Connect the AC Power Adapter supplied with the player to the USB connector of the player. The AC operating voltage of this player is 100~240V, 50~60Hz. Charging by using AC adapter " To detach: Press the tab to release the battery and slide it out of the player. " To attach : Slide the battery onto the player until it locks into place. " The charging time : Approx. 2.5~3 hours (At full discharge) Note " The player will charge even if it is turned off. " A charging indicator light will illuminate while the player is charging. The light will turn off when charging is complete. Note " Charge and store the battery at room temperature. It may not charge properly in hot or cold temperature environments. " Do to attempt to disassemble the battery. Do not expose the battery to open flame. These activities could cause the battery to explode resulting in serious injury. " Do not contact the connectors of the battery to metal …

Text truncated - open the document above for the full version.

Basic operation Digital camera Camera settings 4-22 Digital camera Basic operation Camera settings 4-21 Press NAVI/MENU/VOL button. The camera settings appear on the LCD screen. Press and hold NAVI/MENU/VOL button to change the setting. Press and hold NAVI/MENU/VOL buttonbutton to view the available settings. 1 1 2 2 3 3 4 4 IPush NAVI/MENU/VOL to the Ior Idirection to select desired setting. 7 7 Press PLAY/STOP(STEREO) button to exit. 5 5 6 6 640x480 IPush NAVI/MENU/VOL to the Ior Idirection to select value. Press NAVI/MENU/VOL button to confirm. " Brightness: 0 ~ 100 % (10% step/default 50%) " Mode: Auto / Indoor / Outdoor " Resolution: 640 x 480 / 320 x 240 / 176 x 144 " Effect: Normal / Monotone / Sepia / Negative / Solarization Long Click Click Push Select Click Push Select Click Click Press and hold MODE/REC button. The current function appears on the LCD screen. Push NAVI/MENU/VOL to the or direction to select My Album. Press NAVI/MENU/VOL button to confirm. Viewing a picture(Album) Basic operation Viewing a picture 4-23 1 1 2 2 3 3 4 4 IPush NAVI/MENU/VOL to the VOL+, VOL- or I, Idirection to select a picture. Press NAVI/MENU/VOL button to display. 5 5 IPush MEMORY/EQ/(A-B) button to enlarge or to reduce a picture.(x1.5/x2.0/x3.0/x1.0) Push MENU/NAVI button to the VOL+, VOL- or I, Idirection to shift the enlarged point. Push MENU/NAVI button to the Ior Idirection to select previous or next a picture. Push Previous Next Push Click Long Click Enter Push Select Click Push Shifting the point Enlarge Click Basic operation Viewing a picture(Album) Viewing a picture 4-24 Full screen Push Previous Next Push Click View /Information " When an image is displayed full screen, press the NAVI/MENU button to view the picture information. Note Convenient functions Convenient functions Contents 5 Viewing a picture(Album) Basic operation 4-25 Searching the music files(Navigation) Enjoying the sound equalizer(EQ) Playback Mode Playing in a favorite order(Program) Customizing the function settings(Menu) " Basic operation " General " Display " Timer " Control " Mode " Sound 5-1 5-4 5-5 5-7 5-11 5-13 5-15 5-17 5-19 5-22 5-24 5-27 Deleting a picture Press and hold NAVI/MENU button after selecting the picture to delete. My Image 1 1 2 2 Push MENU/NAVI button to the or direction to select “Yes” or “No”. Push MENU/NAVI button to confirm. Enter Yes/No Click Push My Image Long Click Press and hold MEMORY/EQ button after selecting a picture to use as the background on the player. 1 1 2 2 Push MENU/NAVI button to the or direction to select “Yes” or “No”. Push MEMORY/EQbutton to confirm. Enter Yes/No Push Click Delete Long Click Convenient functions Searching the music files(Navigation) Navigation 5-2 Searching the music files(Navigation) Convenient functions Navigation 5-1 Navigation is the function used for searching files. Navigate to locate tracks to play. To search 1 1 2 2 Scroll up Scroll down Click Push Select the file Scroll up Scroll down Select the track 4 4 Select folder or scroll to upper folder Upper folder Scroll up Select the folder or file Scroll down 3 3 Click Push Select folder or scroll to upper folder Click Push Note MP3 IRM ASF OGG REC WMA " According to file type displayed as follows : " IRM (iRiver Rights Management) iRiver Rights Management is a digital music format. Please visit our web site for details about this music format. Navigation Convenient functions Enjoying the sound equalizer(EQ) EQ Mode 5-4 Searching the music files(Navigation) Convenient functions Deleting a folder or file 5-3 Click the “MODE” button. “FOLDER DELETE ARE YOU SURE?” is displayed on the screen. Select “YES” by pushing the NAVI/MENU button to the or direction to delete. Then press NAVI/MENU button. Press the NAVI/MENU button wile the stop mode. Push the NAVI/MENU button to the or direction to select a folder or file. Select the upper folder Scroll up Select the folder or file Scroll down Click Push or Select Click Click Stop Click Delete Delete You can select EQ mode in accordance to the playing music genre. Press and hold the MEMORY/EQ button to display the current EQ setting. Then press the button repeatedly to chose a different EQ. Long Click 1 1 2 2 Push " Please refer to the Function Control (Page 5-27/28) for configuring Xtreme EQ. " Please refer to the Function Control (Page 5-27/28) for configuring Xtreme 3D. " You can select your favorite EQ as the set value on the EQ SELECT menu. " The set value on the menu is saved but EQ mode is not changed in case of not selecting Xtreme EQ and Xtreme 3D " Xtrm EQ and 3D are set in the MENU, refer to page 5-27/28 for details. Note " You can only delete a blank folder. " In order to delete a folder, you must first delete the files in the folder. " You can only delete an empty folder. Note Convenient functions Playback Mode Intro 5-6 Playback Mode Convenient functions Playback mode(Mode) 5-5 You can set various Repeat and Shuffle options by choosing these selections under Mode. Change the Repeat or Shuffle mode by pressing the varied pressing the MODE button. Please refer to the MODE function controls (page 5-24) for user-defined configuration. Play a single track repeatedly. Play all tracks in the folder and stop. Play all tracks in the folder repeatedly. Play all tracks in the player repeatedly. Plying repeatedly(Repeat) Randomly play all tracks in the player and stop. Play a single track repeatedly. Skip forward will select a new random track to play repeatedly. Randomly play all tracks in the folder and stop. Randomly play all tracks in the folder repeatedly. Randomly play all tracks in the player repeatedly. Playing in random order(Shuffle) Repeating a specific segment(A-B repeat) You can play a specific segment repeatedly(A-B repeat). Press the A-B/EQ/MEMORYbutton once to select the beginning <A> point. Press the button again to select the ending <B> point. A-B interval will be repeated. INTRO: Plays the beginning 10 seconds of each track in sequential order.…

Text truncated - open the document above for the full version.

CMOS SENSOR PSEUDO SRAM MV319 NAND FLAS H NOR FLAS H T F T LCD System Bus i F P-1095 Block Di agram USB BUZZER PNX0101 RTC TUNER KEY Clock 12MHz MIC H/P 3.5 2.9 2.7 1.8V LI-ION B a ttery DC/ D C Bl o c k

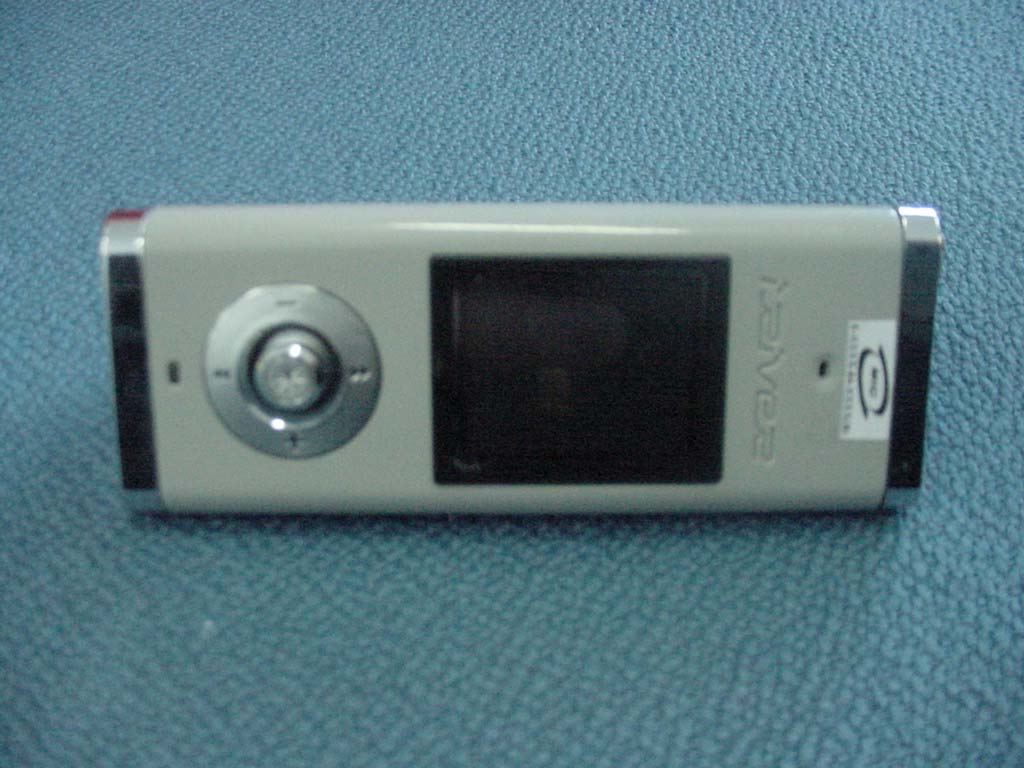

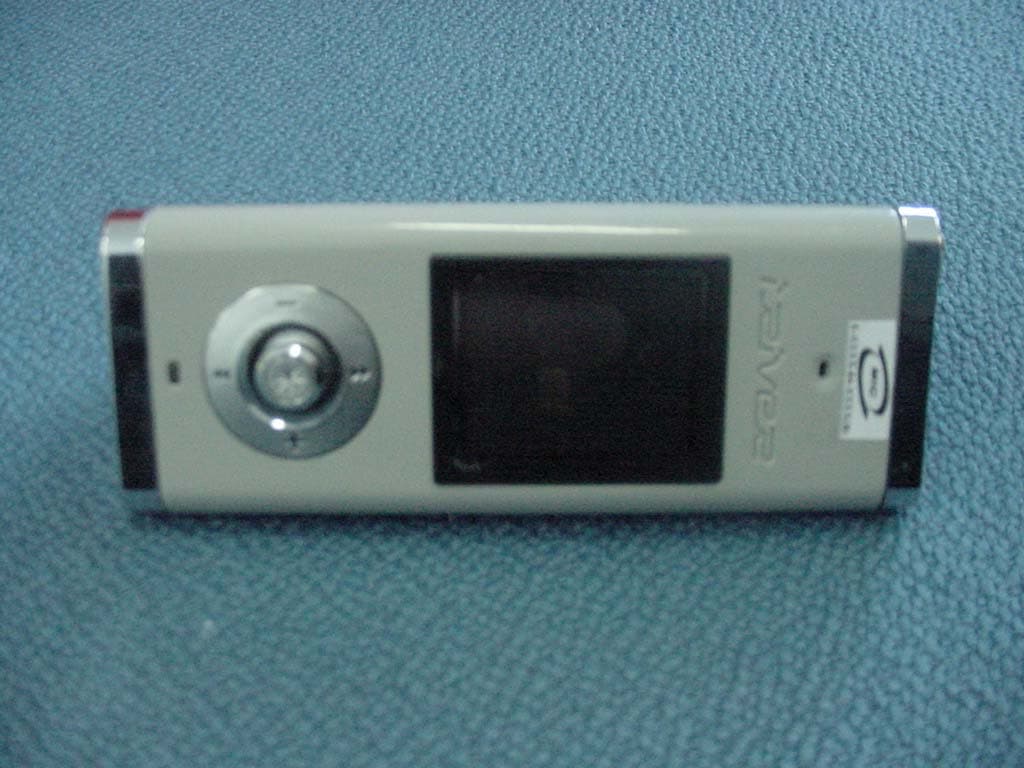

< Front Of EUT> < Rear of EUT >

Model Name : iFP-1095 FCC ID : QDMIFP1095 iRiver

< FRONT OF MAINBOARD > < REAR OF MAINBOARD > < FRONT OF CAMERA > < REAR OF I/O CAMERA >

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC04-0017 Equipment : MP3 PLAYER/DIGITAL CAMERA/FM TUNER Name of basic model : iFP-1095 Family model : iFP-1090 Manufacturer : AV CHASEWAY MFG.FTY. Applicant : ReignCom Limited. Tested date : 2004. 3. 8 – 3. 12 Issued date : 2004. 3. 19 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) /Digital devices & peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: GWEON, HUR Approved by: SANG-KYU, LEE The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. EMC RESEARCH INSTITUTE EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 2 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures 4.3 Operation Conditions 4.4 Test instrument 4.5 Test results (Test mode: Up & Download mode) 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results (Test mode: Up & Download mode) 5.6 Test results (Test mode: Play mode) 5.7 Test results (Test mode: Recode mode) 5.8 Test results (Test mode : FM Tuner) APPENDIX (None) EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 3 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 1. CLIENT INFORMATION The EUT has been tested by request of : Company : ReignCom Limited. Address : 8F Posgen VentureTower, 1586-7 Seocho-dong, Seocho-gu, Seoul, Korea Name of contact : H.J. Mun Telephone : +82-2-3019-1723 Facsimile : +82-2-3019-1746 2. LABORATORY INFORMATION The 10m full-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : MP3 PLAYER/DIGITAL CAMERA/FM TUNER Model name : iFP-1095 Brand name : - Manufacturer : AV CHASEWAY MFG.FTY. Address : Langang Village, Chongguang Town, Baoan District, Shenzhen City, Guangdong, China Telephone : +86-755-708-4671 Facsimile : +86-755-708-5490 Country of origin : CHINA Rating : 120V, 60Hz EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 4 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 3.2 Additional information about the EUT Class B, Family Models List: Basic Model Variant Model Differential point Memory size iFP-1095 (512MB) iFP-1090 Model name and Memory size 256MB 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture AC/DC adaptor SEA60N2-16.0 03502395C SANKEN ELECTRIC CO., LTD. Note PC P5010 464307211682 FUJITSU LIMITED Keyboard SDM4510UH 4M030902 - Earphone - - - EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 5 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 20.0 °C Relative Humidity : 36.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.4m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. 4.3 Operation Conditions Up & download mode, play mode, recording mode, tuner mode 4.4 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 100020 R&S 2004. 3. 25 x ESH3-Z5 827246/008 R&S 2004. 3. 19 x L.I.S.N. ESH3-Z5 831887/018 R&S 2004. 3. 19 Shield room 8 × 6 × 3.3m/H - - - x AC Main LISN EUT NOTE PC AC/DC adaptor Keyboard Earphone EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 6 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 4.5 Test results (Up & download mode) Date of test: Mar 10, 2004. An overview sweep performed with peak detector & average detector are included in the report as test reports. Frequency Tested LISN Meter Range Freq. Reading Limits Margin QP AV QP AV QP AV [MHz] [MHz] [dBuV] [dBuV] [dBuV] 0.186 N 50.4 43.7 64.1 54.1 13.7 10.4 0.267 N 47.0 35.7 61.2 51.2 14.2 15.5 0.15-30 0.318 N 40.2 31.6 59.7 49.7 19.5 18.1 0.471 N 35.6 30.4 56.4 46.4 20.8 16.0 0.600 N 31.3 25.7 56.0 46.0 24.7 20.3 1.509 N 31.1 26.1 56.0 46.0 24.9 19.9 1.896 N 30.8 25.3 56.0 46.0 25.2 20.7 4.880 N 33.3 21.3 56.0 46.0 22.7 24.7 6.080 N 35.2 22.2 60.0 50.0 24.8 27.8 13.680 N 32.9 23.6 60.0 50.0 27.1 26.4 * <5 : mean less than 5dB * Other frequency keep over 20dB margin. EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 7 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 [Live line] [Neutral line] EMC RESEARCH INSTITUTE File No. ERI-FCC04-0017 Page 8 of 11 E R I, 66-6, Jeil-Ri, Yangji-Myun, Yongin-City, Kyunggi-Do, Korea Tel: +82-31-336-1186~7 Fax: +82-31-336-1184 5. …
