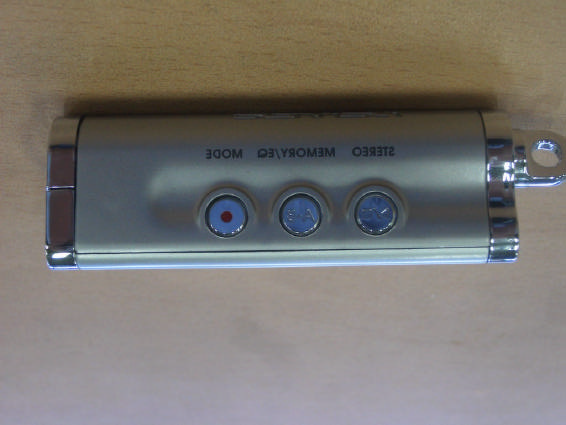

Model iFP-100 Instruction Manual MP3 PLAYER / FM TUNER (Option) Model iFP-100 Series Limited http://www.iRiver.com Thank you for purchasing the product. Please read this manual carefully before use. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Introducing iRiver website URL : http://www.iRiver.com Provides information on our company, products, and contacting point for ourcustomers.Unique feature of "Firmware (System software) Upgrade" keeps providingpremium disc readability and various optional add-on features, supporting newCODEC to be introduced in the future. Provides FAQ as well as Beginner's Guide Set up customer registration to enable online customer service so that alliRiver users receive the latest information, firmware upgrade, etc. vianewsletters. iRiver Limited does not assume any responsibility for errors or omissions in this document or make any commitment to update the information containedherein. iRiver is a registered trademark of iRiver Limited in the Republic of Korea and/or other countries and is used under license. Microsoft Windows Media andthe windows Logo are trademarks or registered trademarks of MicrosoftCorporation in the United States and /or other countries. WinAmp and WinAmplogo is registered trademark of NullSoft Inc. All other brand and product names are trademarks of their respectivecompanies or organization. All other product names may be trademarks of thecompanies with which they are associated. 1999-2002 iRiver Limited. All right reserved. 2 Unique Features of iFP-100 Unique Design : Multi-Codec Player: Supports MP3, WAV formats.Firmware Upgrade: Provides the latest updated features via firmware upgrade. New formats such as AAC, MP3 Pro and Ogg Vorbis can be supported in the future with a simple upgrade method. Player features such as add on,modification, and continuous improvement of disc recognition are alwaysprovided. Graphic LCD supporting Multiple Languages: iFP-100 Series comes with graphic LCD which can support multiplelanguages, including: English, French, Spanish, German, Italian, otheralphabet-oriented fonts, Korean, Japanese(Katakana, Hirakgana, Kanji) andothers. Over 30 languages are supported.FM FunctionYou can easily listen FM broadcast by using Auto Preset, Frequency Memoryand various function. 6 Equalizing Pattern : Normal, Rock, Jazz, Classic, U Bass, User EQ Supporting of GUI(Graphic Equalizer Interface) MENU 3 5 Contents 1. CONTROLSFront View, Side View 1...................................................................................Side View 2, Up/Downside View......................................................................LCD Window....................................................................................................2. BASIC OPERATIONListening to music............................................................................................Playing FM Tuner............................................................................................Recording FM..................................................................................................Recording Voice..............................................................................................3. Useful FeaturesInstalling Software on PC................................................................................Basic Operation...............................................................................................Navigation........................................................................................................Deleting Folder on the player...........................................................................Mode................................................................................................................Program Mode.................................................................................................EQ Mode..........................................................................................................Menu Controls.................................................................................................Initializing/ Making new folder/Refresh............................................................Download from the PCUpload/ Listening MP3 on the PC...................................................................Deleting files on the PC...................................................................................4. Additional InformationPower Supply(Battery).....................................................................................Trouble Shooting.............................................................................................Precautions......................................................................................................Accessories.....................................................................................................Specification..................................................................…

Text truncated - open the document above for the full version.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 1 of 20 EMI TEST REPORT Test report no. : ERI-FCC-0136 Type of equipment : MP3 Player Model no. : iFP-180T Applicant. : ReignCom Co., Ltd. Test standards : FCC Part15 Subpart B (Class B) Test Procedure and Items : - AC Power line Conducted Emissions Measurement : ANSI C63.4-1992 - Radiated Emissions Measurement : ANSI C63.4-1992 Test result : Complied This equipment has been tested to comply with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, Without the written approval of ERI Laboratory. Date of test: 2002. 8. 89 Issued date: 2002. 8. 9 Tested by : Approved by: GWEON, HUR SANG-KYU, LEE This laboratory is registered by KOLAS, KOREA. This test report have been performed in accordance with Its terms of registration. ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 2 of 20 Contents 1. Client information 2. Laboratory information 3. Test system configuration 3.1 Operation environment 3.2 Measurement uncertainty 3.3 Sample calculation 4. Description of E.U.T. 4.1 Product description 4.2 Peripherals 4.3 Used cables 4.4 E.U.T. test configuration 4.5 Operating conditions 5. Test results 5.1 Conducted emission 5.1.1 Measurement procedure 5.1.2 Used equipments 5.1.3 Measurement uncertainty 5.1.4 Test data 5.1.7 Result ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 3 of 20 5.2 Radiated emission 5.2.1 Measurement procedure 5.2.2 Used equipments 5.2.3 Measurement uncertainty 5.2.4 Test data(up&download mode) 5.2.5 Test data(play mode) 5.2.6 Test data(FM tuner mode) 5.2.7 Result 6. Photographs Conducted emission test Radiated emission test EUT(Front, Rear, Inner) 1. Client information Applicant : ReignCom Co., Ltd. Address : 8F Posgen VentureTower, 1586-7 Seocho-dong, Seocho- gu, Seoul, Korea Telephone Number : +81-2-3019-1723 Facsimile Number : +81-2-3019-1746 Contact person : Mun, Hyo Jae Manufacturer : ReignCom Co., Ltd. Address : 8F Posgen VentureTower, 1586-7 Seocho-dong, Seocho-gu, Seoul, Korea Telephone Number : +81-2-3019-1723 Facsimile Number : +81-2-3019-1746 ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 4 of 20 2. Laboratory information Address The open area test site and EMC facilities are used for these testing. This facility was accredited by KOLAS, EK of Korea, MIC, FCC. EMC RESEARCH INSTITUTE . 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone Number : 82- 31- 336- 1186 Facsimile Number : 82- 31- 336 -1184 KOLAS No. : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 5 of 20 MAP IC(), TG , 17 (42 ) FA TG TG 3km (ERI) ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 6 of 20 3. TEST SYSTEM CONFIGURATION 3.1 Operation environment Temperature Humidity Pressure 10m Chamber : 21.0C 52 % - Shielded room : 24.0C 58 % 998hPa 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, specfially in field of EMC. The factors contributing to uncertainties are test receiver, Cable loss, antenna factor calibration, Antenna directivity, antenna factor variation with height, antenna phase center variation, antenna Frequency interpolation, measurement distance variation, site imperfection, mismatch, and system repeatability. Based on NIS 80,81, The measurement uncertainty level with a 95% confidence level were applied. ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced except in full, Without the written approval. ReportNo.:ERI-FCC-0136 Page : 7 of 20 3.3 Sample calculation Conducted emission The field strength is calculated by adding the LISN factor, cable loss from the measured reading. The sample calculation is as follows : FS = MR + LF + CL MR = Meter Reading LF = LISN Factor CL = Cable Loss If MR is 30dB, LISN Factor 1dB, CL 1dB The result (MR) is 30 + 1 + 1 = 32dBuV Radiated emission The field strength is calculated by adding the antenna Factor, cable loss and, Antenna pad subtracting the amplifier gain from the measured reading. The sample calculation is as follows : FS = MR + AF + CL + AT -AG MR = Meter Reading AF = Antenna Factor CL = Cable Loss AT = Antenna Pad AG=Amplifier Gain If MR is 30dB, AF 12dB, CL 5dB, AP 10dB, AG 35dB The result (MR) is 30 + 12 + 5 + 10 –35 = 22dBuV/m ERI Electromagnetic research institute 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA TEL: 82 31 336 1186 FAX : 82 31 336 1184 homepage : This test report shall not be reproduced…
