QDMIFP599TMP3 PLAYER

iFP-500 Series www.iRiverAmerica.com Instruction Manual MP3 PLAYER/FM TUNER Model iFP-500 Series Thank you for your purchase. Please read this manual carefully before using your new player. www.iRiverAmerica.com mood Logic THI SDEVICE COMPLIE SWITH PART 15 OF THE FCC RULE S.OPERATION I S SUBJECT TO THE FOLLOWING TWO CONDITION S:(1) THI SDEVICE SMAY NOT CAU SE HARMFUL INTERFERENCE, AND(2) THI SDEVICE MU ST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there isno guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one ormore of the following measures : - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZEDMODIFICATION STO THI SEQUIPMENT. SUCH MODIFICATION SCOULD VOID THE USER'S AUTHORITY TO OPERATE THEEQUIPMENT. 1 1. GETTING STARTEDCONTENTS............................................................INTERNET..............................................................UNIQUE FEATURE................................................ 1. Getting started...............................................2. Locating the controls....................................3. Basic Operation.............................................4. Convenient Functions...................................5. Using Programs.............................................6. Others............................................................. 1 URL : www.iRiverAmerica.comFind information on our company, products, and customer and technical support. Update your player with firmware downloads. Firmware upgrades offer support for new CODECS and deliver new product features. Consult the product FAQ.Register your iRiver product online so that our Customer Service is able to provide support as efficiently as possible. All contents contained in this manual subject to change without notice to improve ability of this player or according to changing of specification. iRiver Limited does not assume any responsibility for errors or omissions in this document or make any commitment to update the information containedherein.iRiver is a registered trademark of iRiver Limited in the Republic of Korea and/or other countries and is used under license. Microsoft Windows Media and theWindows Logo are trademarks or registered trademarks of MicrosoftCorporation in the United States and /or other countries.All other brand and product names are trademarks of their respectivecompanies or organization. All other product names may be trademarks of thecompanies with which they are associated. 1999-2003 iRiver Limited. All rights reserved. User Interface DesignMulti-Codec Player : Supports MP3, WMA, ASF formats. Firmware Upgrade : Provides the latest updated features via firmware upgrade. Graphic LCD supporting Multiple Languages : iFP-500 Series comes with graphic LCD which can support multiple languages (39 languages). FM Function You can easily listen to FM stations and set your favorite stations by using Auto Preset and Frequency Memory functions. 6 Preset EQ : Normal, Rock, Jazz, Classic, U Bass, Metal Xtreme EQ Xtreme 3D Post DSP Equalizer 5 .Xtreme3D . GUI (Graphic User Interface) Menu SystemEasy Navigation The simple navigation makes it easy to find any song. Supports 8 levels of subfolders, 500 folders total and up to 1500 files at one time. Create your own playlists.MP3 Direct Encoding (not supported on iFP-340): 11.025KHz ~44.1KHz, 8Kbps ~ 320Kbps Record FM Radio, Voice, or line-in from another device Voice record level is automatically controlled by AGC function. Convenient neck strap.Built-in Rechageable battery and Charge by connecting USB 1-1 1-2 2. Locating the ControlsContents...............................................................Front View, Rear View..........................................Side View..............................................................LCD Window......................................................... FRONT VIEWREAR VIEW LCD Window Volume + Volume - NAVI/MENU RESET SIDE VIEW USB Connection Port Hold Earphone MIC LINE IN/OPTICAL OUT STEREO Power ON/OFF / (Play/Stop) MEMORY/EQ A-B (Interval repeat) Mode/REC 3D SOUND 2-1 2-2 Charging indicator LCD Window 2-3 THE ORDER OF SONGS BIT RATE PLAY TIME PLAYBACK MODE BATTERY INDICATOR VOLUME EQUALIZER VISUALIZATION FOLDER NAME SAMPLE RATE PROGRAM FILE FORMAT ARTIST/TITLE NAME HOLD 3. Basic OperationContents.............................................................Basic Operation.................................................Listening to Music.............................................Operating the FM Tuner....................................Recording FM.....................................................Recording Voice.................................................Recording External Audio source.................... 33-1/3-43-5/3-63-7/3-103-113-12/3-133-14/3-17 Click 1. LCD window : Displayed operating status of the player. 2. To select the previous music for MP3 or station for FM. 3. To increase volume.4. To select the next …

Text truncated - open the document above for the full version.

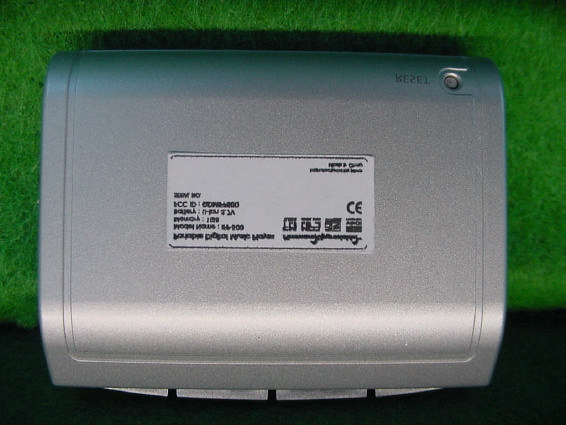

EMI TEST REPORT Emission of electromagnetic disturbance Test Report No. : ERI-FCC03-0049 Equipment : MP3 Player Name of basic model : iFP-599T Family model : iFP-595T, iFP-590T Manufacturer : AV CHASEWAY MFG.FTY. Applicant : iRiver CO., LTD. Tested date : 2003. 7. 16 – 7. 18 Issued date : 2003. 7. 21 Test results : PASS Test Standards : FCC Part 15 Subpart B (Class B) / Verification /digital devices & peripherals Test Procedure and Items: - AC Power line Conducted emissions measurement : ANSI C63.4-1992 - Radiated emissions measurement : ANSI C63.4-1992 Tested by: YOUNG-SIK, KIM Approved by: UK-CHO, RIM The results in this report apply only to the sample tested. This test report shall not be reproduced except in full, without the written approval of ERI Laboratory. ELECTROMAGNETIC RESEARCH INSTITUTE CONTENTS 1. CLIENT INFORMATION 2. LABORATORY INFORMATION 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT 3.2 Additional information about the EUT 3.3 Peripheral equipment 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL 4.1 Operating environment 4.2 Test set-up and test procedures5 4.3 Test instrument 4.4 Test results 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment 5.2 Test set-up 5.3 Test conditions 5.4 Test instrument 5.5 Test results(Test mode: play mode) 5.6 Test results(Test mode: FM tuner) APPENDIX (N/A) ELECTROMAGNETIC RESEARCH INSTITUTE 1. CLIENT INFORMATION The EUT has been tested by request of : Company : iRiver CO., LTD. Address : 8F Posgen VentureTower, 1586-7 Seocho-dong, Seocho-gu, Seoul, Korea Name of contact : H.J. Mun Telephone : +82-2-3019-1723 Facsimile : +82-2-3019-1746 2. LABORATORY INFORMATION The 10m full-anechoic chamber and/or EMC facilities are used for these testing. These facilities were accredited by KOLAS, EK, MIC of Korea and FCC of USA. Address ELECTROMAGNETIC RESEARCH INSTITUTE. 66-6, JEIL-RI, YANGJI-MYUN, YOUNGIN-CITY, KYUNGGI-DO, KOREA Telephone No. : +82-31-336-1186~7 Facsimile No. : +82-31-336-1184 Registered No. KOLAS : 111 EK : J MIC : KR0030 FCC Filing No. : 302567 3. EQUIPMENT UNDER TEST INFORMATION(EUT) 3.1 Identification of the EUT Type of equipment : MP3 Player Model name : iFP-599T Brand name : - Manufacturer : AV CHASEWAY MFG.FTY. Address : Langang Village, Chongguang Town, Baoan District, Shenzhen City, Guangdong, China Telephone : +86-755-708-4671 Facsimile : +86-755-708-5490 Country of origin : CHINA ELECTROMAGNETIC RESEARCH INSTITUTE Rating : 120V, 60Hz 3.2 Additional information about the EUT Class B, Family Models List: Basic Model Variant Model Differential point Remark iFP-595T Flash memory 512MB iFP-599T (1GB) iFP-590T Flash memory 256MB 3.3 Peripheral equipment Defined as equipment needed for correct operation of the EUT. Description Model No. Serial No. Manufacture AC/DC adaptor SEA60N2-16.0 03502395C PT SANKEN INDONESIA Note PC P5010 464307211682 FUJITSU Printer C6427A CN13V1B1SZ HP AC/DC power supply SA41-521K - - Earphone - - - ELECTROMAGNETIC RESEARCH INSTITUTE 4. CONTINUOUS DISTURBANCE VOLTAGE, MAIN TERMINAL : Frequency range 0.15 MHz to 30 MHz 4.1 Operating environment Temperature : 22.0 Relative Humidity : 52.0 % 4.2 Test set-up and test procedures The mains terminal disturbance voltage was measured with the equipment under test(EUT) in a shield room. The EUT was connected to an artificial mains network(LISN) placed on the floor. The EUT was placed on non-metallic table 0.4m above the metallic, grounded floor. The distance to other metallic surface was at least 0.8m. Amplitude measurements were performed with a quasi-peak detector and an average detector. Operation condition: During the test, we played on the record file. 4.3 Test instrument Instrument Model No Serial No. Makers Next cal.date Used Test receiver ESCS30 100021 R&S 2004. 1. 24 ESH3-Z5 827246/008 R&S 2004. 3. 19 L.I.S.N. ESH3-Z5 831887/018 R&S 2004. 3. 19 Shield room 8 6 3.3m/H - - - AC Main LISN Printer EUT Note pc LISN Earphone AC/DC adaptor AC/DC adaptor LISN AC/DC adaptor ELECTROMAGNETIC RESEARCH INSTITUTE 4.4 Test results Date of test: Jul 18, 2003. An overview sweep performed with peak detector & average detector are included in the report as test reports. Frequency Tested LISN Meter Range Freq. Reading Limits Margin QP AV QP AV QP AV [MHz] [MHz] [dBuV] [dBuV] [dBuV] 0.156 H 43.9 30.5 65.7 55.7 21.8 25.2 0.189 H 55.5 44.2 63.7 53.7 8.2 9.5 0.15-30 0.252 H 47.4 36.8 61.1 51.1 13.7 14.3 0.315 H 42.2 30.9 59.3 49.3 17.1 18.4 0.504 H 41.8 34.1 56.0 46.0 14.2 11.9 5.180 H 38.3 26.0 60.0 50.0 21.7 24 5.560 H 40.6 28.0 60.0 50.0 19.4 22 12.360 H 43.1 34.4 60.0 50.0 16.9 15.6 12.960 H 43.4 35.1 60.0 50.0 16.6 14.9 * <5 : mean less than 5dB * Other frequency keep over 20dB margin. ELECTROMAGNETIC RESEARCH INSTITUTE [Hot line] [Neutral line] ELECTROMAGNETIC RESEARCH INSTITUTE 5. RADIATED DISTURBANCE : 30MHz – 1000MHz 5.1 Operating environment Temperature : 22.0 Relative Humidity : 55.0 % 5.2 Test set-up The frequency range investigated was 30 MHz to 1000 MHz. All readings are quasi-peak unless stated otherwise. The half-wave dipole antenna was tuned to the frequency found during Preliminary radiated measurements. The EUT, support equipment and Interconnecting cables were re-configured to the set-up to the producing the Maximum emission for the frequency and were placed on top of a 0.8 meter High non-metallic 1 X 1.5 meter table. The EUT, support equipment, and interconnecting cables were re-arranged and manipulated to maximize each EME emission. The turntable containing the system was rotated the antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. And this device(EUT) was tested in 3 orthogonal planes. The antenna measured both horizontal and vertical polarization. <General test set-up for radiated emissions> 5.3 Operation Conditions During the test, we played on the record file. 5.4 Test instrument ELECTROMAGNETIC RESEARCH INSTITUTE Instrument Model No. Serial No. Makers …
