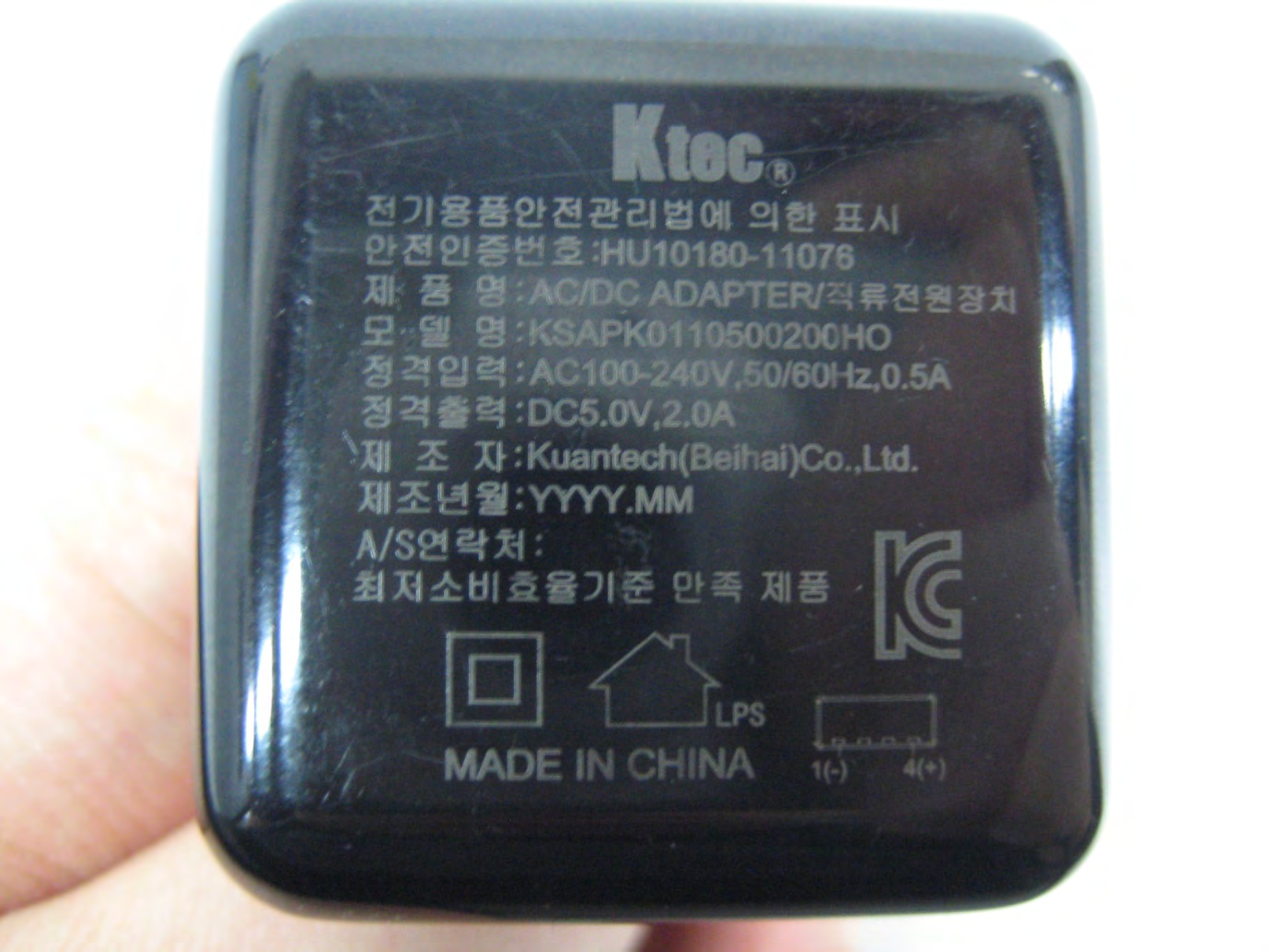

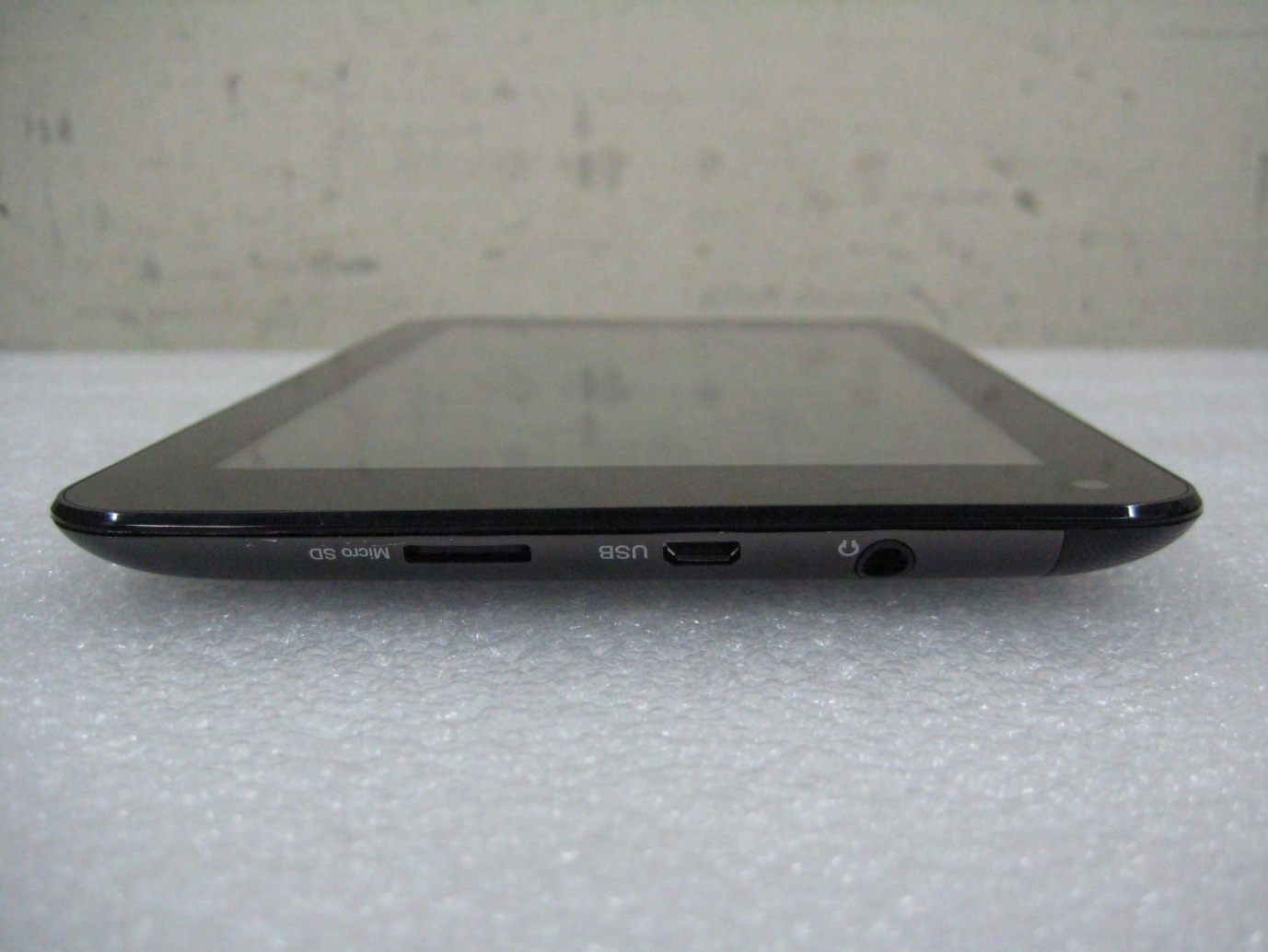

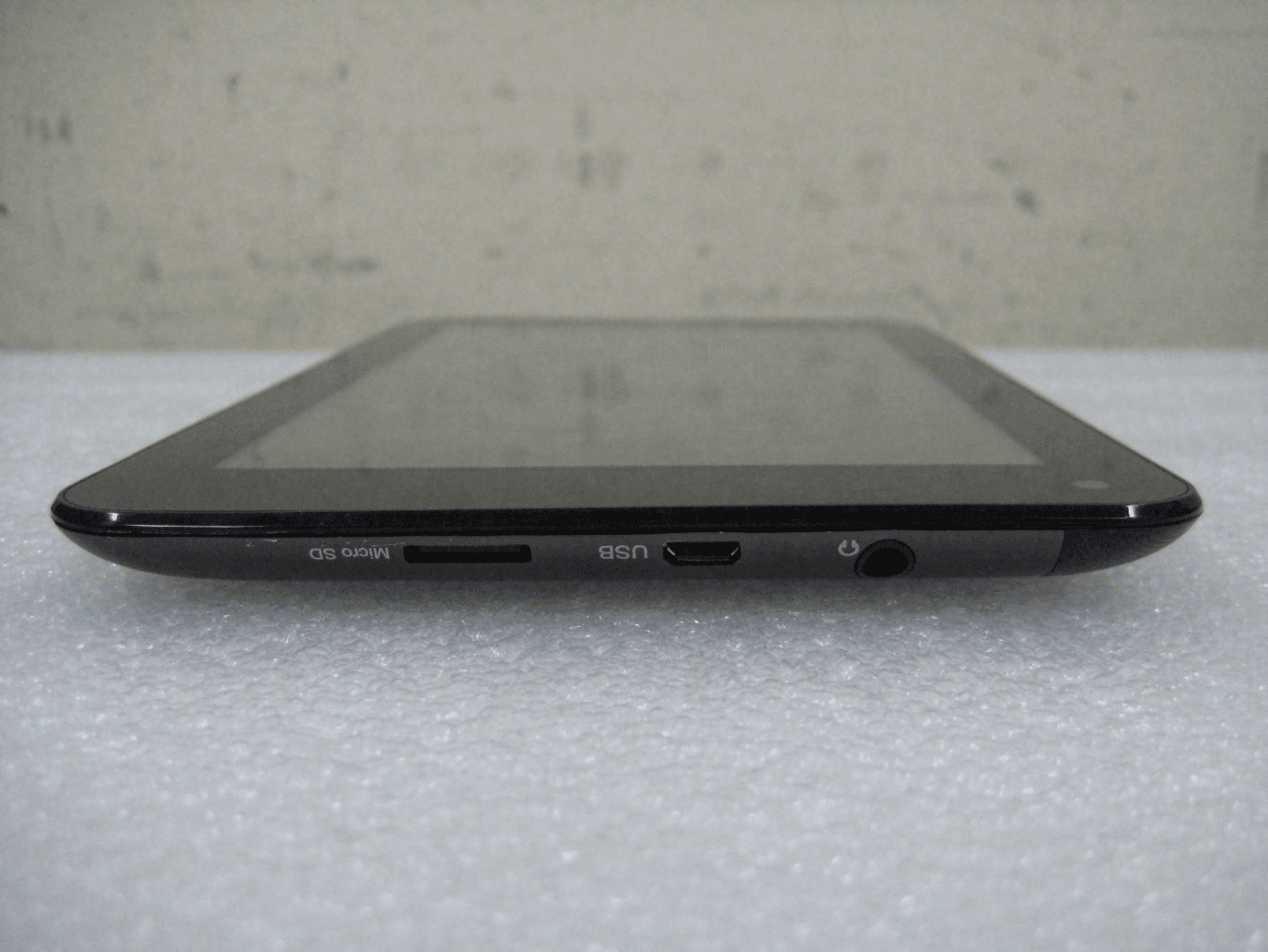

QDMITQ700Portable Multimedia Player

FCC INFORMATION (additional) RF EXPOSURE: The highest measured body SAR value for this device is 1.274 W/Kg.

IRIVER ANDROID TAB / ITQ701 INSTRUCTION BOOK English Before using _01 Addendum / Device Information Safety Notices What's in the Box 02 02 05 Getting started _02 ITQ701 at a Glance Battery/Power Lock/Unlock Touch Screen and Settings How to Operate Screen 06 07 09 10 Basics _03 How to Use Home Screen How to Use Applications/ Widgets How to Enter Texts Connecting to Mobile Disk Connecting to Wireless Network/Bluetooth Installing Applications 11 12 14 15 15 17 Basic operation _04 Multimedia Communication Other Applications 18 19 21 Setting _05 Settings > WIRELESS & NETWORKS Settings > DEVICE Settings > PERSONAL Settings > ACCOUNT Settings > SYSTEM 22 23 25 27 27 More information _06 Troubleshooting Product specifications 30 31 Addendum /Device Information _01 Safety Notices _02 • The contents of this instruction book may differ from the actual product depending on the user's location. • The components and contents of this instruction book are subject to change without prior notice. • Applications or services provided for this product are subject to change or may be suspended by relevant service providers without prior notice. • The execution or use of some applications may be hindered by incompatibility. • Frequent installation and deletion or modification of applications may damage the OS. In this case, the product will not be eligible for exchanges or refund. • Data of applications installed in this product cannot be backed up separately, and may be deleted by resetting, malfunction or after-sales service of the product. • The manufacturer, importer, and agent will not be responsible for contingent damage including injury or other damage due to improper use and operation of this product. • The information contained in this instruction book is based on the current product specifications. All specifications are subject to change without prior notice to the user. • There is no warranty against data loss due to the use of this product. CE Warning ! Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. EN Test Regulation Version ETSI EN 300 328 V1.7.1 ETSI EN 301 489-1 V1.8.1 ETSI EN 301 489-17 V2.1.1 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Warning! When the following safety notices are not observed, serious injury or death may result. Handle built-in battery and power adapter with care. . • Use only iriver-authorized battery to avoid risk of malfunction and explosion. • Use only iriver-authorized power adapter. • Ensure the built-in battery or power adapter are not exposed to strong impact, liquid, excessive heat or crushed, bent or subjected to excessive pressure. • Keep power adapter port away from metal, liquid or other foreign substances. • Insert power adapter firmly. Do not bend, twist or cut a connected USB cable. • If power adapter is damaged or deformed, discontinue use and dispose of in a safe manner. • Store, charge and use only in temperatures between -5 °C and 45 °C . • Attention: Avoid keeping or using this product in a high-temperature or humid environment such as a closed car, sauna, or bath. Keep this product and charger away from liquids. • Never handle this product or power adapter with wet hands. • Do not use this product and power adapter in an environment where they can come in contact with a liquid. • When exposed to a liquid, stop using the charger immediately and disconnect the power adapter from the product. • In the event that the product is exposed to liquids, monitor it carefully but DO NOT attempt to dry it with a hair dryer or microwave oven. Take it to your local service center as soon as possible. • Problems resulting from exposure to liquids will be repaired for a fee, and, in Before using02 Before using03 some instances, may not be repairable. Keep the power turned off in an area or near objects where its use is prohibited. • In any area with a potentially explosive atmosphere, such as at a fueling area, it is safe to keep the power turned off. • Keep the power turned off near complex electronic devices, in airplanes or in hospitals. • Maintain at least 15cm of separation between pacemakers and this product. Turn off this product's power supply if possible when in this environment. • In any other area where the use of this product requires caution, follow the instructions posted in that area. Do not operate or watch this product while driving. • To avoid traffic accidents, operate or watch this product after parking in a safe place. • Fines or penalty points may be imposed in compliance with local traffic regulations for watching videos while driving. • Do not install car-mounted holder or store this product near a car’s airbag. Keep this product out of reach of small children or pets. • Small parts or accessories may present a choking hazard. • Exposure of this product to liquids may result in damage. Avoid using this product during thunder and lightning storms. • Lightening may cause injury and fire. • Disconnect the charger from the power outlet for safe storage. Caution! Failure to follow these safety notices may result in minor injury or damage this product. Do not drop or expose this product to strong impact. • Product’s external surfaces and internal parts may be damaged or other malfunctions may occur. • Keep this product on a flat surface. Do not attempt to disassemble, alter, or repair this product by yourself. • Doing so may cause damage and/or malfunction of the product. • This product may malfunction when OS and software are modified or deleted. • In this case, the product will be repaired for a fee, and, in some instances, may not be repairable. Always store important data separately. • Product malfunction or breakdown may lead to damage or loss of application data. • Data can be lost during after-sales services or upgrading. Remember to back up data before getting after-sales services or upgrading. • i…

Text truncated - open the document above for the full version.

Tel: 82-2-3019-7542 Fax: 82-2-3019-7575 Email: [email protected] Applicant IRIVER LIMITED. Address Iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Declaration of Marketing Name We, IRIVER LIMITED. Hereby declare that the both marketing names as for product name: Portable Multimedia Player and ITQ701 are refer to the same model: ITQ700 Contact us in case of any questions Kind regards, Woo Suk,Kim (Name, Surname, Importer/ Manufacturer) Manager (Position/Title) (Legal Signature)

FCC Confidentiality Request Number: CF303 Version: V05 Date: 21-05-2012 (Permanent or also called long term confidentiality is the normal method to keep certain docuements confidential, and may apply to schematics, block diagrams, operational description and bill of materials.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name IRIVER LIMITED. Address Iriverhouse, 902-5, Bangbae-dong, Seocho-gu, City Seoul Country Republic of Korea request for this certification filing under: Grantee Code Product Number FCC ID: QDM ITQ700 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) 1. Schematics 2. Parts List 3. Block Diagram Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name of client: (this must be a person) Function: Signature: (or official company stamp) Seoul, Korea 2013-03-26 Woo Suk, Kim Manager 4. O perational Description

FCC Short Term Confidentiality Request Number: CF313 Version: V01 Date: 21-05-2012 (With Short term confidentiality, a period of max. 180 days on certain additional exhibits are possible, such as internal/external photos, user manual can test setup photosbet. After expiration of the confidentiality period, these additional exhibits for short term confidentiality become visible in the FCC database for the internet public.) To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name IRIVER LIMITED. Address Iriverhouse, 902-5, Bangbae-dong, Seocho-gu, City Seoul Country Republic of Korea request for this certification filing under: Grantee Code Product Number FCC ID: QDM AK100 to maintain short term confidentiality for a period of 180 days for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) 1. Internal Photos, Exx ternal Photos 2. Test Setup Photo, U ser Manual Above materials crossed contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name of client: (this must be a person) Function: Signature: (or official company stamp) Seoul, Korea 2012-03-26 Woo Suk, Kim Manager

Specification of BT Antenna Antenna Type: PIFA Model Name: WA-C-GO-03-005 Antenna Gain: 2.0dBi Max Frequency Range: 2402~2480MHz Manufacturer: INPAQ Technology Co., Ltd. WE CONNECT WE PROTECT 2 Test Result Total E Plane Total H Plane 2D Date WE CONNECT WE PROTECT 3 Test Result 3D Date WE CONNECT WE PROTECT 4 Test Result 3D Date

Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 28, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 2 of 60 Table of Contents 1. INTRODUCTION .......................................................................................................................................... ４ 2. TEST METHODOLOGY ............................................................................................................................... ５ 3. DESCRIPTION OF DEVICE ......................................................................................................................... ６ 4. DESCRIPTION OF TEST EQUIPMENT ...................................................................................................... ７ 5. SAR MEASUREMENT PROCEDURE ..................................................................................................... １４ 6. DESCRIPTION OF TEST POSITION ....................................................................................................... １６ 7. MEASUREMENT UNCERTAINTY ........................................................................................................... １８ 8. ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS ................................................................................. １９ 9. SAR SYSTEM VALIDATION .................................................................................................................... ２０ 10. SYSTEM VERIFICATION ....................................................................................................................... ２１ 11. RF CONDUCTED POWER MEASUREMENT ....................................................................................... ２２ 12. SAR Test configuration & Antenna Information ................................................................................ ２８ 13. SAR TEST DATA SUMMARY ................................................................................................................ ２９ 14. SAR Measurement Variability and Uncertainty.................................................................................. ３０ 15. SAR Summation Scenario ................................................................................................................... ３１ 16. CONCLUSION ........................................................................................................................................ ３２ 17. REFERENCES ....................................................................................................................................... ３３ Attachment 1. – SAR Test Plots ................................................................................................................ ３４ Attachment 2. – Dipole Verification Plots ................................................................................................. ３８ Attachment 3. – Probe Calibration Data ................................................................................................... ４０ Attachment 4. – Dipole Calibration Data .................................................................................................. ５２ Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 28, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 3 of 60 Version Rev DATE DESCRIPTION June. 20, 2013 First Approval Report 1 June. 28, 2013 Page 6, 31 are revised Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 28, 2013 HCT CO., LTD. 105-1, Jangam-ri, Majang-myeon, Icheon-si,Gyeonggi-do,Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr 4 of 60 1. INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017. The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields,” NCRP Report No. 86 NCRP, 1986, Bethesda, MD 20814. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative of the incremental electromagnetic energy (dW) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (r ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. NOTE: The primary factors that control rate of energy absorption were found to be the wavelength of the incident field in relations to the dimensions and geometry of the irradiated organism, the orientation of the organism in relation to the polarity of field vectors, the presence of reflecting surfaces, and whether conductive contact is made by the organism with a ground plane. Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: Jun…

Text truncated - open the document above for the full version.

IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 1 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. CERTIFICATION TEST REPORT FCC CFR47 PART 15 SUBPART C Test Report File No. 13-IST-0217 ■ Basic □ Alternate Date of Receipt February 20, 2013 Begin of test date February 26, 2013 Date of Issue March 27, 2013 End of test date March 12, 2013 Kind of Product Portable Multimedia Player Basic Model(s) ITQ700 FCC ID QDMITQ700 Applicant IRIVER LIMITED. Address iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Manufacturer IRIVER LIMITED. Address iriverhouse, 902-5, Bangbae-dong, Seocho-gu, Seoul, Korea Test Result ■ Positive Negative Tested By Reviewed By B.O.KO S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report is consists of 41 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co., Ltd. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 2 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. TABLE OF CONTENTS Table of contents 2 Information of test laboratory 3 Product Information 3~4 Measurement Uncertainty, Summary of the test results 5 - Conducted Emissions 6-10 - Peak Power Output 11-14 - Conducted Spurious Emissions & Band Edge 15-21 - 6dB BandWidth 22-25 - Power Spectral Density 26-29 - Radiated Emissions (Radiated Spurious & Restricted Band Edge) 30-40 - Antenna Requirements 41 IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 3 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. INFORMATION OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Gyeonggi-do, 446-599, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 KOLAS Testing No. : KT118 RRA Designation No. : KR0018 FCC Registration No. : 400603 VCCI Member No. : 1739 PRODUCT INFORMATION Portable Multimedia Player 7inch Product Denomination NA Region Korea Chipset CPU NVIDIA T30L Quad-core Cortex-A9 1.3/1.2GHz Audio Codec Yes OS Android Android 4.1 Jelly Bean Memory DRAM 1GB DDR3L eMMC 8GB/16GB Display & TP module LCD size & resolution 7" 1280x800 WXGA IPS TP Type Capactive Multi-touch Yes, 5-points gesture Camera Front 2M (Fixed Focus) Rear N/A Audio I/O Microphone Yes Speakers Stereo, built-in Connectivity WiFi Yes, 802.11b/g/n, TI WL1281 Bluetooth Yes, BT4.0 BLE, TI WL1281 GPS Yes, TI WL1281 3G/LTE Optional Sensors Ambient Light Sensor No Proximity No 3-axis Accelerometer Yes, ST LSM303D e-Compass Yes, ST LSM303D IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 4 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Gyroscope No Codec Audio Check T30L Codec sheet Image Video Buttons Physical Buttons Power, Volume Up, Volume Down Virtual Key (labeled on TP) No Battery Capacity 4000mAH Li-Polymer (base on ID) SIM Card SIM Card Socket Yes, for 3G model External Interfaces MicroSD slot Yes, up to 32GB microSDHC Earphone jack Yes, 3.5mm DC-Jack (charging) No MicroUSB Yes. Slave, support charging thru USB adapter Mini HDMI Yes System Docking Connector No Certifications CE Yes FCC Yes RoHS Yes GMS No Service OTA update Yes Note: All the testing were performed according to the procedures in FCC CFR47 PART 15 SUBPART C IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 5 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Measurement Uncertainty Conducted Emissions U = 2.98 [dB] (Confidence level approximately 95 %, k = 2) Radiated Emissions (Antenna - Horizontal) U = 3.83 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions (Antenna - Verical) U = 4.50 [dB] (Confidence level approximately 95 %, k = 2 ) SUMMARY WLAN(2412 MHz ~ 2462 MHz) Applied Standard : FCC CRF Part 15 Subpart C Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the Following standards:  FCC Part 15 Subpart C § 15.247  FCC KDB Publication No. 558074 D01 DTS Meas. Guidance v03r01  FCC TCB Workshop 2013, April 9.  ANSI C63.4-2003 and ANSI C63.10-2009 Standard Section Description result remark 15.207 AC Conducted Emission Pass Meet the requirements 15.209 Field Strength of Harmonics Pass Meet the requirements 15.247(b) Peak Power Output Pass Meet the requirements 15.247(d) Conducted Band Edges Pass Meet the requirements Conducted Spurious Emission Pass Meet the requirements Radiated Band Edges Pass Meet the requirements Radiated Spurious Emission Pass Meet the requirements 15.247(a)(2) 6dB Bandwidth Pass Meet the requirements 15.247(e) Power Spectral Density Pass Meet the requirements 15.203 & 15.247(b) Antenna requirement - Meet the requirements IST Co., Ltd. TEST REPORT NO. : 13-IST-0217 6 of 41 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80  80 80 40  80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains netwo…

Text truncated - open the document above for the full version.

Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 20, 2013 SAR Test Setup Photographs HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr １ of 5 Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 20, 2013  Test Setup Photo HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ２ of 5 Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 20, 2013  Test Setup Photo(Rear) [Distance of 0.0 cm from the EUT] HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ３ of 5 Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 20, 2013  Test Setup Photo (Bottom) [Distance of 0.0 cm from the EUT] HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ４ of 5 Report No.: HCTA1306FS05 FCC ID: QDMITQ700 Date of Issue: June 20, 2013  Test Setup Photo (Left) [Distance of 0.0 cm from the EUT] HCT CO., LTD. 74, Seoicheon-ro 578 beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, Korea 467-811 TEL: +82 31 645 6300 FAX: +82 31 645 6401 www.hct.co.kr ５ of 5
