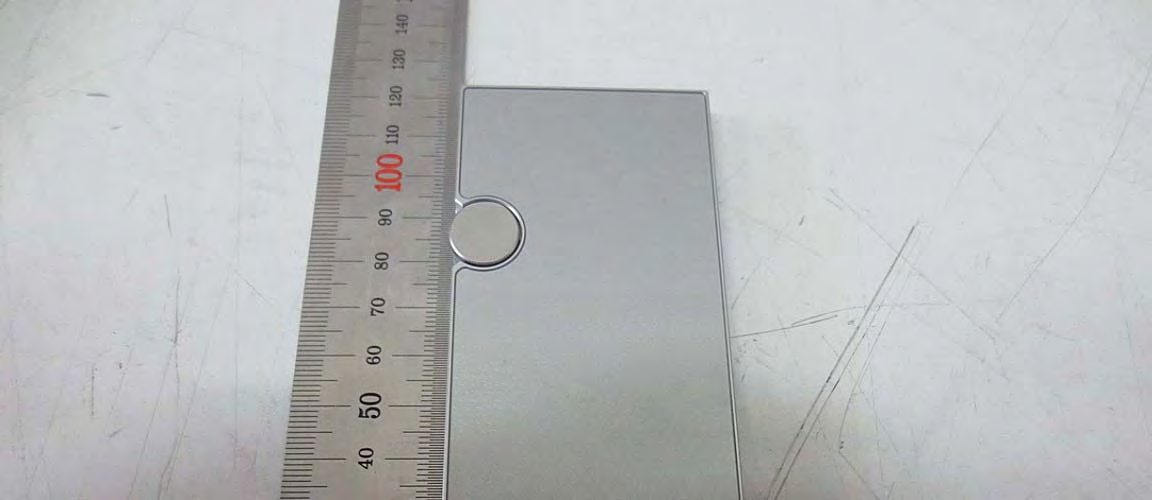

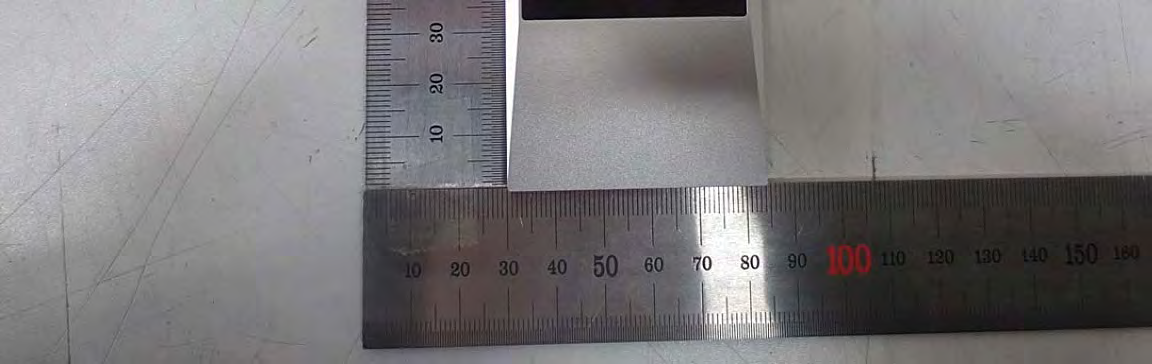

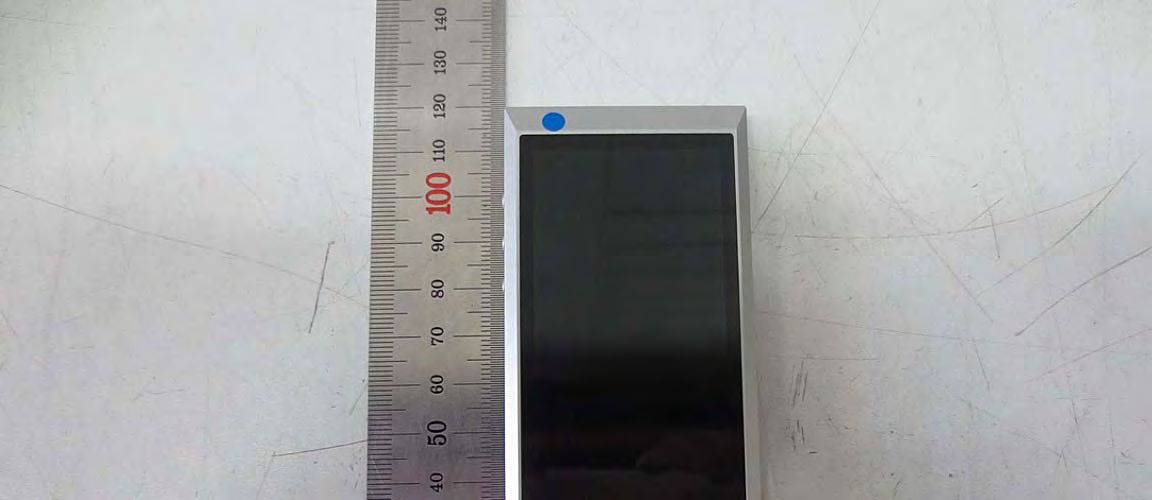

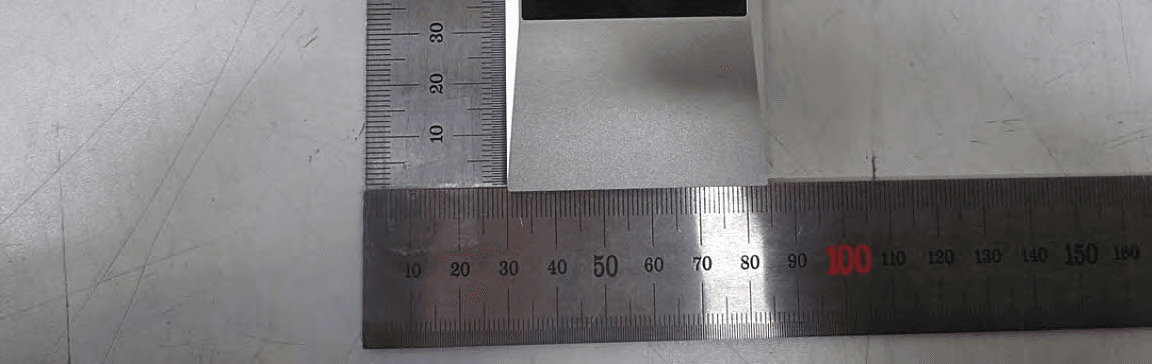

QDMPPE11Portable Music Player

INSTRUCTION BOOK AK Jr User Guide Components Names of parts Power supply management Connecting Upgrading the firmware 02 03 04 05 10 Start _01 Basic operations Listening to the music USB DAC Functionality Using Bluetooth Settings 11 11 14 17 19 Using the Device _02 Safety cautions Problem-solving Copyright Certification Registered trademark Escape clause Specifications 21 22 24 25 25 25 26 Miscellaneous _03 CONTENTS User Guide AK Jr Quick Start Guide & Warranty Card Micro SD Card Slot Cover Protective film: It protects the appearance of the product. Micro USB cable: You can connect the product to the computer and charge it. Quick start guide: It describes the basic method of using the product. Warranty Card: Please keep the product warranty card in a safe place for use in the event your product needs service. Micro SD Card Slot Cover: When there is no micro SD card, this cover protects the slot. It is installed in the product by default. User guide: Download the user guide from [Support > download in http://www.astellnkern. com/]. Components may be changed without prior notice to improve the performance or quality of the product. Components 2 sheets of protective film Start 02 Micro USB cable Play/ Pause Next/ Fast forward Previous/ Rewind Volume Micro SD card slot Touch LCD Earphone terminal: Connect the earphone and output sound through the earphone. Power: short press- Turns the screen on or off. Long press- Turns the product on and off. Micro USB terminal: Connect to a computer or charge the device. Previous/Rewind: Play the previous song or restart the song. Long press- Rewind. Play/Pause: Play or Pause a song. Long press- Display the playback screen. Next/Fast Forward: Skip to the next song. Long press - Fast forward. Touch LCD: Display the screen, and touch the screen to start. Micro SD card slot: Insert the micro SD card to view saved files. Volume: Control the volume by turning the wheel. Start 03 User Guide The appearance of the product, printed and engraved information may vary depending on the model. Names of parts EarphonePower Micro USB terminal User Guide This device has an automatic shutdown feature to reduce battery consumption. The device will turn off after a defined period when there is no user input according to the [ - Power settings - Auto power off]. (See page 20.) This device has an automatic timeout feature to reduce battery consumption. The screen will turn off after a certain period when there is no user input according to the [ - Power settings - Screen Timeout]. (See page 20.) When you use the reset function, the current time and memory data will not be deleted. Do not use the reset function while the product is in use. It may seriously damage the memory. Turn on/off the screen 1. When the screen is turned off, press the [ ] key to turn it on. 2. If you press the [ ] key again, the screen will be turned on. Using the reset function 1. If the product malfunctions or stops while in use, press the [ ] key for more than 10 seconds to turn it off. Then you can turn it back on and use it. Turn on/off 1. Long press the [ ] button to turn on the device. 2. When the device is turned on, press and hold the [ ] key to turn it off. Start 04 Power supply manage- ment Start 05 Connecting Connecting the earphone 1. Connect the earphone to the earphone terminal of the product. User Guide If you connect it to the PC for charging, the charging time may vary depending on whether it is turned On or Off. If you use a separate 5V 2A output adapter to charge it, it will take up to 4 hours. (Assuming full discharge and power OFF) If the device is On and/or being used while charging, the charge time may be longer or the battery may not fully charge. Charging with the device turned Off is recommended. The device may not be charged if the PC or USB connection goes into standby/sleep mode. The device may charge slowly or not charge at all in extreme temperatures. Charging in a room-temperature setting is recommended. The built-in battery will gradually lose capacity over time according to the number of charges/discharges. Check if it is connected to the high-power USB 2.0 port. A low-powered USB port (i.e. keyboard or USB hub without a dedicated power supply) will increase the charge time. Do not use any Micro USB cable other than the one provided with the product. It may cause malfunction. Charging 1. Turn on the computer. 2. If you use a Micro USB cable to connect the product to the computer, the built-in battery will be charged automatically. Connect the computer and the product when all functions are stopped. Do not use any Micro USB cable other than the one provided with the product. It may cause malfunction. Please connect it to the high-power USB 2.0 port. If you connect the product to a keyboard or a USB hub without its own power supply, it may not be connected to the computer. Only the FAT 32 file system is supported, and if you format the product, please use the format function of the device (See [System information] on page 20 ). MAC users must use the format function of the device to format it. The device may fail to recognize files at times. User Guide Start 06 Connecting to a computer 1. Turn on the product and computer. 2. When you use a Micro USB cable to connect the product and the computer, the connection mode selection window will be displayed on the screen. Charging and playback: You can play back while charging the product. Connect removable disk: It can transmit data while connected to a computer. Using it as USB DAC: You can listen to music from a PC on the device. Start 07 An icon may be hidden in the task bar depending on the operating system like Windows XP. When you click the hidden icon, it will be displayed. If application programs like Windows Explorer or Windows Media Player are working, you may not be able to safely remove it. Safely remove it after exiting all application programs. If the hardware is not safely removed, safely remove it again a little l…

Text truncated - open the document above for the full version.

To whom it may concern: We (IRIVER LIMITED.) confirm the below. 1) Applied Model Product: Portable Music Player Model No.: PPE11 2) Because the average output power is so low, the SAR tests is exempted, even though it is the portable device. - Average Output Power is less than 6.39mW. 3) Part 15B was applied under the DoC procedure. Please refer to the issued test report. . - Test Report No.: 15IST-0182 If any other question, please feel free to contact with me. Sincerely, Woo-Suk, Kim / Manager IRIVER LIMITED.

Date : Jan. 10, 2014 Rev : 2.1 HACS-F003 FCC Confidentiality Request Letter HCT America LLC ([email protected]) 44364 S. Grimmer Blvd. Fremont, CA 94538 TEL: +1.510.933.8848, Fax: +1.510.933.8849 Page 1 of 2 This document is electronically controlled. Hard copy documents are uncontrolled. Please check all hard copies against the controlled electronic copy to ensure validity. This document is the confidential property of HCT America LLC. It may not be forwarded or reproduced in whole or in part without written permissions from HCT America LLC FCC Confidentiality Request Letter HACS-F003 FCC Confidentiality Request Letter Rev : 2.1 DATE : April 21, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD SUBJECT : Request for Confidentiality for FCC ID : QDMPPE11 We hereby request confidential treatment of the information accompanying this application as outlined below: LONG-TERM AND SHORT-TERM CONFIDENTIAL LIST LONG-TERM CONFIDENTIAL Exhibit Description 1 Block Diagram 2 Schematics 3 Part List 4 Operational Description SHORT-TERM CONFIDENTIAL (180 DAYS) 5 Internal Photos 6 Test Setup photos 7 User Manual 8 External Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signed by: Company Name : IRIVER LIMITED. Company Address : Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Contact Person Name/Title (in print) : Kim, Woo-Suk / Manager

PPE11_내부면 PPE11_ 메인보드 전 면 PPE11_ 메인보드 후 면 PPE11_ USB 충전보드 전면 PPE11_ USB 충전보드 후 면 PPE11_ 베터리 PPE11_ 안테나

To whom it may concern: We (IRIVER LIMITED.) confirm the below. 1) Applied Model Product: Portable Music Player Model No.: PPE11 2) Because the average output power is so low, the SAR tests is exempted, even though it is the portable device. - Average Output Power is less than 6.39mW. 3) Part 15B was applied under the DoC procedure. Please refer to the issued test report. . - Test Report No.: 15IST-0182 If any other question, please feel free to contact with me. Sincerely, Woo-Suk, Kim / Manager IRIVER LIMITED.

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 1 of 47 CERTIFICATION TEST REPORT FCC CFR47 Part 15 Subpart C Test Report File No. 15-IST-0145 ■ Basic □ Alternate Date of Receipt February 26, 2015 Begin of test date March 09, 2015 Date of Issue March 27, 2015 End of test date March 13, 2014 Kind of Product Portable Music Player Model(s) PPE11 FCC ID QDMPPE11 Applicant IRIVER LIMITED. Address Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Manufacturer IRIVER LIMITED. Address Iriverhouse, 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Korea Test Result ■ Positive □ Negative Tested By Reviewed By B.O. KO. S.J.CHO Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart C. - The test report is consists of 47 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST Co., Ltd. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 I assume full responsibility for accuracy and completeness of these data. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 2 of 47 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Measurement Uncertainty 3 Product information 4~5 Summary 6 - Conducted Emissions 7~11 - Peak Output power 12~14 - Conducted Spurious Emissions & Band edge 15 - Conducted Spurious Emissions 16~17 - Conducted Band Edge 18~19 - 20dB BandWidth & Channel Separation & Occupied Bandwidth 20 - 20dB BandWidth 21~22 - Channel Separation 23~24 - Occupied BandWidth 25~26 - Number of hopping frequency 27~28 - Time of occupancy(Dwell time) 29~30 - Radiated Emissions 31~33 - Radiated Emissions, 9KHz to 30MHz(Magnetic Field Test) 34 - Radiated Spurious Emissions 35~38 - Radiated Restricted Bands Emissions 39~46 - Antenna requirements 47 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 3 of 47 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. 52-20, Sinjeong-ro 41beon-gil, Giheung-gu, Yongin-si, Gyeonggi-do, Korea TEL: +82 31 326 6700 FAX: +82 31 326 6797 Measurement Uncertainty Conducted Emissions(#1) U = 2.59 [dB] (Confidence level approximately 95 %, k = 2) Conducted Emissions(#2) U = 2.59 [dB] (Confidence level approximately 95 %, k = 2) Radiated Emissions 30 MHz – 1000 MHz (Antenna – Horizontal) U = 3.02 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions 30 MHz – 1000 MHz (Antenna – Vertical) U = 3.68 [dB] (Confidence level approximately 95 %, k = 2 ) Radiated Emissions Above 1GHz U = 4.20 [dB] (Confidence level approximately 95 %, k = 2) VCCI Registration No. : 1739 FCC Registration No. : 400603 KCC Registration No. : KR0018 KOLAS Registration No. : KT118 IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 4 of 47 PRODUCT INFORMATION Portable Music Player(PPE11) General Specifications Product Name AK Jr(Portable Music Player) Model PPE11 Body Color Silver Body Material Aluminum Display 3.1inch WQVGA (240x400)/Touch Screen Supported Audio Formats WAV,FLAC,WMA,MP3,OGG,APE(Normal, High, Fast) AAC,ALAC,AIFF,DFF,DSF Sample rate FLAC,WAV,ALAC,AIFF:8kHz~192kHz(8/16/24bits per sample) DSD:DSD64(1bit 2.8MHz),Stereo(DSD to PCM) Output Level 2.0Vrms DAC Wolfson WM8740 x 1(Single DAC) Decoding Support up to 24bit/ 192kHz Bit to Bit Decoding Input USB Micro-B input(for charging & data transfer (PC&MAC))/ Connection Mode: UMS(USB Mass Storage) Outputs PHONES(3.5mm) Bluetooth V4.0(Basic+EDR)(A2DP, AVRCP) Dimensions 2.08”(52.9mm)[W]x4.60”(117mm)[H]x0.35”(8.9mm)[D] Weight 3.28oz (93g) Feature Enhancements Firmware upgrade supported(UMS-Firmware File Copy Type) Memory Built-in Memory: 32GB[NAND] External Memory: microSD(Max. 32GB) x1 Battery 1450mAh 3.7V Li-Polymer Battery Supported OS Windows XP, Windows 7, 8(32/64bit) MAC OS X 10.7. and up IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 5 of 47 RF Specifications Frequency Range 2402 MHz ~ 2480 MHz Modulation Technologies GFSK, pi/4DQPSK, 8DPSK Number of Channels 79ch (1MHz span) Antenna Gain 2.39 dBi Operation temperature -10°C ~ 50°C Power Supply DC 3.7 V Test Mode : Mode 1: Transmit(DH5) Mode 2: Transmit(3DH5) 1. DH5 is for GFSK modulation, and 3DH5 is for Pi/4 DQPSK 2. Regards to the frequency band operation; the highest that was included the lowest, middle and highest frequency of channel were selected to perform the test, and then shown on this report. - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 6 of 47 SUMMARY Description of Test FCC Rule Parts Results AC Conducted Emission 15.207 Compliant Carrier Frequency Separation 15.247(a)(1) Compliant 20 dB Bandwidth 15.247(a)(1)(ii) or (iii) Compliant Time of Occupancy 15.247(a)(1)(ii) or (iii) Compliant Number of Hopping Frequencies 15.247(a)(1)(ii) or (iii) Compliant Conducted Maximum Peak Output Power 15.247(b)(1) Compliant Spurious RF Conducted Emission 15.247(d) Compliant Spurious Radiated Emission 15.247(d), 15.209 Compliant Out-of- Band Emission 15.247(d) Compliant Occupied Bandwidth Compliant IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 15-IST-0145 7 of 47 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80  80 80 40  80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 Conducted Emissions: The measurement were performed over the frequency range of 0.15 MHz to 30 MHz using a 50 Ω /50 uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10 kHz or for "quasi-peak" & “Average” within a bandwidth of 9 KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1 m X 1.5 m wood…
