QDMPPS21SR25

INSTRUCTION BOOK SR25 User Guide Package Contents Product Overview Power Management Charging Connections Firmware Updates 02 03 05 06 07 13 Getting Started _01 Basic Operations Home Screen Notification Bar Using Open APP Service AK CONNECT Listening to Music Playlist Management USB DAC Installation How to Use USB Audio CD Ripping AK CD-Player Car Mode Settings Connecting to Wi-Fi Using Bluetooth Equalizer Setup Using the Device _02 Safety Pre-Cautions Troubleshooting Copyright Certifications Registered Trademarks Disclaimers Specifications 14 18 20 23 24 30 33 36 37 38 40 41 42 48 49 51 54 56 57 58 59 60 61 Miscellaneous _03 CONTENTS User Guide Contents may be changed without prior notice to improve the performance or quality of the product. Package Contents Getting Started 02 Protective Film: Protect the device and its screen. microSD Card Slot Cover: The cover is used to protect the microSD card slot when not in use. It is installed in the product by default. USB Type-C Cable: For charging and data transfer. Quick Start Guide: Basic overview of device functionality. Warranty Card: Provides warranty details for your device. Maintain a copy of this card since it may be required for future technical support requests. User Guide: The User Guide can be downloaded from the Astell&Kern website. [http://www.astellnkern.com Support > Download]. Quick Start Guide & Warranty Card USB Type-C CablemicroSD Card Slot Cover Protective FilmSR25 USB Type-C Port: - DC Power symbol. For charging and data transfer. microSD Card Slot: - microSD Card Slot symbol. Insert a microSD card to access its files. 3.5mm Unbalanced Port: - 3.5mm Unbalanced symbol. For audio output, connect earphones or headphones that utilize a 3.5mm jack. Getting Started 03 User Guide The appearance of the product, as well as the printed and engraved information, may vary depending on the model. Product Overview Previous/ Rewind Next/ Fast-Forward Play/Pause USB Type-C Port 3.5mm Unbalanced Port LCD Touchscreen Home Button Volume Power 2.5mm Balanced PortmicroSD Card Slot 5V 2A User Guide Getting Started 04 Power: - Power symbol. Short press - Turns the screen on or off. Press and hold - Turns the device on or off. 2.5mm Balanced Port: - 2.5mm Balanced Port symbol. For audio output, connect earphones or headphones that utilize a 2.5mm jack. Previous/Rewind: Short press - Play the previous song or restart the current song. Press and hold - Rewind the current song. Play/Pause: Play or pause the current song. Next/Fast-Forward: Short press - Play the next song. Press and hold - Fast-forward the current song. Volume: Turn the wheel to adjust the playback output volume level. LCD Touchscreen: Display screen with touch control features. Home Button: Press to return to the Home Screen. Getting Started 05 User Guide Resetting the device will not affect stored data or time settings. Do not use the reset function while the product is in use. Doing so may corrupt the data on the device. This device has an automatic timeout feature to save battery power. The screen will turn off if there is no user input during the period defined in [Menu - Settings - Timer Settings - Screen Timeout]. (See Page 46) Reset Function 1. In case of unexpected device failure or freeze, press and hold [Power] for 7 seconds to force a shutdown. The device can then be restarted after the shutdown is complete. Turning the Screen On/Off 1. While the screen is on, press the [Power] button to turn off the screen. 2. Press [Power] button again to turn it on. This device has an automatic shutdown feature to save battery power. The device will turn off if there is no user input during the period defined in [Menu - Settings - Timer Settings - Auto Power Off] (See Page 46) Powering the Device On/Off 1. Press and hold the [Power] button to turn on the device. 2. While the device is on, press and hold the [Power] button to shut down the device. A confirmation message will appear. 3. Press [OK] to turn off the device. Power Manage- ment User Guide Getting Started 06 Charging via USB Wall Adapter 1. Commercially available 5V 2A output adapters may be used for charging. Charging Charging time: Approx. 4.5 hours (Fully discharged, Power-off, 5V 2A adapter) Using a 9V and 12V adapter will not charge the device and may cause malfunctions. The manufacturer shall not be responsible for problems caused by the use of adapters that do not adhere to the recommended specifications. Getting Started 07 User Guide Connec- tions 3.5mm Unbalanced Port 1. Connect earphones or headphones to the 3.5mm unbalanced port. 2.5mm Balanced Port 1. Connect earphones or headphones to the 2.5mm balanced port. OR OR Getting Started 08 User Guide Connecting to a Balanced Audio Device 1. Connect to an external audio device by using the 3.5mm unbalanced port and 2.5mm balanced port. Unbalanced Port (Ground) Balanced Port (LR) Getting Started 09 User Guide Connecting to a Computer 1. Turn on the device and your computer. 2. Use the USB Type-C cable to connect the device to a computer in accordance with settings in [Menu - Settings - USB Mode]. [Default] Media Device (USB Drive): Transfer files from a computer to the device. DAC Input: Listen to music on a connected computer through the device. (See Page 37) Mac users need to download and install Android File Transfer from the Astell&Kern website. [http://www.astellnkern.com > Support > Download] For an optimal connection, quit any unnecessary programs before connecting the device to the computer. Do not use cables other than the USB Type-C cable provided with the device. Doing so may cause malfunctions. Use USB 2.0 only on Mac. Type-C-to-Type-C cable is recommended when connecting with a MAC that supports Type-C port. Getting Started 10 User Guide Copy Files (Folders) to the Device 1. To copy files/folders from your computer, select the desired files/folders and drag & drop them into the device folder. Ensure the USB Type-C cable is properly connected. Turning off th…

Text truncated - open the document above for the full version.

QA-FR-170-B Company Name: DREAMUS COMPANY Add: 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Republic of Korea Tel: 82-2-3019-7640 Fax: 82-2-3019-7576 Email: [email protected] FCC Authorization Date: February 7, 2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, DREAMUS COMPANY, the undersigned, Hereby authorizes KCTL Inc. to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by KCTL Inc. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Client’s signature : Client’s name & title : Kim, Woo-Suk & Deputy General Manager

QA-FR-172-A DREAMUS COMPANY 5, Bangbae-ro 18gil, Seocho-gu, Seoul, Republic of Korea Tel +82-2-3019-7514 / Fax +82-2-3019-7575 FCC Confidential Authorization February 7, 2020 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: QDMPPS21 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, DREAMUS COMPANY hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description As well as short-term confidential treatment of information accompanying this application as outlined below:  Internal Photos  User’s Manual  External Photos  Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Client’s signature : Client’s name & title : Kim, Woo-Suk & Deputy General Manager

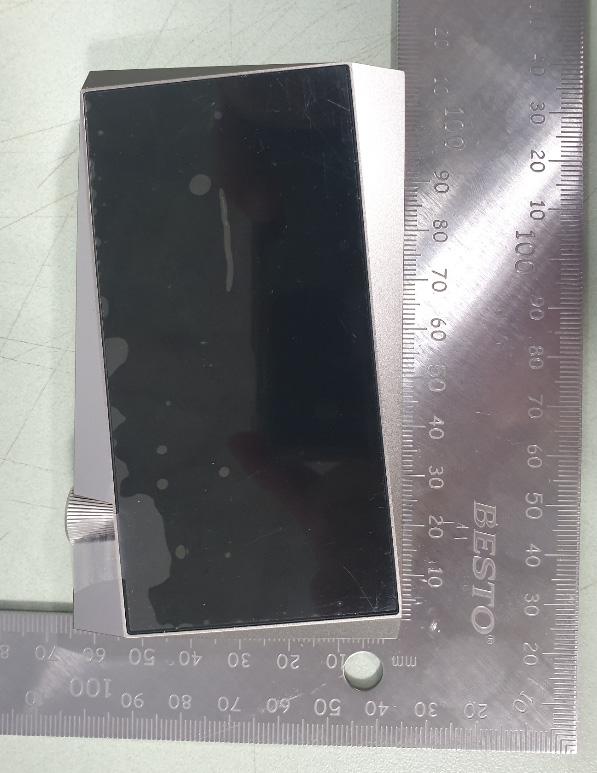

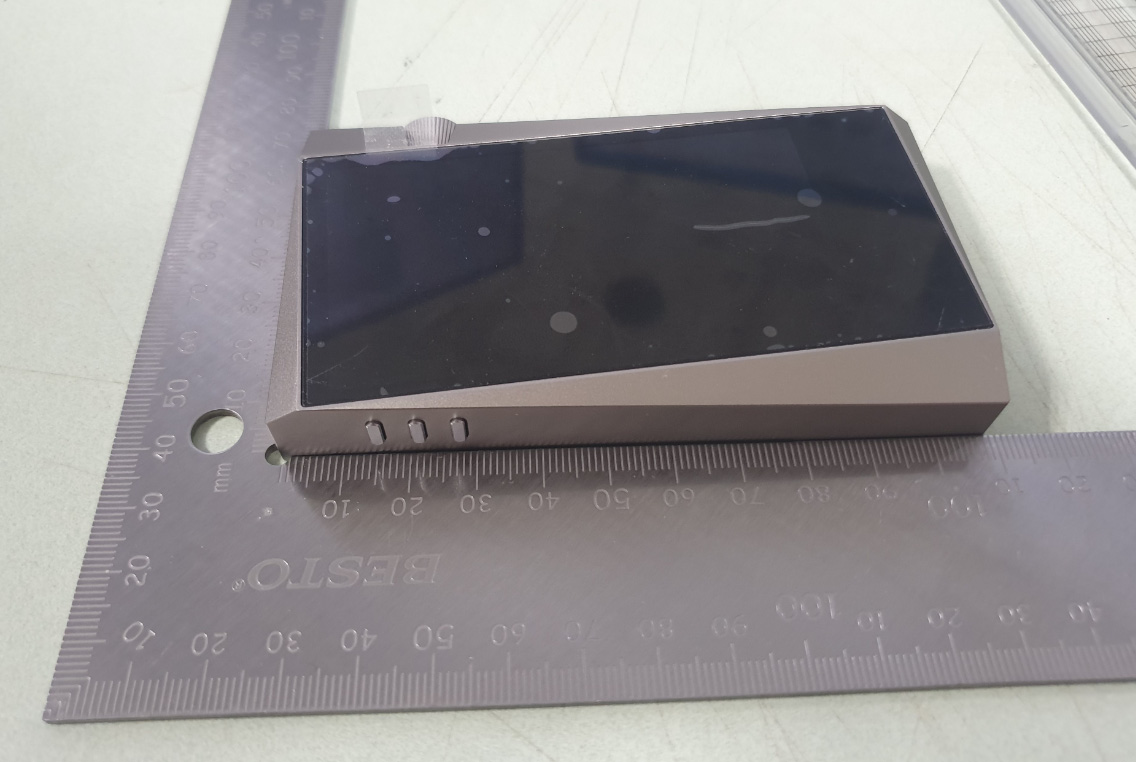

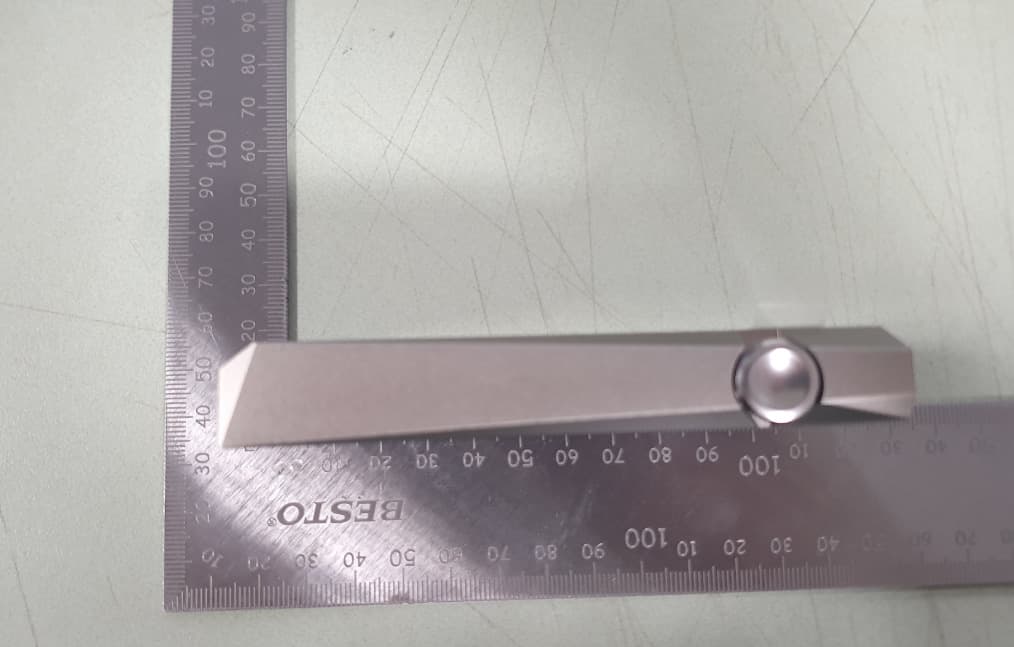

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

<Label design & location>

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT PCB Antenna PCB Antenna http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

verify No.552537835889 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SPF0006 Page (2) of (52) KCTL-TIA002-004/2 Report revision history Date Revision Page No 2020-02-07 Initial report - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KOLAS accreditation. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SPF0006 Page (3) of (52) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/2 CONTENTS 1. General information .................................................................................................................................. 4 2. Device information .................................................................................................................................... 5 3. Specific Absorption Rate ........................................................................................................................ 9 4. SAR Measurement Procedures ........................................................................................................ 10 5. RF Exposure Limits ............................................................................................................................... 11 6. FCC SAR General Measurement Procedures ............................................................................ 12 7. RF Average Conducted Output Power........................................................................................... 15 8. System Verification ................................................................................................................................ 17 9. SAR Test Results ................................................................................................................................... 19 10. SAR Measurement Variability ............................................................................................................ 20 11. Measurement Uncertainty ................................................................................................................... 21 12. Test Equipment Information ............................................................................................................... 22 13. Test System Verification Results ...................................................................................................... 23 14. Test Results .............................................................................................................................................. 24 Appendixes List .................................................................................................................................................. 25 Appendix A. Calibration certificate .............................................................................................................. 26 Appendix B. SAR Tissue Specification ...................................................................................................... 45 Appendix C. #Antenna Location & Distance ........................................................................................... 46 Appendix D. EUT Photo .................................................................................................................................. 47 Appendix E. Test Setup Photo ...................................................................................................................... 50 End of test report ............................................................................................................................................... 52 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SPF0006 Page (4) of (52) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/2 1. General information Client : DREAMUS COMPANY Address : 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Republic of Korea Manufacturer : DREAMUS COMPANY Address : 5, Bangbae-ro 18-gil, Seocho-gu, Seoul, Republic of Korea Contact Person hyungsukWon / [email protected] Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-3327, G-198, C-3706, T-1849 Industry Canada Registration No. : 8035A KOLAS No.: KT231 1.1 Report Overview This report details the results of testing carried out on the samples listed in section 2, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this test report is used in any configuration other than that detailed in the test report, the manufacturer must ensure the new configuration complies with all relevant standards and certification requirements. Any mention of KCTL Inc. Wireless lab or testing done by KCTL Inc. Wireless lab made in connection with the distribution or use of the tested product must be approved in writing by KCTL Inc. Wireless lab. The information provided by the manufacturer is marked “#” in front of the section. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Kore…

Text truncated - open the document above for the full version.

verify No.801305788517 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (2) of (60) KCTL-TIR001-003/2 Report revision history Date Revision Page No 2020-02-07 Initial report - 2020-02-14 Updated 39, 43, 45, 49, 59 This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KOLAS accreditation. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (3) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 CONTENTS 1. General information ...................................................................................................... 4 2. Device information ........................................................................................................ 4 2.1. Accessory information ............................................................................................ 5 2.2. Frequency/channel operations ................................................................................ 5 2.3. Duty Cycle Correction Factor .................................................................................. 6 3. Antenna requirement .................................................................................................... 7 4. Summary of tests .......................................................................................................... 8 5. Measurement uncertainty ............................................................................................. 9 6. Measurement results explanation example ................................................................ 10 7. Test results ................................................................................................................. 11 7.1. Maximum peak output power ................................................................................ 11 7.2. Peak Power Spectral Density ............................................................................... 14 7.3. 6 dB Bandwidth(DTS Channel Bandwidth) ........................................................... 19 7.4. Spurious Emission, Band Edge and Restricted bands .......................................... 27 7.5. Conducted Spurious Emission .............................................................................. 51 7.6. AC Conducted emission ....................................................................................... 58 8. Measurement equipment ............................................................................................ 60 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (4) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 1. General information Client : DREAMUS COMPANY Address : 5, Bangbae-ro 18gil, Seocho-gu, Seoul, Republic of Korea Manufacturer : DREAMUS COMPANY Address : 5, Bangbae-ro 18gil, Seocho-gu, Seoul, Republic of Korea Laboratory : KCTL Inc. Address : 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Accreditations : FCC Site Designation No: KR0040, FCC Site Registration No: 687132 VCCI Registration No. : R-20080, G-20078, C-20059, T-20056 Industry Canada Registration No. : 8035A KOLAS No.: KT231 2. Device information Equipment under test : SR25 Model : PPS21 Frequency range : 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth(BDR/EDR)) 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n HT20) Modulation technique : Bluetooth(BDR/EDR)_ GFSK, /4DQPSK, 8DPSK WIFI(802.11b/g/n20)_DSSS, OFDM Number of channels : Bluetooth(BDR/EDR)_79ch WIFI(802.11b/g/n20)_11ch Power source : DC 3.7 V Antenna specification : PCB Antenna Antenna gain : -0.393 ㏈i (Bluetooth, WIFI 2.4 ㎓) Software version : 1.0 Hardware version : ES Test device serial No. : N/A Operation temperature : -10 °C ~ 50 °C KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (5) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 2.1. Accessory information Equipment Manufacturer Model Serial No. Power source Li-ion polymer Battery HUI ZHOU EVERPOWER TECHNOLOGY PL685065 - DC 3.7 V, 3 150 ㎃ 2.2. Frequency/channel operations This device contains the following capabilities: Bluetooth(BDR/EDR), WIFI(802.11b/g/HT20) Ch. Frequency (㎒) 01 2 412 . . . . 06 2 437 . . . . 11 2 462 Table 2.2.1. 802.11b/g/n(HT20) mode KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (6) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 2.3. Duty Cycle Correction Factor - 802.11b Note 1) : period : 8.706 ㎳, On time : 8.605 ㎳ Note 2) : DCCF = 10 log(1 / x) = 10 log(1/0.987) = 0.05 ㏈, x = 8.605/8.706 = 0.988 Note 3) : 802.11b is a continuous transmission (duty cycle >= 98 %) - 802.11g Note 1) : period : 1.5372 ㎳, On time : 1.4182 ㎳ Note 2) : DCCF = 10 log(1 / x) = 10 log(1/0.923) = 0.35 ㏈, x = 1.4182/1.5372 = 0.923 Note 3) : 802.11g is a non-continuous transmission (duty cycle < 98 %) KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF003…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (39) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 802.11g 1 Channel Frequency Pol. Reading Antenna Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 389.95 1) V 53.18 31.88 -29.04 - 56.02 74.00 17.98 4 826.75 1) V 61.94 33.93 -53.66 - 42.21 74.00 31.79 7 237.38 H 61.11 35.40 -52.97 - 43.54 74.00 30.46 Average Data 2 389.95 1) V 41.10 31.88 -29.04 0.35 44.29 54.00 9.71 Average data Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (40) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (41) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 6 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) 1) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 4 873.88 H 59.80 33.95 -54.99 - 38.76 74.00 35.24 7 312.59 V 60.36 35.40 -52.68 - 43.08 74.00 30.92 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (42) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (43) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 11 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 483.71 1) V 52.68 32.07 -29.21 - 55.54 74.00 18.46 4 925.08 1) V 61.87 33.97 -55.29 - 40.55 74.00 33.45 7 385.55 1) V 60.67 35.40 -52.41 - 43.66 74.00 30.34 Average Data 2 483.71 1) V 38.36 32.07 -29.21 0.35 41.57 54.00 12.43 Average data Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (44) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (45) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 802.11HT20 1 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 389.87 1) V 54.36 31.88 -29.04 - 57.20 74.00 16.80 4 823.58 1) V 60.97 33.93 -53.57 - 41.33 74.00 32.67 7 236.92 V 62.48 35.40 -52.97 - 44.91 74.00 29.09 Average Data 2 389.87 1) V 42.34 31.88 -29.04 0.32 45.50 54.00 8.50 Average data Average data Blank Horizontal/Vertical for Band-edge KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (46) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (47) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 6 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) 1) Peak data 4 873.88 1) H 60.40 33.95 -54.99 - 39.36 74.00 34.64 7 311.23 1) V 59.44 35.40 -52.69 - 42.15 74.00 31.85 Average Data No spurious emissions were detected within 20 ㏈ of the limit. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (48) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Horizontal/Vertical for 1 ㎓ ~ 3.5 ㎓ Horizontal/Vertical for 3.5 ㎓ ~ 18 ㎓ Horizontal/Vertical for 18 ㎓ ~ 26.5 ㎓ KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (49) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 11 Channel Frequency Pol. Reading Ant. Factor Amp. + Cable DCCF Result Limit Margin (㎒) (V/H) (㏈(㎶)) (㏈) (㏈) (㏈) (㏈(㎶/m)) (㏈(㎶/m)) (㏈) Peak data 2 483.50 1) V 53.89 32.07 -29.21 - 56.75 74.00 17.25 4 925.08 1) H 61.29 33.97 -55.29 - 39.97 74.00 34.03 7 385.55 1) V 61.08 35.40 -52.41 - 44.07 74.00 29.93 Average Data 2 483.50 1) V 40.72 32.07 -29.21 0.32 43.90 54.00 10.10 Av…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (53) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Conducted Emissions 802.11b / 1 ch. 802.11b / 6 ch. 802.11b / 11 ch. Blank Band edge 802.11b / 1 ch. 802.11b / 11 ch KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (54) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Test mode : 802.11g Reference 802.11g / 1 ch. 802.11g / 6 ch. 802.11g / 11 ch. Blank KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (55) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Conducted Emissions 802.11g / 1 ch. 802.11g / 6 ch. 802.11g / 11 ch. Blank Band edge 802.11g / 1 ch. 802.11g / 11 ch KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (56) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Test mode : 802.11n20 Reference 802.11n HT20 / 1 ch. 802.11n HT20 / 6 ch. 802.11n HT20 / 11 ch. Blank KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (57) of (60) This test report shall not be reproduced, except in full, without the written approval KCTL-TIR001-003/2 Conducted Emissions 802.11n HT20 / 1 ch. 802.11n HT20 / 6 ch. 802.11n HT20 / 11 ch. Blank Band edge 802.11n HT20 / 1 ch. 802.11n HT20 / 11 ch KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR20-SRF0033-A Page (58) of (60) This test report shall not be…

Text truncated - open the document above for the full version.
