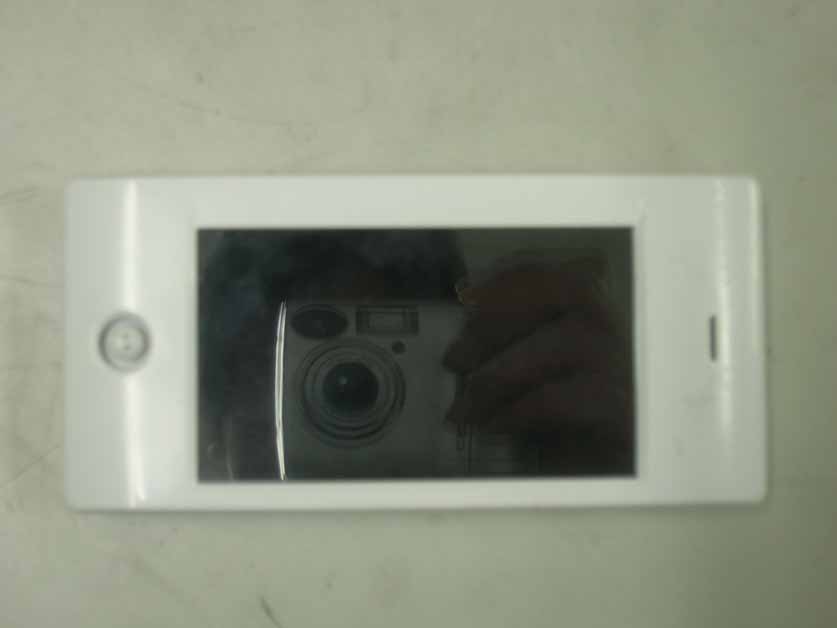

QDMW10Network Terminal Unit

User’s Guide Components 04 Locating the controls 05 LCD display 07 Installing iriver plus 3 10     0101 Getting Started Turning on/off the player 12 Selecting menu 13 Using HOLD 14 Connecting products 15     0202 Basic Operations Simple Player 20 Music Now Playing 24 Videos 25 Pictures 27 Text 28 Flash Games 29 FM Radio 30 Recordings 32          0303 Using the Player 0404 Setting up the telephone function 36 Date/Time 37 Fonts 37 Wireless network 37 Reset all settings 37 Power off type 37 Language 37 Display 37 DB update 37 Format Device 37 Advanced 37 About 37             Setting up the Product Using iriver plus 3 41 Copyrights/Certification/ Trademarks/Limited Liability 43 Safety Instructions 44 Troubleshooting 46     0505 Other Information Getting Started Components 04 Locating the controls 05 LCD display 07 Installing iriver plus 3 10 4 Getting StartedGetting Started 5 Components Components are subject to change without notice and may vary from images shown. The W10 comes with a Stylus pen. Locating the controls Quick Start Guide & Warranty CardInstallation CDClipUSB cable Stylus pen HOLD keyMini SD card slotPOWERSmart key LCD SpeakerMenu button USB jack MIC Earphones jack Volume +Volume –RESET W10EarphonesStylus penRemote control 6 Getting StartedGetting Started 7 Locating the controlsLCD display Remote control button for mobile phone Current status Volume [+/–] button While recording voice Current dateCurrent timeBattery Elapsed recording timeRecorded file nameRemaining recording time PRESET On/Off While listening to FM radio Frequency indicatorCurrent frequency 8 Getting StartedGetting Started 9 While playing music While playing video Album pictureVolume Rating File name/information Progress bar Album information EqualizerPlay mode A-B repeatFade in Progress bar Exit button LCD displayLCD display While using mobile phone Viewing the displayed icons Signal strength indicator No signal indicator Dialing or receiving call indicator No service indicator No ringtone indicator Message indicator No signal indicator Exit button Clear button for deleting number or character Phonebook buttonCall list button 10 Getting StartedGetting Started 11 1 Installing iriver plus 3 Insert the installation CD to your PC to display the installation process screen. Select iriver plus 3 and click the [Install] button. Complete the installation process following the on-screen instructions. Installing iriver plus 3 iriver plus 3 is an integrated software that efficiently manages music, video and picture files. iriver plus 3 gives you freedom to transfer music, video and picture files from PC to the product. Note Minimum requirements for using iriver plus 3 • Intel® Pentium® ll 233 MHz or higher processor speed • Windows® 2000/XP • 64 MB or above memory ▪ 30 MB or above hard disk space • Speaker and sound card which supports 16 bit • Microsoft Internet Explorer version 6.0 or later • SVGA or high resolution monitor (1024x768 resolution or higher) For more information on using iriver plus 3, refer to page 38 - 40. Basic Operations Turning on/off the player 12 Selecting menu 13 Using HOLD 14 – Connecting products 15 – Connecting earphones 15 – Connecting remote control 15 – Charging the player 16 – Inserting/Removing Mini SD card 17 – Recommended types of Mini SD card 17 – Connecting the W10 to your PC 18 – Copying file/folder (Using as a removable disk) 19 – Disconnecting the W10 from your PC 20 12 Basic OperationsBasic Operations 13 1 Turning on the player Press thebutton on the product to turn it on. Turning on/off the player 2 Turning off the player Press and hold thebutton on the product to turn it off. Note This product has automatic power saving function to save battery power. Based on the setting in power saving mode, the product will be automatically turned off after designated period without operation. For more information on setting up the product, refer to [Settings-Power Off Type-Auto Power Off]. (Refer to page 35.) Touch Screen The W10 has touch screen type LCD which operates with user’s direct touch. Touchwith a Stylus pen to display the Main menu. Selecting menu 2 Select/Exit menu In the Main menu, touch and release a menu with a Stylus pen to display it. To close the current menu and return to the menu list, touch the Exit button. 1 Note Do not press LCD with a sharp tip or excessive power to avoid damage. Note Touchto move to the other menu from the current menu. 14 Basic OperationsBasic Operations 15 1 Using HOLD Slide the HOLD key to left to lock the product. Using HOLD Note Volume control will be disabled while the HOLD key is activated. Connecting earphones Connect the earphones to the earphones jack of the product. Connecting products 2 Connecting remote control Connect the remote control to the earphones jack of the product. 1 Connect the earphones to the jack of the remote control. To clip the remote control to your cloth, put the clip as shown below. 16 Basic OperationsBasic Operations 17 3 Charging the player Turn on your PC and connect the W10 to it using the USB cable. Connecting products Note • While the product is connected to PC using the USB cable, the integrated battery is will be charged automatically. Do not use any other USB cable that is not provided with the product. It may case a malfunction. • Check if the W10 is connected to a high-power USB 2.0 port. Some low-power USB ports built in some peripheral devices such as certain keyboards and USB hub without integrated power may not provide enough power to charge. • While the PC is switched to standby mode, the product may not be charged. • Charge the product only in room temperature. The product may not be charged in extremely hot and cold place. • The available usage time of charged battery becomes gradually short after sometime. • The product will be fully charged within 3 hours. (Based on fully discharged and stop mode) • The charging time might be extended when you use the product while …

Text truncated - open the document above for the full version.

ReignCom Co., Ltd.. Date: Dec 13, 2007 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize <ESTECH CO.,Ltd.>, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by <ESTECH CO., Ltd.> on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing <ESTECH CO.,Ltd.> as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, OH KYUNG HUN/Manager Engineer Tel:82-2-3019-1864 REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

ReignCom Co., Ltd. 14 Kamco Yangjae Tower, 949-3 Dogok 1-dong, Gangnam-gu, Seoul, TEL : +82-2-3019-1864 FAX : 82-2-3019-1860 Federal Communications Commission Authorization and Evaluation Division FCC ID : QDMW10 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Curcuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the data of the Grant for this application. Sincerely, OH KYUNG HUN / Manager Engineer ReignCom Co., Ltd..

WaveOn Inc. Real 5.1ch Gaming Headphone ReignCom Co., Ltd. MODEL : W10 FCC ID:QDMW10 This device complies with part 15 or rhe FCC Rules. Operation is subject to the dollowing two conditions : (1) This device may not cause harmful interference, and (2) this device must accept ant interference received, including interference that may cause undesired

OPERATIONAL DESCRIPTION This product has automatic power saving function to save battery power. And, It has touch screen type LCD which poerates with user's direct touch. User can manage your own playlist using iriver plus 3. TYPE ITEM SPECIFICATION Main Process CPU TELECHIPS TCC7801 Memory SDRAM 32bit*4Bank*4Mbit = 64MByte SDRAM Audio Codec WOLFSON WM8960 FM Tuner SILAB SI4702 Resolution 480 * RGB * 272 Size 66.24mm x 37.54mm (4.3 inch) Color Max : 260,000 Colors (use : 18bit Colors) Display Backlight 6 WHITE LEDS Input Device Key Assignment Touch screen / joggle Type Rechargeable Li-Ion Polymer Battery Capacity 1350mAh Using times (AVI) 30fps 480*272 1Mbps 5 Hours Using times (MP3) 128Kbps 44kHz 20 Hours Using times (VoIP) 3 Hours Using times (VoIP Standby time) 17 Hours Battery Cell Life time 300 times Base Band & RF NANORADIO NRX701 / NRX510 WIFI Antenna Interior Capacity MLC 2GByte Storage NAND type USB 2.0 USB Download Speed CHECKLIST

Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Testing location Standard □ Class A ■ Class B Test resultOK □ Class A ■ Class B Test resultOK Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned - Memory capacity of the USB-Drive is used with 2GB and 4GB Report Number : ESTF150711-001 , Web : www. estech. co. kr Page 1 of 14 Report NumberESTF150711-001 Manufacturer Country of origin Applicant Product 2-Nov-07 Network Terminal Unit W10 NONE Iriver Electronic Technology(China) Co.,Ltd China (Signature) Date of issue ESTECH Co., Ltd. 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea Test item ■ Conducted Emission ■ Radiated Emission FCC PART 15 200 , ANSI C 63.4 2003 2007-10-4 ~ 2007-10-18 FCC ID : QDMW10 OK, Pass = Passed, Fail = Failed, N/A = not applicable ReignCom Co.,Ltd. 14 Kamco Yangiae Tower, 949-3 Dogok 1-dong, Gangnam-gu, Seoul 82-2-3019-1864 Measurement facility registration number Senior Engineer M. J. Song Engineering Manager J.M.Yang 94696 (Signature) 3 4 5 6 8 8 8 9 10 10 10 11 12 14 Appendix 1. Spectral diagram Report Number : ESTF150711-001 , Web : www. estech. co. kr Page 2 of 14 5. Measurement of radiated emission ............................................................... 5.1 Measurement e quipment ........................................................................... Contents 1. Laboratory Information ................................................................................. 2. Description of EUT ....................................................................................... 3. Test Standards ............................................................................................. 4. Measurement condition ................................................................................. 5.2 Environmental conditions ........................................................................ 5.3 Test data ............................................................................................. ... 6. Measurement of conducted emission ............................................................ 6.1 Measurement e quipment ........................................................................... 6.2 Environmental conditions ........................................................................... 6.3 Test data ................................................................................................ 7. Photographs of test setup ........................................................................... 8. Photogra phs of EUT .................................................................................... 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co. Ltd Head Office : Rm 1015, World Venture Center II, 426-5, Gasan-dong, Geumcheon-gu, Seoul, Kor e (Safety & Telecom. Test Lab) EMC Test Lab : 58-1 Osan-Ri, GaNam-Myon, YeoJoo-Gun, KyungKi-Do, Korea 97-1 Hoiuk-Ri Majang-Myon, Icheon-city, KyungKi-Do, Korea 1.3 Official Qualification(s) MIC : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Filed Laboratory at Federal Communications Commission VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report. ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTF150711-001 , Web : www. estech. co. kr Page 3 of 14 3. Test Standards Test Standard : FCC PART 15 (2007) Test Method : ANSI C 63.4 (2003) This standard sets forth uniform methods of measurement of radio-frequency (RF) signals and noise emitted from both unintentional and intentional emitters of RF energy in the frequency range 9 kHz to 40 GHz. Methods for the measurement of radiated and AC power-line conducted radio noise are covered and may be applied to any such equipment unless otherwise specified by individual equipment requirements. These methods cover measurement of certain decides that deliberately radiate energy, such as intentional emitters, but does not cover licensed transmitters. This standard is not intended for certification/approval of avionic equipment or for industrial, scientific, and medical (ISM) equipment These method apply to the measurement of individual units or systems comprised of multiple units This Standard sets out the regulations under which an intentional, unintentional, or incidental radiator may be operated without an individual license. It also contains the technical specifications, administrative requirements and other conditions relating to the marketing of Part 15 devices. Report Number : ESTF150711-001 , Web : www. estech. co. kr Page 5 of 14 4. Measurement Condition(Test mode : USB STORAGE MODE) 4.1 EUT Operation. 4.2 Configuration and Peripherals * The EUT was in the following operation mode during all testing * The operational conditions of the EUT was determined by the manufacturer according to the typical use of the EUT with respect to the expected hightest level of emission. * After setting as test arrangment diagram, tested image data doing display on note pc monitor screen. * Transferred "H" character data between the Network Terminal Unit and note pc during the test. Report Number : ESTF150711-001 , Web : www. estech. co. kr Page 6-1 of 14 4. Measurement C…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1.1. Front 1.2. Rear 2. Radiated Emission setup photo 2.1 Front 2.2. Rear
