QDNDGT301FM Transmitter

<Function> 1. Power Button : ON/OFF 2. Frequency UP / DOWN Button - Press the button shortly : 0.1MHz - Press and hold : 1.0 MHz 3. Auto ON / OFF - This is automatically ON/OFF the FM Transmission function, depending on the mode of portable multi device. Whenever portable multi device in pause or play off modes, the FM transmission function will automatically go off in 55 seconds. - Even when FM transmission is off mode, FM transmission will automatically turned on, if portable multi device is in play mode (when the using the battery, the auto on is not available) . AudiaX(DGT-301) Manual <The composition of product> Power Button Frequency UP Button Frequency DOWN Button Preset Memory Button Battery Cover Car power cable connect hole LCD Display Portable audio device connect hole M1107. 7 MHZ Battery Indicator Preset Memory Channel Frequency Main BodyLCD Display <Installation & Usage> 1. Connect the AudiaX to the earphone jack of portable audio device using 3.5 cord. (i.e. portable CD Player, MP3 Player and etc) 2. Press the On/Off button over 1 sec for start * When using cigar power adapter, the AudiaX will be tune on always when the audio device is playing 3. Tune your FM radio’s frequency to the empty channel or a channel weak broadcasting signal. 4. Press Up/Down button on the AudiaX to select the transmission frequency chosen in step3 5. And enjoy the audio sound * If there’s no input signal over 55 sec, the AudiaX will be turned off automatically o THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

LCD Display M P U Control Switch Power Control PLL & VCO Modulation Audio Input DC 12 DC 3.3V Antenna DGT Block Diagram Battery

DIGIANA Co., Ltd. 1414 Hyundai Venture Ville, 713, Suseo-Dong, Kangnam-Ku, Seoul 135-884, Korea Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, DIGIANA Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title / Model QDNDGT301 FM Transmitter/DGT-301 For the product stated above, we request that the following information be held confidential: 1) Schematic diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain DIGIANA Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Chang-Ryul, Lee / CEO (Contact Person/Title)

SK TECH CO., LTD. Page 1 of 1 Confirmation letter for FM Transmitter Applicant: DIGIANA Co., Ltd. FCC ID: QDNDGT301 We, SK TECH CO., LTD. would like to answer to the following questions for requesting by the TCB. 1. How does the device operate? - Connect the device to the earphone jack of a portable audio device. - Press the On/Off button over 1 sec for start. - Tune the FM transmitting frequency to the empty channel with pressing Up/Down button. - The audio signals from a typical audio player will be transmitted at the tuned FM frequency. 2. Provide information on the device and its antenna. Product FM transmitter(portable) Transmitting frequency 88.1 MHz ~ 107.9 MHz (100 kHz step) Power Source 1.5 V AAA battery(× 1) or 12 V battery on a vehicle Audio input rating 1.0 Vpp Antenna Integral(Fixed Stereo Cable, 3.5 φ) The product uses the antenna as a stereo audio cable and the length of the antenna is extensible from about 0.2 m up to maximum 0.8 m. 3. How is it installed? Connecting the device to the earphone jack of a portable audio device. Power source is either 1.5 V alkaline battery or DC 12 V via cigarette adaptor. when using the cigarette adaptor, the power is fed from the cigarette adaptor regardless of the of the 1.5 V battery. 4. What test procedure was used? ANSI C63.4:2003 was used as the test procedure. To find the worst radiated emissions, for the three operating frequencies, the length of the EUT antenna was varied from 0.2 m to maximum 0.8 m with the polarization, vertical/horizontal. 5. If tested in a car, how was it configured? N/A 6. Was the tuning range properly verified? YES. To verify the maximum tuning range, the tuning controls were manually adjusted. 7. Was the bandwidth properly tested with the maximum audio input? YES. The occupied bandwidth measurements were made using a typical audio file from a typical MP3 player with maximum volume setting. 8. Does the device operate in a vehicle? The product can be operated in a vehicle, however it does not be tested in a car because the device is designed to use an integral antenna(stereo cable) that does not affect open-field radiated emission such as a vehicle's wiring.

Klaus Knoerig Von: "Generic Office of Engineering Technology" <[email protected]> An: <[email protected]> Gesendet: Montag, 22. Januar 2007 22:10 Betreff: Response to Inquiry to FCC (Tracking Number 556601) Seite 1 von 1 2007-01-23 Inquiry: Category 1 - 15.239 FM Transmitter For specific FM transmitter information please refer to attached cover letter and test report. Response: Go ahead and file. Please submit a copy of this inquiry into the filing. Ensure all exhibits comply with all FCC rules and policies. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

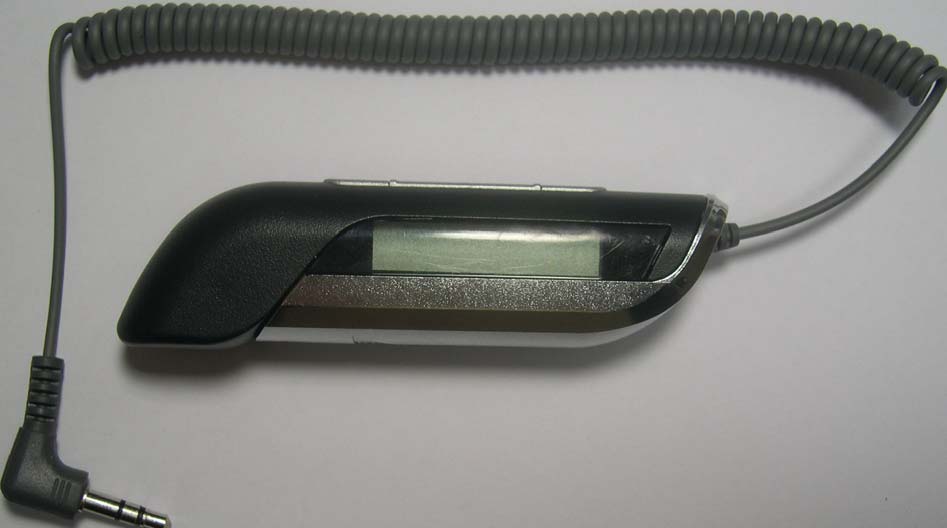

SK TECH CO., LTD. Page 1 of 1 SKTTRT-070108-001 FCC ID: QDNDGT301 External Photographs of EUT <Photograph 1: Front View> <Photograph 2: Rear View>

ID Label Location & Sample LABEL LOCATION: Label will be attached on the side of the product LABEL Drawing: Model DGT-301 FCC ID: QDNDGT301 MTS-DGT301 Manufactured by Digiana Made in Korea

SK TECH CO., LTD. Page 1 of 2 SKTTRT070108-001 FCC ID: QDNDGT301 Internal Photographs of EUT <Photograph 1: Cover removed> SK TECH CO., LTD. Page 2 of 2 SKTTRT070108-001 FCC ID: QDNDGT301 <Photograph 2:Board Front View > <Photograph 3: Board Rear View >

SK TECH CO., LTD. Page 1 of 1 SKTTRT-070108-001 FCC ID: QDNDGT301 Operational Description (FM Transmitter function) The EUT is a Portable FM Linker, DGT-301, to be capable of transmitting audio signals from the Earphone jack on it to FM receiver. It operates on frequencies at 88.1 MHz to 107.9 MHz. There are four buttons on it; left side button turns Power ON and middle button change channel UP / DOWN (1 or 0.1 MHz step) and right side button is memory function. See the attached block diagram and schematic. The EUT is powered from a 1.5V battery or 12V battery on vehicles. The EUT includes the DC/DC converter, increasing/decreasing DC voltage into 3.3V. All tuning and verification are performed by the manufacture and there are no adjustments required by the user. No external ground is required or used with this transmitter.

SK TECH CO., LTD. Page 1 of 16 0 Report No. : SKTTRT-070108-001 FCC ID: QDNDGT301 Certificate of Compliance Test Report No.: SKTTRT-070108-001 KOLAS NO.: KT191 Applicant: DIGIANA CO., LTD. Applicant Address: 1414 Hyundai Venture Ville, 713, Suseo-Dong, Kangnam-Ku, Seoul, 135-884 Korea Manufacturer: DIGIANA CO., LTD. Manufacturer Address: 1414 Hyundai Venture Ville, 713, Suseo-Dong, Kangnam-Ku, Seoul, 135-884 Korea Device Under Test: FM Transmitter FCC ID: QDNDGT301 Model No.: DGT-301 Receipt No.: SKTEU06-0761 Date of receipt: December 07, 2006 Date of Issue: January 08, 2007 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2003 Test Specification: 47CFR, Part 15 Subpart C Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Seong-Baek, Ko 2007. 01. 08 Approved by: Jong-Soo, Yoon 2007. 01. 08 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ z The above test certificate is the accredited test results by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. z This test report is not permitted to copy partly without our permission. z This test result is dependent on only equipment to be used. z This test result is based on a single evaluation of one sample of the above mentioned. z We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. SK TECH CO., LTD. Page 2 of 16 0 Report No. : SKTTRT-070108-001 FCC ID: QDNDGT301 >> CONTENTS << 1. GENERAL ......................................................................................................................... 3 2. TEST SITE ........................................................................................................................ 3 2.1 Location ...................................................................................................................... 3 2.2 List of Test and Measurement Instruments ................................................................. 4 2.3 Test Date ..................................................................................................................... 4 2.4 Test Environment ........................................................................................................ 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ............................................... 5 3.1 Rating and Physical Characteristics ........................................................................... 5 3.2 Equipment Modifications ··························································································· 5 3.3 Submitted Documents ································································································· 5 4. MEASUREMENT CONDITIONS .................................................................................. 6 4.1 Description of test configuration ................................................................................ 6 4.2 List of Peripherals .......................................................................................................6 4.3 Uncertainty ................................................................................................................. 6 5. TEST AND MEASUREMENTS ...................................................................................... 7 5.1 ANTENNA REQUIREMENT ................................................................................. 7 5.1.1 Regulation ............................................................................................................ 7 5.1.2 Result ...................................................................................................................7 5.2 OCCUPIED BANDWIDTH .................................................................................... 8 5.2.1 Regulation ............................................................................................................ 8 5.2.2 Test Procedure ..................................................................................................... 8 5.2.3 Test Results .......................................................................................................... 8 5.3 RADIATED EMISSIONS ........................................................................................ 12 5.3.1 Regulation .......................................................................................................... 12 5.3.2 Test Procedure ................................................................................................... 13 5.3.3 Test Results.......................................................................................................... 14 5.4 Maximum Tuning Range.......................................................................................... 16 SK TECH CO., LTD. Page 3 of 16 0 Report No. : SKTTRT-070108-001 FCC ID: QDNDGT301 1. GENERAL These tests were performed using the test procedure outlined in ANSI C63.4, 2003 for intentional radiators, and in accordance with the limits set forth in FCC Part 15.239 for Low Power Communication Device Transmitter. The EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards. We attest to the accuracy of data. All measurements reported herein were performed by SK TECH CO., LTD. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. TEST SITE SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea This test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is recogn…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 1 SKTTRT-070108-001 FCC ID: QDNDGT301 Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Antenna View>
