QDNTS-500MP3 PLAYER

User’s Manual TS-500 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 1 Product Features - Unique Design Using creative and beautiful design using the medium of nature, the design comes to users with more friendly for longer time. - Digital Audio Format Not only MP3 files but also WMA, OGG, ASF files are supported. -Large Color Graphic LCD By adopting graphic color LCD, the player provides visual along with fabulous sound. In addition, 40 languages are supported. - Direct Encoding Using the PC, MP3 files can be downloaded. Even in the absence of the PC, the player supports recording Cassette tape, CD player and various audio devices through the external input connector. A user can make MP3 file from any audio device. - Firmware upgrade Since the player supports firmware upgrade, constant performance improvement and addition/change of functions are provided. - Real powerful Rechargeable Battery Life Time Through the USB connection, quick and easy recharge of the embedded battery is available, and up to 12 hours of continuous playing is possible. (When the battery is completely flat, 90% recharge takes approximately 1.5 hours and 100% recharge takes 2 hours.) - FM Tuner Listening/Recording Using automatic frequency detection function and frequency memory function, listening to FM broadcasting is never been so easier. Also, the FM broadcasting can be recorded. - Custom Equalizer Depending on the type of music and user, one of diverse equalizations (normal, classic, rock, pop, and customized) can be selected. - Voice MP3 Recording Function With the embedded microphone, important lectures or meetings can be recorded. -The player became even smaller and is easy to wear it around the neck. 2 1. Name of Parts • Player 2. Components 1.Player 2.User’s Manual 3.Earphone 4.USB Cable 5.Install CD(USB 2.0 driver and user’s manual for WINDOW 98) 6.Product Case 7.LINE IN Cable 8.Charger Adapter (Optional) 3 3. Basic Operation Power ON/OFF/Pause Function • Power On/Off: Hold down the play (/▶װ) button located on the side of the player for 2-3 seconds to turn on the power and play songs. Hold down the play (/■)▶ button for 2-3 seconds to turn off the power. (Hold down the play button turn off in any mode.) • Pause Function: Short-press the play (/■)▶ button once while a song is in play to pause and short-press again to resume. Song Selection Function (◀◀／)▶▶ • Song Selection: Short-press the SELECT button to left/right to select previous/next song. Song Search Function (Forward/Rewind) • Fast Forward: Hold down the SELECT button to the right while in play ()▶▶. • Fast Rewind: Hold down the SELECT button to the left while in play. • When searching through songs, the search is performed in 2x speed during the first three seconds, and x3 speed during the rest of the song. Volume Adjustment Function (VOL -/+) • Short-press the SELECT button in the front of the product. When the SELCT button is moved in larger scale, the volume is moved up/down faster. • The volume can be adjusted from 0-30. Voice Recording and LINE IN Recording Start/Recording Stop Function • Start Recording: Hold down the REC button for 1-2 seconds to start the recording in the selected MDOE. • Pause Recording: Hold down the REC button to stop the recording. ☞ Note: 1) Voice recording is available only when there is additional space in the memory. 2) Voice recording can be executed in MP3 or Voice mode, and when LINE-IN is connected, LINE-in gets priority of recording. 3) Select Voice from the NAVIGATION mode to play the recorded file. Select a recorded file and press play (▶/■) button to play the recorded file. 4 Sectional Repeat Start/Configuration/Release ☞ This is a function that is used when a certain part of a song need to be repeated. • Sectional Repeat Start: Short-press REC button in the beginning of the repeat section. (A↔ ) • Sectional Repeat Configuration: Short-press REC button where the repeated playing starts. (A↔B) (Sectional Repeat Release: Short-press REC button during repeated play to release the sectional repeat. HOLD Configuration/Release When activated, a lock icon is displayed on LCD screen, and all operations of KEYS are ※ prohibited. • Lock Configuration: Move the H button to the arrow direction. • Lock Release: Move the H button to the opposite direction of the arrow. 4. Menu Configuration Function 4-1 MODE MENU Selection • NAVIGATION Play How to use NAVIGATION function • Navigation function is a convenient function that allows playin…

Text truncated - open the document above for the full version.

NAND FLASH SDRAM (EDS6416) AUDIO CODE C MC U TCC 7 2 3 XTAL:12MHz NOR FIASH (4M b its ) TC C720 MIC EAR P HON E JACK F M MODU LE (GNT-502S) DIRE CT JAC K USB JA CK REGULATOR (X C6206P) 2 . 5V,1.8V Li-ion P ol y m e r Batt ery(P L 42 3048) charg e r IC DC /DC CON V ERTOR (MAX1920 ) 3 . 0V REGULATOR (X C6206P) 3 . 0V DC /DC CON V ERTOR (X C9116 ) L C D MODU L E (SCS0 96064 F1003) L C D BA CK LIGHT OP- A MP RTC (PCF8563 ) XTAL:32.768KH z S w i t c h K e y P a r t 5 Dire cti o nal, Push tact switch, Eff e ct hall switch

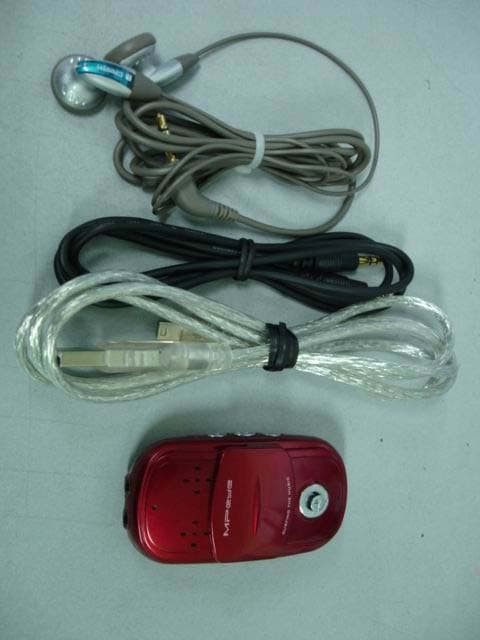

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 External Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-041216-108 FCC ID : QDNTS-500

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 FCC ID Sample Label & Location Information MP3 Player FCC ID : QDNTS-500 Model No. : TS-500 Manufacturer : Digiana Co., Ltd. Made in Korea Label

SK TECH CO., LTD. Page 1 of 1 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 FCC ID Label Sample

SK TECH CO., LTD. Page 1 of 3 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 SK TECH CO., LTD. Page 3 of 3 SKT SKTFCE-041216-108 FCC ID : QDNTS-500

SK TECH CO., LTD. Page 1 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 Certificate of Compliance Test Report No.: SKTFCE-041216-108 NVLAP CODE: 200220-0 Applicant: Digiana Co., Ltd. Applicant Address: 1414 Hyundai Venture Ville, Suseo-Dong, Kangnam-Ku, Seoul, Korea Manufacturer: Digiana Co., Ltd. Manufacturer Address: 1414 Hyundai Venture Ville, Suseo-Dong, Kangnam-Ku, Seoul, Korea Product: MP3 Player FCC ID: QDNTS-500 Model No.: TS-500 Serial No.: N/A Multi-listing M/N: N/A Receipt No.: SKTEU04-0806 Date of receipt: Dec. 11, 2004 Date of Issue: Dec. 20, 2004 Testing location: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Standards: ANSI C63.4 / 2001 Rule Parts: FCC part 15 Subpart B Equipment Class: Class B Computing Device Peripheral Test Result: The above mentioned product has been tested and passed. Tested by: H.P.Kim / Engineer Approved by: C.H.Jeong / Manager& Chief Engineer 2004-12-20 2004-12-20 Signature Date Signature Date Other Aspects : Abbreviations : · OK, PASS = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 》》 Contents 《《 Contents 2 List of Tables 2 List of Figures 2 1. General 3 2. Test Site 3 2.1 Location 3 2.2 List of Test and Measurement Instruments 4 2.3 Test Date 4 2.4 Test Environment 4 3. Description of the tested samples 5 3.1 Rating and Physical Characteristics 5 3.2 Submitted Documents 5 4. Measurement Conditions 6 4.1 Modes of Operation 6 4.2 List of Peripherals 6 4.3 Test Setup 6 4.4 Uncertainty 7 5. EMISSION Test 10 5.1 Conducted Emissions 10 5.2 Radiated Emissions 15 》List of Tables Table 1 List of test and measurement Equipment 4 Table 2 Test Data, Radiated Emissions 16 》List of Figures Figure 1 Spectral Diagram, LINE-PE 11 Figure 2 Test Data, LINE-PE 12 Figure 3 Spectral Diagram, NEUTRAL-PE 13 Figure 4 Test Data, NEUTRAL-PE 14 SK TECH CO., LTD. Page 3 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by SK Tech Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site SK TECH Co., Ltd. 2.1 Location 820-2, Wolmoon Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea The test site is in compliance with ISO/IEC 17025 for general requirements for the competence of testing and calibration laboratories. This laboratory is accredited by NVLAP for NVLAP Lab. Code: 200220-0 and DATech for DAR-Registration No.:DAT-P-076/97-01 SK TECH CO., LTD. Page 4 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment z Conducted Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESHS10 862970/019 10.2005 Artificial Mains Network ESH2-Z5 834549/011 08.2005 EMI Receiver ESHS10 835871/002 10.2005 Artificial Mains Network ESH3-Z5 836679/018 08.2005 z Radiated Disturbance Kind of Equipment Type S/N Calibrated until EMI Receiver ESVS 10 825120/013 10.2005 EMI Receiver ESVS 10 834468/008 10.2005 Spectrum Analyzer R3361A 11730187 10.2005 Amplifier 8447F 3113A05153 08.2005 Log Periodic Antenna UHALP9107 1819 10.2005 Biconical Antenna BBA9106 91031626 10.2005 Open Site Cable N/A N/A N/A Antenna Turntable Driver 5907 N/A N/A Antenna Turntable controller 5906 N/A N/A Amp & Receiver connection cable N/A N/A N/A Amp & Spectrum connection cableN/A N/A N/A 50Ω Switcher MP59B 6100214538 N/A 2.3 Test Date Date of Application : Dec. 11, 2004 Date of Test : Dec. 13, 2004 ~ Dec. 15, 2004 2.4 Test Environment See each test item’s description. SK TECH CO., LTD. Page 5 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 3. Description of the tested samples The EUT is a MP3 Player. 3.1 Rating and Physical Characteristics Model TS-500 Disk Space 128MB / 256MB / 512MB / 1GB embedded memory Power 3.8V : Li-polymer Battery(550mAh) Size (WxHxD ) / Weight 41×74×20 mm / 45 g LCD 96 dots x 64 dots x RGB CSTN COLOR LCD Case PC (UV Coating) Noise Rate 85dB with 20KHz LPF Earphone Output mW (Maximum 12mW) / 16Ω Output Frequency Range 20Hz ~ 20KHz FM Frequency 87.5 ~ 108.0MHz Noise rate per FM Signal 45dB FM Rate 1% FM Actual Sensitivity 10dB File Support MPEG1/2/2.5 Layer3(8Kbps ~ 320Kbps, 8KHz ~ 48KHz) WMA (48Kbps ~192Kbps, 8KHz ~ 48KHz), ASF, OGG format file 3.2 Submitted Documents - 731 form - FCC ID label sample - FCC ID label location information - External photos - Internal photos - Test set-up photos - Operational description - Block diagrams - Schematics - Users Manual. SK TECH CO., LTD. Page 6 of 16 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 4. Measurement Conditions The power of EUT is supplied from the Note PC by USB port. 4.1 Modes of Operation The EUT was in the following operation mode during all tests; The EUT was tested with transferring files from the Note PC to the EUT. 4.2 List of Peripherals Equipment Manufacturer Model No. Serial No. Note PC LG IBM 2681 FX-P2816 Adaptor(for Note PC)ASTEC ELECTRONICS CO., LTD08K8202 N/A Printer EPSON PRECISION (PHILIPPINES), INC. EPSON STYLUS PHOTO 830 ELTK014633 4.3 Test Setup The test setup photographs showed the external supply connection…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 2 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 Test set up photos Photograph 1: Setup for Conducted Emissions SK TECH CO., LTD. Page 2 of 2 SKT SKTFCE-041216-108 FCC ID : QDNTS-500 Photograph 2: Setup for Radiated Emissions
