QDS-BRCM1022

Broadcom Corporation

802.11ag/Draft 802.11n WLAN PCI-E Mini Card

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 13, 2006
Application Purpose: Original Equipment
Date of Application: Jun 13, 2006
Equipment Note: 802.11ag/Draft 802.11n WLAN PCI-E Mini Card
Frequency Range: 5745.00000000 - 5825.00000000
Company: Broadcom Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

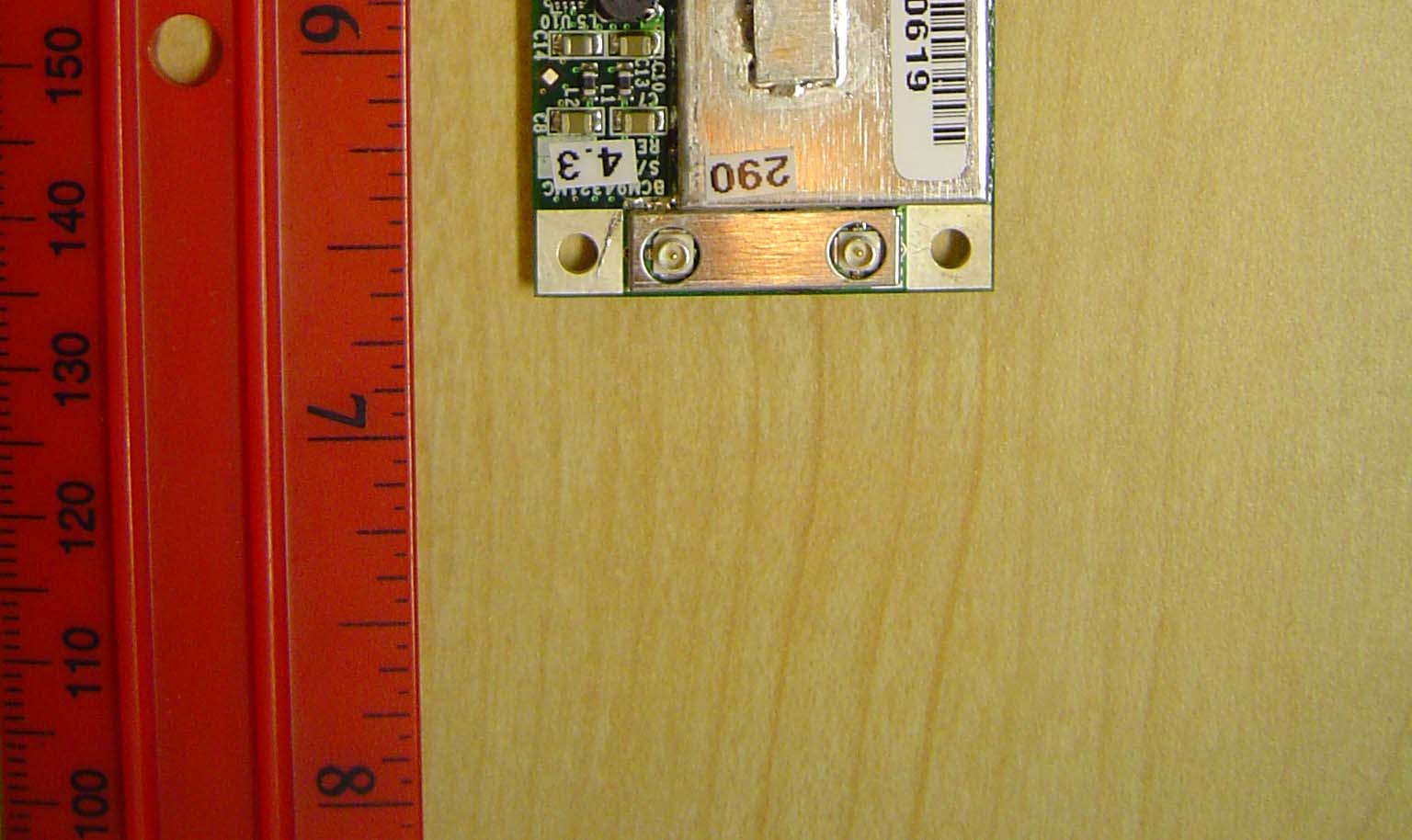

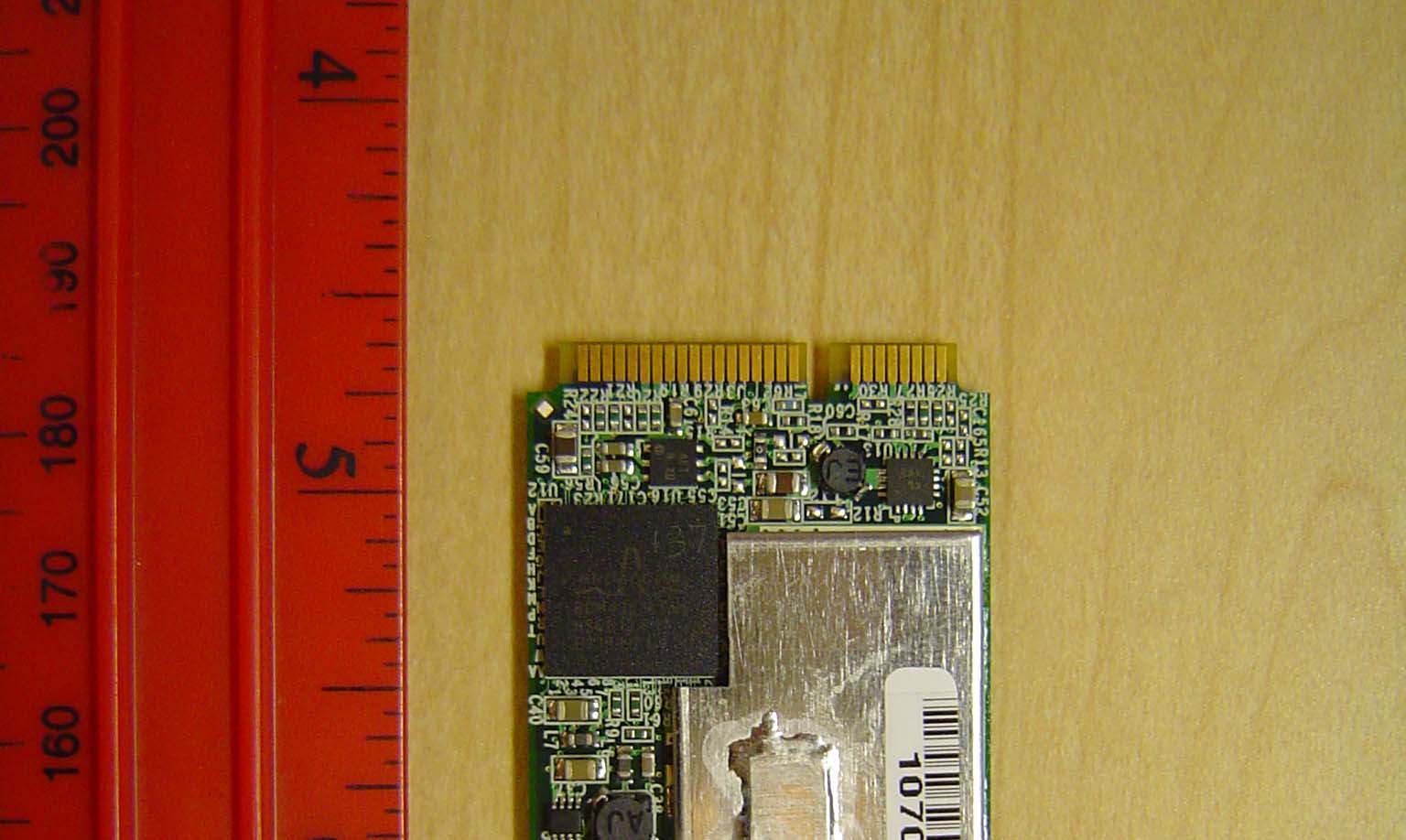

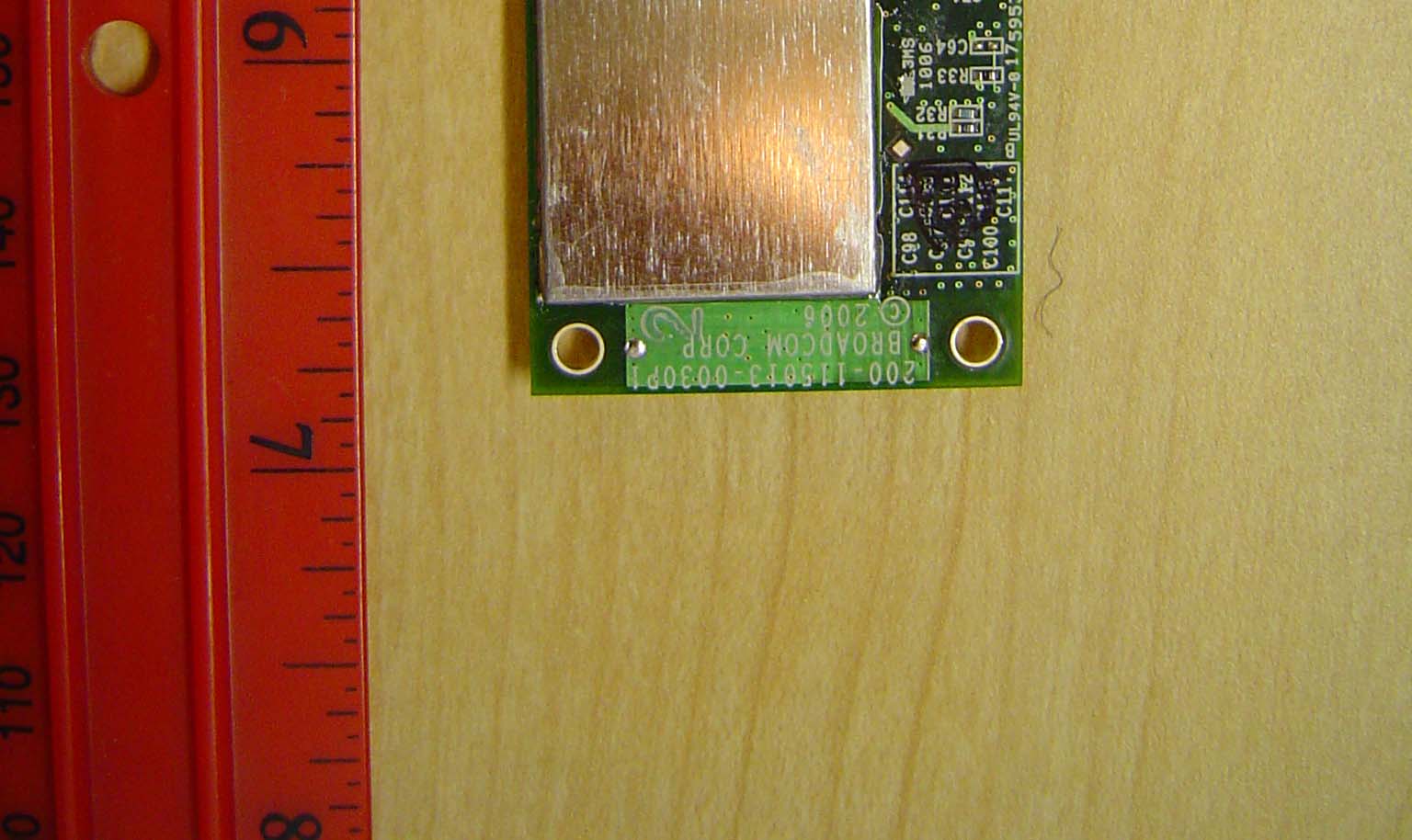

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
4	15C	5.75 GHz - 5.83 GHz	406.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval (LMA). Power listed is the maximum combined peak conducted output power. Device is a PCI-E Mini Card operating in 2x2 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations and single-stream legacy modes as described in this filing. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
