QDS-BRCM1031

Broadcom Corporation

802.11abg/Draft 802.11n WLAN PCI-E Minicard

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Feb 24, 2008
Application Purpose: Original Equipment
Date of Application: Feb 24, 2008
Equipment Note: 802.11abg/Draft 802.11n WLAN PCI-E Minicard
Frequency Range: 5755.00000000 - 5795.00000000
Company: Broadcom Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

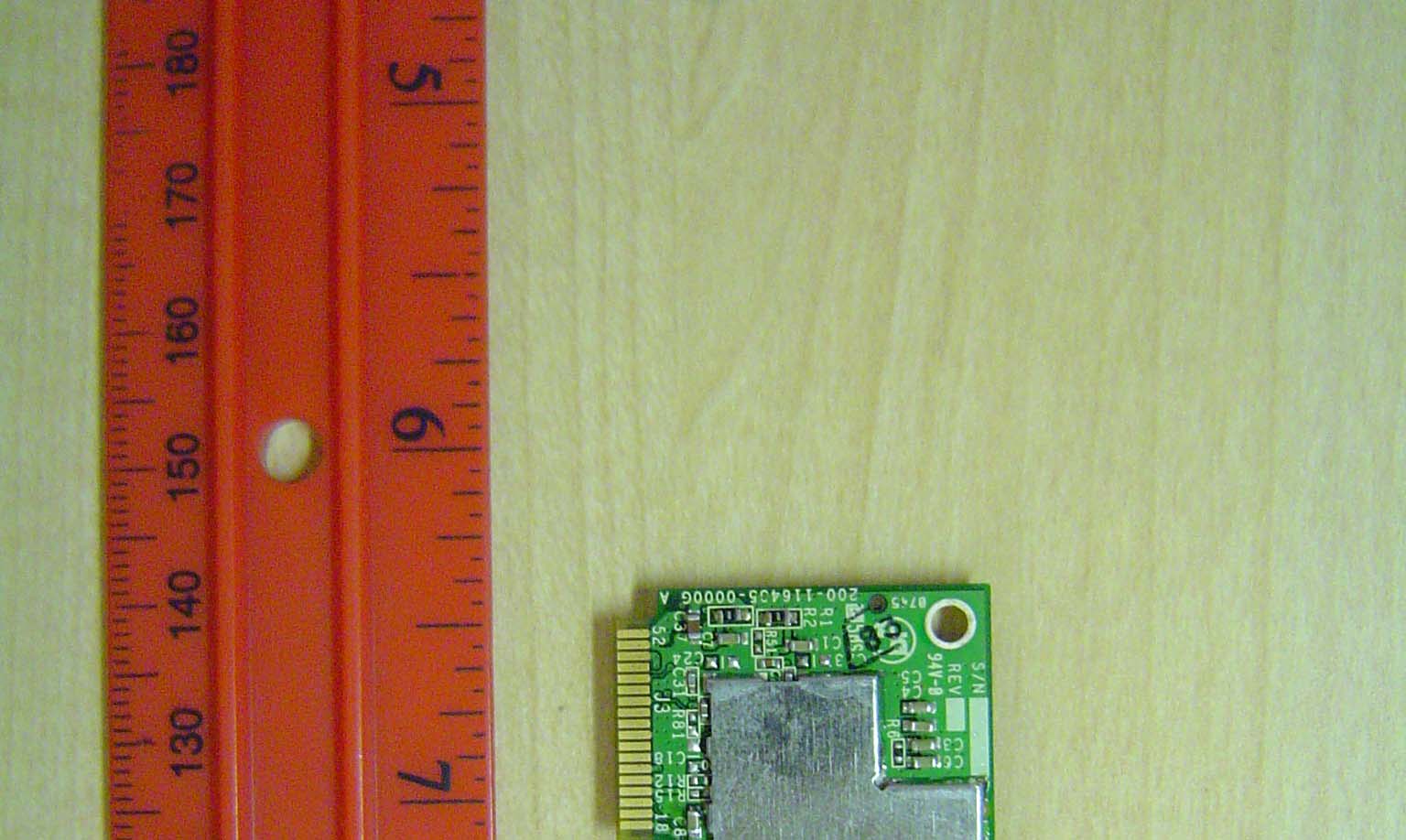

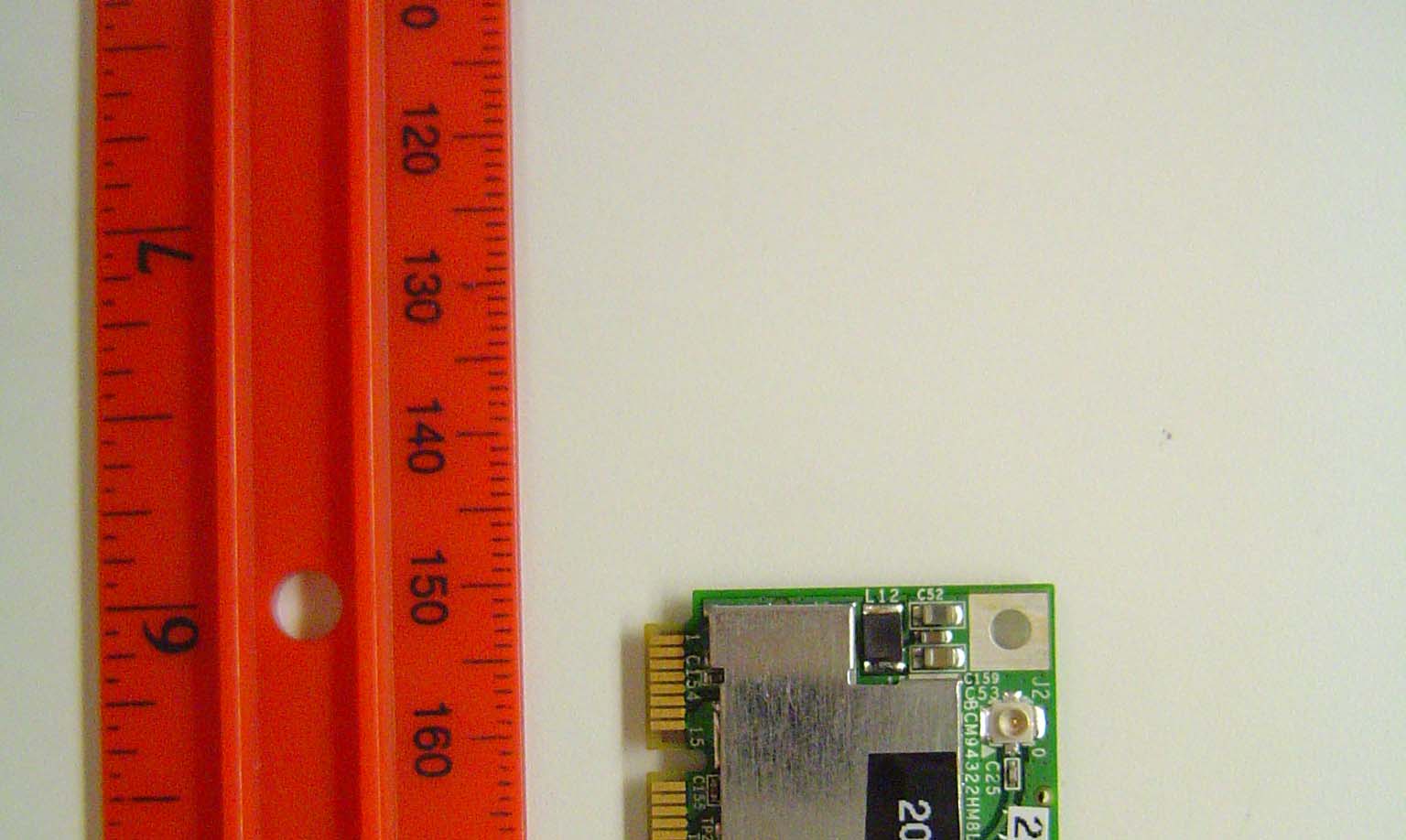

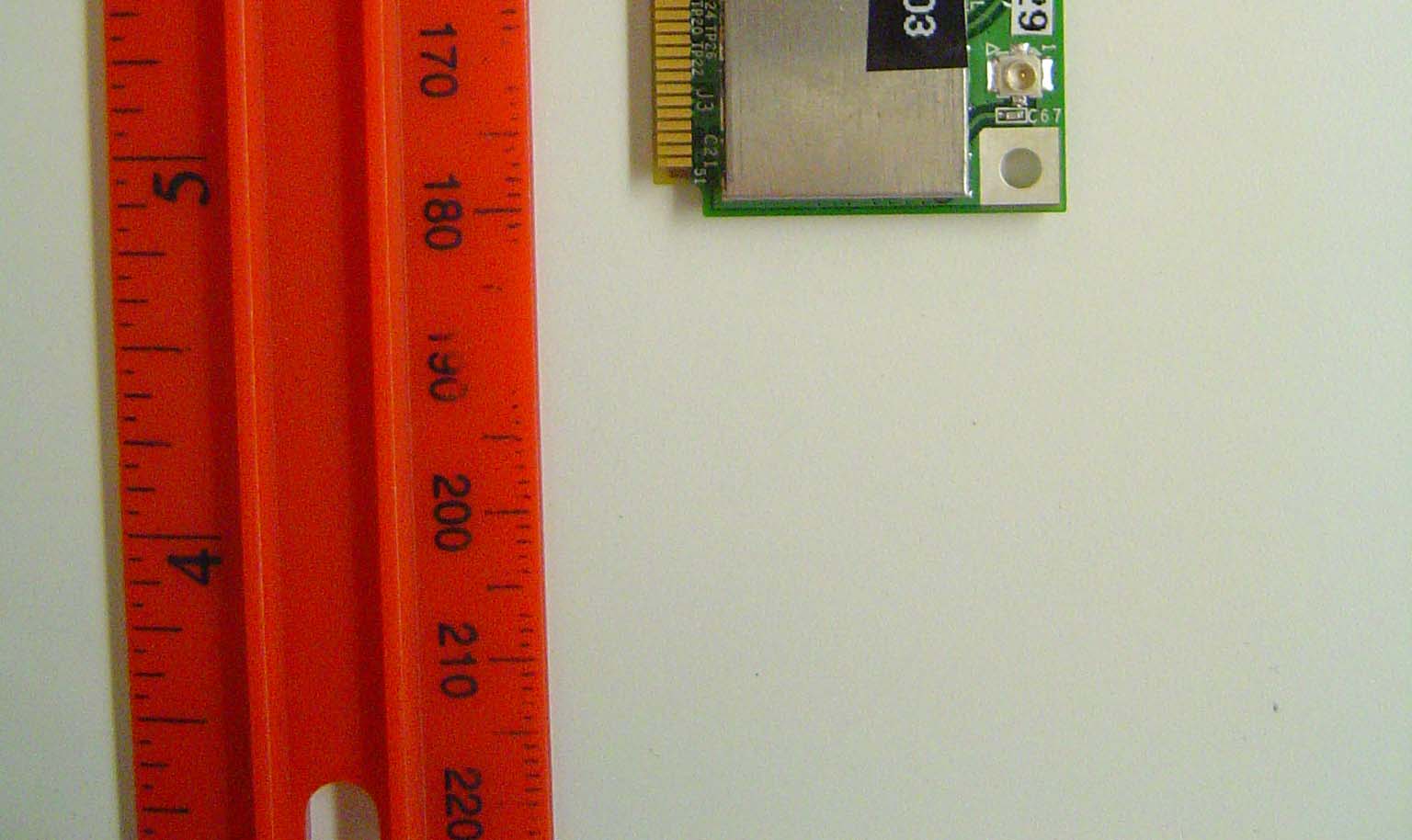

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Anne Liang(Manager, Compliance Engineering)

[email protected]4089225890Fax: 408-543-3377

Technical Contact

Elliott Laboratories Inc.Mark Hill

[email protected]4082457800

Sunnyvale, California · United States

Test Firm

Elliott Laboratories LLCDavid Bare

[email protected]408-245-7800Fax: 408-245-3499

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
6	15C	5.75 GHz - 5.79 GHz	98.00 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Limited Modular Approval (LMA). Power listed is the maximum combined peak conducted output power. Device is a PCI-E Mini Card operating in 2x2 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations and single-stream legacy modes as described in this filing. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user is not provided with instructions to remove or install the device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
