QDS-BRCM1084

Broadcom Corporation

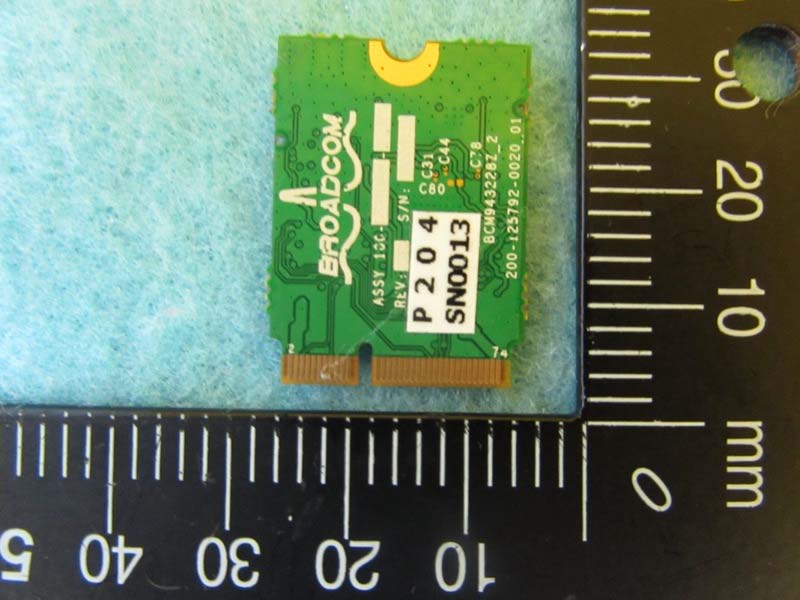

Broadcom 802.11a/b/g/n WLAN+ Bluetooth PCI-E NGFF2230 card

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jul 05, 2014
Application Purpose: Original Equipment
Date of Application: Jul 05, 2014
Equipment Note: Broadcom 802.11a/b/g/n WLAN+ Bluetooth PCI-E NGFF2230 card
Frequency Range: 5500.00000000 - 5700.00000000
Company: Broadcom Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15E	5.50 GHz - 5.70 GHz	117.80 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular approval. Output power listed is conducted. Operations in 5.15-5.25 GHz band are for indoor use only. Device operates with specific antennas in MIMO configurations as described in this filing. This device supports 20MHz and 40MHz bandwidths for 802.11n. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures or as described in the filing. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR for body and simultaneous transmission use conditions are 0.78 W/kg, and 0.81 W/kg.
