QDZDF-7500DVR BOARD

SEDO Co., Ltd.

Click to zoom

Application Details

Equipment Class: JBP - Part 15 Class B Computing Device Peripheral
Date of Grant: Feb 03, 2004
Application Purpose: Original Equipment
Date of Application: Feb 03, 2004
Equipment Note: DVR BOARD
Company: SEDO Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 DF7500 DVR SYSTEM User’s Manual Manual Revision : Version 4.80 Release Date : Dec. 15, 2003 2 FCC NOTICE Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designedto provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. -Consult the dealer of an experienced radio/TV technician for help. 3 INDEX Chapter I. Main Screen I-1. Explanation of Main Screen A ~ N Functions per button I-2. Pan/Tilt Control O Pan/Tilt control (1) Preset (2) Group (3) Menu Chapter II. Server Set Up II-1. Standard Set Up a Camera name display b See the voice wave c Voice function d Camera auto switching e Auto system reset function f Password Setup g Time Setup h Printer Setup i Managing disk j Compression k Set Cannel l Windows Logon m Power Mode n On Screen Keyboard II-2. Recording Type a Camera Number b Display (Hidden Camera Function) c Position (Camera Position name,OSD) d Event (Set Event) e Frame (Adjust Frame Rate) 4 INDEX f Pre (Pre-Alarm) g Post (Post-Alarm) h Sensor Type (Choose Sensor Type) i Time j Alarm Control k Auto Camera Search l Set Alarm Event m Event Setup n Record Motion/Sensor Event II-3. Schedule Setup a Channel b Schedule area c Buttons II-4. Motion Setup a Channel b Motion area c Sensitivity d Show Motion Area e Beep for Motion f To the maximum quality Motion/Sensor g Delete II-5.Color Setup a Channel b Color area c Color control scroll bar d Setup User’s Default e Cancel User’s Default 5 INDEX f All Default color g Default Color II-6.Pan/Tilt Setup a Channel b User Edit c Master Controller d Type e Setup Communication II-7.Control User Access a Connection b Check IP c Port d Transmission Speed and Image quality e Insert ID and password f Connected Client List g Web Server h Voice communication i Live update j Emergency Call k IP server Chapter III. Back Up III-1.Backup format a Channel No. b Backup Disk c Time list of recording data d Backup e Make AVI f Burning CD g Nero Burning Rom 6 INDEX h Explorer i Property j Send E-Mail III-2.Backup format a Channel b Schedule c Apply all channel d Save time e Backup time III-3.Backup format a Select Camera b Backed up data list(time table) c Play to confirm back up image d Slide bar to play e Play/Stop button Chapter IV. Server Search IV-1.Search Screen a Search screen b Exit ( Go to ‘display’ mode. ) c Event d Zoom in/out e Backup/Print/Live f Search the recorded data with below buttons g Time h Calendar i Function (Smart search,Bookmark,AVI,Panorama,Speed-delay) j Time Table Chapter V. Server Voice V-1.How to record Voice 2.Confirm Voice Recording 7 INDEX Chapter VI. Client Connection VI-1. Connection A.Edit Site B.Select connected Server C.Set Camera D.Live Update E.User Name VI-2. Client main screen A.Client connection setup box B.Audio C.Site-edit Sys-info Save D.Event-viewer Message (Sending a message) History Chapter VII. Web Client VII-1. Connection 2. Web Client Main 3. Web Client Search 8 Chapter 1. Main Screen 9 EXPLANATION OF MAIN SCREEN B KN F L M G I A O C HE JD A. Camera Number/recording state ( : Camera No./ : Normal Record/ : Motion Record/ : Sensor Record/ : Pre event Record/ : Post event Record/ : Voice record) B. Display present images When you click mouse right button on images, the whole images will be enlarged on screen. When you click mouse left button on any image, the selectedimage will be enlarged. C. Updated function : When program starts, updated functions will be shown. D. History: It will show the list of historical log on system operation. E. Power: When you click the Power button, DVR system will be shut down F F . . Auto switching (Rotation) : Displays switching images by 1/4/6/7/8/9/10/13Ch. in sequence with selected time interval. G. Select camera No. H. Select screen divisionamong 1/4/6/7/8/9/10/13/16Ch. Channel buttons will be changed up to your system configuration. (4ch mode, 8ch mode, 16ch mode) ▣4ch mode : 1/4 ch screen division is only available. ▣8ch mode : 1/4/6/7/8 ch screen division is only available. 10 EXPLANATION OF MAIN SCREEN I . Time :Display current time J . Sending a message : If you click button, then following window will show. Type your message and click ‘Send’button, then following window will show. Here you can register user’s name.(Next time don’t ask user’s name.) Also, You can register user’s name in ‘Control User Access/SETUP’. If you enter user’s name, then DVR server send a message to client. K. Preview : Display present recording images. Type your message Client List 11 EXPLANATION OF MAIN SCREEN L. : System Information a. System Configuration : OS, S/W machine, Network connection state, S/W Version, VGA model name, Capture Board Model name, HDD space calculation, Memory, etc. b. HDD Space Information c. Disk Info : Present HDD usage display. If you have one more drives, then scroll down the drive letter and can get the other HDD information. d. HDD Space Calculation : If you click “Calculation” button, DVR c…

Text truncated - open the document above for the full version.

External Photos

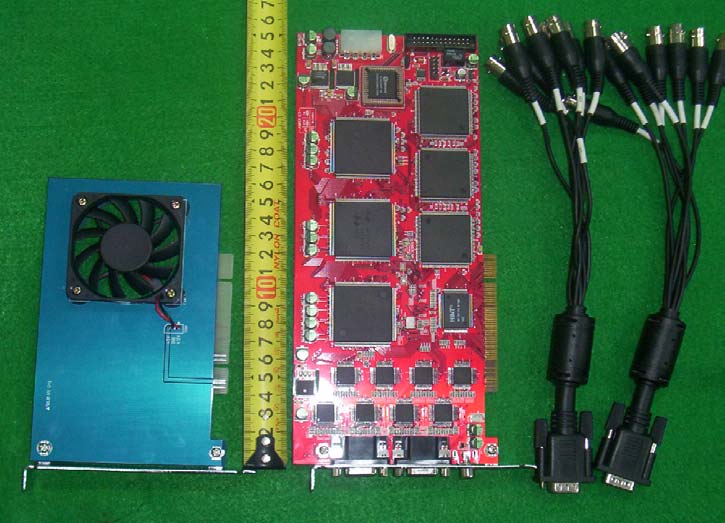

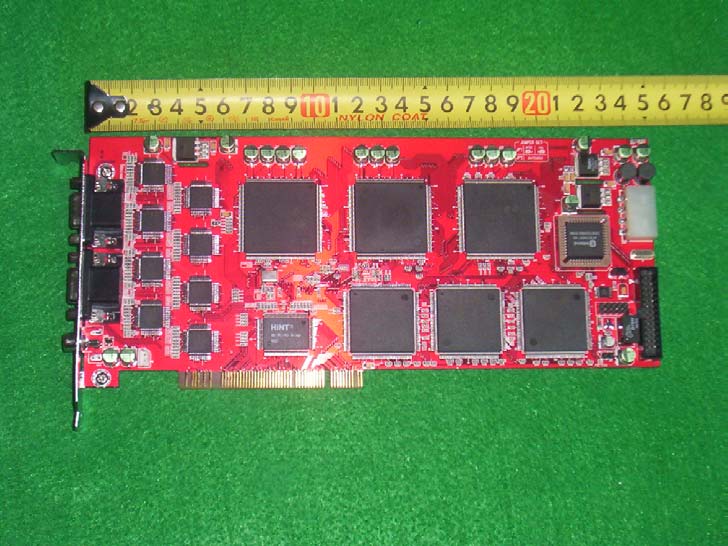

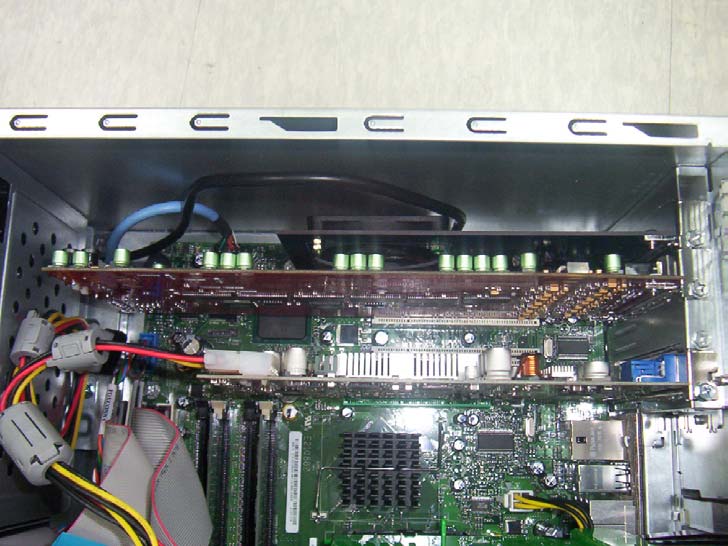

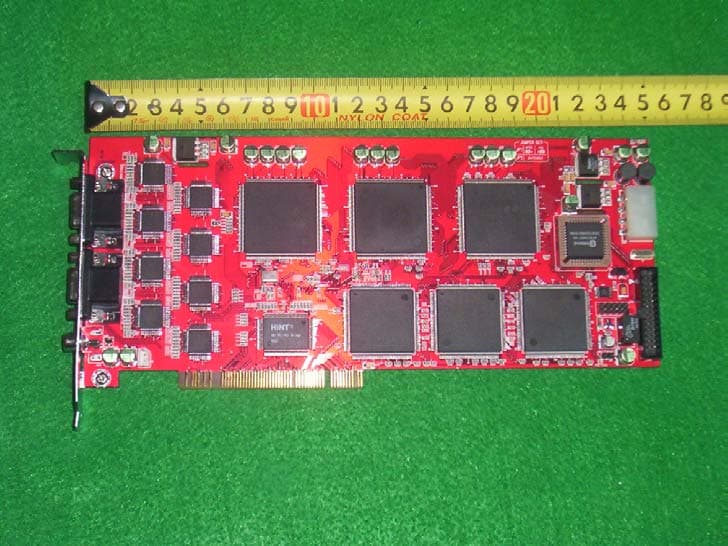

Page: 1 of 4 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 7. Attachments 7.2 Photograps of Set-up Connections between EUT and AE Cooling-Fan, DVR BOARD & BNC connectors Page: 2 of 4 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 Conducted emission test Radiated Emission Page: 3 of 4 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 7.3 Photograps of EUT Front view I/O ports Page: 4 of 4 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 Rear view Installed on PCI slot

ID Label/Location Info

Page: 1 of 1 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 7. Attachments 7.1 Sample Label & Location Product DVR BOARD Model No. DF-7500 Rating DC 5V & 3.3V Brand Name SEDO Co., Ltd. FCC ID. QDZDF-7500 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION MADE IN KOREA

Internal Photos

Parts List/Tune Up Info

PA RT S L I S T DATE : 2003-12-30 Copyright : SIN-SUNG SOO MODEL NAME : DF-7500 ITEM NO : Brand : SEDO No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 1 CAP 1608 104 C1,C2,C3,C4,C5,C 6,C7,C8,C9,C10,C11,C12,C13 280 C14,C15,C16,C17, C18,C19,C20,C21,C22,C23 C24,C25,C26,C27, C28,C29,C30,C31,C32,C33 C34,C35,C36,C37, C38,C39,C40,C41,C42,C43 C44,C45,C46,C47, C48,C49,C50,C51,C52,C53 C54,C55,C56,C57, C58,C61,C62,C69,C70,C71 C72,C73,C74,C75, C76,C78,C79,C80,C81,C85 C86,C87,C88,C89, C90,C91,C92,C93,C94,C95 C96,C97,C98,C 99,C100,C101,C102,C103,C104 C106,C107,C110,C111,C112,C113,C114,C115 C116,C117,C118,C119,C120,C121,C122,C123 C124,C125,C126, C127,C128,C129,C130,C131 C132,C133,C134, C135,C136,C137,C138,C139 C140,C141,C142, C143,C147,C148,C150,C151 C152,C153,C154, C155,C156,C157,C158,C159 C161,C162,C163, C164,C167,C168,C169,C170 C192,C200,C201, C205,C210,C211,C212,C213 C214,C215,C216, C220,C221,C223,C224,C226 C227,C228,C229, C231,C232,C233,C234,C235 C237,C238,C239, C240,C241,C242,C243,C244 No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 1 CAP 1608 104 C245,C246,C247, C248,C249,C250,C251,C252, C253,C254,C255, C256,C257,C258,C259,C260, C261,C262,C263,C 264,C266,C267,C272,C273, C274,C280,C283,C 285,C286,C287,C288,C289, C290,C291,C292,C 293,C294,C298,C299,C300, C301,C302,C303,C 304,C305,C306,C307,C308, C309,C310,C311, C312,C313,C314,C315,C316, C321,C322,C323,C 325,C326,C327,C328,C329, C330,C331,C332,C 333,C334,C336,C337,C338, C339,C340,C341,C 342,C343,C344,C345,C347, C348,C349,C350,C 351,C352,C353,C354,C355, C356,C357,C358,C 359,C360,C361,C363,C364, C365,C366,C367,C368 2 RES 1608 4.7K Ω R5,R7,R9,R11,R18,R 20,R23,R25,AR32,AR33, 50 R36,R38,R41,R43,R 67,R69,R74,R76,R78,R79, R80,R81,R90,R91,R 92,R93,R94,R95,R96,R97, R98,R99,R100,R 101,R102,R103,R104,R105, R106,R107,R108,R 109,R110,R111,R112,R113, R114,R115,R116,R140 3 RES 1608 75 Ω R1,R2,R3,R4,R13,R14, R15,R16,R31,R32,R34, 18 R35,R47, R 48,R54,R55,R126,R141 4 CAP CAN 10uF/6.3V CE1 1 5 CAP CAN 47uF/6.3V CE2 1 6 CAP CAN 220uF/6.3v CE3,CE4,CE5,CE6,CE7, CE8,CE9,CE10,CE12, 19 No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 6 CAP CAN 220uF/6.3v CE12,CE13,CE14, CE15, CE16,CE17,CE18,CE19, CE20,CE21,CE22 7 CON D-SUB 15 PIN 3 X 5 15PIN CON1,CON2 2 8 CON BOXHEADER HEADER13 X 2 2.54 PICH CON3 1 9 RCA JACK RCA GOLD 3 PIN CON4 1 10 CON HEADER 2 x 5 CON5 1 11 CON 5267 2A CON6 1 12 CAP 1608 30P C165,C166,C401, C402,C403,C404,C405,C406, 10 C407,C408 13 CAP 1608 10P C171,C318 2 14 CAP 1608 100P C172,C317 2 15 CAP 1608 180P C319,C173 2 16 CAP 1608 391 C369,C370,C371, C372,C373,C374,C375,C376, 32 C377,C378,C379,C 380,C381,C382,C383,C384, C385,C386,C387,C 388,C389,C390,C391,C392, C393,C394,C395, C396,C397,C398,C399,C400 17 DIODE 2012 1N4148 D1 1 18 JUMPER 3 PIN 2.45 PICH JP1 1 19 JUMPER 2 PIN CPU_RST JP2 1 20 CON CON4 J3 1 No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 21 LED 1608 RED RED LED1,LED6,LED7 3 22 LED 1608 GREEN GREEN LED2,LED3,LED4,LED5 4 23 BEAD 2012 600 Ω L1,L2,L3,L4,L5,L6,L7,L 8,L12,L13,L14,L15,L16, 25 L17,L18,L19,L20,L21, L22,L24,L25,L27,L28,L29, L30 24 BEAD 1608 120 Ω BK1608HS121 L9,L10,L11 3 25 COIL 2012 5.6 uH L23,L26 2 26 COIL 2012 1 uH L31,L32,L33,L34, L35,L36,L37,L38,L3 9,L40,L41, 16 L42,L43,L44,L45,L46 27 OSC 5X7 SMD 54 Mhz OSC1 1 28 TR SOT-23 C945Y Q2 1 30 RLY 1POLE DY5M RL1 1 29 RES 1608 0 Ω R123,R142,R143,R145,R 147,R148,R149,R150, 9 R151 31 RES 1608 390 Ω R6,R8,R19,R21,R37,R39,R68,R70 8 32 RES 1608 300 Ω R10,R12,R24,R26, R42,R44,R75,R77 8 33 RES 1608 2K Ω R117,R139 2 34 RES 1608 1.2K Ω R118,R138 2 35 RES 1608 10K Ω R119 1 36 RES 1608 100 Ω R120,R121,R122, R132,R134,R136 6 37 RES 1608 1K Ω R124,R152,R153,R154, R155,R156,R157,R158, 13 R159,R160,R161,R162,R163 38 RES 1608 20K Ω R125 1 No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 39 RES 1608 220 Ω R133,R135,R137 3 40 TANTAL 2012B 106/6.3V TC1,TC2,TC3,TC 4,TC5,TC6,TC7, TC8,TC9, 52 TC10TC11,TC12,TC 13,TC14,TC15,TC16,TC17, TC18,TC19,TC20,TC 22,TC23,TC24,TC26,TC28, TC29,TC30,TC31,TC 32,TC33,TC34,TC35,TC36, TC37,TC38,TC39,TC 40,TC41,TC42,TC43,TC44, TC45,TC46,TC47,TC 48,TC49,TC50,TC51,TC52, TC53,TC54,TC55 41 IC TQFP240 NVC1400 NEXT MULTIPLECER U1 1 42 IC TQFP240 NVC1401 NEXT MULTIPLECER U2,U5 2 43 IC TQFP48 NVP1000A NEXT DECODER U3,U4,U6,U7,U10,U11,U14,U15 8 44 IC SOP 50 KM416S1120D SAMSUNG MEMORY U8 1 45 IC SOP 54 K4S641632C SAMSUNG MEMORY U9,U12,U13,U16,U32 5 46 IC PLCC 44 78E58BP WINBOND MICOM U17 1 47 IC TSSOP 74HC574 U18 1 48 IC TSSOP 74HC245 U20,U19 2 49 IC TQFP100 LC4128V LATTICE CPLD U21,U22 2 50 IC SAA7146A PHILIPS PCI INTERFACE U23,U24,U25 3 51 IC TQFP HB1 HINT PCI TO PCI INTERFACE U26 1 52 REGUL SPX1587AT - 250150 SIPEX U29 1 No. DES TYPE PART BRAND INFOR AREF. NO. Q’TY 53 REGUL SPX1587AT - 330304 SIPEX U31,U38 2 54 IC SOP14 74HC14 TTL U33,U34 2 55 IC TSSOP14 74HC04 TTL U37,U35 2 56 X-TAL 24Mhz X1 1 57 DIODE SOT-23 1N5235 BAV99LT1 ZD1,ZD2,ZD3,ZD4,ZD5,ZD6,ZD7,ZD8,ZD9, 18 ZD10,ZD11,ZD12,ZD13,ZD14,ZD15,ZD16,ZD18 ZD19 58 ARRY SIREAL RES 0 Ω AR12,AR13,AR14,AR15,AR18,AR19,AR20, 16 AR21,AR22,AR23,AR26,AR27,AR28,AR29. AR30,AR31

Test Report

Page: 1 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 Test Report for FCC Part 15 Report number: STD-FCC–03035 Ty p e o f E U T: D V R BO A R D Model number: DF-7500 Applicant: SEDO Co., Ltd. Applied standards: FCC Part 15 subpart B (Class B) The above mentioned EUT had been tested by EMC Laboratory of Standard Engineering Company in order to confirm the compliance with the requirements of FCC rules and this test was executed in accordance with the measurement method specified in ANSI C63.4-2001 I hereby certify that the accuracy of test-data is true and correct with my best knowledge and belief. Also I prove this measurement was performed by qualified person, Date of tested: Jan.12,2004 Date of Issued Jan.13,2004 Te s t e d b y Approved by J.Y. Ahn/ Test Engineer Y.J. Lyu/ Manager Page: 2 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 Contents 1. General information 1.1 Product information 1.2 Client information 2. Information of EMC Laboratory 3. Procedure of measurement 3.1 Conducted emission 3.1.1 Configuration of measurement 3.1.2 Detector function selection and bandwidth 3.1.3 Frequency range to be scanned 3.1.4 Line impedance stabilization network (LISN) 3.2 Radiated emission 3.2.1 Configuration of measurement 3.2.2 Detector function selection and bandwidth 3.3 Method of calculation 4. Environment of measurement 4.1 Condition of environment 4.2 Measurement uncertainty 4.3 List of Test equipments 4.4 List of peripherals and cables 4.5 Configuration of EUT 5. Result of measurement 5.1 Conducted emission 5.1.1 Test data 5.1.2 Result 5.2 Radiated emission 5.2.1 Test data 5.2.2 Result 6. Data Sheet of Conducted Emission 7. Attachment 7.1 Sample Label & Location 7.2 Photographs of Set-up 7.3 Photographs of EUT 7.4 Block Diagram & Circuit 7.5 User’s Manual Page: 3 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 1. General Information 1.1 Product information Description of EUT : DVR BOARD Model number : DF-7500 Specification : Power Rating : DC +5V, +3.3V 2A IN/OUT ports : DB15-BNC conversion jack x 16 ch RCA Jack x 1 Applied Standard : FCC Part 15 subpart B (Class B) Test method : ANSI C63.4 - 2001 1.2 Client information Applicant : SEDO Co.,Ltd. Address : 64 -3, Sangdaewon-Dong, Jungwon-Gu Sungnam-Si, Kyunggi-Do, Korea Phone No. : +82-31-741-0303 Fax. No. : +82-31-748-0797 Contact person : NAMSEOG JO Manufacturer : SEDO Co.,Ltd. Address : 64 -3, Sangdaewon-Dong, Jungwon-Gu Sungnam-Si, Kyunggi-Do, Korea Phone No.: +82-31-741-0303 Fax. No.: +82-31-748-0797 Page: 4 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 2. Information of EMC Laboratory Name of test laboratory Standard Engineering Co. Ltd. Location 377-11 Sinjang-Ri, Eumam-Myeon, Seosan-Si Chungnam, Korea Phone No. +82-41-663-9436~7 Fax. No. +82-41-663-9434 FCC Filing Number : 284057 Environment of Laboratory This location can keep accuracy in measuring more than anywhere because surrounding noise ambient is low and silent excellently to be suitable in EMI's measuring. Map Page: 5 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 3. Procedure of measurement 3.1 Conducted emissions 3.1.1 Configuration of measurement This measurement executed in shield-room and EUT was tested on 0.8m height wooden table located on the floor with 0.1m distance from the reference ground plane. EUT's rear part had a distance from VCP(Vertical Conducted Plane) with 0.4m length and LISN placed on the grounded plane with 0.8m distance from EUT's side part . Excess power cord and cables fixed in bundle style of 30~40m length with non- inductive material, and power line was connected to power source through LISN to detect maximum EMI without external RFI from aux. instruments. For the measurement, the EUT was installed on PCI slot of PC (FCC class B) and supplied-software was used for normal operation of EUT,as a software driver. Two BNC input-ports were used for the measurement with two CCD cameras. Measuring equipments and EUT confirmed that warming-up was performed during enough time and calibration of antenna as well as calibration of measuring equipment also completed beforehand. This measurement was performed on condition of worst-case emission. 3.1.2 Detector function selection and bandwidth During conducted emission measurement, a radio noise meter that has a CISPR quasi- peak detector with 9 kHz IF bandwidth of 6 dB was utilized. 3.1.3 Frequency range to be scanned For conducted emissions measurement, frequency range of 150 kHz to 30 MHz included, was investigated. 3.1.4 Line impedance stabilization network (LISN) A LISN with characteristics that conform to the requirements of ANSI C63.4-2001 was used for the measurement of conducted power-line radio noise; (50 micro-henries / 50 ohms). Chassis and earth-points for grounding of the LISN were earth-grounded. Page: 6 of 15 . Report No.: STD-FCC-03035 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 3.2 Radiated Emissions 3.2.1 Configuration of measurement Preliminary measurement was performed in 3 meter semi-anechoic chamber to detect correct EMI frequency. For detecting the EMI frequency in semi-anechoic chamber, TRILOG antenna used …

Text truncated - open the document above for the full version.

Test Setup Photos

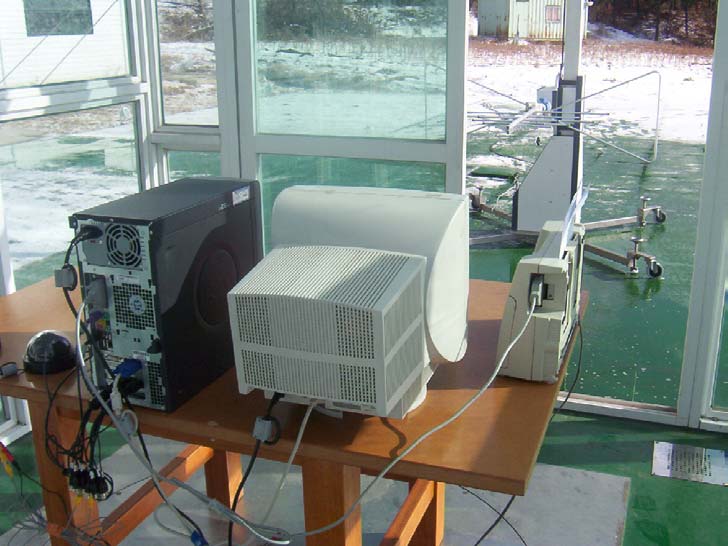

Page: 2 of 4 . Report No.: STD-FCC-03035 Attachment STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436 Fax :+82-41-663-9434 Conducted emission test Radiated Emission
