QE3W-01Bluetooth speaker

Contents 1 Safety Warnings Safety Warning Environment Protection Attention 2 Your Bluetooth Speaker Product Specifications 3 Operating Instructions 4 Technical Parameters 5 Remarks Bluetooth versions 6 Fault/remedy No Electric Power No Sound Bluetooth Connection Problem No Reaction 7 Environmet of speaker working Humiture demand Without fire and liquid 1. Safety Warnings Safety Instruction (1) Read the safety warning carefully and only use the product as described in these instructions to avoid accidental injury or damage. (2) Pls keep these instructions for future reference. (3) If you pass this product on to someone else, remember to give them these instructions. (4) Do not use this product near the water, it’s not water-proof. Pls use a clean cotton cloth to clean the machine. (5) Do not put the speaker near any heating device, such as Heat Sink, Cooks, or any heat producing appliance. (6) Only use the manufacturer equipped accesses or parts. (7) Do not make any modifications to the product. Only have repairs to the product carried out by a specialist workshop or the customer care service. Any damage in this products, need to repair before use again. (8) Never put this product under rain or wet situation. (9) Never put any dangerous source on this product, such as bottle with liquid, lighted candle. Warning (1)Do not open or remove any part of the speaker casing or insert any objects into openings in the casing. (2)Do not put the speaker over any other electronic device. (3)Leave the speaker from sunshine and high heating. Attention This product is made according to EU’s Radio interference requirements. Environment Protection This product is made by recirculated environmental friendly and superior material. The battery is under Europe Union’s 2006/66/EC, pls do not throw it with other household garbage. Pls learn more about the electrics and electronics’ recirculation at your local government. It is very important to deal the battery well to protect the environment and avoid the harm to human being. Never open the battery by yourself, unless under the professional worker’s help and instructions. 2 Your Bluetooth Speaker Product Specifications （1） Bluetooth LED （2） VOL+/- （3） Switch （4） Line in （5） Micro USB input Charging Port （6） Power LED 3 Technical Parameters (1) Input voltage： DC5V/500Ma~1A (2) Input audio：Line in 、Bluetooth (3) Output voltage：DC 5V/2A (4) Input sensitivity：580mv (5) Output power ：10%THD RMS=3W x 2 (6) Load：Speaker 4Ω 3W 4 Operating Instructions (1)VOL+/- Driving plate,the volume controller (2)Line in Audio input line with 3.5mm (3)Charging Charging through Micro USB and the supply power is DC5V/1A (4)Bluetooth Connect After the power on,the bluetooth device is default setting,the light is flashing before connect,after connected the light change blue . 5 Remarks the bluetooth versions is 2.1+EDR 6 Fault / Remedy (1)No Electric Power Pls make sure the speaker is connected to a USB port on your computer or the mains adapter. Pls make sure the power supplier by the Micro USB is DC5V/500mA～1A (2)No Sound Pls adjust the Volume to turn the voice up. (3)No Reaction Pls turn the Micro USB off and the re-open to try again. (4)Bluetooth Connection 1. Even though the Bluetooth Device and Speaker connected well, it still can not play music on the System.
This Speaker cannot play music by Bluetooth when the Line In Cable is there, which means AUX & Bluetooth cannot be operate at the same time, AUX First. 2. The speaker can not play music with the system
PLS check your signal source from the bluetooth or not. 3. After connection, the sound turns to worse.
PLS check the battery and if metal barriers resist or not. 4. The connection of bluetooth and the device not good
Pls get the speaker closer or remove all barriers. 5.Speaker cannot be connected.
The speaker did not support the system your Bluetooth device, your Bluetooth software is lower the standard it needed. 7Environmet of speaker working The temperature:0°C-40°C The relative humidity:5%-90% The storage temperature:-20°C-45°C The batterry is in inside, please don’t through your speaker into fire and the product need to away from all kinds of liquid,as drink、water、bathtub etc.it also should avoid be damped. 8. FCC warning statements： ：： ： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

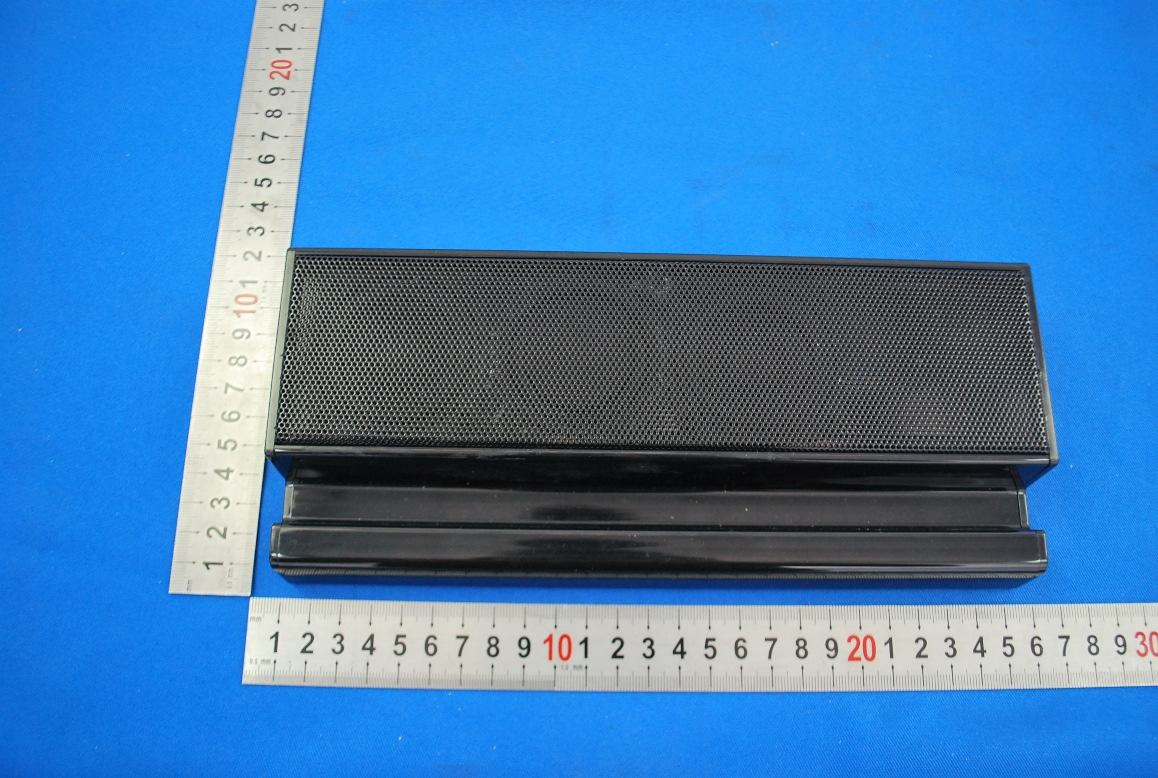

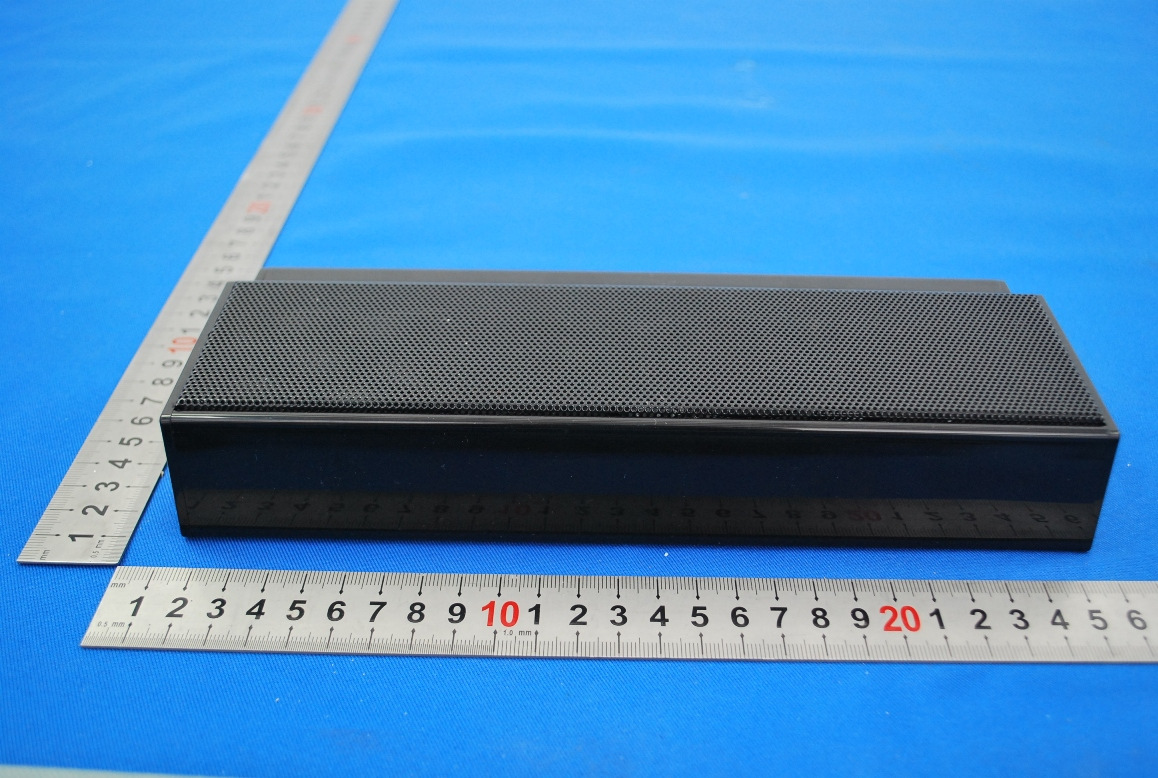

1 Photographs - EUT Constructional Details Test Model No.: W-01

Label content：

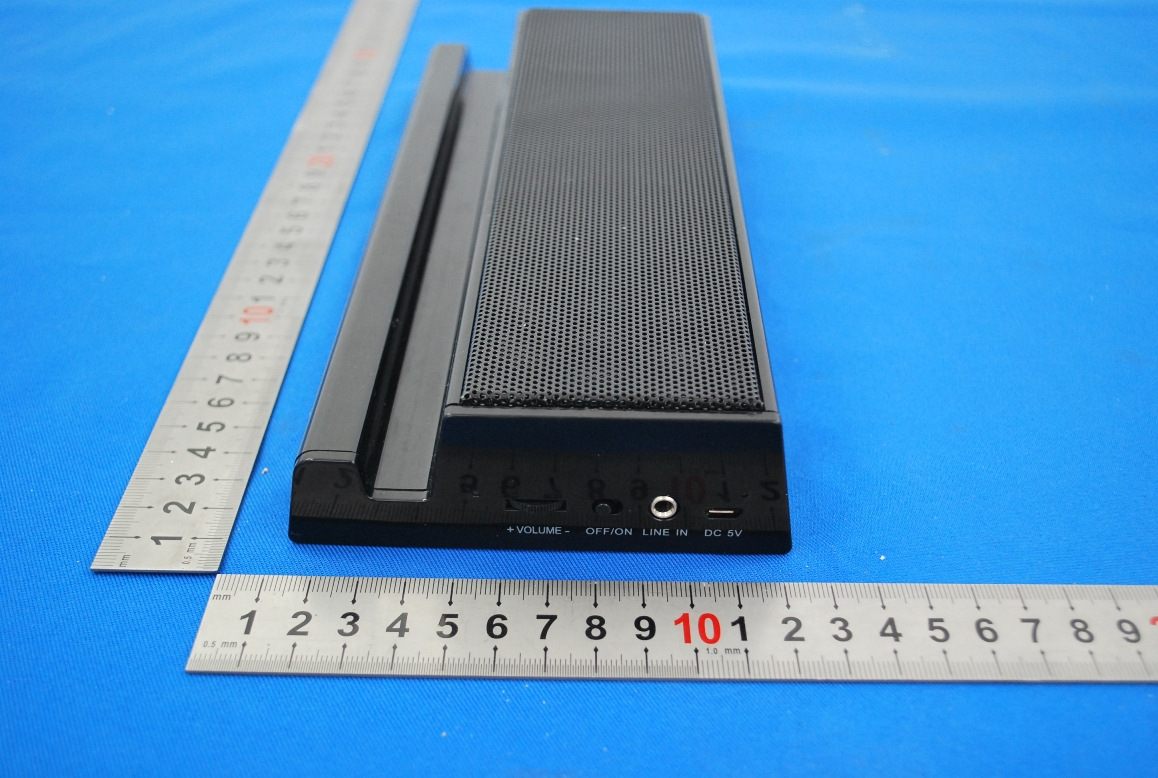

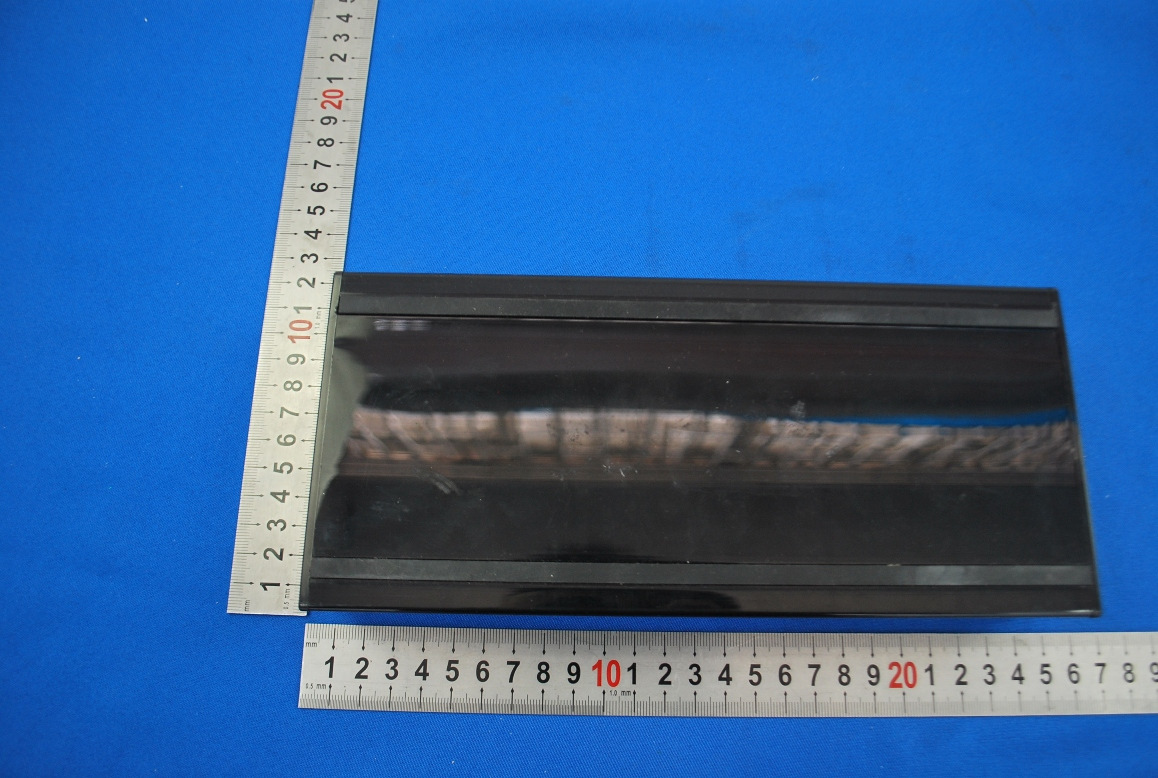

1 Photographs - EUT Constructional Details Test Model No.: W-01

SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM121200699001 Page: 1 of 75 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1212006990RF Applicant: GuangDong Sigelan Electronic L.M.T Manufacturer: GuangDong Sigelan Electronic L.M.T Factory: GuangDong Sigelan Electronic L.M.T Product Name: Bluetooth speaker Model No.(EUT): W-01 FCC ID: QE3W-01 Standards: 47 CFR Part 15, Subpart C (2011) Date of Receipt: 2013-01-04 Date of Test: 2013-01-09 to 2013-01-16 Date of Issue: 2013-01-24 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM121200699001 Page: 2 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (b) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Band Edge (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM121200699001 Page: 3 of 75 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issue…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test Model No.: W-01 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
