QE3W-04BLUETOOTH SPEAKER W-04

Contents 1 Safety Warnings Safety Warning Environment Protection Attention 2 Your Bluetooth Speaker Product Specifications Accessories The Main Features 3 Getting started Connecting the power Power On 4 Playing Music Play music by Bluetooth devices Play music by other devices 5 Charging Charging the rechargeable battery Charge your Phone or Tablet Attention 6 The speaker’s detail Dimension Electrical Characteristics 7 Fault/remedy No Electric Power No Sound Bluetooth Connection Problem No Reaction 1. Safety Warnings Safety Instruction 1. Read the safety warning carefully and only use the product as described in these instructions to avoid accidental injury or damage. 2. Pls keep these instructions for future reference. 3. If you pass this product on to someone else, remember to give them these instructions. 4. Do not use this product near the water, it’s not water-proof. Pls use a clean cotton cloth to clean the machine. 5. Do not put the speaker near any heating device, such as Heat Sink, Cooks, or any heat producing appliance. 6. Only use the manufacturer equipped accesses or parts. 7. Do not make any modifications to the product. Only have repairs to the product carried out by a specialist workshop or the customer care service. Any damage in this products, need to repair before use again. 8. Never put this product under rain or wet situation. 9. Never put any dangerous source on this product, such as bottle with liquid, lighted candle. 10. 1. Due to the used enclosure material, the bluetooth shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. 11. The adapter shall be installed near the equipment and shall be easily accessible. Warning  Do not open or remove any part of the speaker casing or insert any objects into openings in the casing.  Do not put the speaker over any other electronic device.  Leave the speaker from sunshine and high heating. Attention This product is made according to EU’s Radio interference requirements. Environment Protection This product is made by recirculated environmental friendly and superior material. The battery is under Europe Union’s 2006/66/EC, pls do not throw it with other household garbage. Pls learn more about the electrics and electronics’ recirculation at your local government. It is very important to deal the battery well to protect the environment and avoid the harm to human being. Never open the battery by yourself, unless under the professional worker’s help and instructions. 2 Your Bluetooth Speaker Product Specifications 1. You can listen audio from Bluetooth device and others by this product. 2. You can take this portable & wireless speaker to outdoor and charge your iPhone or another Android phone if needed. 3. The accessories in color box Accessories 1pc Micro USB Cable 1pc AUX-IN Cable 1pc black carrier bag User Manual Main Feature ○ 1.UP, Increase Volume when you more than 2secs, also in Volume within 2secs 2. Microphone ○ 3 NEXT, Decrease Volume when you more than 2secs, also in Volume within 2secs ○ 4. Phone-answer, Recalling ○ 5. Power ON/OFF Switch ○ 6Bluetooth Indicator Light(Connected in Blue, Unconnected in Orange). ○ 7. AUX Line In Jack AUX ○ 8. USB Charging Jack USB 9. Charging and Battery Volume Indicator Light(Green ≥50%,Red ≤50%) 10. Micro USB Power Supplied Jack Micro 3. Getting Started Connecting the Power This product need DC5V/1A power adaptor to supply power, it can also be used with the 2500mA Li Battery insider. Power On Turn the Power Switch to ON. 4. Playing Music Play Music by Bluetooth Device 1. Connect with the Bluetooth Device 2. If the software of your Bluetooth device is before V2.0, pls input password “0000” to connect speaker. 3. 2secs after the power on, you can hear the sound of “beep”, and then the Bluetooth Indicator light would flash in 1times per sec, it is under connecting. 4. Turn your Bluetooth on, sourcing until you see a speaker named “W-04”, connect it. 5. 2sounds “Beep” would be heard when these two connected. 6. After the power on, the speaker’s waiting for connecting time is 2mins, if no connecting operate, it would turns to sleep status, and it would connect by memory(if your Bluetooth device did not connect it before, it would not be sourced). 7. Pls press shortly to make it work, when it is in sleep. Connected with the Speaker 1. When the connection finished, the Bluetooth Indicator light would flash 3times per sec. 2. When you have a phone call, press to answer it directly, when the conversation is finished, press it to end. Press it for recalling the former caller. 3 Press 2secs to make the Bluetooth function On or Off. 4 Pressto turn the Bluetooth Function on, the LED light would flash after “Beep”, and it would connected with the former Bluetooth by memory. And you need to press it to make it under waiting. 5. Press shortly, it is UP. 6. Press shortly, it is NEXT. Play music from Other Devices You can use this Speaker to listen music by some other audio device. Insert the AUX Line in cable into the 3.5mm Jack and it would play music directly. 5. Charging Charging for the speaker 1. When the light in red, it means the volume is below 25%. 2. Use Micro USB Jack to charge the speaker, and the light would flash and when it is full the light in green 3. Charging Voltage 5V, current 500mA~1A 4. Charging time 6hrs, play time8hrs-10hrs Charge your Phone, tablet or other device 1. When you need this product to charge for your Phone, from the USB Jack and output 5V/1. It can charge the usual consumer electronics, such as iPhone, Android phone, iPad 2, Android Tablet, etc.. 2. The capacity of the Li Battery inside is 2500mA. 3. When you charging for the speaker, you cannot use it to charge for the outer device. It would damage the speaker badly and reduce the use time. 4. Pls let the device out of input cable or output cable when you do not use, especially for a long time. Notes: １. When you charging your Phone, micro USB is …

Text truncated - open the document above for the full version.

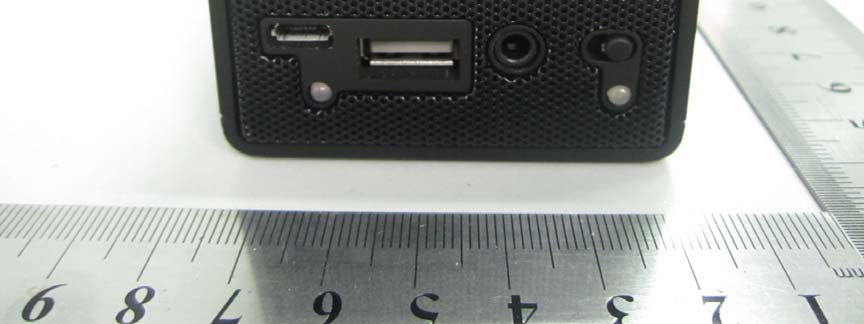

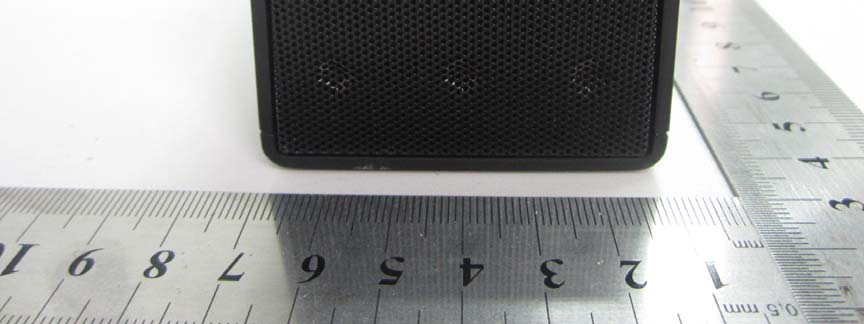

External Photos

FCC ID: QE3W-04 Label Size: 40*20mm Label Location FCC ID LABEL LOCATION

Internal Photos

Report No.: SZ12080043E02 Page 2 of 16 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 3 1.1 EUT Description ......................................................................................................................... 3 1.2 Test Standards and Results ........................................................................................................ 4 1.3 Facilities and Accreditations ...................................................................................................... 5 1.3.1 Facilities .................................................................................................................................... 5 1.3.2 Test Environment Conditions .................................................................................................... 5 1.3.3 Measurement Uncertainty ......................................................................................................... 5 2. TEST CONDITIONS SETTING............................................................................................... 6 2.1 Test Mode .................................................................................................................................... 6 2.2 Test Setup and Equipments List ................................................................................................ 7 2.2.1 Conducted Emission.................................................................................................................. 7 2.2.2 Radiated Emission ..................................................................................................................... 8 3. 47 CFR PART 15B REQUIREMENTS .................................................................................. 11 3.1 Conducted Emission ................................................................................................................. 11 3.1.1 Requirement ............................................................................................................................ 11 3.1.2 Test Description ...................................................................................................................... 11 3.1.3 Test Result ............................................................................................................................... 11 3.2 Radiated Emission .................................................................................................................... 13 3.2.1 Requirement ............................................................................................................................ 13 3.2.2 Test Description ...................................................................................................................... 13 3.2.3 Test Result ............................................................................................................................... 13 Change History Issue Date Reason for change 1.0 October 8, 2012 First edition Report No.: SZ12080043E02 Page 3 of 16 1. GENERAL INFORMATION 1.1 EUT Description EUT Type ........................Bluetooth Speaker W-04 Serial No. ........................(n.a., marked #1 by test site) Hardware Version .......... .V2.1 Software Version ............. Applicant ......................... Manufacturer .................. . V2.1 Guangdong Sigelan Electronic Limited. No. 21, Nanxing Three Road, Nanfang Industrial park, Beizha, Humen, Dongguan, GD Guangdong Sigelan Electronic Limited No. 21, Nanxing Three Road, Nanfang Industrial park, Beizha, Humen, Dongguan, GD Modulation Type ............ .FHSS Power Supply ................. .Battery Brand Name: N/A Model No.: N/A Serial No.: (n.a. marked #1 by test site) Capacitance: 2500mAh Rated Voltage: 3.7V Ancillary Equipment 1 ... .USB Power Cable Ancillary Equipment 2 ... .Audio Cable NOTE: 1. There are six models for the EUT: W-04, W-04-2, US-85, US-86, iMx-08CH and iMx-08, they have the same hardware, software, Bluetooth module, feature and structure, the only difference is the classification, so we only test the model W-04 as the EUT in this report. 2. The EUT is a Bluetooth Speaker, it’s a small portable music player, speaker and amplifier. It supports ISM 2.4GHz Bluetooth band which was tested in this report. The EUT is equipped with a micro-USB port, an USB port for charging to other device and an aux in port for audio input. 3. Please refer to ANNEX A for the photographs of the EUT. For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SZ12080043E02 Page 4 of 16 1.2 Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart B: No. Identity Document Title 1 47 CFR Part 15 (11-10-01 Edition) Radio Frequency Devices Test detailed items/section required by FCC and results are as below: No. Section Description Result 1 15.107 Conducted Emission PASS 2 15.109 Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in ANSI C63.4 2009. Report No.: SZ12080043E02 Page 5 of 16 1.3 Facilities and Accreditations 1.3.1 Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2 Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperatu…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CE 2．RE
