QE822029TX2.4G R/C Vehicle

Limited 30-day warranty Product is warranted by Interactive Toy Concepts Limited against manufacturing defects in material and workmanship under normal use for thirty (30) days from the date of purchase. Warranty is validated upon receipt of proof or purchase and confirmation of UPC code. INS-22029-130625-US Lithium Polymer Rechargeable Batteries must be recycled or disposed of properly. RC Cooler 6-PACK Batteries: The RC Cooler requires six AA Batteries. 1. Turn the RC Cooler upside down to locate the battery compartment door. 2. Ensure that the RC Cooler is turned off. (The On/Off switch for the RC Cooler is located on the bottom.) 3. Using a Philips screwdriver, open the battery compartment door and insert the 6 AA Batteries according to the proper polarity and replace the door. Note: Make sure to turn off the RC Cooler when not in use or the Batteries will drain. The Controller will turn off on its own when not in use. Controller Battery: The controller requires one 9 Volt Battery. 1. Slide open the Battery Compartment Door at the back of the Controller. 2. Insert the 9V Battery according to the polarity shown, then replace the Battery Compartment Door. BATTERY REQUIREMENTS: Welcome to the RC Cooler 6-PACK. This full function Remote Control Cooler has been designed to work outdoors and indoors with its 4 sturdy underside wheels within an effective radio range of 60 feet (20 Meters). The RC Cooler operates on the 2.4GHz frequency, allowing up to 6 units to work in the same time and place. The RC Cooler holds up to six 12oz (355ml) ice cold cans or other drinks and is compact for easy storage and travel. The internal volume of the Cooler Bucket is 1.32 Gallons (5 Liters). The RC Cooler 6-PACK can carry a payload of up to 11 Lbs (5 Kilograms). One 9 Volt and six AA Batteries are required (not included) . DELIVER COLD DRINKS BY RADIO CONTROL! 1. Turn on the RC Cooler. The On/Off switch for the RC Cooler is located on the bottom. 2. Press and hold the Forward Button on the Controller for 3 seconds. This will sync the Controller to this particular RC Cooler. Note: Once the RC Cooler is synced with the Controller, the connection will be memorized until the Battery is removed from the Controller. Note: To sync up to 6 RC Cooler 6-PACKs in the same area and the same time, follow the above procedure one at a time. Ensure only one unsynced RC Cooler is turned on per one Controller during the syncing process. HOW TO SYNC THE CONTROLLER WITH THE RC COOLER 6-PACK: WARNING: The RC Cooler and Controller are not water resistant. Customers are advised to not submerge the RC Cooler in water as this will cause damage to the mechanical driving base of the RC Cooler or to the Controller. Only the Cooler Bucket can contain water or ice. IMPORTANT SAFETY INFORMATION The RC Cooler is a sophisticated model and should be treated as such. Please follow all safety precautions and assembly instructions listed in this manual and use common sense when operating the model. The RC Cooler is not waterproof. Keep out of rain and puddles. Do not submerge in water as it will damage the RC Cooler. Basic Safety: Do not modify the RC Cooler or Controller; this will void your warranty. Test your RC Cooler before every use and clean any debris from the wheel compartments. The RC Cooler is designed to be used indoor on carpet, wooden and laminate floors and outdoor on flat concrete, patios and pool decks. It is not designed to operate in sand, grass, snow or areas with small stones. The RC Cooler is designed for a maximum load capacity of 11 Lbs. (5 Kilograms). Overload may cause unexpected results or permanent damage IMPORTANT BATTERY INFORMATION Do not mix old and new batteries, different types of batteries, standard carbon zinc, or alkaline batteries of different capacities. Do not use rechargeable batteries. Ensure that the contact surfaces are clean and bright before installing new batteries. Please respect the correct polarity (-) or (+) when replacing batteries. Do not throw batteries into the fire. Replace all batteries of the same type/brand at the same time. The supply terminals are not to be short-circuited. Exhausted batteries must be removed from the toy. Batteries should be replaced by adults. Remove batteries if the toy is not going to be operated or store for a long time to prevent leakage or other damage. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are only to be charged under adult supervision. Rechargeable batteries are to be removed from the toy before being charged. Never leave a battery unattended while it is being charged. Never leave a battery unattended in the presence of children. For optimal performance, use alkaline batteries only. FCC NOTE This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or …

Text truncated - open the document above for the full version.

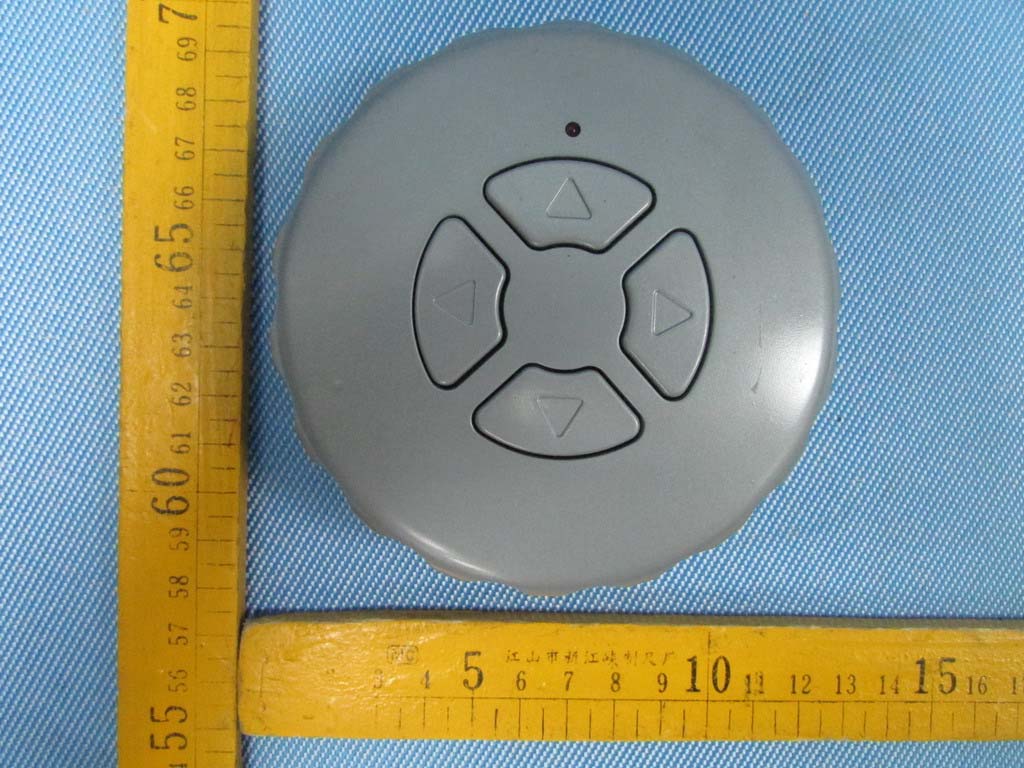

Report No.: WTS13S0503994E Page 29 of 35 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 13 Photographs - Constructional Details 13.1 EUT - Appearance View Report No.: WTS13S0503994E Page 30 of 35 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Report No.: WTS13S0503994E Page 31 of 35 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

Report No.: WTS13S0503994E Page 33 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 14.2 Label Location The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. ==END== FCC ID:QE822029TX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation.

Report No.: WTS13S0503994E Page 32 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 14 FCC ID Label 14.1 Label sample Label sample for model: 22029 FCC ID: QE822029TX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Report No.: WTS13S0503994E Page 32 of 35 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 13.2 EUT - Open View ANT Report No.: WTS13S0503994E Page 33 of 35 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 13.3 PCB - View

Report No.: WTS13S0503994E Page 1 of 36 TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : QE822029TX Applicant : Interactive Toy Concepts Limited Address : Unit 709,7/F., Tower 2,Cheung Sha Wan Plaza ,No.833 Cheung Sha Wan Road., Kowloon,Hong Kong Manufacturer : Interactive Toy Concepts (HK) Ltd. Address : Unit 709,7/F., Tower 2,Cheung Sha Wan Plaza ,No.833 Cheung Sha Wan Road., Kowloon,Hong Kong Equipment Under Test (EUT) : Product Name : 2.4G R/C Vehicle Model No. : 22029 Rules : FCC CFR47 Part 15 Section 15.249: 2012 Date of Test : June 18, 2013 Date of Issue : June 25, 2013 Test Result : PASS* Remark: * The sample described above has been tested to be in compliance with the requirements of the rules listed above. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West of Baima Road., Songgang Street, Bao’an District, Shenzhen, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Maikou.zhang / Project Engineer Philo Zhong / Manager Report No.: WTS13S0503994E Page 2 of 36 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Out-of-band Emissions 15.205 PASS 20dB Bandwidth 15:215(c) PASS Conducted Emissions 15.207 N/A Radiated Emission 15.205(a) 15.209 15.249(a) PASS Antenna Requirement 15.203 PASS Report No.: WTS13S0503994E Page 3 of 36 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ............................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................5 4.1 GENERAL DESCRIPTION OF E.U.T..............................................................................................................5 4.2 DETAILS OF E.U.T........................................................................................................................................5 4.3 FREQUENCY TABLE......................................................................................................................................5 4.4 TEST FACILITY..............................................................................................................................................6 4.5 TEST LOCATION............................................................................................................................................6 4.6 GENERAL CONDITION...................................................................................................................................6 4.6.1 Environmental condition of test site........................................................................................................6 4.6.2 Test Mode...................................................................................................................................................6 5 EQUIPMENT USED DURING TEST....................................................................................................................7 5.1 EQUIPMENTS LIST........................................................................................................................................7 5.2 MEASUREMENT UNCERTAINTY....................................................................................................................7 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................7 6 CONDUCTED EMISSION TEST...........................................................................................................................8 7 RADIATION EMISSION TEST..............................................................................................................................9 7.1 EUT OPERATION:........................................................................................................................................9 7.2 TEST SETUP...............................................................................................................................................10 7.3 SPECTRUM ANALYZER SETUP...................................................................................................................11 7.4 TEST PROCEDURE.....................................................................................................................................12 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..................................................................................12 7.6 RADIATED EMISSIONS TEST RESULT.........................................................................................................12 7.7 RADIATED EMISSION DATA........................................................................................................................13 8 20DB BANDWIDTH..............................................................................................................................................21 8.1 TEST PROCEDURE.....................................................................................................................................21 8.2 TEST RESULT......................................................................................…

Text truncated - open the document above for the full version.

Report No.: WTS13S0503994E Page 27 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12 Photographs of Testing 12.1 Radiation Emission From Below 30MHz 12.2 Radiation Emission From 30MHz-1GHz Report No.: WTS13S0503994E Page 28 of 33 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 12.3 Radiation Emission Above 1GHz
