QE844070TX27RC PLANE

Congratulations on the purchase of your new B-2® Spirit Bomber RC Plane from Interactive Toy Concepts! The B-2® Spirit is the world’s premier bomber. It is the only bomber capable of carrying large air-to-surface standoff weapons while under stealth configuration. Your RC version of the B-2 ® Spirit is designed for easy flight with a short learning curve! The B-2® Spirit RC plane is available in two frequencies, 27MHz and 49MHz. Before taking to the air with your new B-2® Spirit RC plane from Interactive Toy Concepts, please read through the instructions outlined in this manual. Before flying, you will need to charge your plane. Turn off your plane and the charger. Plug in the charger (with 4 C-size batteries) into the bottom of your plane and turn it on. Charging will start immediately. Let your plane charge until the green light on the charger goes out. It will take 30 to 60 minutes.To increase speed and altitude as desired, add more throttle with the left stick. To slow down and land, gently reduce the throttle input with the left stick. PLEASE DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE! INSTRUCTION MANUAL INSTRUCTION MANUAL AGE 12+ AGE 12+ The B-2® Spirit RC plane is a delicate machine. Before removing it from the packaging please read the instructions. Even experienced pilots should read the full contents of this manual carefully to get the most out of the flying experience. WARNING! WARNING! CHARGE YOUR B-2® SPIRIT CHARGE YOUR B-2® SPIRIT Once fully charged your plane will be ready to fly outdoors in a safe grassy area with very moderate conditions or a gentle breeze. Make sure your controller has the antenna screwed in and fully extended, and the 9-Volt battery correctly installed. Turn on your plane and the controller. Hold the plane firmly in one hand, and move the left stick all the way up and down to initialize the throttle control. Move the left stick (throttle) up and down again to make sure that both propellers are working. Once you are sure that the plane is working correctly, move the left stick up to the maximum position and gently toss the plane into the wind. Way to go! You are now flying! FLYING YOUR B-2® SPIRIT FLYING YOUR B-2® SPIRIT SPEED AND ALTITUDE CONTROL SPEED AND ALTITUDE CONTROL To turn left and right, move the right stick from sideways left or right. LEFT AND RIGHT TURNS LEFT AND RIGHT TURNS If you find that your plane is veering to the left or to the right without any steering inputs, you can compensate for this by rotating the trim knob to the left or right as needed. TRIMMING YOUR B-2® SPIRIT TRIMMING YOUR B-2® SPIRIT INS-44070-101215-US ® TM S p irit is the world’s p remier bombe r. I t i s t h e on ly o s t ou t o f th e fl y i ng exper i ence . ® COMPLETE PACKAGE CONTENTS AND COMPONENT BREAKDOWN: 1) 1 x B-2® Spirit plane2) 1 x Portable Charger3) 1 x Controller with detachable antenna 4) 1 x Instruction Manual5) 1 pair x Extra Propellers To prevent damage during shipping the B-2® Spirit is securely fastened in the package. Please ensure that all of the fastening locations are released before attempting to remove the B-2® Spirit. Be very careful when removing the B-2® Spirit to prevent damaging it. While it is a state of the art precision instrument, it is also a delicate device. UNPACKING YOUR B-2®SPIRIT RC PLANE UNPACKING YOUR B-2®SPIRIT RC PLANE ADDITIONAL TROUBLESHOOTING INFORMATION ADDITIONAL TROUBLESHOOTING INFORMATION If your particular issue is not covered by any of the preceding troubleshooting tips, you will find the most up-to-date solutions at www.interactivetoy.com. REPLACEMENT PARTS REPLACEMENT PARTS To order replacement parts directly from Interactive Toy Concepts, Ltd., visit www.interactivetoy.com ; click on the Customer Support Tab; click on Order Parts on-line. Do not modify your B-2® Spirit RC plane! Any changes or modifications to this product are strictly prohibited and will void pr oduct warranty. Do not attempt to charge the B-2® Spirit RC plane from any other source other than the charger provided to charge the lithium polymer battery or you will void the warranty! Any attempts at charging other products with the charger are strictly prohibited and will void the warranty! The lithium polymer battery is permanently built-in to the B-2® Spirit RC plane. Any attempts to tamper with or remove the lithium polymer battery inside the B-2® Spirit RC plane is str ictly prohibited and will void the warranty. Do not point the controller’s antenna directly at the plane! Use the B-2® Spirit RC plane outdoors only. Do not use in strong winds, use only in VERY mild conditions! Do not use in rain, snow or around heavy debris! Do not use near electrical lines or high voltage wires or other sources of electricity! Do not use around smoke or flames! Do not use around water and other liquids! Do not use in crowded areas! Do not use around air conditioning or air vents! Do not use around large obstacles! Do not use in very small outdoor spaces! Do be conscious of changes in your area! Keep spinning propellers away from eyes, hands, hair and loose clothing. Always turn off your B-2® Spirit RC plane, controller, and charger when not in use. Always remove the batteries from the controller and charger during storage. Always use new and fresh Alkaline Batteries in the controller and charger for optimal p erformance. Battery performance will greatly influence flight characteristics. Keep your B-2® Spirit RC plane instruction manual in a safe place for future reference. We reserve the right to make improvements to the design of the plane. Thus, your aircraft and charger may vary slightly from that depicted in the photographs in this manual or the packaging. Parental supervision required. IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION Limited 30-day WarrantyProduct is warranted by Interactive toy Concepts, Ltd. against manufacturing defects in material and workmanship under normal use for thirty (30) days from the date of purchase. Warranty i…

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Project name:Drawn By:Approved By: Rev:Page:Date: ZEGO ELECTRONIC COMPANY LIMITED V1.01/12010-12-6 #44070 B2 Spirit JunTony Power TX Block Diagram ANT Regulator Local Osc. Input MCU Encoder RF AmplifierRF Modulator Supply Block Diagram

Interactive Toy Concepts (HK) Ltd. FCC ID: QE8 44070TX27 POWER OF ATTORNEY Jan.13,2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Jan.14,2012. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Interactive Toy Concepts (HK) Ltd., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Interactive Toy Concepts (HK) Ltd. ------------------------------- General Manager

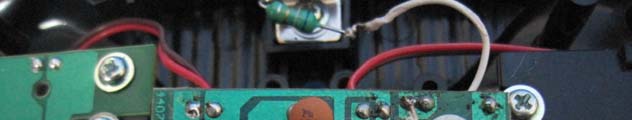

Interactive Toy Concepts (HK) Ltd. FCC ID: QE844070TX27 Ref No.: WT10125071-E-E-F Page 23 of 25 11 Photographs - Constructional Details 11.1 EUT – Front View 11.2 EUT – Back View

Interactive Toy Concepts (HK) Ltd. FCC ID: QE844070TX27 Ref No.: WT10125071-E-E-F Page 25 of 25 12 FCC ID Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/proposed FCC Label Location FCC ID: QE844070TX27 This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2) This device must accept any interference received,including interference that may cause undesired operation .

FCC ID Label Sample for Model: RC Plane FCC ID : QE844070TX27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

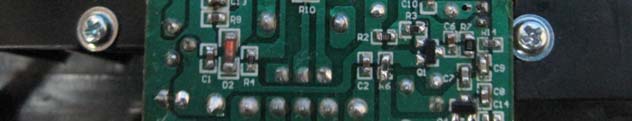

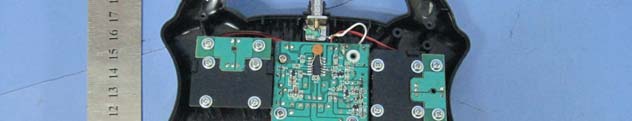

Interactive Toy Concepts (HK) Ltd. FCC ID: QE844070TX27 Ref No.: WT10125071-E-E-F Page 24 of 25 11.3 PCB – Front View 11.4 PCB – Back View

Circuit Description Q4 the 27.145MHZ crystal oscillator drives the base of Q5,the Final/buffer amplifier. Summed into the same base(Q5) is the modulation provided by U2. The output of Q5 has the matching network consisting of L3,T1,C11 and C12, that limit the harmonic content and effect the proper coupling of the antenna to the output stage, Antenna, Ground, and Power Source The antenna consists of a 65 cm long telescoping chrome over brass tubing. There is no external ground connection.The ground is only that of the printed circuit board. Electronic current is supplied by a 9 Volt primary storage cell.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Project name:Drawn By:Approved By: Rev:Page:Date: ZEGO ELECTRONIC COMPANY LIMITED V1.01/12010-12-6 #44070 B2 Spirit JunTony BT19V R82.2K R910K + C447U/16V 发射壮态 R410K R13470R R31K C1047P C8100P C9150P L11uH Z1 27.145M Q5C945Y Q4SC1623 L23.3uH 1 1 2 2 T18.5T C11100P C1247P L35.6uH ANT1ANTENNA VOUT 2 GND 1 VIN 3 U1ME5350 VCC C5104 R66.8K VSS Q3SC1623 C1104 C14NC VSS R1010k VSS VDD D25.6V VSS R51K Q2SC1623 C13104 PA0 1 PA1 14 PA2 13 PA3 12 PB0 10 PB1 9 PB2 8 PB3 7 PB4 6 PB5 5 PB6 3 PB7 2 VDD 4 VSS 11 U244070TX D3LED R11.5K C150.22UF VSS VSS 左右 R15100R Q1S8550D VSS R25.6K VSS C6NC VSS C7NC R712KR141K R123.9K D1IN5819 + C347U/16V C2104 VR10-10K VR20-10K VR30-10K 微调左右 主推油门 K1 27.145MHZ FCC

FCC TEST REPORT Ref No.: WT10125071-E-E-F Page 1 of 25 FCC ID : QE844070TX27 Applicant : Interactive Toy Concepts (HK) Ltd. Address of Applicant: Unit 709, 7/F., Tower 2, Cheung Sha Wan Plaza, No. 833 Cheung Sha Wan Road, Kowloon, Hong Kong Equipment Under Test (EUT) : Product description : RC Plane Model No. : RC Plane Standards : FCC 15 Subpart C Paragraph 15.227 Date of Test : Jan.13, 2011 Test Engineer : (Olic huang) Reviewed By : (Philo zhong) PREPARED BY: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building,West Baima Rd.,Songgang Street, Baoan District, Shenzhen 518105,China Tel: +86-755-27553488 Fax: +86-755-27553686 Interactive Toy Concepts (HK) Ltd. FCC ID: QE844070TX27 Ref No.: WT10125071-E-E-F Page 2 of 25 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS ..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................4 4 GENERAL INFORMATION..................................................................................................................................5 4.1 CLIENT INFORMATIO...............................................................................................................................................5 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 4.3 DETAILS OF E.U.T. .................................................................................................................................................5 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 4.6 TEST FACILITY........................................................................................................................................................6 4.7 TEST LOCATION......................................................................................................................................................6 5 EQUIPMENT USED DURING TEST ...................................................................................................................7 6 CONDUCTED EMISSION TEST ........................................................................................................................10 6.1 TEST EQUIPMENT..................................................................................................................................................10 6.2 TEST PROCEDURE.................................................................................................................................................10 6.3 CONDUCTED TEST SETUP.....................................................................................................................................11 6.4 EUT OPERATING CONDITION...............................................................................................................................11 6.5 CONDUCTED EMISSION LIMITS.............................................................................................................................12 6.6 CONDUCTED EMISSION TEST RESULT...................................................................................................................12 7 RADIATION EMISSION TEST...........................................................................................................................13 7.1 TEST EQUIPMENT..................................................................................................................................................13 7.2 MEASUREMENT UNCERTAINTY.............................................................................................................................13 7.3 TEST PROCEDURE.................................................................................................................................................14 7.4 RADIATED TEST SETUP.........................................................................................................................................14 7.5 SPECTRUM ANALYZER SETUP...............................................................................................................................15 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION............................................................................................16 7.7 SUMMARY OF TEST RESULTS................................................................................................................................16 7.8 EUT OPERATING CONDITION...............................................................................................................................17 7.9 RADIATED EMISSIONS LIMIT.................................................................................................................................17 7.10 RADIATED EMISSIONS TEST RESULT................................................................................................................18 7.11 RADIATED EMISSION TEST DATA.....................................................................................................................19 8 ANTENNA REQUIREMENT...............................................................................................................................20 9 OCCUPIED BANDWIDTH ..................................................................................................................................20 10 PHOTOGRAPHS OF…

Text truncated - open the document above for the full version.

Interactive Toy Concepts (HK) Ltd. FCC ID: QE844070TX27 Ref No.: WT10125071-E-E-F Page 22 of 25 10 Photographs of Testing Radiation Emission Test Setup View
