QEA-FLYER27TKG Flyer 27MHz Transmitter

C647 TX BLOCK DIAGRAM.sch-1 - Thu May 27 09:49:12 2004

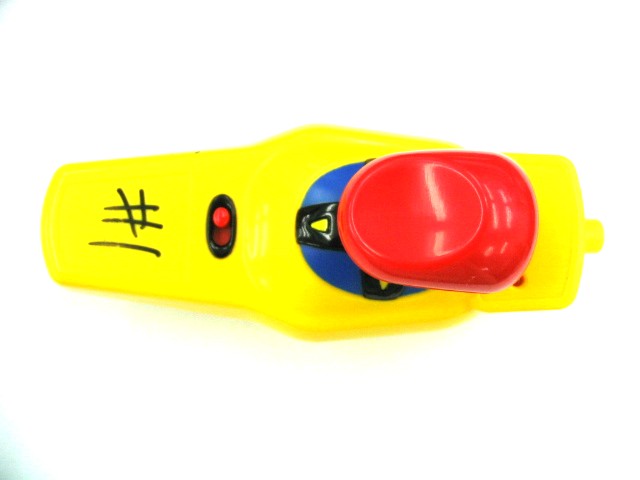

Operation Description for KG Flyer (27 MHz Transmitter) The KG Flyer (27 MHz) is powered by a 9V battery. There is a joystick in front of the transmitter. When the joystick is pushed up or down, it will transmit a radio frequency for the receiver to go forward or backward. When the joystick is turned left or right, it will transmit a radio frequency for the receiver to turn left or right. Referring to the transmitter circuit design, the circuit description is listed below: - Y1, Q1 and associate circuit act as Oscillator - Q3 and associate circuit act as amplifier. - U1 and associate circuit act as encoder. - Q2, Z1 and associate circuit act as voltage control.

C647(27M)TX FCC.sch-1 - Thu May 27 09:43:56 2004

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007941-1 Date : 2004 June 18 Client : Kid Galaxy Inc. One Sundial Ave, Suite 310 Manchester, NH 03103, U.S.A. Sample Description : One(1) submitted sample stated to be KG Flyer 27 MHz Transmitter of Model No. 10200. Rating : 9 V battery No. of sample(s) : Three(3) pieces *** Date Received : 2004 May 20. Test Period : 2004 May 21 ñ 2004 May 25. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 ñ Dec 2003 ANSI C63.4 ñ 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with the requirement of FCC Part 15 Subpart C. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : QEA-FLYER27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007941-1 Date : 2004 June 18 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 3 Description of the Line-conducted Test............................................................................................ 8 3.1 Test Procedure......................................................................................................................... 8 3.2 Test Result............................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data...................................................... 8 4 Photograph..................................................................................................................................... 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................... 9 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 9 5 Supplementary document............................................................................................................... 10 5.1 Bandwidth............................................................................................................................. 10 6 Appendices............................................................................................................................... 11 Page 2 of 11 FCC ID : QEA-FLYER27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007941-1 Date : 2004 June 18 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for KG Flyer operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by a 9 V battery. There is a joystick in front of the transmitter. When the forward / backward joystick is pushed up or down, it will transmit a radio frequency for the receiver to go forward or backward. When the left / right joystick is turned left or right, it will transmit a radio frequency for the receiver to turn left or right. The brief circuit description is saved with filename : OpDes.pdf and is listed as follows : - Y1, Q1 and associated circuit act as oscillator - Q3 and associated circuit act as amplifier - U1 and associated circuit act as encoder - Q2, Z1 and associated circuit act as voltage control 1.2 Related Submittal Grants This is a single application for certification of a transmitter. The receiver for this transmitter is exempted from the Part 15 technical rules per 15.101(b). Page 3 of 11 FCC ID : QEA-FLYER27T TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE007941-1 Date : 2004 June 18 1.3 Location of the test site Radiated emissions measurements are invest…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Report No.: AE007941-1 Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Report No.: AE007941-1 Duty Cycle 1 CMA Testing and Certification Laboratories Report No.: AE007941-1 Duty Cycle 2 Duty Cycle 3
